Isuzu WW
▶
TRUCKS
▶
NMR
▶
51183 - NMR71-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#51232) — 39 parça
◀

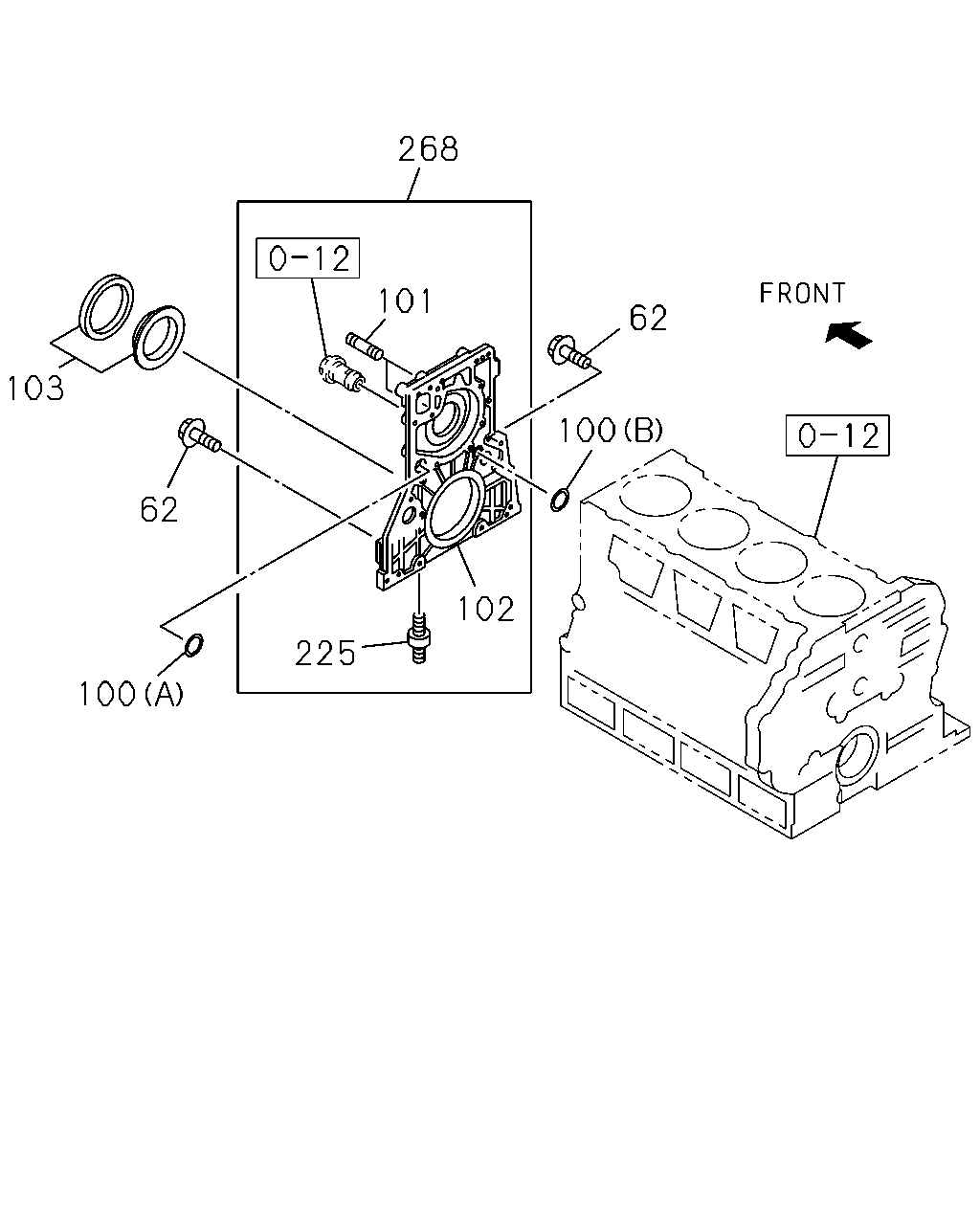

[020A] FIXING;COVER (18 parça)
[020A] FLYWHEEL HSG;SPACER AND OTHER PARTS (21 parça)
▶
268
101
62
103
100
62
102
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
00.206 BOLT; COVER
01.060 M8X35 FLANGE
0-28650-835-0
06
1
0810-
62
00.206 BOLT; COVER
01.097 M8X65 FLANGE
1-09044-072-1
02
1
0810-
62
00.206 BOLT; COVER
06.216 M8X25 FLANGE
0-28650-825-0
06
1
0810-
62
00.206 BOLT; COVER
03.403 M8X30 FLANGE
0-28650-830-0
01
1
0810-
100
00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1
8-97028-748-1
01
1
0810-
100
00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8
9-09561-318-0
01
1
0810-
101
01.073 STUD; WATER PUMP
01.428 M8X18 L=30
0-41010-818-0
01
1
0810-
101
01.073 STUD; WATER PUMP
00.206 M8X18 L=29
8-97028-541-0
01
1
0810-
102
00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>
8-98081-351-1
01
1
0810-1103
102
00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK>
8-98081-351-1
01
1
1104-
102
00.137 RETAINER; FRT
EXHAUST BRAKE<NF8> EXC. SAUDI ARABIA EQUIPMENT(GH3)
8-98039-932-1
01
1
0810-1103
102
00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK>
8-98039-932-2
01
1
1104-
103
00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137
8-97329-780-0
01
1
0810-
225
01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
0810-
268
00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>
8-98079-080-1
01
1
0810-1103
268
00.206 COVER; FRT
ANTI EROSION SPEC<7XK>
8-98079-080-1
01
1
1104-
268
00.206 COVER; FRT
EXHAUST BRAKE<NF8> EXC. SAUDI ARABIA EQUIPMENT(GH3)
8-98039-931-1
01
1
0810-1103
268
00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK>
8-98039-931-2
01
1
1104-
192
192
191
465
55
211
467
175
464
2
573
84
191
428
192
179
192
211
2
381
211
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
00.683 HOUSING; FLYWHEEL
8-97364-899-6
01
1
0810-
55
00.206 COVER; NOISE SHIELD
SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>
8-97215-618-0
01
1
0810-
84
00.206 BOLT; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 03.162 M12X20 FLANGE
0-28151-220-0
02
1
0811-
175
00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
0810-
179
00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X12 FLANGE
0-28050-812-0
01
1
0811-
191
00.669 STAY; FLYWHEEL HSG
8-97167-291-0
01
1
0810-0810
191
00.669 STAY; FLYWHEEL HSG
8-97167-292-0
01
1
0810-0810
192
00.206 BOLT; STAY TO HSG
09.181 (C) M10X45 FLANGE
0-28151-045-0
02
1
0810-0810
192
00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE
0-28151-200-0
01
1
0810-0810
192
00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE
0-28151-250-0
02
1
0810-0810
211
00.669 BOLT; HSG
00.029 (D) M10X40 FLANGE
0-28751-040-0
01
1
0810-
211
00.669 BOLT; HSG
(B) M8X65 W/PL WASHER
8-94388-781-0
02
1
0810-
211
00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
09
1
0810-1102
211
00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
09
1
1103-
211
00.669 BOLT; HSG
(A) M12X30 FLANGE
8-97135-419-0
01
1
0810-
381
00.685 SPACER; FLYWHEEL HSG
SAUDI ARABIA EQUIPMENT(GH3) 01.428
8-97224-867-2
01
1
0811-
428
00.206 BRACKET; SPACER
SAUDI ARABIA EQUIPMENT(GH3)
8-97215-647-0
01
1
0811-
464
00.686 PIPE; PCV,FLYWHEEL HSG
00.669
8-94373-246-3
01
1
0810-
465
00.686 PLATE; FLYWHEEL HSG
8-97363-824-1
01
1
0810-
467
00.686 BOLT; PLATE
06.321 M6X10
8-98030-649-0
06
1
0810-
573
00.206 CUP; SEALING
00.034 OD=19
8-94150-231-0
01
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
