1 |

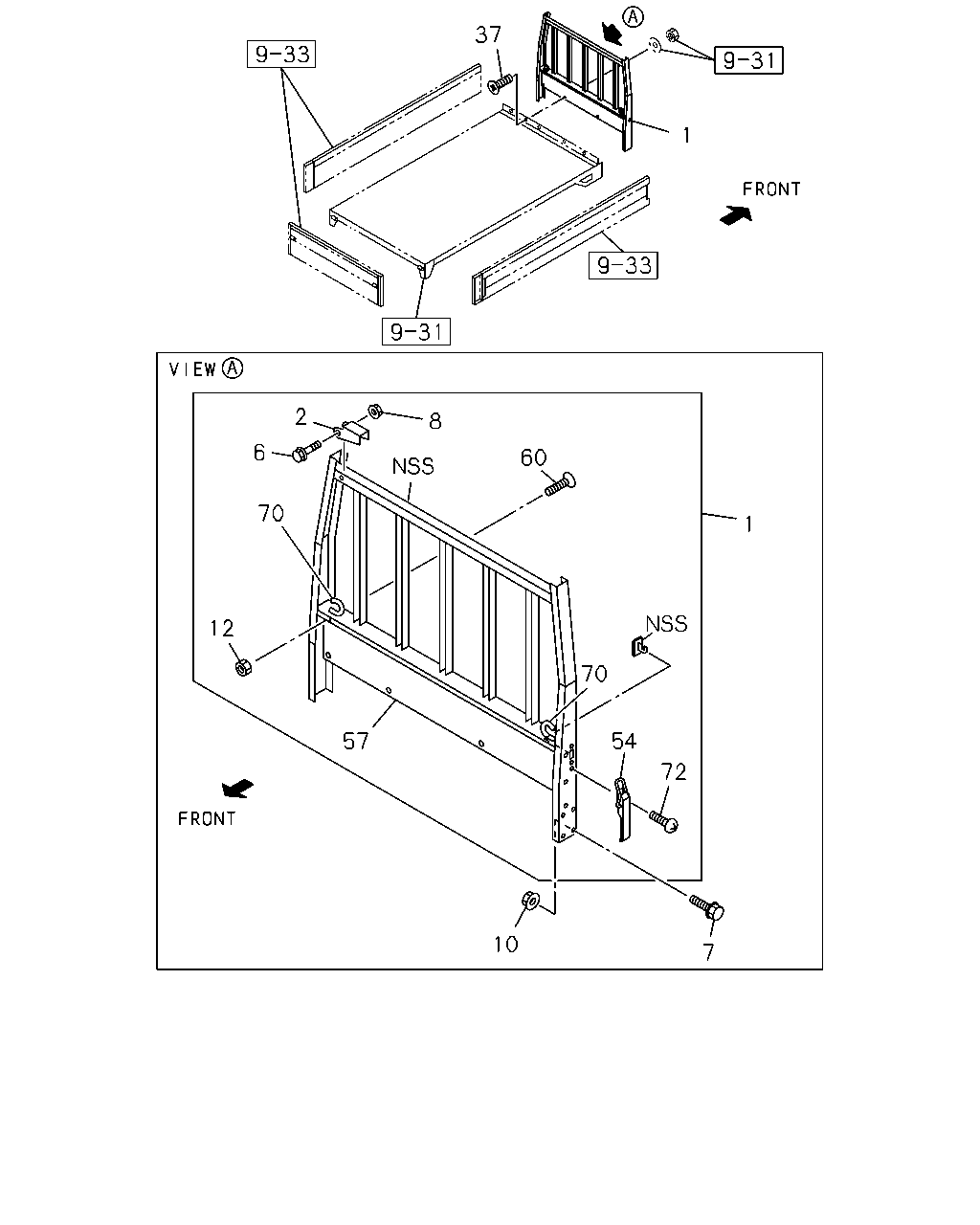

FRAME; GUARD,RR BODY
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
PABCO
|
8-98024-567-1 |
01 |
1 |
0804-0903 |
| |
1 |
FRAME; GUARD,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
PABCO
|
8-98024-567-2 |
01 |
1 |
0904- |
| |
2 |
STOPPER; GUARD FRAME
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
|
8-98045-225-0 |
02 |
1 |
0804-0903 |
| |
2 |
STOPPER; GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
|
8-98045-225-0 |
02 |
1 |
0904- |
| |
6 |
BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
|
8-98045-226-0 |
02 |
1 |
0804-0903 |
| |
6 |
BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
|
8-98045-226-0 |
02 |
1 |
0904- |
| |
7 |
BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY FLAT BED<RS6>
M12X25 FLANGE
|
0-28661-225-0 |
08 |
1 |
0804- |
| |
8 |
NUT; STOPPER BOLT
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
M10
|
8-98045-227-0 |
02 |
1 |
0804-0903 |
| |
8 |
NUT; STOPPER BOLT
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M10
|
8-98045-227-0 |
02 |
1 |
0904- |
| |
10 |
NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6>
M12 FLANGE
SOU
|
0-91180-212-0 |
08 |
1 |
0804- |
| |
12 |
NUT; GUARD FRAME
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
05 |
1 |
0804-0903 |
| |
12 |
NUT; GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
05 |
1 |
0904- |
| |
37 |
BOLT; GUARD FRAME
RR BODY FLAT BED<RS6>
SCREW
M8X25 PABCO
|
8-98030-412-0 |
05 |
1 |
0804- |
| |
54 |
HANDLE; LOCK,GATE,FRT
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
PABCO
|
8-98045-206-0 |
02 |
1 |
0804-0903 |
| |
54 |
HANDLE; LOCK,GATE,FRT
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
PABCO
|
8-98045-206-0 |
02 |
1 |
0904- |
| |
57 |
BOARD; HEADER
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
PABCO
|
8-98045-229-2 |
01 |
1 |
0804-0903 |
| |
57 |
BOARD; HEADER
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
PABCO
|
8-98045-229-2 |
01 |
1 |
0904- |
| |
60 |
SCREW; BOARD
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
M8X25 PABCO
|
8-98030-412-0 |
05 |
1 |
0804-0903 |
| |
60 |
SCREW; BOARD
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M8X25 PABCO
|
8-98030-412-0 |
05 |
1 |
0904- |
| |
70 |
HOOK; ROPE,GUARD FRAME
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
PABCO
|
5-87580-001-0 |
02 |
1 |
0804-0903 |
| |
70 |
HOOK; ROPE,GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
PABCO
|
5-87580-001-0 |
02 |
1 |
0904- |
| |
72 |
SCREW; HANDLE TO GUARD FRAME
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
M8X13 PABCO
|
8-98045-180-0 |
04 |
1 |
0804-0903 |
| |
72 |
SCREW; HANDLE TO GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M8X13 PABCO
|
8-98045-180-0 |
04 |
1 |
0904- |
