4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5122) — 95 parça

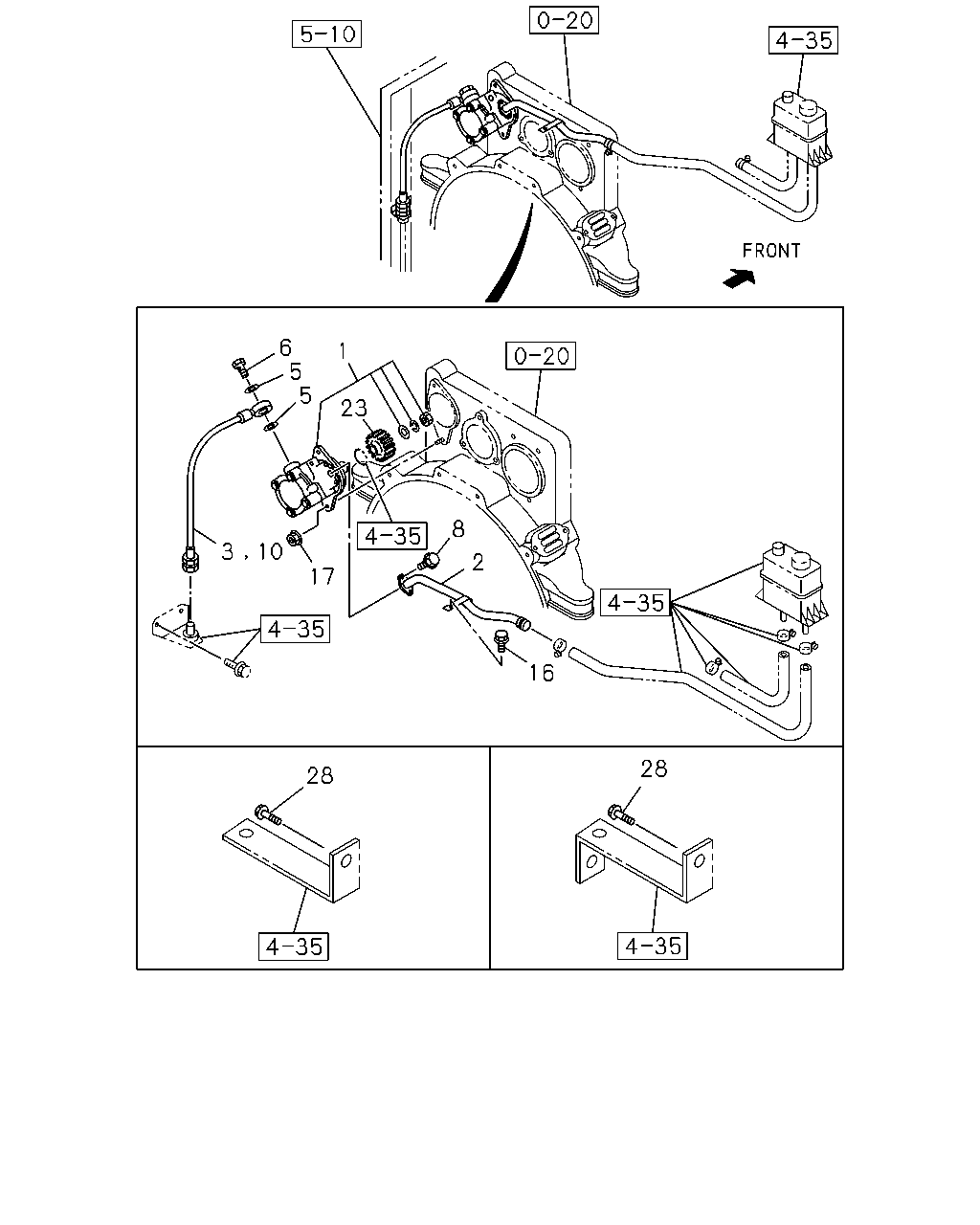

çizim 41572
6 5 5 1 23 8 10 3 2 17 16 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-505-2 01 1 9606-
2 PIPE ASM; OIL,SUCTION
10PE1S(60L) 		1-13313-573-0 01 1 9606-9905
2 PIPE ASM; OIL,SUCTION
10PE1N(61L) 		1-13313-573-0 01 1 9906-
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) L=510 		1-09364-893-0 01 1 9606-9801
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) ENGINE REAR PTO<SV1> L=510 		1-09364-893-0 01 1 9802-9810
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9811-9905
3 PIPE; OIL,CHARGE,P/S
10PE1N(61L) ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9906-
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-S(56L) 		1-13313-641-0 01 1 9606-9706
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-13313-641-0 01 1 9707-9905
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) 		1-13313-641-1 01 1 9906-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1S(60L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606-9706
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606-9706
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1S(60L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9707-9905
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9707-9905
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1N(61L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9906-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9906-
6 BOLT; EYE,P/S PIPE
10PE1S(60L) M18X40 		1-09675-153-0 01 1 9606-9801
6 BOLT; EYE,P/S PIPE
10PE1S(60L) ENGINE REAR PTO<SV1> M18X40 		1-09675-153-0 01 1 9802-9905
6 BOLT; EYE,P/S PIPE
10PE1N(61L) ENGINE REAR PTO<SV1> M18X40 		1-09675-153-0 01 1 9906-
6 BOLT; EYE,P/S PIPE
6WA1 TC-S(56L) M18X36 		1-09675-174-0 01 1 9606-9706
6 BOLT; EYE,P/S PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) M18X36 		1-09675-174-0 01 1 9707-9905
6 BOLT; EYE,P/S PIPE
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M18X36 		1-09675-174-0 01 1 9906-
8 BOLT; OIL PIPE
10PE1S(60L) M8X20 FLANGE 		0-28080-820-0 02 1 9606-9905
8 BOLT; OIL PIPE
10PE1N(61L) M8X20 FLANGE 		0-28080-820-0 02 1 9906-
8 BOLT; OIL PIPE
6WA1 TC-S(56L) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9706
8 BOLT; OIL PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE 		0-28080-816-0 02 1 9707-9905
8 BOLT; OIL PIPE
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X16 FLANGE 		0-28080-816-0 02 1 9906-
10 HOSE; FLEX,P/S OIL PUMP,INL
10PE1S(60L) EXC. ENGINE REAR PTO<SV1> L=510 		1-09364-893-0 01 1 9606-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
10PE1S(60L) EXC. ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9811-9904
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> EXC. ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9905-
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-S(56L),6WG1 TC-N(71L) L=430 		0-09671-430-0 01 1 9606-9905
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=430 		0-09671-430-0 01 1 9906-
16 BOLT; STAY,P/S OIL PUMP
10PE1S(60L) M8X14 FLANGE 		0-28080-814-0 01 1 9606-9905
16 BOLT; STAY,P/S OIL PUMP
10PE1N(61L) M8X14 FLANGE 		0-28080-814-0 01 1 9906-
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L) M6X35 FLANGE 		0-28680-635-0 02 1 9606-9706
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L),6WG1 TC-N(71L) M6X35 FLANGE 		0-28680-635-0 02 1 9707-9905
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M6X35 FLANGE 		0-28680-635-0 02 1 9906-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9606-
23 GEAR; OIL PUMP
10PE1S(60L) Z=20 		1-19581-011-2 01 1 9606-9905
23 GEAR; OIL PUMP
10PE1N(61L) Z=20 		1-19581-011-1 01 1 9906-
23 GEAR; OIL PUMP
6WA1 TC-S(56L) Z=20 		1-19581-023-2 01 1 9606-9706
23 GEAR; OIL PUMP
6WA1 TC-S(56L),6WG1 TC-N(71L) Z=20 		1-19581-023-2 01 1 9707-9905
23 GEAR; OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20 		1-19581-023-2 01 1 9906-9910
23 GEAR; OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20 		1-19581-038-0 01 1 9911-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9606-9606
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
28 BOLT; BRKT,FLEX HOSE,P/S
10PE1N(61L) M8X30 FLANGE 		0-28680-830-0 01 1 9906-

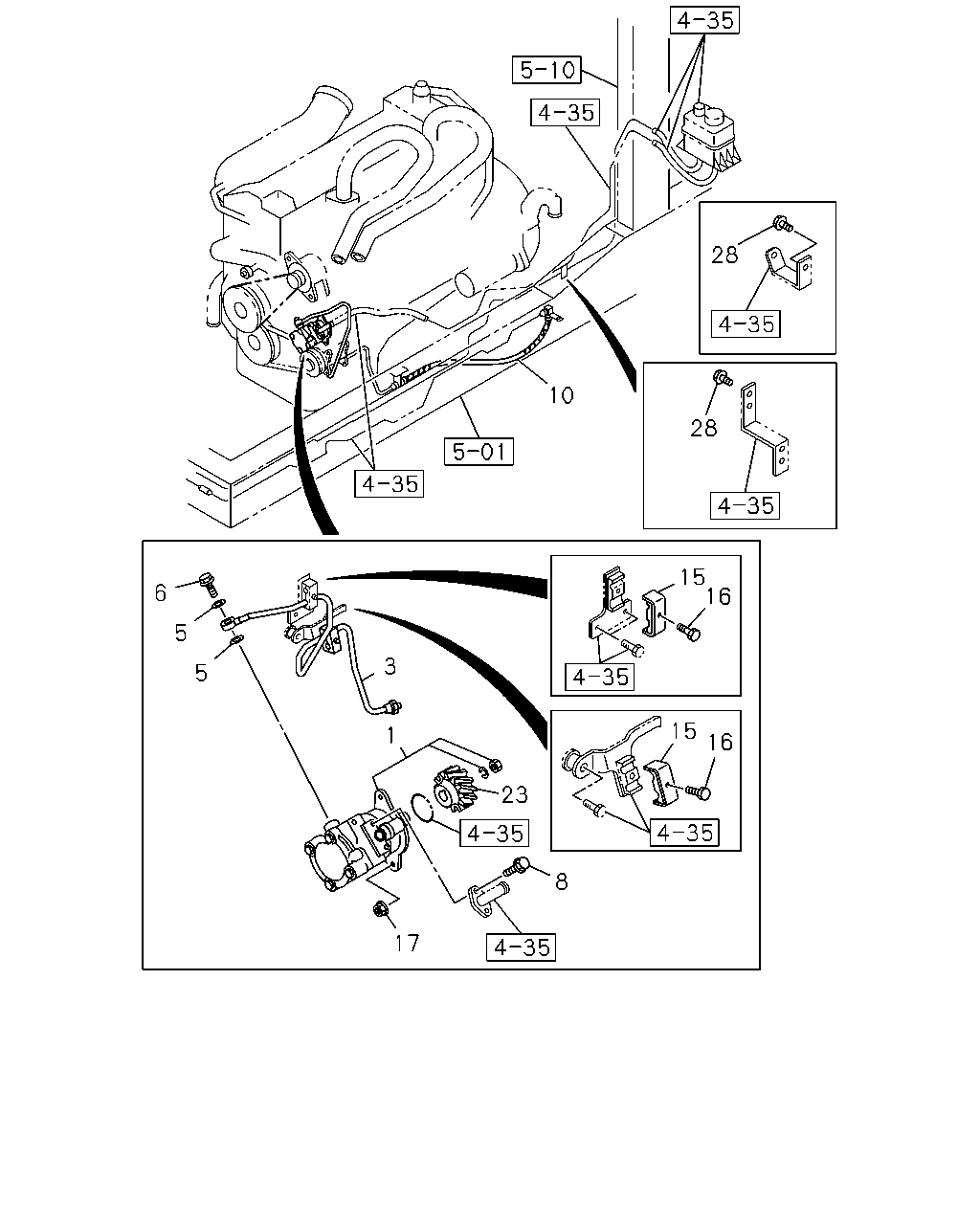

çizim 42199
28 10 28 15 16 6 5 3 5 15 1 16 23 8 17
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-505-2 01 1 9606-
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) L=510 		1-09364-893-0 01 1 9606-9801
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) ENGINE REAR PTO<SV1> L=510 		1-09364-893-0 01 1 9802-9810
3 PIPE; OIL,CHARGE,P/S
10PE1S(60L) ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9811-9905
3 PIPE; OIL,CHARGE,P/S
10PE1N(61L) ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9906-
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-S(56L) 		1-13313-641-0 01 1 9606-9706
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-13313-641-0 01 1 9707-9905
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) 		1-13313-641-1 01 1 9906-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1S(60L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606-9706
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606-9706
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1S(60L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9707-9905
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9707-9905
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PE1N(61L) ENGINE REAR PTO<SV1> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9906-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9906-
6 BOLT; EYE,P/S PIPE
10PE1S(60L) M18X40 		1-09675-153-0 01 1 9606-9801
6 BOLT; EYE,P/S PIPE
10PE1S(60L) ENGINE REAR PTO<SV1> M18X40 		1-09675-153-0 01 1 9802-9905
6 BOLT; EYE,P/S PIPE
10PE1N(61L) ENGINE REAR PTO<SV1> M18X40 		1-09675-153-0 01 1 9906-
6 BOLT; EYE,P/S PIPE
6WA1 TC-S(56L) M18X36 		1-09675-174-0 01 1 9606-9706
6 BOLT; EYE,P/S PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) M18X36 		1-09675-174-0 01 1 9707-9905
6 BOLT; EYE,P/S PIPE
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M18X36 		1-09675-174-0 01 1 9906-
8 BOLT; OIL PIPE
10PE1S(60L) M8X20 FLANGE 		0-28080-820-0 02 1 9606-9905
8 BOLT; OIL PIPE
10PE1N(61L) M8X20 FLANGE 		0-28080-820-0 02 1 9906-
8 BOLT; OIL PIPE
6WA1 TC-S(56L) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9706
8 BOLT; OIL PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE 		0-28080-816-0 02 1 9707-9905
8 BOLT; OIL PIPE
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X16 FLANGE 		0-28080-816-0 02 1 9906-
10 HOSE; FLEX,P/S OIL PUMP,INL
10PE1S(60L) EXC. ENGINE REAR PTO<SV1> L=510 		1-09364-893-0 01 1 9606-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
10PE1S(60L) EXC. ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9811-9904
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> EXC. ENGINE REAR PTO<SV1> L=510 		1-09365-044-0 01 1 9905-
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-S(56L),6WG1 TC-N(71L) L=430 		0-09671-430-0 01 1 9606-9905
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=430 		0-09671-430-0 01 1 9906-
15 CLIP; OIL PIPE SUCTION
6WA1 TC-S(56L) 		1-09701-195-1 02 1 9606-9706
15 CLIP; OIL PIPE SUCTION
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09701-195-1 02 1 9707-9905
15 CLIP; OIL PIPE SUCTION
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) 		1-09701-195-2 02 1 9906-
16 BOLT; STAY,P/S OIL PUMP
10PE1S(60L) M8X14 FLANGE 		0-28080-814-0 01 1 9606-9905
16 BOLT; STAY,P/S OIL PUMP
10PE1N(61L) M8X14 FLANGE 		0-28080-814-0 01 1 9906-
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L) M6X35 FLANGE 		0-28680-635-0 02 1 9606-9706
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L),6WG1 TC-N(71L) M6X35 FLANGE 		0-28680-635-0 02 1 9707-9905
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M6X35 FLANGE 		0-28680-635-0 02 1 9906-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9606-
23 GEAR; OIL PUMP
10PE1S(60L) Z=20 		1-19581-011-2 01 1 9606-9905
23 GEAR; OIL PUMP
10PE1N(61L) Z=20 		1-19581-011-1 01 1 9906-
23 GEAR; OIL PUMP
6WA1 TC-S(56L) Z=20 		1-19581-023-2 01 1 9606-9706
23 GEAR; OIL PUMP
6WA1 TC-S(56L),6WG1 TC-N(71L) Z=20 		1-19581-023-2 01 1 9707-9905
23 GEAR; OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20 		1-19581-023-2 01 1 9906-9910
23 GEAR; OIL PUMP
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20 		1-19581-038-0 01 1 9911-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9606-9606
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
28 BOLT; BRKT,FLEX HOSE,P/S
10PE1N(61L) M8X30 FLANGE 		0-28680-830-0 01 1 9906-
