◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#51219) — 78 parça

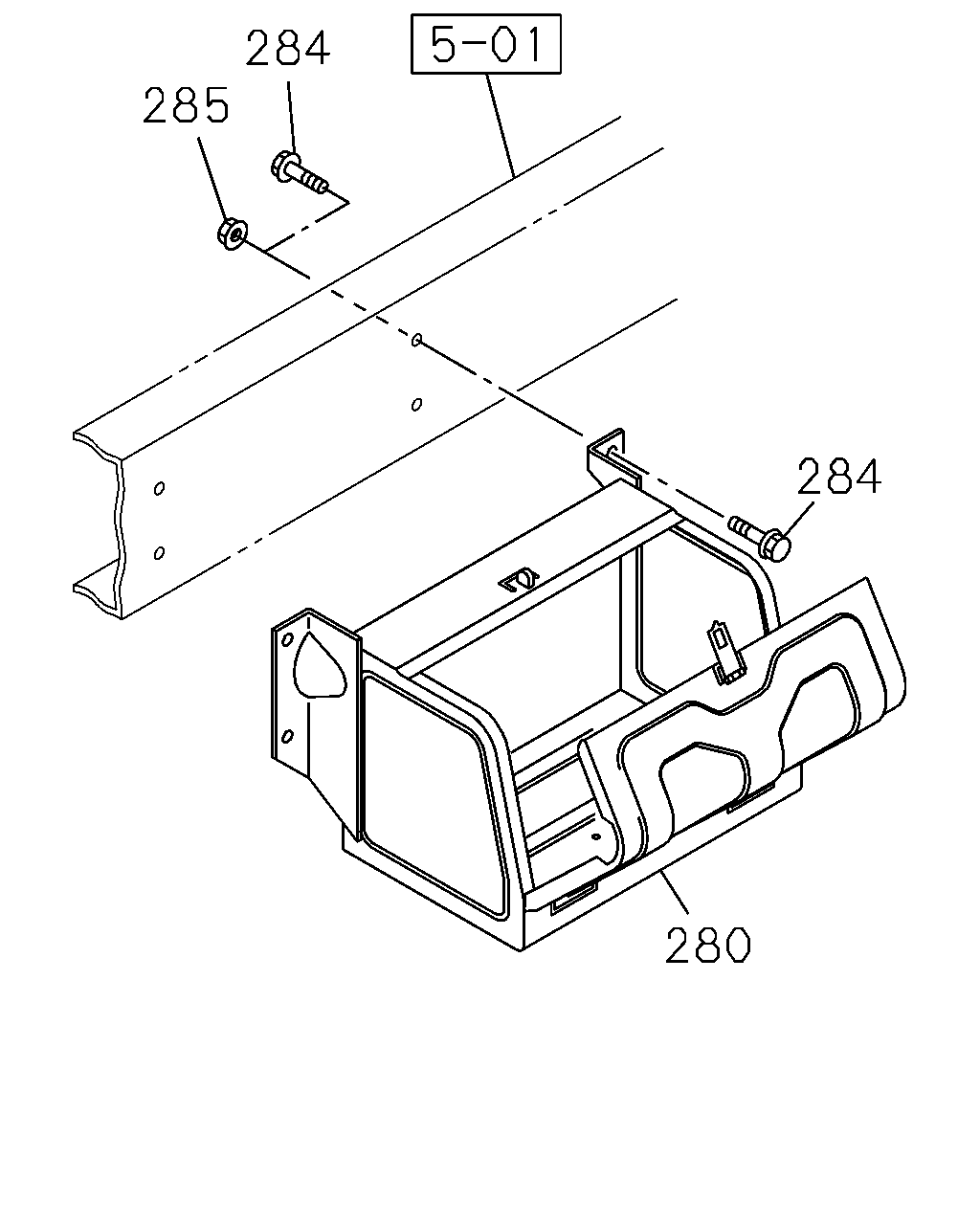

çizim 157612
284 285 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0804- ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ● ● ●
285 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
285 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●

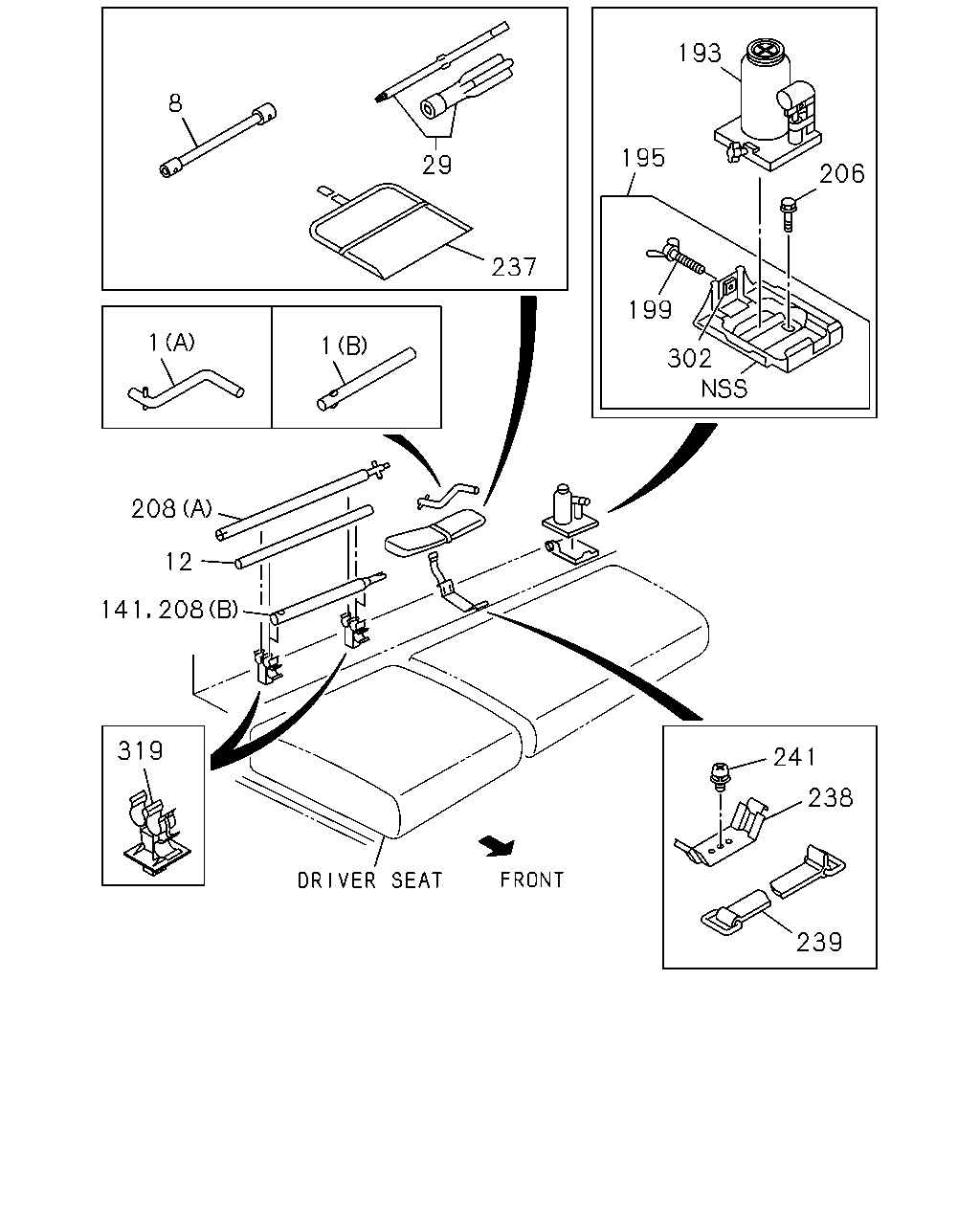

çizim 157613
193 8 195 29 206 237 199 1 1 302 208 12 319 241 238 239 141 208
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-97218-985-0 01 1 0804- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 0804- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 WRENCH; WHEEL
B=41X21 L=440 SOU 		1-85113-015-1 01 1 0804- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590 		8-97332-988-0 01 1 0804-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=590 		8-97332-988-0 01 1 0804-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=480 SOU 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 SOU 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=480 SOU 		8-98257-407-0 01 1 1408- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 SOU 		8-98257-407-0 01 1 1408- ●
29 DRIVER; SCREW
<+>,<-> L=160 SOU 		8-94242-798-1 01 1 0804- ● ● ●
141 HANDLE; WRENCH
L=580 		1-85515-005-1 01 1 0804-1108 ●
141 HANDLE; WRENCH
L=580 		8-98181-249-0 01 1 1109- ●
193 JACK ASM
FRT&RR 215/85R16 16X6K-128(CSC) 4TON 		8-98012-285-0 01 1 0804- ●
193 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 5TON 		8-97371-124-0 01 1 0804-0805 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0804-0805 ● ●
193 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 5TON 		8-98114-047-0 01 1 0806-0809 ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 0806-0809 ● ●
193 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-047-0 01 1 0810- ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 0810- ● ●
195 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 		8-97589-376-1 01 1 0806-0809 ●
195 BRACKET; JACK 8-97589-376-1 01 1 0806-0809 ●
195 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 0810- ●
195 BRACKET; JACK 8-97589-376-2 01 1 0810- ●
195 BRACKET; JACK 8-98033-737-1 01 1 0804-0805 ● ●
195 BRACKET; JACK
FRT&RR 215/85R16 16X6K-128(CSC) 		8-98033-737-2 01 1 0806- ●
195 BRACKET; JACK 8-94262-068-3 01 1 0804-0805 ●
195 BRACKET; JACK 8-94273-287-7 01 1 0806- ●
199 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0804-0805 ● ●
199 BOLT; JACK
FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING 		8-98005-537-0 01 1 0806- ●
199 BOLT; JACK
M8X50 WING SOU 		8-94279-136-0 01 1 0804-0805 ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
206 SCREW; OIL JACK BRKT
BOLT M6X16 		0-38050-616-0 01 1 0804- ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0804-1108 ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-97217-800-0 01 1 0804-1108 ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0804-0808 ●
208 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0804-0808 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0804-0808 ●
208 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1109- ●
237 BAG; TOOL
SOU 		8-97130-903-1 01 1 0804- ● ● ●
238 SUPPORT; TOOL BAG
SOU 		8-97994-977-0 01 1 0804- ● ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 0804- ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0804- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0804-0805 ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0806- ● ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 0804-0805 ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 0806- ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 0804- ● ● ●
çizim 157622
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK SOU 		5-76777-035-0 02 1 0804- ●
450 SEAL; HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0804- ●
