8-60 — HEATER UNIT; FRONT (#51212) — 81 parça

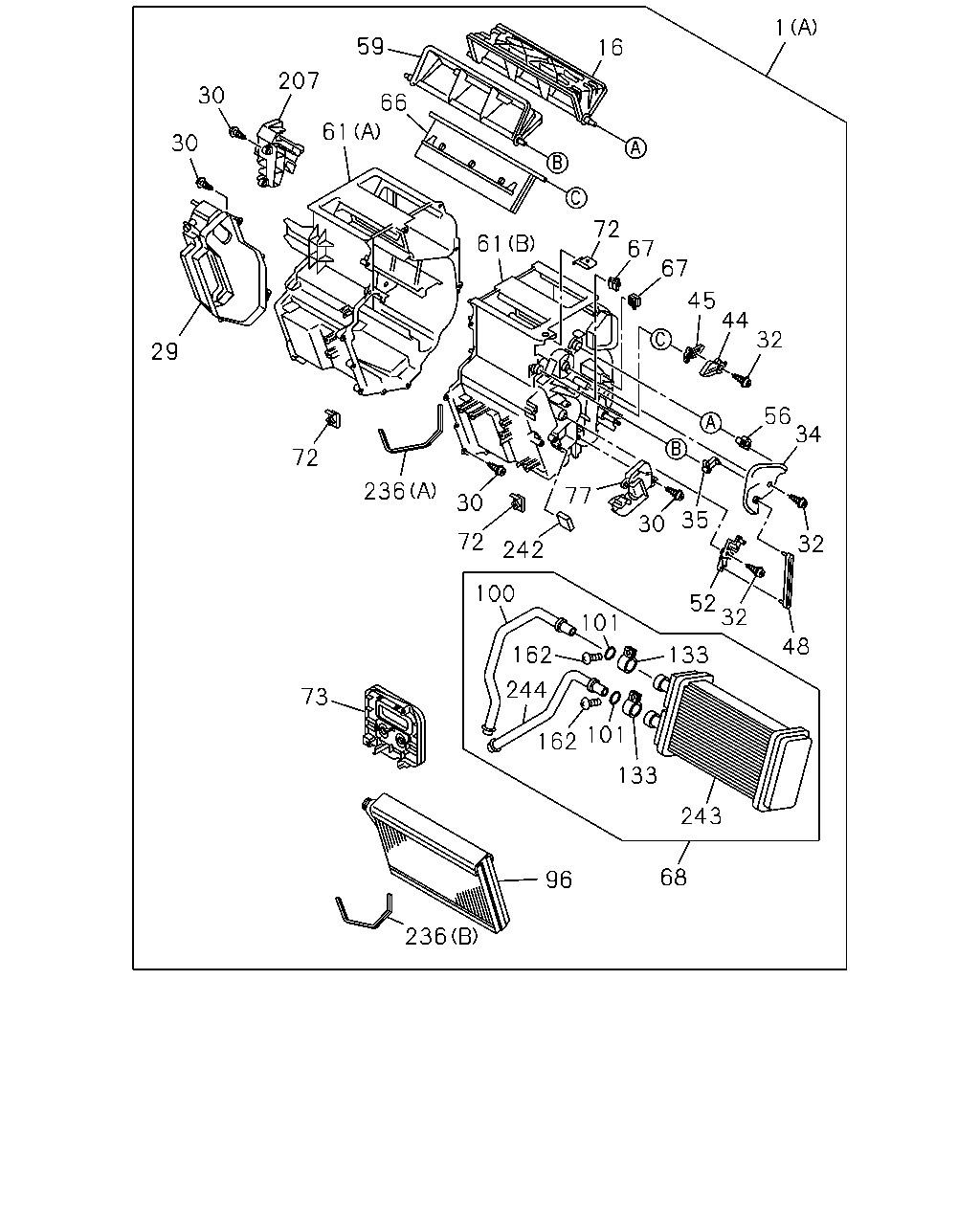

1 59 16 207 30 66 61 30 72 67 67 61 45 44 32 29 56 34 72 77 236 30 35 30 72 32 242 100 52 32 101 48 162 133 244 73 101 162 133 243 68 96 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98021-972-4	01	1	0804-	●	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0804-	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	0804-	●	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	0804-	●	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING	8-97957-708-0	27	1	0804-	●	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0804-	●	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0804-	●	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0804-	●	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	0804-	●	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0804-	●	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0804-	●	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0804-	●	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0804-	●	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	0804-	●	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	0804-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0804-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	0804-	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	0804-	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0804-	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	0804-	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	0804-	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	0804-	●	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0804-	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	0804-	●	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0804-	●	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	0804-	●	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	0804-	●	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	0804-	●	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	0804-	●	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	0804-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	0804-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	0804-	●	●	●
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	0804-	●	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	0804-	●	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	0804-	●	●	●

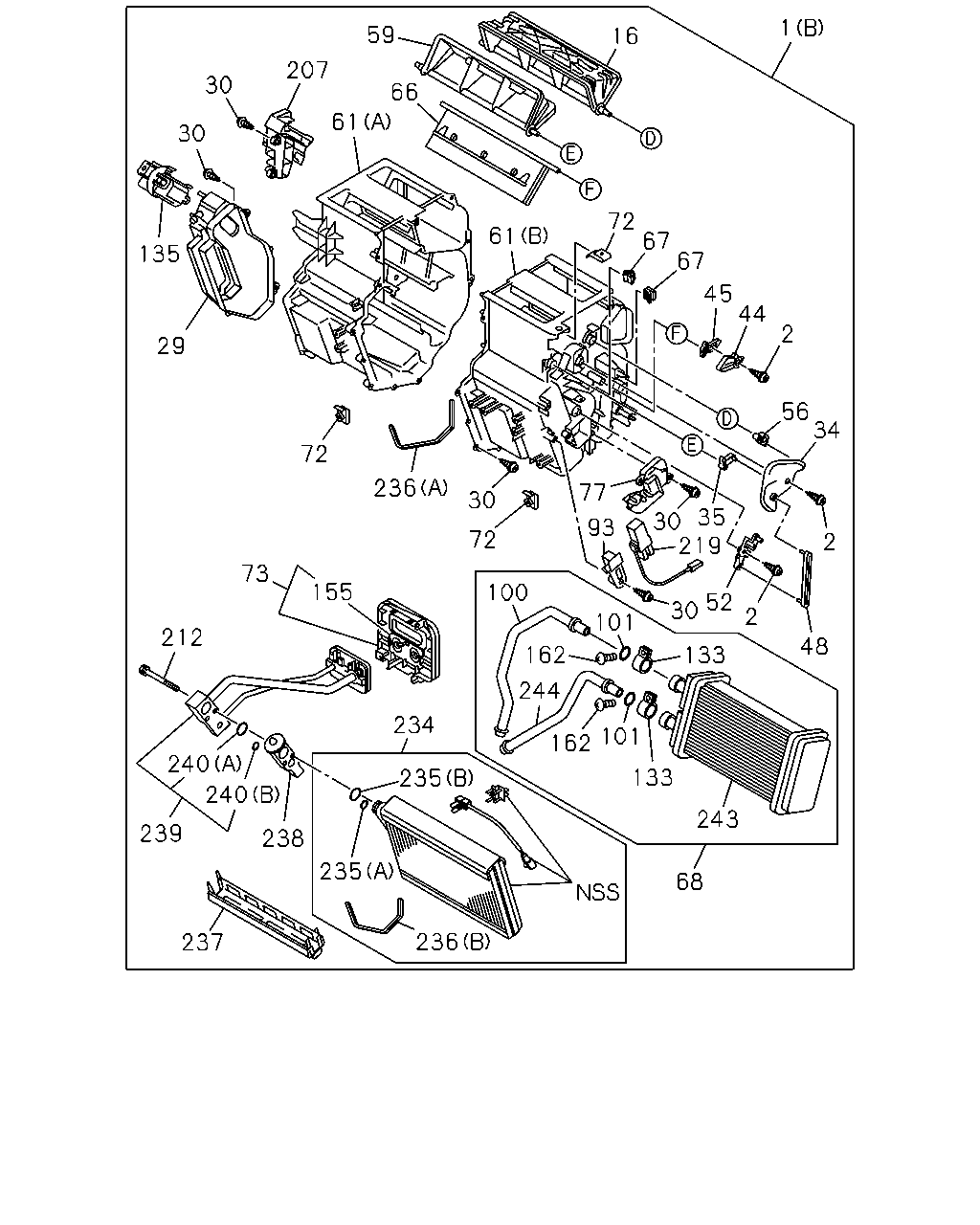

1 59 16 207 30 66 61 30 72 67 67 61 135 45 44 2 29 56 34 72 236 77 30 30 35 219 93 72 2 73 155 100 52 30 2 101 212 48 162 133 244 234 101 162 240 133 235 240 243 239 238 235 68 236 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98021-972-4	01	1	0804-	●	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0804-	●	●	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	0804-	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	0804-	●	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	0804-	●	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING	8-97957-708-0	27	1	0804-	●	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0804-	●	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0804-	●	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	0804-	●	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0804-	●	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0804-	●	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0804-	●	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0804-	●	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	0804-	●	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	0804-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0804-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	0804-	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	0804-	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0804-	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	0804-	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	0804-	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	0804-	●	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0804-	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	0804-	●	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	0804-	●	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	0804-	●	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	0804-	●	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	0804-	●	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	0804-	●	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	0804-	●	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	0804-	●	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	0804-	●	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	0804-	●	●	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	0804-	●	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	0804-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	01	1	0804-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	0804-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	0804-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	0804-	●	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	0804-	●	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	0804-	●	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-115-0	01	1	0804-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4	8-97095-906-0	01	1	0804-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5	8-97095-908-0	01	1	0804-	●	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	0804-	●	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	0804-	●	●	●
