Sayfa 4-35 - Isuzu EPC

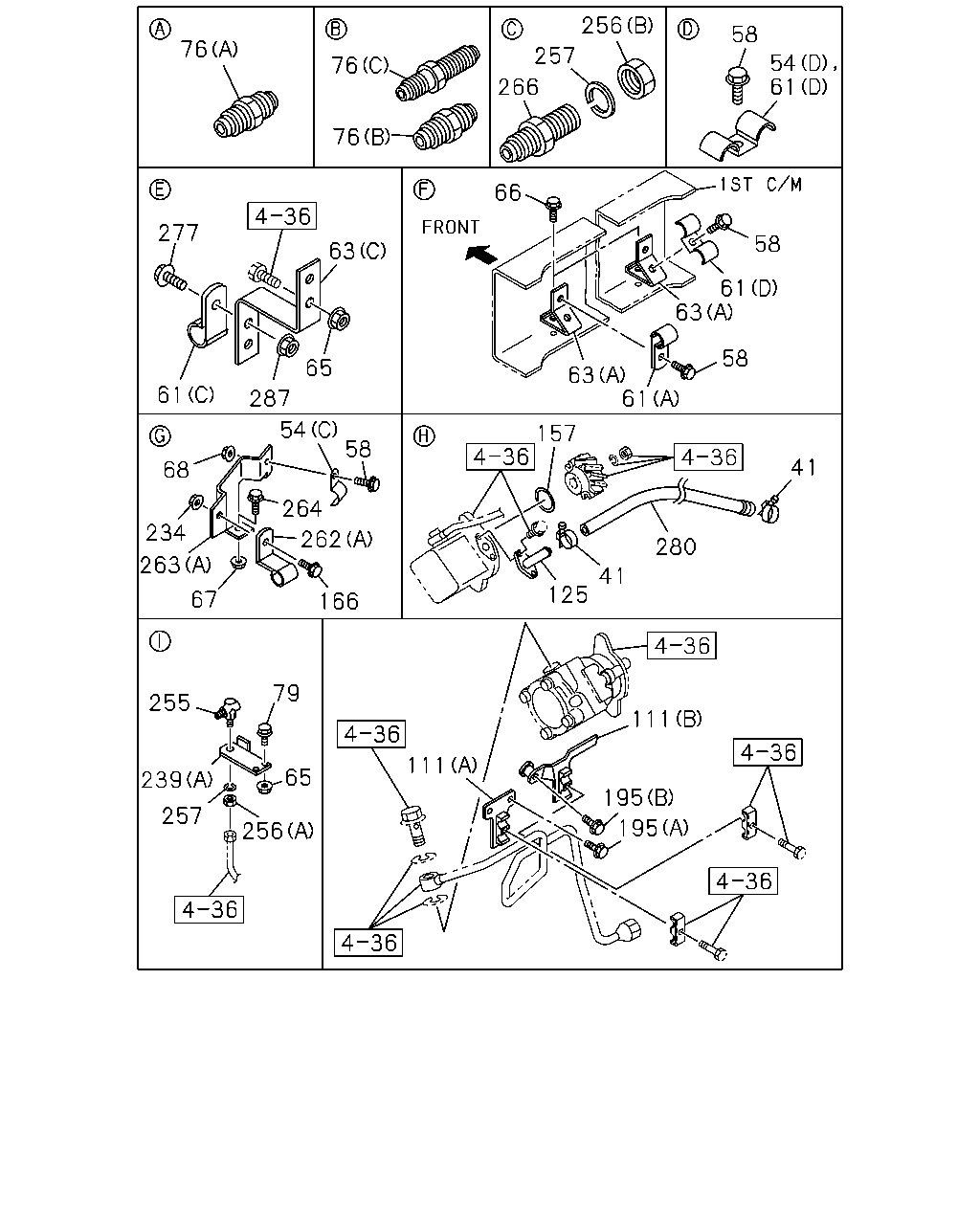

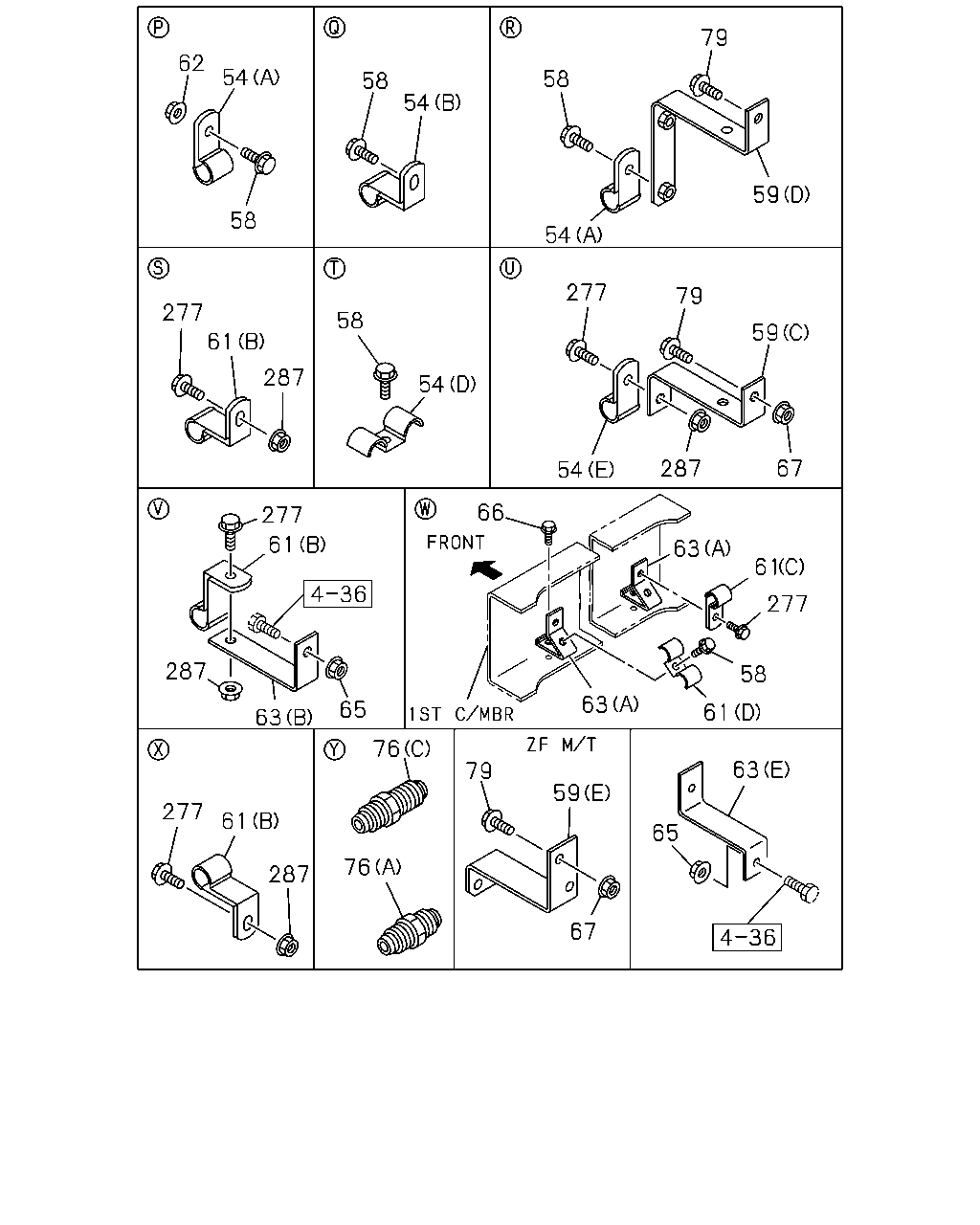

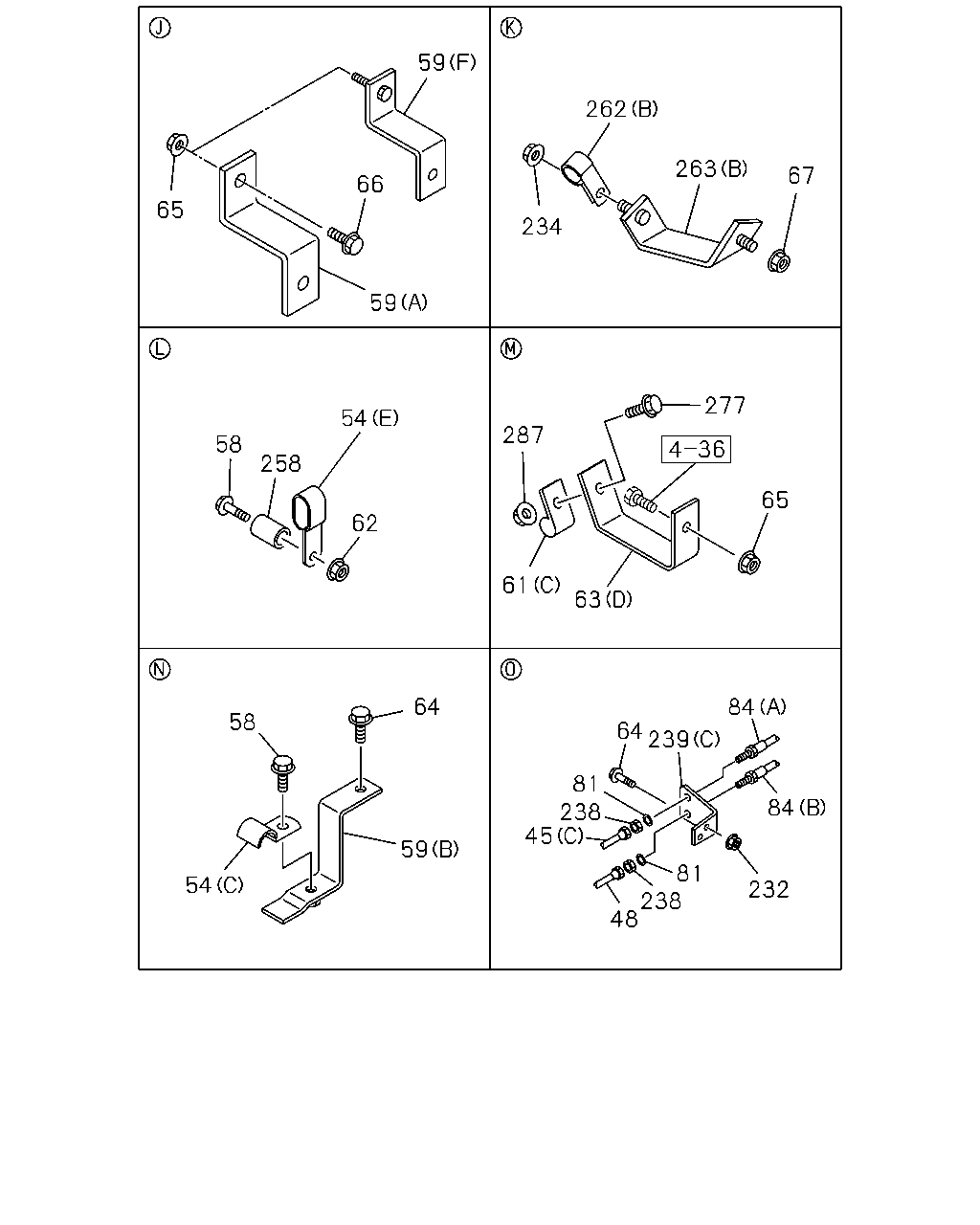

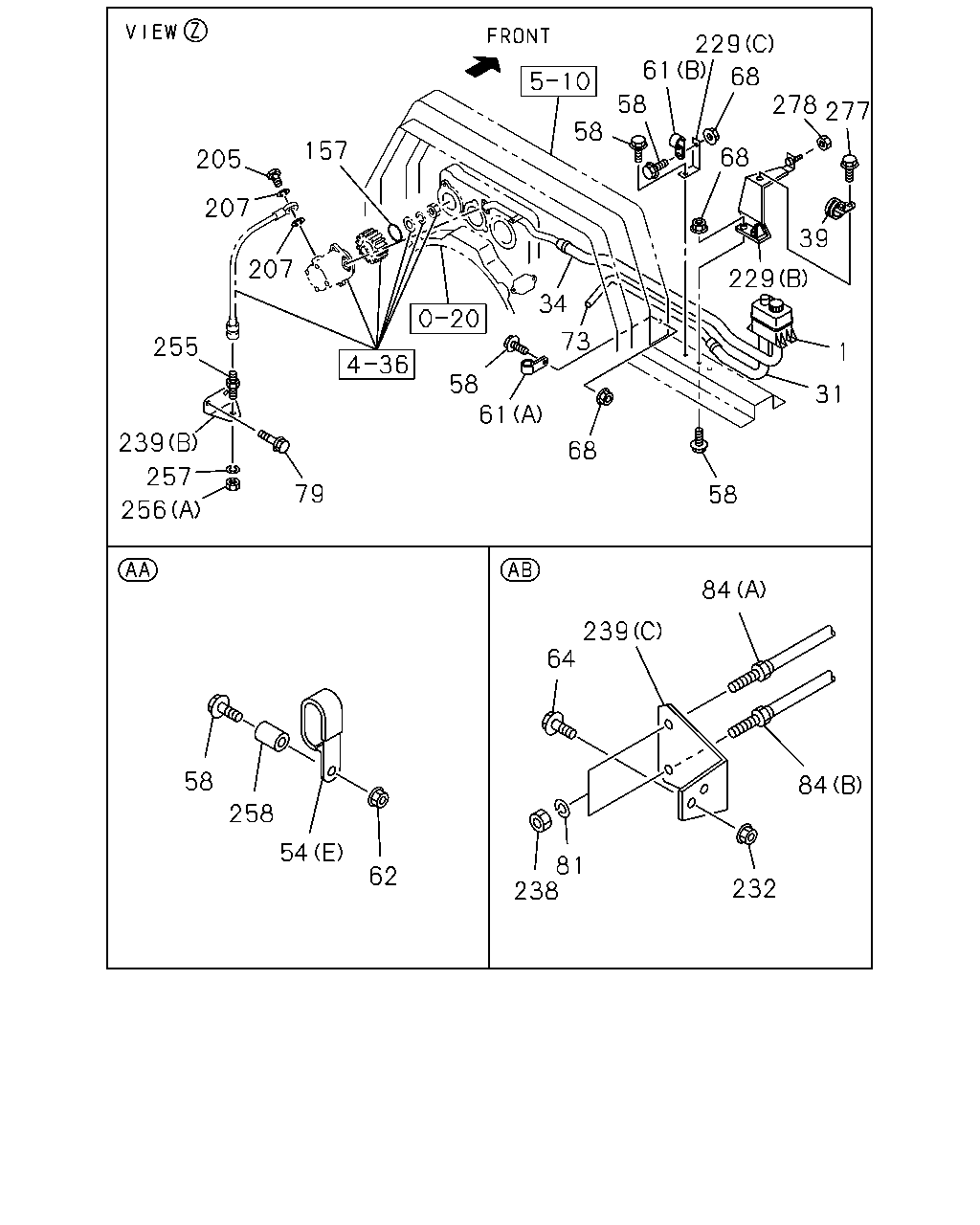

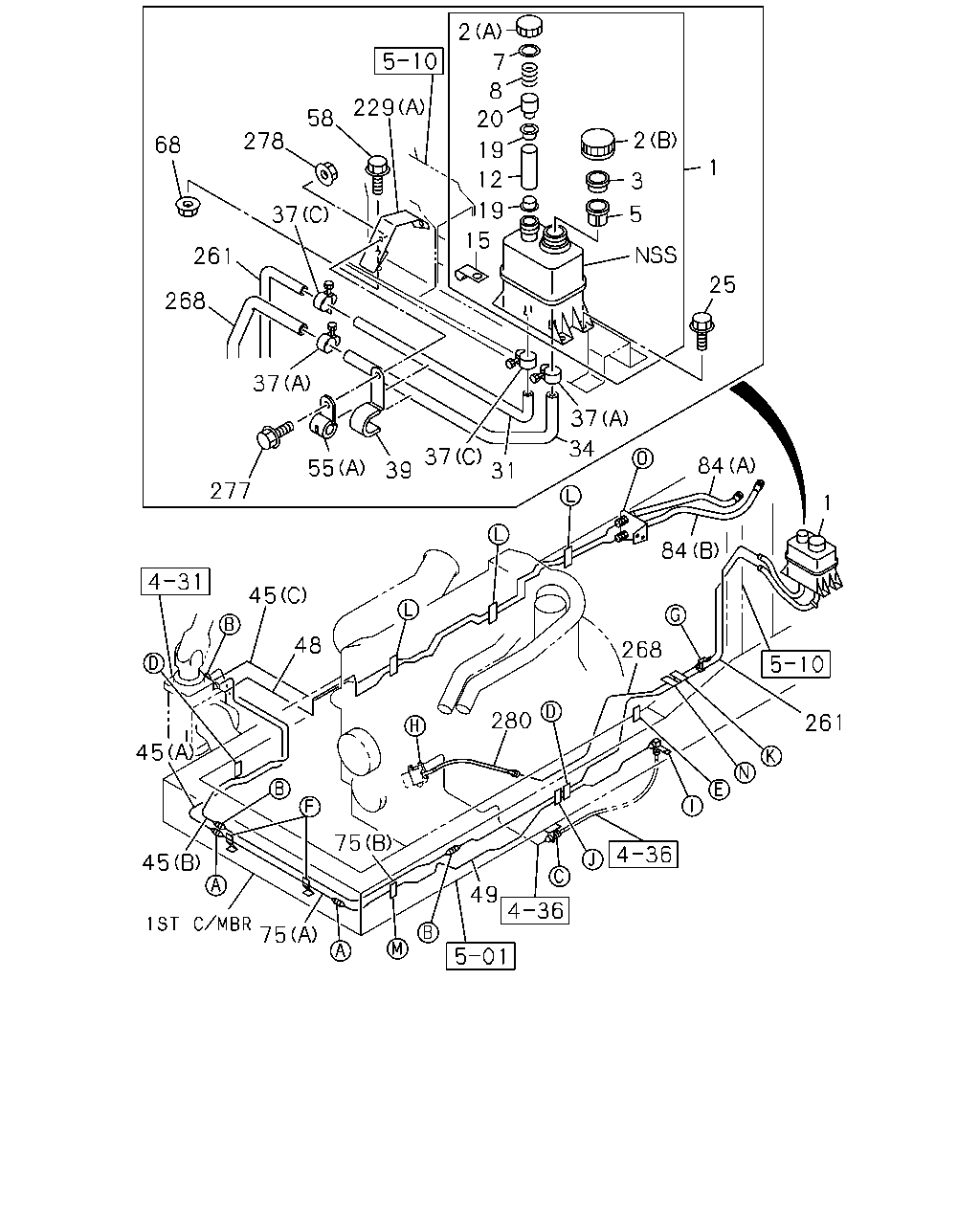

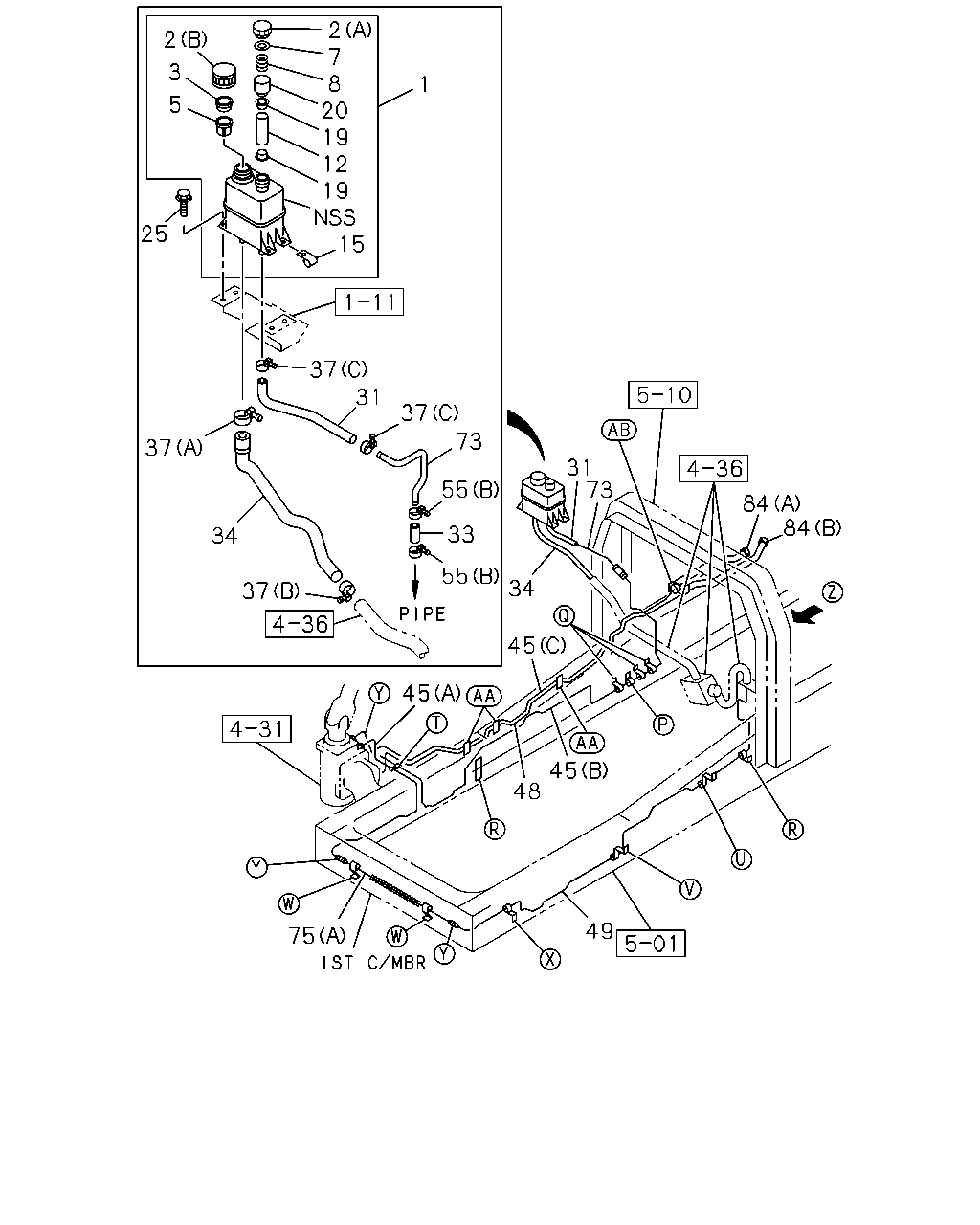

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#5121) — 925 parça

2 7 8 20 19 12 19 15 2 3 1 5 25 37 31 37 73 37 31 73 55 84 84 33 34 55 34 37 45 45 45 48 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9606-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9606-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9606-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9606-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9606-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9606-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9606-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9606-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9606-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9606-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9606-
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9606-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL 10PE1S(60L)	1-21114-262-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 10PE1N(61L)	1-21114-262-0	01	1	9906-
31	HOSE; P/S OIL TANK,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-284-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-284-0	01	1	9906-
33	HOSE; RUBBER,POWER STRG 10PE1S(60L) L=80	1-09360-570-0	01	1	9606-9905
33	HOSE; RUBBER,POWER STRG 10PE1N(61L) L=80	1-09360-570-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 10PE1S(60L)	1-21114-254-1	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 10PE1N(61L)	1-21114-254-1	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-283-0	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-283-0	01	1	9906-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (C) ID=28	9-09915-672-1	02	1	9606-
37	CLIP; HOSE,P/S 10PE1S(60L) (B) ID=32	1-09704-085-0	01	1	9606-9905
37	CLIP; HOSE,P/S 10PE1N(61L) (B) ID=32	1-09704-085-0	01	1	9906-
37	CLIP; HOSE,P/S 10PE1S(60L) (A) ID=38	9-09915-666-1	01	1	9606-9806
37	CLIP; HOSE,P/S 10PE1S(60L) (A) ID=38	9-09915-041-1	01	1	9807-9905
37	CLIP; HOSE,P/S 10PE1N(61L) (A) ID=38	9-09915-041-1	01	1	9906-
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=38	9-09915-666-1	02	1	9606-9806
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=38	9-09915-041-1	02	1	9807-9905
37	CLIP; HOSE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=38	9-09915-041-1	02	1	9906-
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=28	9-09915-672-1	02	1	9606-9806
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=28	9-09915-672-1	02	1	9808-9905
37	CLIP; HOSE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=28	9-09915-672-1	02	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-369-0	01	1	9606-9702
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-834-0	01	1	9703-9708
45	PIPE; OIL,P/S UNIT TO UNION EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-21115-834-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9906-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-535-0	01	1	9606-9606
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-728-0	01	1	9607-9702
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-852-0	01	1	9703-9907
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21116-551-0	01	1	9908-
45	PIPE; OIL,P/S UNIT TO UNION BUMPER W/HEADLAMPS<SLB> (A)	1-21115-951-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-21115-638-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) L=1234	1-21116-238-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-536-0	01	1	9606-9606
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-729-0	01	1	9607-9702
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-853-0	01	1	9703-9907
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-553-0	01	1	9908-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9905
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-654-0	01	1	9606-9608
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) ZF M/T<X9E>	1-21115-752-0	01	1	9609-9905
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1N(61L) ZF M/T<X9E>	1-21116-347-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-568-0	01	1	9606-9905
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> L TYPE ENG<90L> L=1663	1-21116-235-0	01	1	9906-
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=28	9-09915-672-1	02	1	9606-9806
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=28	9-09915-672-1	02	1	9808-9905
55	CLIP; P/S RUBBER HOSE 10PE1N(61L) (B) ID=28	9-09915-672-1	02	1	9906-
55	CLIP; P/S RUBBER HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=28 L=30	1-09700-607-1	01	1	9606-9905
55	CLIP; P/S RUBBER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=28 L=30	1-09700-607-1	01	1	9906-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PE1S(60L)	1-21115-014-1	01	1	9606-9905
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PE1N(61L)	1-21115-014-1	01	1	9906-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9606-9905
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9906-0006
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-21115-639-0	01	1	9606-9905
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) L=1807	1-21116-404-0	01	1	9906-
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9606-9810
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9811-9905
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9906-9907
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9908-
84	HOSE; FLEX,P/S (B) L=430	0-09538-430-0	01	1	9606-

79 62 54 58 58 54 59 58 54 277 79 277 58 59 61 287 54 287 67 54 66 277 61 63 61 277 287 58 63 65 61 63 76 63 79 59 277 61 65 76 287 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9606-9905
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE (E) ID=13X2 L=20	9-09535-236-0	03	1	9606-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9606-9905
54	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
54	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
54	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
54	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9606-9905
54	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9906-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	05	1	0104-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9801-
58	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
58	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	02	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	05	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	03	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	03	1	9607-9905
58	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> (B)	1-47477-833-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK(Y21) L TYPE ENG<90L> (B)	1-47477-833-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> (B)	1-47477-833-0	01	1	0004-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (D)	1-47477-434-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 10PE1N(61L) (D)	1-47477-434-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (C) L=90	1-82699-856-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 10PE1N(61L) (C) L=90	1-82699-856-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9606-9712
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47475-881-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (F)	1-47477-235-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-47477-145-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) (B)	1-47477-145-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	0004-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	04	1	0008-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9905
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	01	1	9703-9905
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9905
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=13 L=20	9-09525-235-0	02	1	9606-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9905
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	9906-0007
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
62	NUT; CLIP FIX M8	9-09110-408-0	02	1	9606-9606
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	9607-
62	NUT; CLIP FIX 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9801-9905
62	NUT; CLIP FIX 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9606-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-47476-712-0	01	1	9606-9608
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-34656-009-0	01	1	9609-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (B)	1-34656-009-0	01	1	9906-
63	BRACKET; CLIP,P/S 10PE1S(60L) (E)	1-82699-529-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (E)	1-82699-529-0	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-47475-963-1	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C)	1-47475-963-1	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-47477-193-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (D)	1-47477-193-0	01	1	9906-
65	NUT; BRKT M8	9-09110-508-0	02	1	9606-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0007
65	NUT; BRKT 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0008-
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	03	1	9606-9606
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
65	NUT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	03	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0008-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
67	NUT; BRKT M8	9-09110-508-0	01	1	9606-9606
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10	9-09110-510-0	02	1	9606-9606
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10 FLANGE	0-91150-210-0	02	1	9607-9712
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9606-9905
76	UNION; OIL PIPE (C) M22	9-09233-315-1	01	1	9606-0102
76	UNION; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09233-015-1	01	1	9606-9905
76	UNION; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09233-015-1	01	1	9906-0102
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	0103-
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	0103-
79	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X25 FLANGE	0-28681-025-0	01	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	01	1	9906-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
287	NUT; CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
287	NUT; CLIP 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
287	NUT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	9906-

256 58 76 257 54 61 76 266 76 66 277 58 63 61 63 65 58 63 61 61 287 54 58 157 41 68 264 234 262 280 263 41 125 67 166 79 255 111 65 111 239 195 257 195 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=38	9-09915-666-1	02	1	9606-9806
41	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=38	9-09915-041-1	02	1	9807-9905
41	CLIP; HOSE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=38	9-09915-041-1	02	1	9906-
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9606-9905
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE (E) ID=13X2 L=20	9-09535-236-0	03	1	9606-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9606-9905
54	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
54	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
54	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
54	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9606-9905
54	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9906-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	05	1	0104-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9801-
58	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
58	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	02	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	05	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	03	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	03	1	9607-9905
58	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	04	1	0008-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9905
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	01	1	9703-9905
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9905
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=13 L=20	9-09525-235-0	02	1	9606-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9905
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	9906-0007
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9606-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-47476-712-0	01	1	9606-9608
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-34656-009-0	01	1	9609-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (B)	1-34656-009-0	01	1	9906-
63	BRACKET; CLIP,P/S 10PE1S(60L) (E)	1-82699-529-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (E)	1-82699-529-0	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-47475-963-1	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C)	1-47475-963-1	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-47477-193-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (D)	1-47477-193-0	01	1	9906-
65	NUT; BRKT M8	9-09110-508-0	02	1	9606-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0007
65	NUT; BRKT 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0008-
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	03	1	9606-9606
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
65	NUT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	03	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0008-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
67	NUT; BRKT M8	9-09110-508-0	01	1	9606-9606
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10	9-09110-510-0	02	1	9606-9606
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10 FLANGE	0-91150-210-0	02	1	9607-9712
68	NUT; CLIP,OIL PIPE M10	9-09110-510-0	02	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M10 FLANGE	0-91150-210-0	02	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M10 FLANGE	0-91150-210-0	02	1	9906-
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9906-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9606-9905
76	UNION; OIL PIPE (C) M22	9-09233-315-1	01	1	9606-0102
76	UNION; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09233-015-1	01	1	9606-9905
76	UNION; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09233-015-1	01	1	9906-0102
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	0103-
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	0103-
79	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A)	1-13345-186-0	01	1	9606-9706
111	BRACKET; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-13345-186-0	01	1	9707-9905
111	BRACKET; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-13345-186-0	01	1	9906-
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-13345-187-0	01	1	9606-9706
111	BRACKET; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-13345-187-0	01	1	9707-9905
111	BRACKET; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-13345-187-0	01	1	9906-
125	CONNECTOR; P/S PUMP 6WA1 TC-S(56L)	1-13313-533-0	01	1	9606-9706
125	CONNECTOR; P/S PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-13313-533-0	01	1	9707-9905
125	CONNECTOR; P/S PUMP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-13313-533-0	01	1	9906-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9606-
166	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
166	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
166	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	9906-
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9606-9706
195	BOLT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9707-9905
195	BOLT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-
195	BOLT; BRKT 6WA1 TC-S(56L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9606-9706
195	BOLT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9707-9905
195	BOLT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9906-
234	NUT; PIPE CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	02	1	9606-9606
234	NUT; PIPE CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
234	NUT; PIPE CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	9906-
239	BRACKET; FLEX HOSE (C)	1-47477-652-0	01	1	9606-
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47477-336-0	01	1	9606-9905
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47478-471-0	01	1	9906-
239	BRACKET; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47476-679-4	01	1	9606-9905
239	BRACKET; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-47476-679-4	01	1	9906-
255	UNION; FLEX HOSE 10PE1S(60L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9606-9905
255	UNION; FLEX HOSE 10PE1S(60L) M22 & M22 STRAIGHT	1-09654-204-1	01	1	9906-
255	UNION; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) M20 & M22 ELBOW	1-09654-154-1	01	1	9606-9905
255	UNION; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M22 & M22 ELBOW	1-09654-163-1	01	1	9906-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9606-
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9606-9706
256	NUT; UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09111-522-0	01	1	9707-9905
256	NUT; UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09111-522-0	01	1	9906-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9606-9706
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9606-9706
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9707-9905
257	WASHER; LK,UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=22.5	9-09150-522-0	01	1	9707-9905
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9906-
257	WASHER; LK,UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=22.5	9-09150-522-0	01	1	9906-
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
262	CLIP; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) ID=16 L=20	9-09525-536-0	01	1	9606-9702
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) ID=16 L=20	9-09525-535-0	01	1	9703-9905
262	CLIP; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) ID=16 L=20	9-09525-535-0	01	1	9906-
263	BRACKET; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47476-483-2	01	1	9606-9905
263	BRACKET; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-47476-483-2	01	1	9906-
263	BRACKET; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-47477-597-2	01	1	9606-9905
263	BRACKET; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-47477-597-3	01	1	9906-
264	BOLT; PIPE BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
264	BOLT; PIPE BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
264	BOLT; PIPE BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9606-9706
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9707-9905
266	UNION; OIL PIPE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9906-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X25 FLANGE	0-28681-025-0	01	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	01	1	9906-
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-191-0	01	1	9606-9704
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-865-0	01	1	9705-9905
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21115-865-0	01	1	9906-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
287	NUT; CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
287	NUT; CLIP 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
287	NUT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	9906-

229 61 68 58 278 277 58 68 157 205 207 39 207 229 34 73 255 1 58 61 31 239 68 257 79 58 256 84 239 64 58 84 258 54 81 238 62 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9606-
31	HOSE; P/S OIL TANK,INL 10PE1S(60L)	1-21114-262-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 10PE1N(61L)	1-21114-262-0	01	1	9906-
31	HOSE; P/S OIL TANK,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-284-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-284-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 10PE1S(60L)	1-21114-254-1	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 10PE1N(61L)	1-21114-254-1	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-283-0	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-283-0	01	1	9906-
39	CLIP; FLEX HOSE 10PE1S(60L) ID=31 L=35	1-09700-329-1	01	1	9606-9905
39	CLIP; FLEX HOSE 10PE1N(61L) ID=31 L=35	1-09700-329-1	01	1	9906-
39	CLIP; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=32 L=75	1-09700-702-0	01	1	9606-9905
39	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=32 L=75	1-09700-702-0	01	1	9906-
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9606-9905
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE (E) ID=13X2 L=20	9-09535-236-0	03	1	9606-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9606-9905
54	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
54	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
54	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
54	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9606-9905
54	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9906-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	05	1	0104-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9801-
58	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
58	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	02	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	05	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	03	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	03	1	9607-9905
58	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	04	1	0008-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9905
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	01	1	9703-9905
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9905
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=13 L=20	9-09525-235-0	02	1	9606-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9905
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	9906-0007
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
62	NUT; CLIP FIX M8	9-09110-408-0	02	1	9606-9606
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	9607-
62	NUT; CLIP FIX 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9801-9905
62	NUT; CLIP FIX 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-0009
64	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0010-
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	0104-
64	BOLT; CLIP BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
64	BOLT; CLIP BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
64	BOLT; CLIP BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	01	1	0104-
68	NUT; CLIP,OIL PIPE M10	9-09110-510-0	02	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M10 FLANGE	0-91150-210-0	02	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M10 FLANGE	0-91150-210-0	02	1	9906-
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9906-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PE1S(60L)	1-21115-014-1	01	1	9606-9905
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PE1N(61L)	1-21115-014-1	01	1	9906-
79	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
79	BOLT; BRKT 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
79	BOLT; BRKT 10PE1N(61L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9606-
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9606-9810
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9811-9905
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9906-9907
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9908-
84	HOSE; FLEX,P/S (B) L=430	0-09538-430-0	01	1	9606-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9606-
205	BOLT; EYE,FLEX HOSE,P/S 10PE1S(60L) M18X40	1-09675-153-0	01	1	9606-9905
205	BOLT; EYE,FLEX HOSE,P/S 10PE1N(61L) M18X40	1-09675-153-0	01	1	9906-
207	GASKET; FLEX HOSE,P/S PUMP 10PE1S(60L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9905
207	GASKET; FLEX HOSE,P/S PUMP 10PE1N(61L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9906-
229	BRACKET; HOSE,POWER STRG 10PE1S(60L) (B)	1-21464-480-0	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 10PE1N(61L) (B)	1-21464-480-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG 10PE1S(60L) (C)	1-21464-481-0	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 10PE1N(61L) (C)	1-21464-481-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-21464-407-1	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-21464-407-1	01	1	9906-
232	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-
238	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9606-
239	BRACKET; FLEX HOSE (C)	1-47477-652-0	01	1	9606-
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47477-336-0	01	1	9606-9905
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47478-471-0	01	1	9906-
239	BRACKET; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47476-679-4	01	1	9606-9905
239	BRACKET; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-47476-679-4	01	1	9906-
255	UNION; FLEX HOSE 10PE1S(60L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9606-9905
255	UNION; FLEX HOSE 10PE1S(60L) M22 & M22 STRAIGHT	1-09654-204-1	01	1	9906-
255	UNION; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) M20 & M22 ELBOW	1-09654-154-1	01	1	9606-9905
255	UNION; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M22 & M22 ELBOW	1-09654-163-1	01	1	9906-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9606-
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9606-9706
256	NUT; UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09111-522-0	01	1	9707-9905
256	NUT; UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09111-522-0	01	1	9906-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9606-9706
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9606-9706
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9707-9905
257	WASHER; LK,UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=22.5	9-09150-522-0	01	1	9707-9905
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9906-
257	WASHER; LK,UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=22.5	9-09150-522-0	01	1	9906-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	9606-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X25 FLANGE	0-28681-025-0	01	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	01	1	9906-
278	NUT; HOSE CLIP 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
278	NUT; HOSE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
278	NUT; HOSE CLIP 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-
278	NUT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10	9-09110-510-0	01	1	9606-9606
278	NUT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10 FLANGE	0-91150-210-0	01	1	9607-9905
278	NUT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10 FLANGE	0-91150-210-0	01	1	9906-

2 7 8 20 229 58 2 278 68 19 1 12 3 19 5 37 15 261 25 268 37 37 34 37 31 84 55 39 277 1 84 45 48 268 280 261 45 75 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9606-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9606-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9606-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9606-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9606-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9606-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9606-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9606-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9606-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9606-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9606-
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9606-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL 10PE1S(60L)	1-21114-262-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 10PE1N(61L)	1-21114-262-0	01	1	9906-
31	HOSE; P/S OIL TANK,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-284-0	01	1	9606-9905
31	HOSE; P/S OIL TANK,INL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-284-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 10PE1S(60L)	1-21114-254-1	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 10PE1N(61L)	1-21114-254-1	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21114-283-0	01	1	9606-9905
34	HOSE; P/S OIL TANK,OUTLET 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21114-283-0	01	1	9906-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (C) ID=28	9-09915-672-1	02	1	9606-
37	CLIP; HOSE,P/S 10PE1S(60L) (B) ID=32	1-09704-085-0	01	1	9606-9905
37	CLIP; HOSE,P/S 10PE1N(61L) (B) ID=32	1-09704-085-0	01	1	9906-
37	CLIP; HOSE,P/S 10PE1S(60L) (A) ID=38	9-09915-666-1	01	1	9606-9806
37	CLIP; HOSE,P/S 10PE1S(60L) (A) ID=38	9-09915-041-1	01	1	9807-9905
37	CLIP; HOSE,P/S 10PE1N(61L) (A) ID=38	9-09915-041-1	01	1	9906-
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=38	9-09915-666-1	02	1	9606-9806
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=38	9-09915-041-1	02	1	9807-9905
37	CLIP; HOSE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=38	9-09915-041-1	02	1	9906-
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=28	9-09915-672-1	02	1	9606-9806
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=28	9-09915-672-1	02	1	9808-9905
37	CLIP; HOSE,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=28	9-09915-672-1	02	1	9906-
39	CLIP; FLEX HOSE 10PE1S(60L) ID=31 L=35	1-09700-329-1	01	1	9606-9905
39	CLIP; FLEX HOSE 10PE1N(61L) ID=31 L=35	1-09700-329-1	01	1	9906-
39	CLIP; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=32 L=75	1-09700-702-0	01	1	9606-9905
39	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=32 L=75	1-09700-702-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-369-0	01	1	9606-9702
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-834-0	01	1	9703-9708
45	PIPE; OIL,P/S UNIT TO UNION EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-21115-834-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9906-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-535-0	01	1	9606-9606
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-728-0	01	1	9607-9702
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-852-0	01	1	9703-9907
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21116-551-0	01	1	9908-
45	PIPE; OIL,P/S UNIT TO UNION BUMPER W/HEADLAMPS<SLB> (A)	1-21115-951-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-21115-638-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) L=1234	1-21116-238-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-536-0	01	1	9606-9606
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-729-0	01	1	9607-9702
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-853-0	01	1	9703-9907
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-553-0	01	1	9908-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9905
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-654-0	01	1	9606-9608
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) ZF M/T<X9E>	1-21115-752-0	01	1	9609-9905
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1N(61L) ZF M/T<X9E>	1-21116-347-0	01	1	9906-
49	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-568-0	01	1	9606-9905
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> L TYPE ENG<90L> L=1663	1-21116-235-0	01	1	9906-
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=28	9-09915-672-1	02	1	9606-9806
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE 10PE1S(60L) (B) ID=28	9-09915-672-1	02	1	9808-9905
55	CLIP; P/S RUBBER HOSE 10PE1N(61L) (B) ID=28	9-09915-672-1	02	1	9906-
55	CLIP; P/S RUBBER HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=28 L=30	1-09700-607-1	01	1	9606-9905
55	CLIP; P/S RUBBER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=28 L=30	1-09700-607-1	01	1	9906-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	05	1	0104-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9801-
58	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
58	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	02	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	05	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	03	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	03	1	9607-9905
58	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
68	NUT; CLIP,OIL PIPE M10	9-09110-510-0	02	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M10 FLANGE	0-91150-210-0	02	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M10 FLANGE	0-91150-210-0	02	1	9906-
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
68	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
68	NUT; CLIP,OIL PIPE 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
68	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9906-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9606-9905
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9906-0006
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-21115-639-0	01	1	9606-9905
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) L=1807	1-21116-404-0	01	1	9906-
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9606-9810
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9811-9905
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9906-9907
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9908-
84	HOSE; FLEX,P/S (B) L=430	0-09538-430-0	01	1	9606-
229	BRACKET; HOSE,POWER STRG 10PE1S(60L) (B)	1-21464-480-0	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 10PE1N(61L) (B)	1-21464-480-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG 10PE1S(60L) (C)	1-21464-481-0	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 10PE1N(61L) (C)	1-21464-481-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-21464-407-1	01	1	9606-9905
229	BRACKET; HOSE,POWER STRG 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-21464-407-1	01	1	9906-
261	PIPE; OIL,UNION TO HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) L=1034	1-21115-588-0	01	1	9606-9905
261	PIPE; OIL,UNION TO HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=1034	1-21115-588-0	01	1	9906-0104
261	PIPE; OIL,UNION TO HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L TYPE ENG<90L> L=1305	1-21115-948-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L TYPE ENG<90L> L=1315	1-21116-855-0	01	1	0007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-394-0	01	1	9606-9905
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X25 FLANGE	0-28681-025-0	01	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	01	1	9906-
278	NUT; HOSE CLIP 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
278	NUT; HOSE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
278	NUT; HOSE CLIP 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-
278	NUT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10	9-09110-510-0	01	1	9606-9606
278	NUT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10 FLANGE	0-91150-210-0	01	1	9607-9905
278	NUT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10 FLANGE	0-91150-210-0	01	1	9906-
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-191-0	01	1	9606-9704
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-21115-865-0	01	1	9705-9905
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-21115-865-0	01	1	9906-

59 262 263 67 66 65 234 59 277 54 287 58 258 65 62 61 63 64 84 58 64 239 81 238 45 84 59 81 238 48 54 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-369-0	01	1	9606-9702
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-834-0	01	1	9703-9708
45	PIPE; OIL,P/S UNIT TO UNION EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-21115-834-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9906-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-535-0	01	1	9606-9606
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-728-0	01	1	9607-9702
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21115-852-0	01	1	9703-9907
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21116-551-0	01	1	9908-
45	PIPE; OIL,P/S UNIT TO UNION BUMPER W/HEADLAMPS<SLB> (A)	1-21115-951-0	01	1	9709-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 10PE1N(61L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-21115-638-0	01	1	9606-9905
45	PIPE; OIL,P/S UNIT TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) L=1234	1-21116-238-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-536-0	01	1	9606-9606
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-729-0	01	1	9607-9702
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-853-0	01	1	9703-9907
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-553-0	01	1	9908-
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9606-9905
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE (E) ID=13X2 L=20	9-09535-236-0	03	1	9606-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9606-9905
54	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
54	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
54	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	02	1	9906-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
54	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
54	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9606-9905
54	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C) ID=23.6 L=35	1-09700-634-0	02	1	9906-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	05	1	0104-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9801-
58	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
58	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	02	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9606-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	05	1	9606-9606
58	BOLT; CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9905
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	9906-0103
58	BOLT; CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	03	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	03	1	9607-9905
58	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
58	BOLT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> (B)	1-47477-833-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK(Y21) L TYPE ENG<90L> (B)	1-47477-833-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> (B)	1-47477-833-0	01	1	0004-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (D)	1-47477-434-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 10PE1N(61L) (D)	1-47477-434-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (C) L=90	1-82699-856-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 10PE1N(61L) (C) L=90	1-82699-856-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9606-9712
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47475-881-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (F)	1-47477-235-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-47477-145-0	01	1	9606-9905
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) (B)	1-47477-145-0	01	1	9906-0003
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	0004-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (A) ID=16 L=20	9-09525-535-0	04	1	0008-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9905
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
61	CLIP; OIL PIPE 10PE1N(61L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9906-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9606-9608
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-536-0	01	1	9606-9702
61	CLIP; OIL PIPE 10PE1S(60L) (A) ID=16 L=20	9-09525-535-0	01	1	9703-9905
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9905
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C) ID=13 L=20	9-09525-235-0	02	1	9606-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9905
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	9906-0007
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	0008-
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-536-0	02	1	9606-9702
61	CLIP; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=16 L=20	9-09525-535-0	02	1	9703-9905
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
62	NUT; CLIP FIX M8	9-09110-408-0	02	1	9606-9606
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	9607-
62	NUT; CLIP FIX 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9801-9905
62	NUT; CLIP FIX 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9606-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-47476-712-0	01	1	9606-9608
63	BRACKET; CLIP,P/S 10PE1S(60L) (B)	1-34656-009-0	01	1	9609-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (B)	1-34656-009-0	01	1	9906-
63	BRACKET; CLIP,P/S 10PE1S(60L) (E)	1-82699-529-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 10PE1N(61L) (E)	1-82699-529-0	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-47475-963-1	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (C)	1-47475-963-1	01	1	9906-
63	BRACKET; CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-47477-193-0	01	1	9606-9905
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (D)	1-47477-193-0	01	1	9906-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-0009
64	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0010-
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	0104-
64	BOLT; CLIP BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
64	BOLT; CLIP BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
64	BOLT; CLIP BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	01	1	0104-
65	NUT; BRKT M8	9-09110-508-0	02	1	9606-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0007
65	NUT; BRKT 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0008-
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	03	1	9606-9606
65	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
65	NUT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	03	1	9906-0007
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0008-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9906-
67	NUT; BRKT M8	9-09110-508-0	01	1	9606-9606
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10	9-09110-510-0	02	1	9606-9606
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> M10 FLANGE	0-91150-210-0	02	1	9607-9712
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9606-
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9606-9810
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9811-9905
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9906-9907
84	HOSE; FLEX,P/S (A) L=320	1-09365-039-0	01	1	9908-
84	HOSE; FLEX,P/S (B) L=430	0-09538-430-0	01	1	9606-
232	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-
234	NUT; PIPE CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	02	1	9606-9606
234	NUT; PIPE CLIP,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
234	NUT; PIPE CLIP,P/S 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	9906-
238	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9606-
239	BRACKET; FLEX HOSE (C)	1-47477-652-0	01	1	9606-
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47477-336-0	01	1	9606-9905
239	BRACKET; FLEX HOSE 10PE1S(60L) (B)	1-47478-471-0	01	1	9906-
239	BRACKET; FLEX HOSE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47476-679-4	01	1	9606-9905
239	BRACKET; FLEX HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-47476-679-4	01	1	9906-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	9606-
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9905
262	CLIP; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) ID=16 L=20	9-09525-536-0	01	1	9606-9702
262	CLIP; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) ID=16 L=20	9-09525-535-0	01	1	9703-9905
262	CLIP; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) ID=16 L=20	9-09525-535-0	01	1	9906-
263	BRACKET; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-47476-483-2	01	1	9606-9905
263	BRACKET; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-47476-483-2	01	1	9906-
263	BRACKET; P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-47477-597-2	01	1	9606-9905
263	BRACKET; P/S PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-47477-597-3	01	1	9906-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9606
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	9906-
277	BOLT; HOSE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
277	BOLT; HOSE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
277	BOLT; HOSE CLIP 10PE1N(61L) M8X20 FLANGE	0-28680-820-0	03	1	9906-
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
277	BOLT; HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M10X25 FLANGE	0-28681-025-0	01	1	9607-9905
277	BOLT; HOSE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	01	1	9906-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	03	1	9606-9606
287	NUT; CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9905
287	NUT; CLIP 10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9906-
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8	9-09110-508-0	01	1	9606-9606
287	NUT; CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
287	NUT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
