8-45 — HEATER PIPING (#51209) — 15 parça

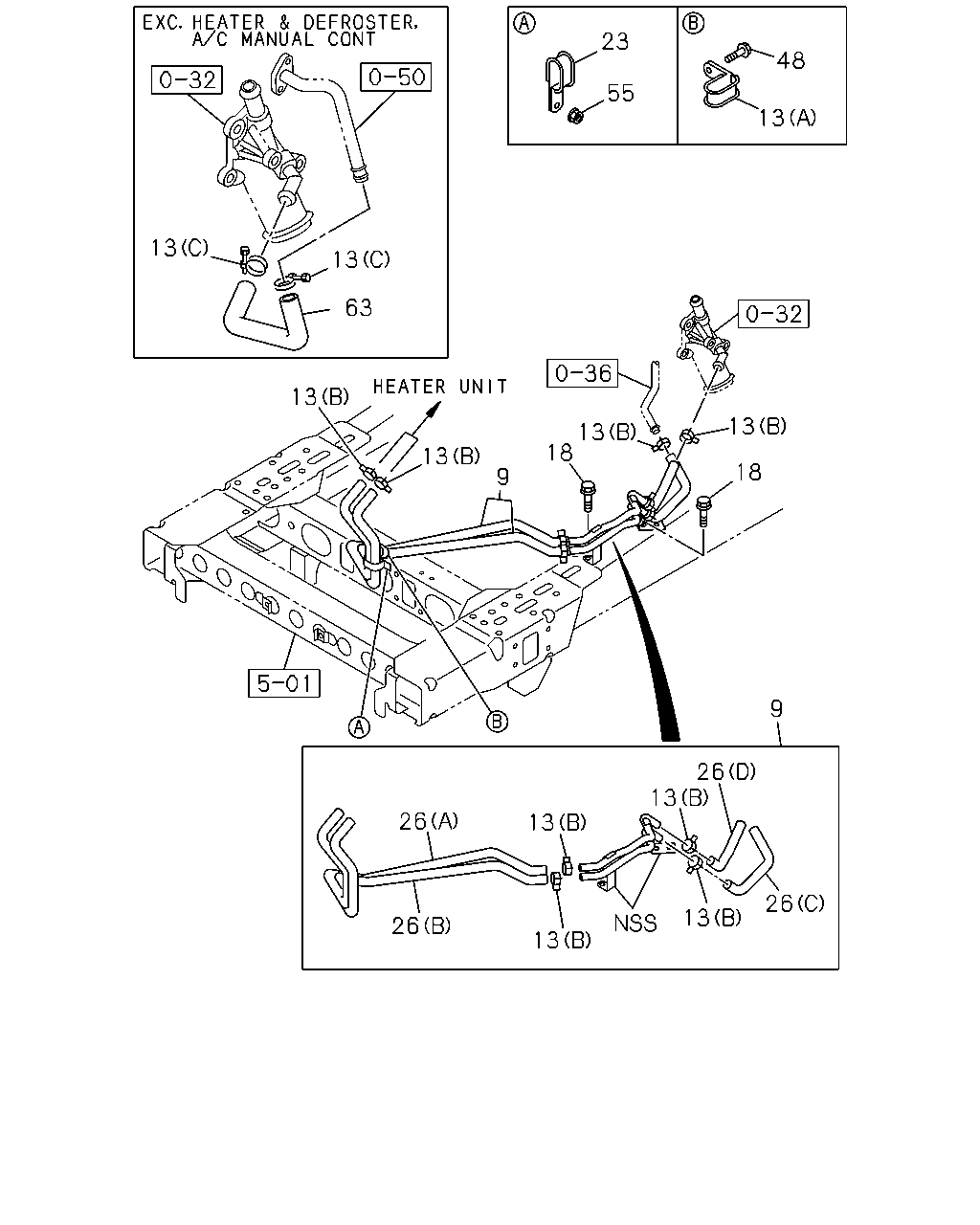

çizim 157601
23 48 55 13 13 13 63 13 13 13 18 13 18 9 9 26 13 26 13 26 13 26 13
BalonParca AdiParca NoAdetTipApplied Date A B C
9 PIPE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98064-107-1 01 1 0804- ● ● ●
13 CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=25 SOU 		8-94233-115-0 02 1 0804- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22 		8-97359-141-0 04 1 0804- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22 		8-97359-141-0 04 1 0804- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98029-678-0 01 1 0804- ● ● ●
18 BOLT; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804- ● ● ●
23 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-97359-144-0 01 1 0804-1205 ● ● ●
23 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-98166-023-0 01 1 1206- ● ● ●
26 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98050-293-0 01 1 0804- ● ● ●
26 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98050-294-0 01 1 0804- ● ● ●
26 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98050-295-0 01 1 0804- ● ● ●
26 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98050-296-0 01 1 0804- ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE SOU 		0-28050-612-0 01 1 0804- ● ● ●
55 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU 		0-91180-106-0 01 1 0804- ● ● ●
63 HOSE; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94134-250-1 01 1 0804- ● ● ●
