Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#51204) — 142 parça

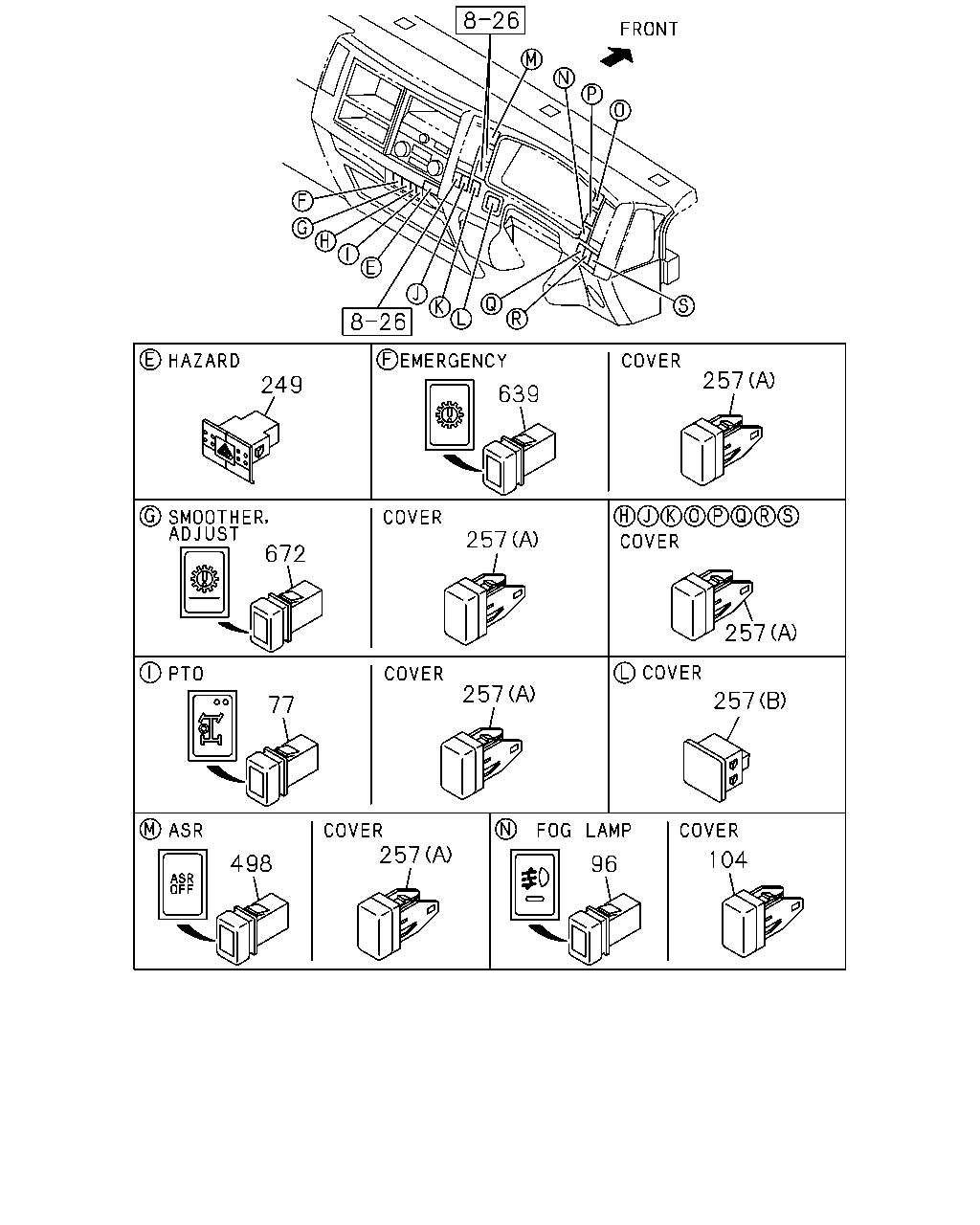

257 249 639 257 672 257 257 257 77 257 104 498 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
77	SWITCH; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97386-993-4	01	1	0804-	●
77	SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-1	01	1	0804-0903	●	●	●
77	SWITCH; PTO DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97386-964-1	01	1	0804-0903	●
77	SWITCH; PTO PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0904-	●	●	●
77	SWITCH; PTO DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC)	8-97386-964-2	01	1	0904-	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0804-	●	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0804-	●	●	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0804-	●	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0804-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0907-	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0907-	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0907-		●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-		●	●
257	COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0907-		●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0804-0906		●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-	●	●	●
498	SWITCH; ASR	8-97386-920-2	01	1	0804-	●		●
498	SWITCH; ASR THROTTLE CONTROL SYSTEM<6XH>	8-97386-920-2	01	1	0804-		●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-000-2	01	1	0804-0806	●	●	●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	0807-	●	●	●
672	SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-971-2	01	1	0804-0806	●	●	●
672	SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	0807-	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

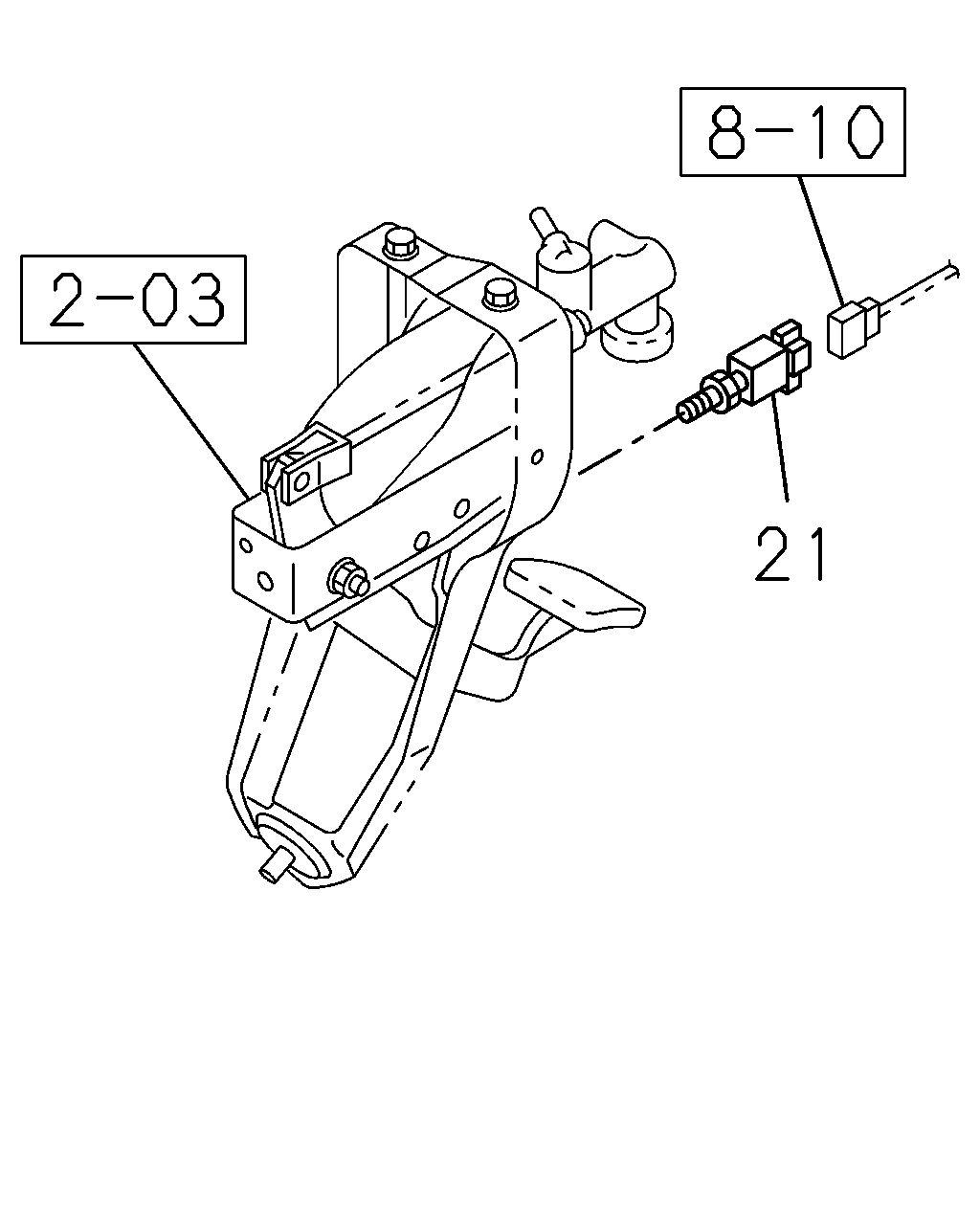

21	SWITCH; CLU POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94109-863-0	01	1	0805-	●
21	SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0804-0804	●	●	●
21	SWITCH; CLU EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0805-	●
21	SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0805-		●	●

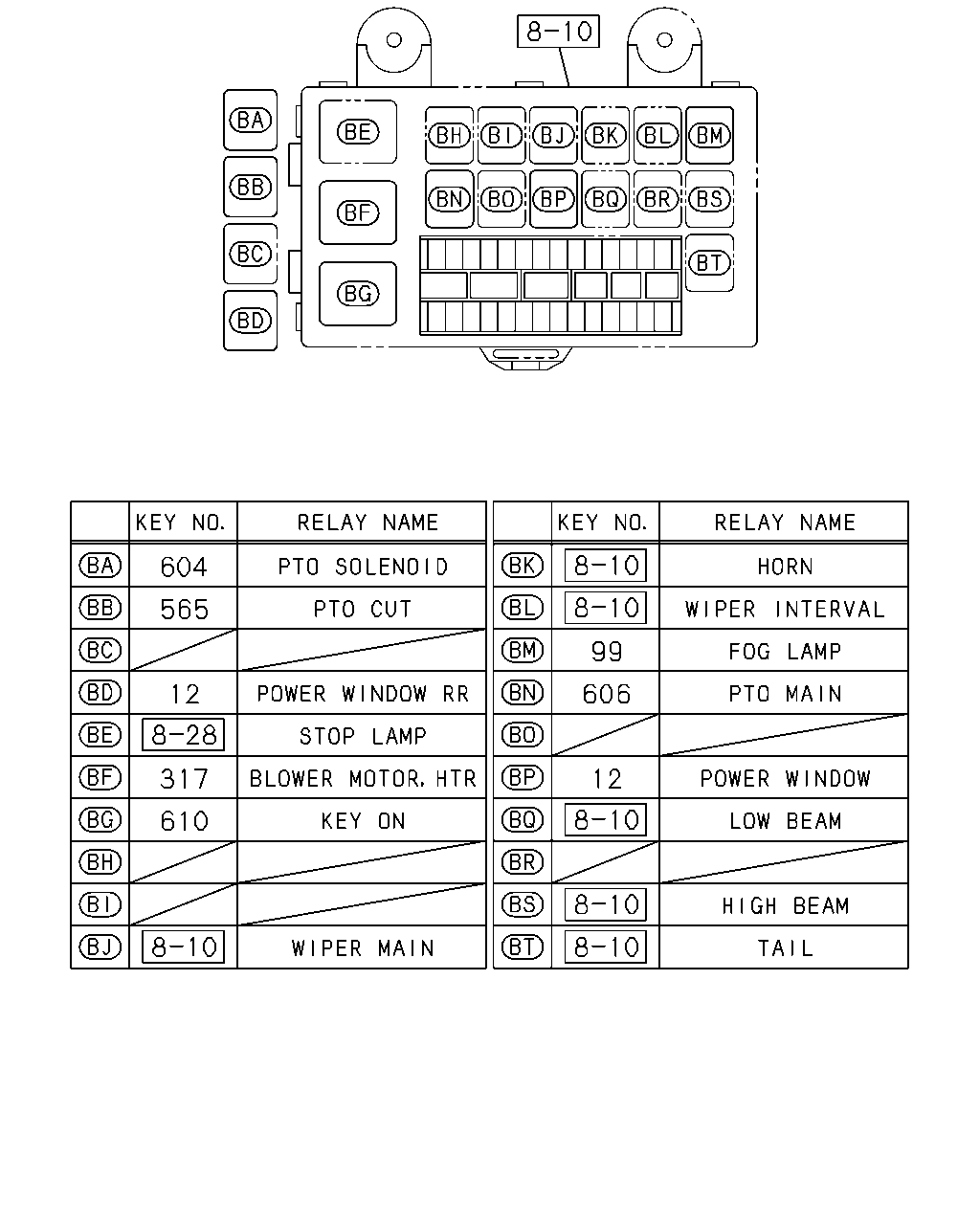

604 565 99 12 606 317 12 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●
12	RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	0804-	●	●	●
565	RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
604	RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
606	RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	0804-1204	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1205-1206	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1205-1206	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●	●	●
610	RELAY; KEY ON DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
610	RELAY; KEY ON TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
610	RELAY; KEY ON TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-		●	●

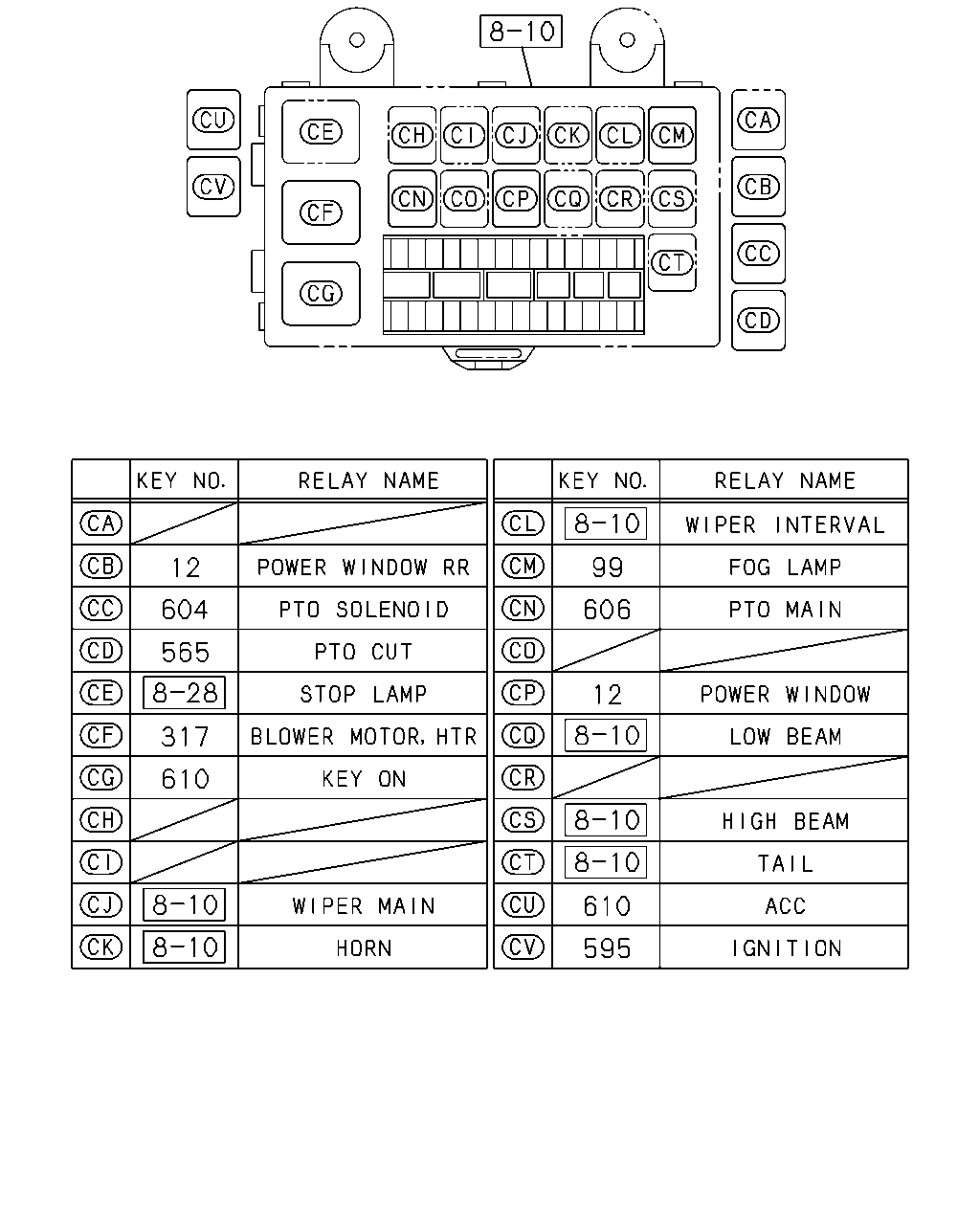

12 99 604 606 565 12 317 610 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●
12	RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	0804-	●	●	●
565	RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
595	RELAY; IGNITION 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1205-1206	●	●	●
595	RELAY; IGNITION DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
595	RELAY; IGNITION TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
595	RELAY; IGNITION TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-		●	●
604	RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
606	RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	0804-1204	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1205-1206	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1205-1206	●	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●	●	●
610	RELAY; KEY ON DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
610	RELAY; KEY ON TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-	●
610	RELAY; KEY ON TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1207-		●	●

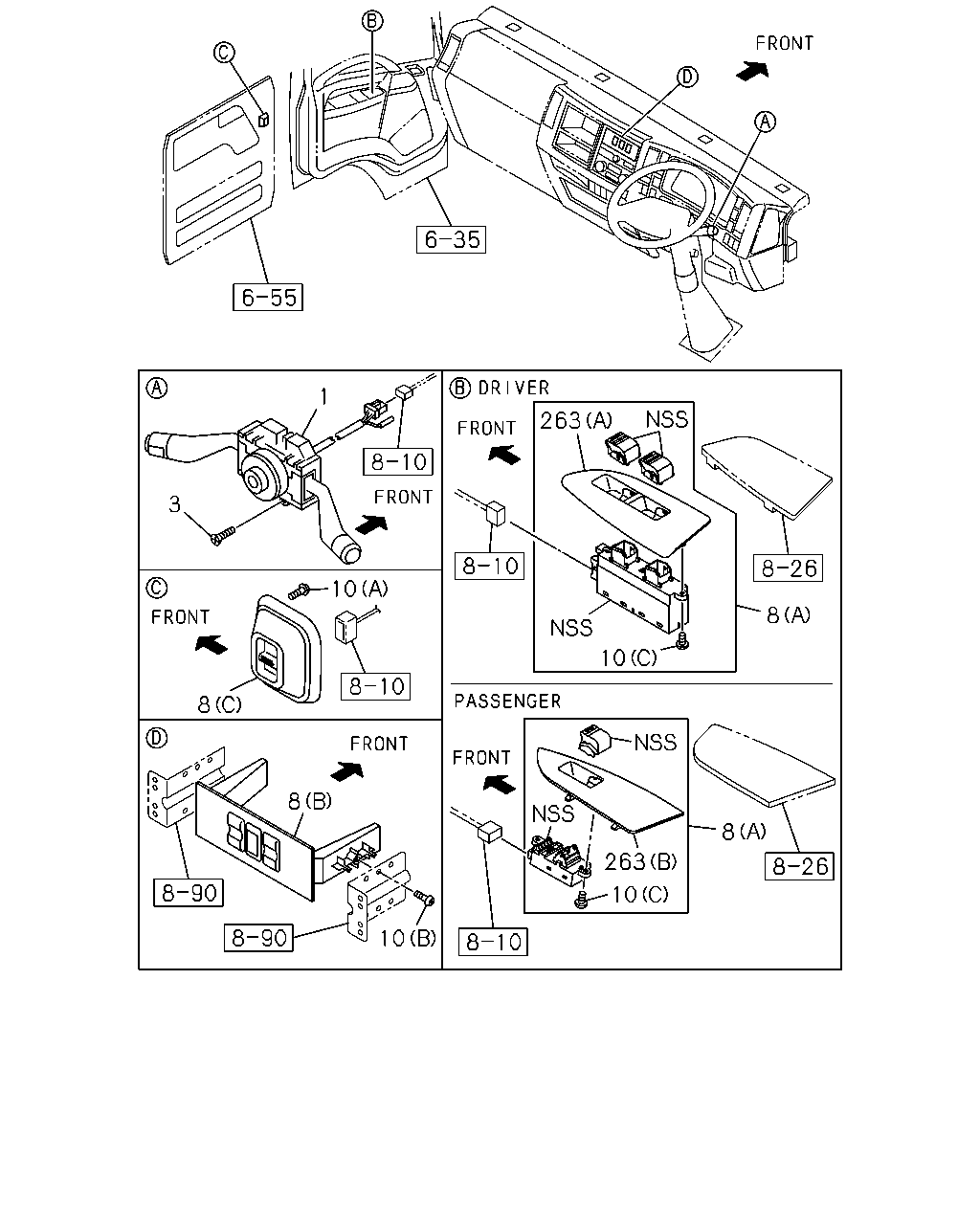

1 263 3 10 8 10 8 8 8 263 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98070-001-1	01	1	0804-0905	●	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-635-0	01	1	0906-1210	●	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-808-0	01	1	1211-1310	●	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-725-0	01	1	1311-	●	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98069-993-2	01	1	0804-1310	●	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1311-	●	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98069-995-1	01	1	0804-1310	●	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-729-0	01	1	1311-	●	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0804-	●	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-97387-034-2	01	1	0804-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-97387-034-2	01	1	0804-			●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-785-1	01	1	0804-0809	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98003-785-1	01	1	0804-0809			●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98129-844-0	01	1	0810-1001	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98129-844-0	01	1	0810-1001			●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98159-543-0	01	1	1002-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98159-543-0	01	1	1002-			●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	0804-			●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	0804-			●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	0804-	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	0804-			●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (A) M4X14 TAPPING	0-74360-414-0	04	1	0804-			●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	0804-			●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98153-836-0	01	1	0804-	●	●
263	COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98153-836-0	01	1	0804-			●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (B) PASSENGER SIDE	8-98153-841-0	01	1	0804-	●	●
263	COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER SIDE	8-98153-841-0	01	1	0804-			●

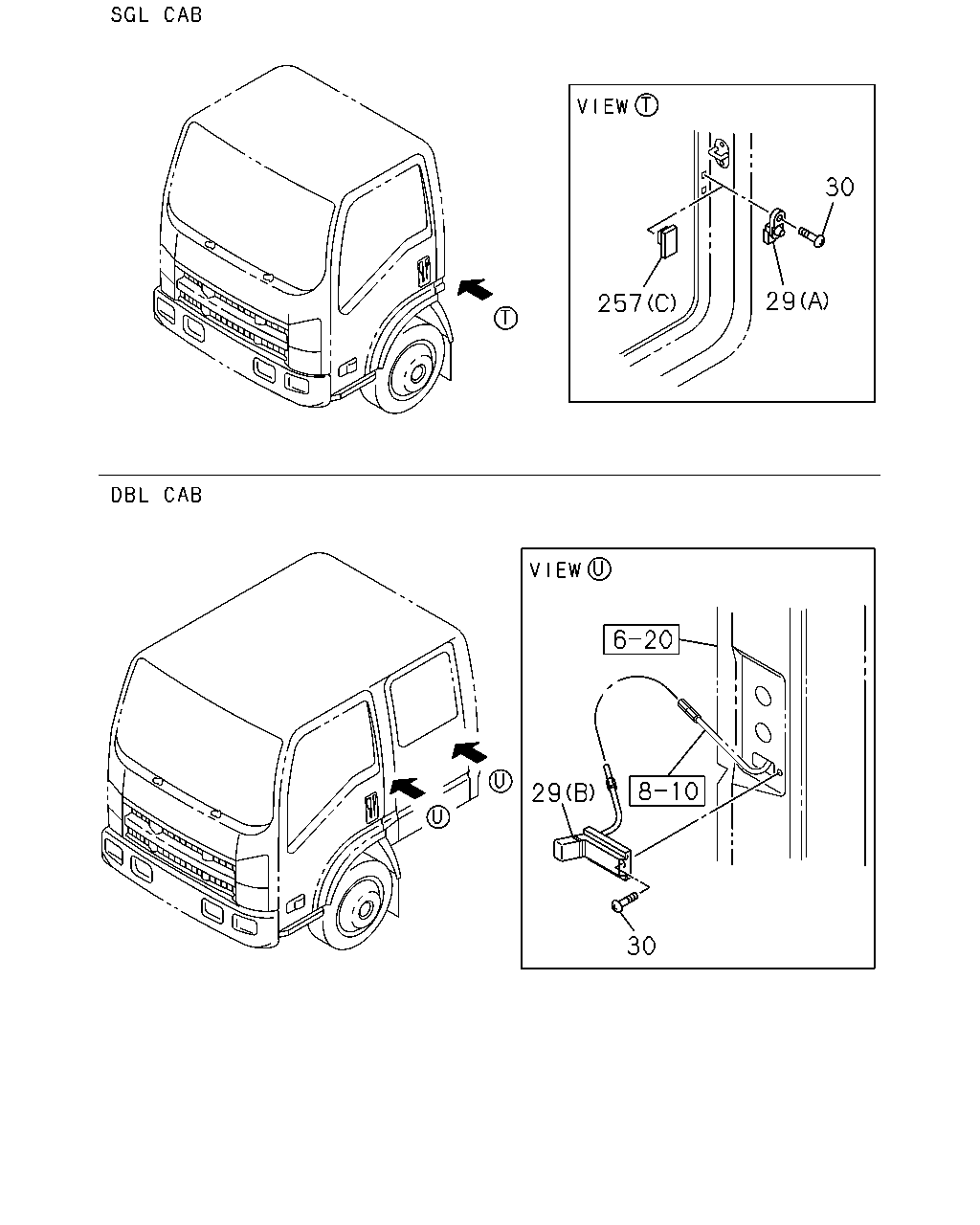

30 29 257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	SWITCH; DOOR (B) FRONT SOU	8-97855-032-3	01	1	0804-			●
29	SWITCH; DOOR (B) FRONT SOU	8-97855-032-3	01	1	0804-			●
29	SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0804-			●
29	SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0804-			●
30	SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	0804-	●	●
30	SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	0804-	●	●
30	SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	01	1	0804-	●	●
30	SCREW; DOOR SW M5X16 SOU	8-94279-341-0	04	1	0804-			●
257	COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0804-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0907-	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0907-	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0907-		●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-		●	●
257	COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0907-		●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0804-0906	●	●	●
257	COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0804-0906		●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-	●	●	●

608 151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
151	RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	0804-	●	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●	●
315	RELAY; EXH BRAKE CONT 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●	●
608	RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-97238-540-0	01	1	0804-1402	●	●	●
608	RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0804-	●	●	●
