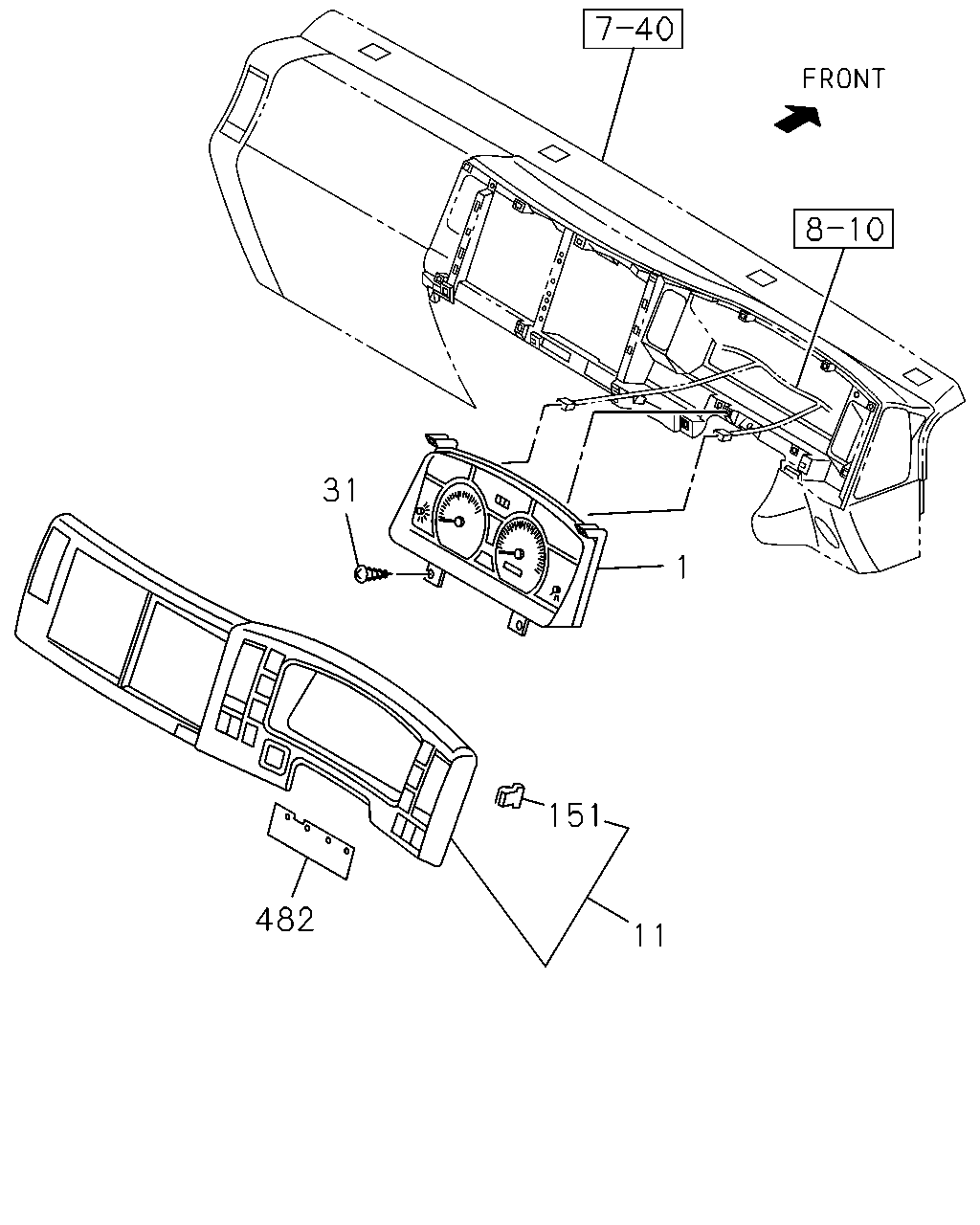

8-21 — METER ASM (#51203) — 42 parça

1 2 110 480 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98021-249-4	01	1	0804-	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-249-4	01	1	0804-		●	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98021-251-4	01	1	0804-	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-251-4	01	1	0804-		●	●
1	METER COMPL; CLUSTER POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-900-1	01	1	0804-0904	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-900-4	01	1	0905-	●
2	PANEL; CLUSTER POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-432-0	01	1	0804-0904	●
2	PANEL; CLUSTER EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98054-432-0	01	1	0804-0904	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0804-0904		●	●
2	PANEL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98054-432-0	01	1	0905-	●
2	PANEL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-432-0	01	1	0905-	●
2	PANEL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-432-0	01	1	0905-		●	●
81	METER SUB ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98073-677-0	01	1	0804-	●
81	METER SUB ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98073-677-0	01	1	0804-		●	●
81	METER SUB ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98073-680-0	01	1	0804-	●
81	METER SUB ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98073-680-0	01	1	0804-		●	●
81	METER SUB ASM POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-965-0	01	1	0804-0904	●
81	METER SUB ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-965-0	01	1	0905-	●
110	GLASS; CLUSTER METER POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-431-0	01	1	0804-0904	●
110	GLASS; CLUSTER METER EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98054-431-0	01	1	0804-0904	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0804-0904		●	●
110	GLASS; CLUSTER METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98054-431-0	01	1	0905-	●
110	GLASS; CLUSTER METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-431-0	01	1	0905-	●
110	GLASS; CLUSTER METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-431-0	01	1	0905-		●	●
480	COVER; METER POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK	8-98054-433-0	01	1	0804-0904	●
480	COVER; METER EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) BLACK	8-98054-433-0	01	1	0804-0904	●
480	COVER; METER BLACK	8-98054-433-0	01	1	0804-0904		●	●
480	COVER; METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) BLACK	8-98054-433-0	01	1	0905-	●
480	COVER; METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK	8-98054-433-0	01	1	0905-	●
480	COVER; METER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK	8-98054-433-0	01	1	0905-		●	●

31 1 151 482 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98021-249-4	01	1	0804-	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-249-4	01	1	0804-		●	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98021-251-4	01	1	0804-	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-251-4	01	1	0804-		●	●
1	METER COMPL; CLUSTER POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-900-1	01	1	0804-0904	●
1	METER COMPL; CLUSTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-900-4	01	1	0905-	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	0804-	●	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●	●
31	SCREW; METER,INST PANEL M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●
151	CLIP; METER CLUSTER	8-98021-271-0	13	1	0804-	●	●	●
482	SEAL; CLUSTER METER	8-98116-842-0	01	1	0806-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
