Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#51202) — 284 parça

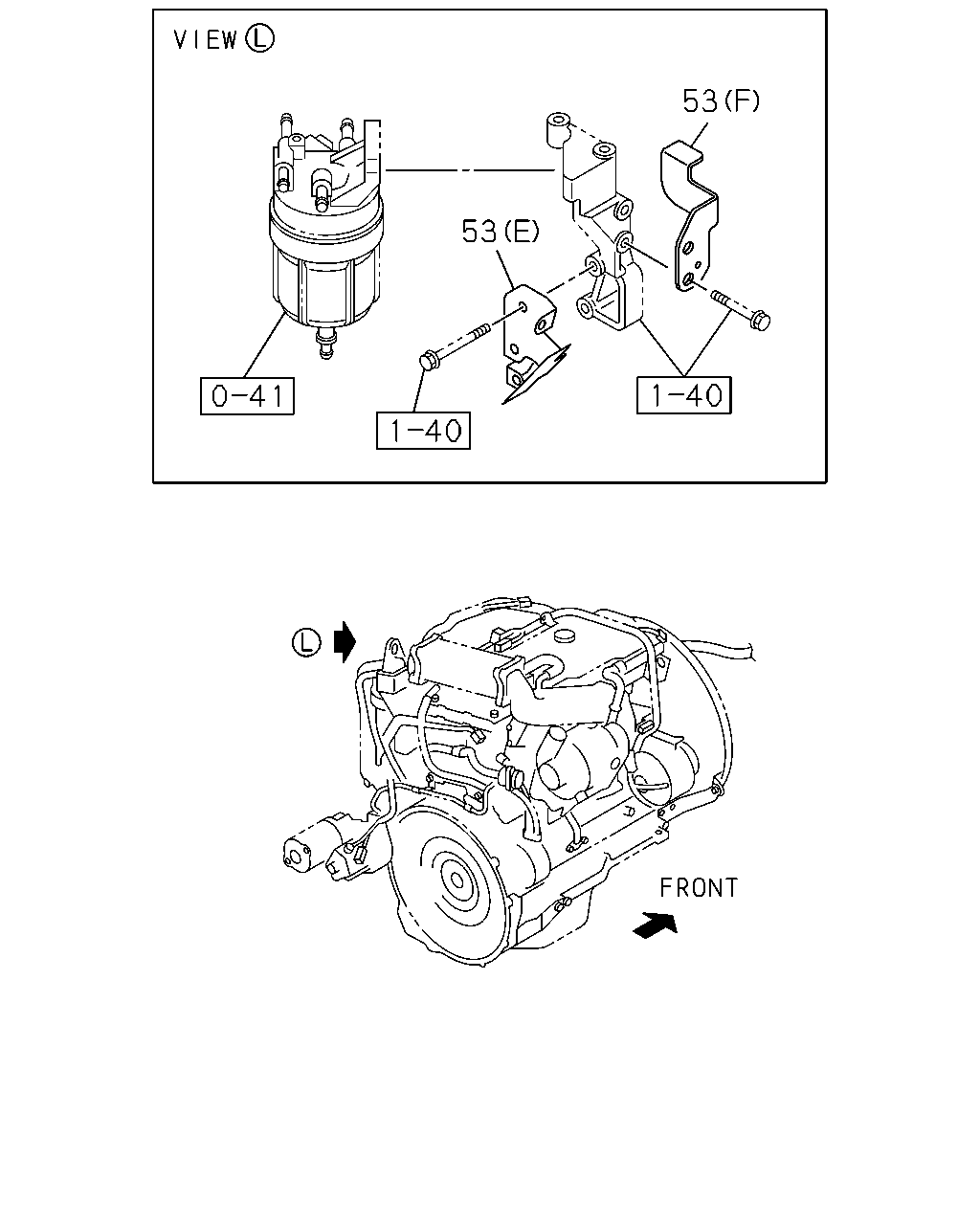

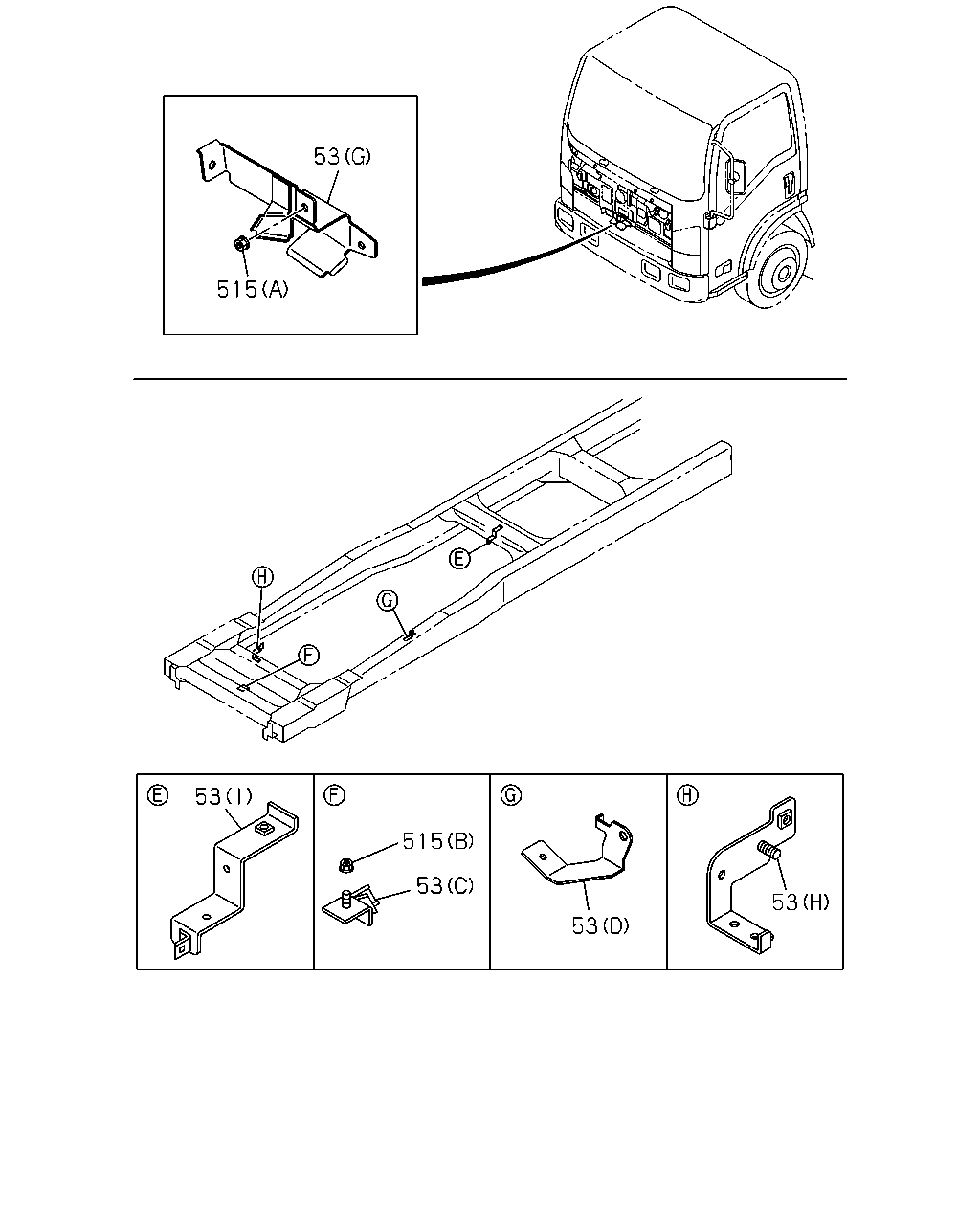

53 515 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805		●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (E)	8-98055-636-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-	●	●	●
53	BRACKET; HARNESS (I)	8-98077-504-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0804-0809	●	●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98094-629-0	01	1	0810-1303	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0810-1303		●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98130-669-1	01	1	1304-	●
53	BRACKET; HARNESS (D)	8-98130-669-1	01	1	1304-		●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	0804-	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-0809	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-0809	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909	●	●	●
515	NUT; BRKT EXC. DUMP CHASSIS(V4D) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909		●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-	●	●	●
515	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-	●
515	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-		●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-			●

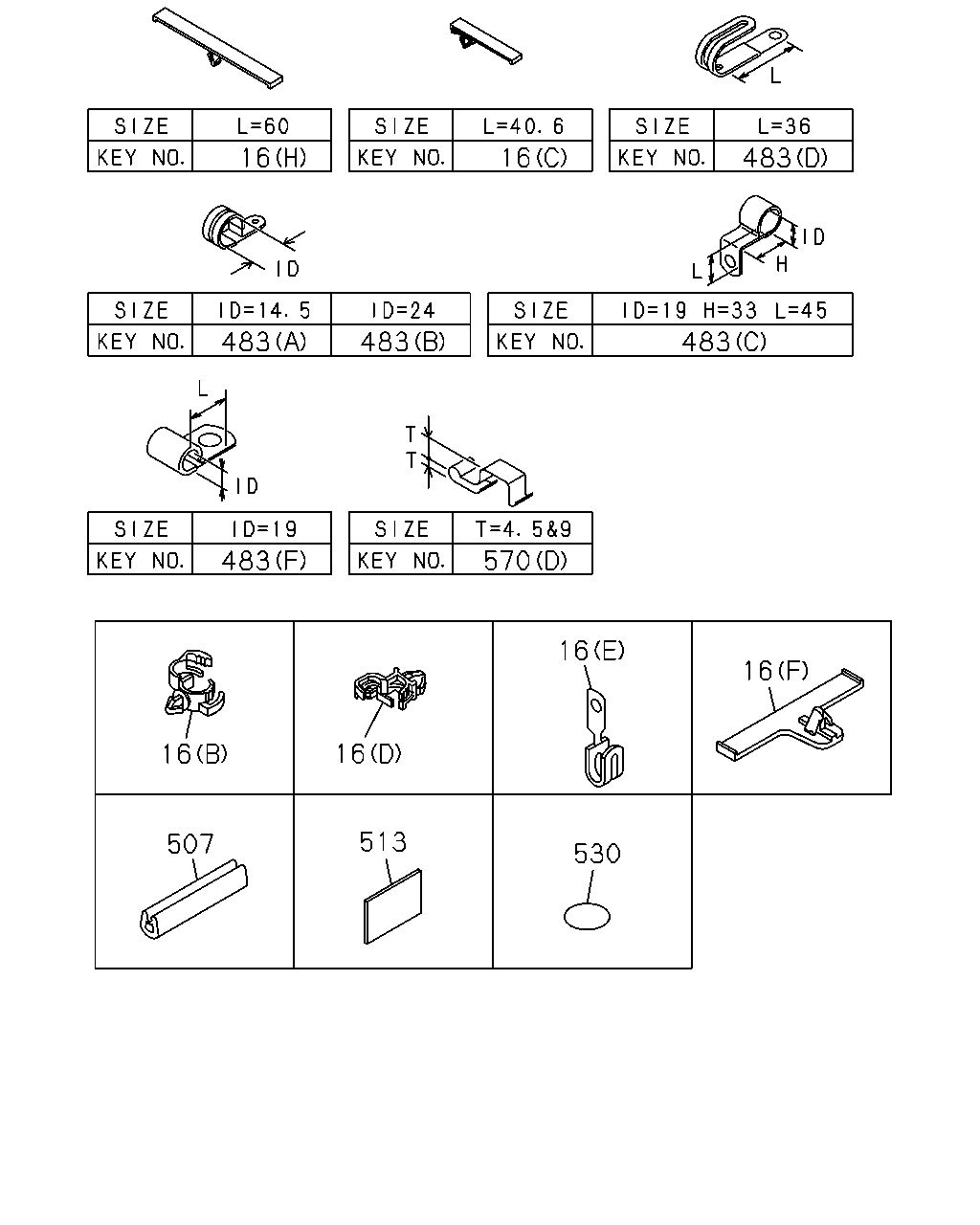

48 22 483 483 570 48 48 570 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-	●	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97101-436-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0804-			●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (A) L=140 SOU	5-09707-031-1	02	1	0804-0804	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (A) L=140 SOU	5-09707-031-1	02	1	0805-0809	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	02	1	0805-0809	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	02	1	0810-0902	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) L=250 SOU	5-09707-030-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS (C) L=350	8-94152-256-1	02	1	0804-0902	●	●	●
22	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0804-0804	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0903-	●	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805		●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-		●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804		●
48	CLIP; FRAME HARNESS (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	CLIP; FRAME HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	0805-			●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	03	1	0804-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	03	1	0804-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0804-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0804-0805		●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	04	1	0806-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	04	1	0806-		●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=450	1-09707-142-1	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	0804-			●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=19 L=60	0-95235-896-0	01	1	0907-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=12 L=70	1-09700-097-1	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=24 L=24	1-09701-001-1	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=36	8-94224-891-1	04	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (A) ID=14.5 L=40	1-09701-014-0	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (C) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) L=36	8-94224-891-1	01	1	0804-	●	●	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) L=140 SOU	5-09707-031-1	02	1	0804-	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0804-0804	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
570	CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●

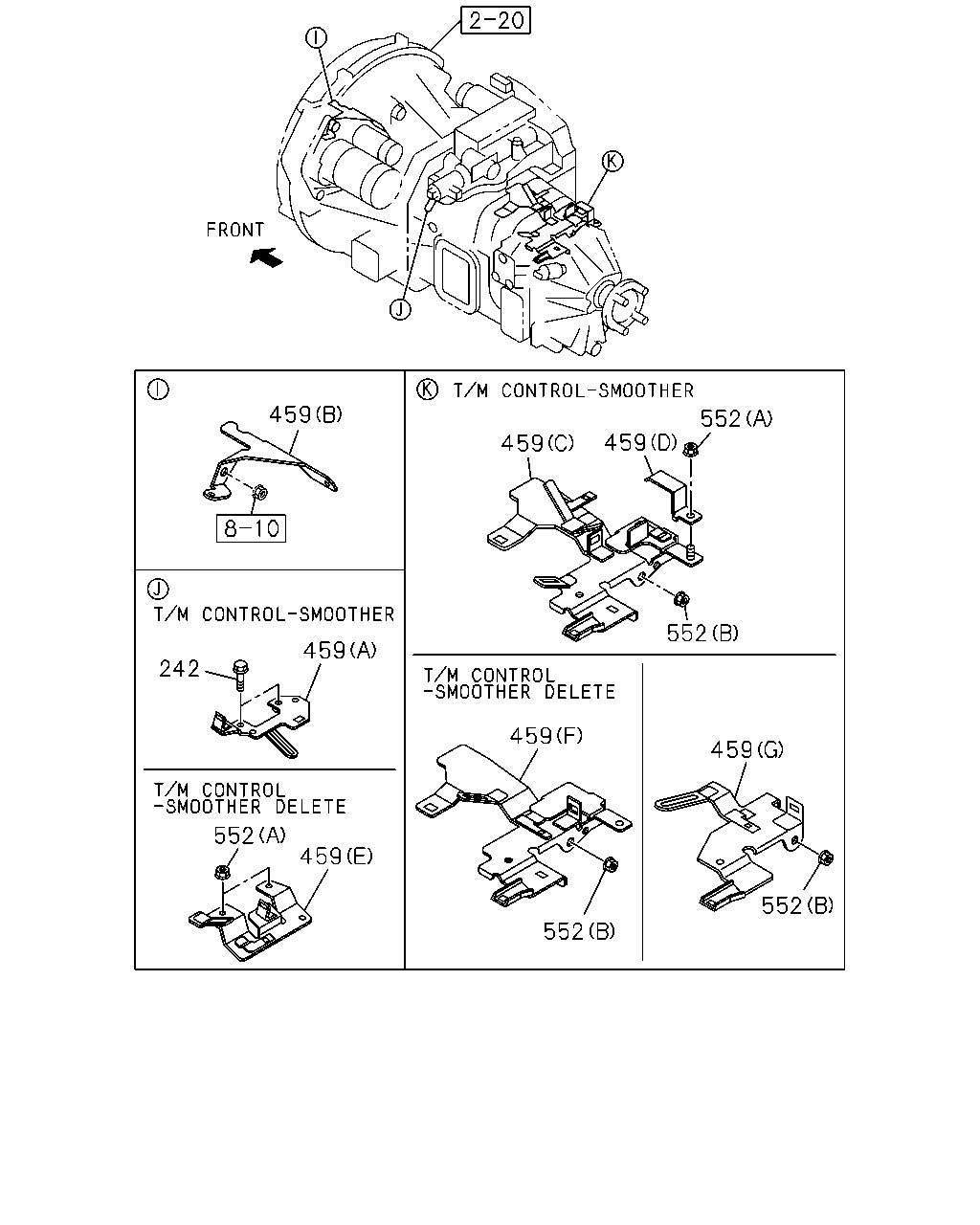

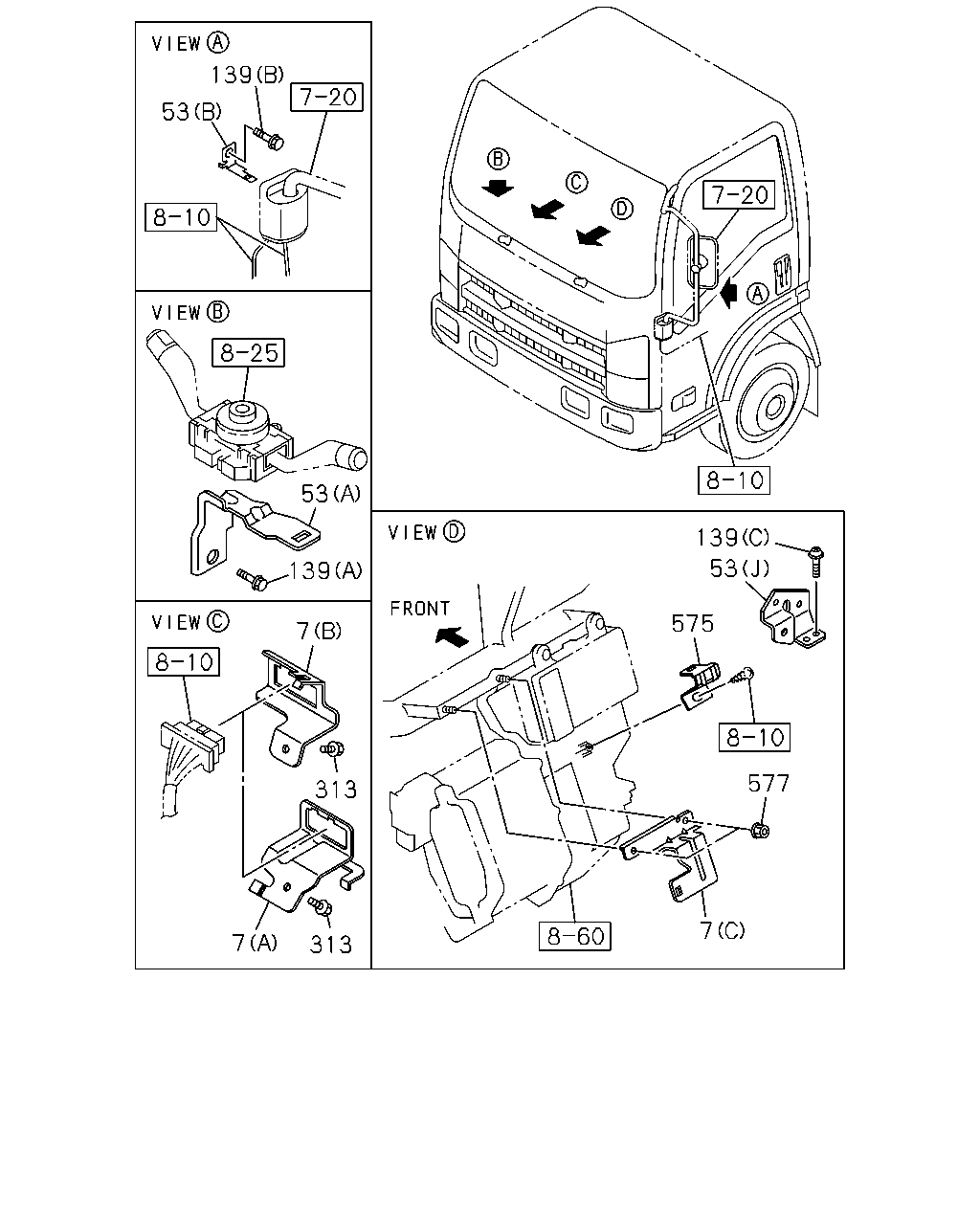

150 313 38 139 139 150 480 242 529 304 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 552 24 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	NUT; HARNESS (A) M6 FLANGE SOU	0-91180-106-0	01	1	0804-1409	●	●	●
24	NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
24	NUT; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
38	BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
139	BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805		●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
150	BOLT; CLIP EURO2 SPECIFICATION(NT2) (B) M6X10 FLANGE SOU	0-28050-610-0	01	1	0907-	●	●	●
150	BOLT; CLIP EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE SOU	0-28050-816-0	03	1	0804-0906	●	●	●
150	BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE SOU	0-28050-816-0	04	1	0907-	●	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
242	BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU	0-28650-835-0	02	1	0804-	●	●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
294	NUT M8 W/LK WASHER	8-94413-537-0	01	1	0804-0904	●	●	●
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION(NT3) M10X16 FLANGE	0-28151-016-0	01	1	0804-	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	0804-	●	●	●
377	BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004	●	●	●
377	BOLT; CAB EARTH (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	01	1	0804-1004	●	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●
377	BOLT; CAB EARTH (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0804-1004	●	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	01	1	0804-1004	●	●	●
386	BOLT; GRAND HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●	●
386	BOLT; GRAND HARNESS (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
480	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-0809	●	●	●
480	BOLT; BRKT EXC. DUMP CHASSIS(V4D) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	0810-	●
480	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	0810-		●	●
480	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-0809	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-0809	●	●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909	●	●	●
515	NUT; BRKT EXC. DUMP CHASSIS(V4D) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0810-0909		●	●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-	●	●	●
515	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-	●
515	NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-		●
515	NUT; BRKT (C) M10 FLANGE SOU	0-91180-110-0	01	1	0910-			●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0907	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	04	1	0804-	●	●	●

488 102 14 22 48 22 102 570 617 22 22 102 488 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) L=150	8-97355-273-0	01	1	0804-0810	●	●	●
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=150	8-97355-273-0	01	1	0804-0810	●	●	●
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) L=150	8-97355-273-0	02	1	0811-0906	●	●	●
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=150	8-97355-273-0	02	1	0811-0906	●	●	●
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) L=150	8-97355-273-0	01	1	0907-	●	●	●
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=150	8-97355-273-0	01	1	0907-	●	●	●
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-	●	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97101-436-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0804-			●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (A) L=140 SOU	5-09707-031-1	02	1	0804-0804	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (A) L=140 SOU	5-09707-031-1	02	1	0805-0809	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	02	1	0805-0809	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	02	1	0810-0902	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) L=250 SOU	5-09707-030-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS (C) L=350	8-94152-256-1	02	1	0804-0902	●	●	●
22	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0804-0804	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0805-0902	●	●	●
22	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	0903-	●	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805		●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	06	1	0804-0805			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-		●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0806-			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804		●
48	CLIP; FRAME HARNESS (C) T=6.0 SOU	5-09709-024-0	01	1	0804-0804			●
48	CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (C) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	CLIP; FRAME HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	0805-			●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	03	1	0804-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	03	1	0804-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0804-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	05	1	0804-0805		●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) ID=14 L=47 SOU	5-09700-319-0	04	1	0806-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=14 L=47 SOU	5-09700-319-0	04	1	0806-		●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=450	1-09707-142-1	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (A) ID=10 & 16.5	8-94424-440-0	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 SOU	5-09700-319-0	01	1	0804-	●	●
48	CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	0804-			●
102	CLIP; BAND EURO3 SPECIFICATION(NT3) (C) L=170	5-09707-054-0	01	1	1104-	●	●	●
102	CLIP; BAND EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=250 SOU	5-09707-030-1	01	1	0804-1103	●	●	●
102	CLIP; BAND EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 SOU	5-09707-030-1	01	1	0804-1103	●	●	●
102	CLIP; BAND EURO2 SPECIFICATION(NT2) (B) L=250 SOU	5-09707-030-1	01	1	1104-	●	●	●
102	CLIP; BAND EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=140 SOU	5-09707-031-1	04	1	0804-1202	●	●	●
102	CLIP; BAND EURO2 SPECIFICATION(NT2) (A) L=140 SOU	5-09707-031-1	02	1	1203-	●	●	●
102	CLIP; BAND EURO3 SPECIFICATION(NT3) (A) L=140 SOU	5-09707-031-1	03	1	0804-	●	●	●
488	CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> (A) L=112 SOU	8-94232-618-0	05	1	0804-	●
488	CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6> (B) L=250 SOU	5-09707-030-1	01	1	0804-	●
488	CLIP; CABLE,TRAILER (B) L=250 SOU	5-09707-030-1	01	1	0804-		●	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) L=140 SOU	5-09707-031-1	02	1	0804-	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0804-0804	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
570	CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
617	STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=140 SOU	5-09707-031-1	01	1	1012-1106	●	●	●

139 53 53 139 53 139 575 7 577 313 7 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●	●	●
7	BRACKET; CONNECTOR (C)	8-98029-762-4	01	1	0804-	●	●	●
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0804-	●	●	●
53	BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805		●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (E)	8-98055-636-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-	●	●	●
53	BRACKET; HARNESS (I)	8-98077-504-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0804-0809	●	●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98094-629-0	01	1	0810-1303	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0810-1303		●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98130-669-1	01	1	1304-	●
53	BRACKET; HARNESS (D)	8-98130-669-1	01	1	1304-		●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	0804-	●	●	●
139	BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805		●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	0804-	●	●	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	04	1	0804-	●	●	●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU	8-98039-277-1	02	1	0804-0805	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU	8-98039-277-1	02	1	0804-0805		●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98052-804-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (E)	8-98055-636-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-	●	●	●
53	BRACKET; HARNESS (I)	8-98077-504-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0804-0809	●	●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98094-629-0	01	1	0810-1303	●
53	BRACKET; HARNESS (D)	8-98094-629-0	01	1	0810-1303		●	●
53	BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (D)	8-98130-669-1	01	1	1304-	●
53	BRACKET; HARNESS (D)	8-98130-669-1	01	1	1304-		●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	0804-	●	●	●

483 16 16 483 483 483 483 570 16 16 16 16 513 507 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-	●	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97101-436-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0804-			●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=19 L=60	0-95235-896-0	01	1	0907-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=12 L=70	1-09700-097-1	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=24 L=24	1-09701-001-1	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=36	8-94224-891-1	04	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (A) ID=14.5 L=40	1-09701-014-0	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (C) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-	●	●	●
483	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) L=36	8-94224-891-1	01	1	0804-	●	●	●
507	FINISHER L=40	8-94212-660-0	01	1	0804-0902	●	●	●
507	FINISHER L=40	8-94212-660-0	01	1	0903-1301			●
513	TAPE; SOFT,HARNESS 70X45 SOU	8-97304-372-0	01	1	0907-1309	●	●	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU	8-97304-373-0	01	1	0808-	●	●	●
530	SEAL; HARNESS OD=32 BLACK	8-98031-126-0	01	1	0804-	●	●	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) L=140 SOU	5-09707-031-1	02	1	0804-	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0804-0804	●
570	CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
570	CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU	0-28650-835-0	02	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0804-1109	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0804-0907	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8 FLANGE SOU	0-91180-108-0	01	1	0804-0907	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
