Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#51201) — 310 parça

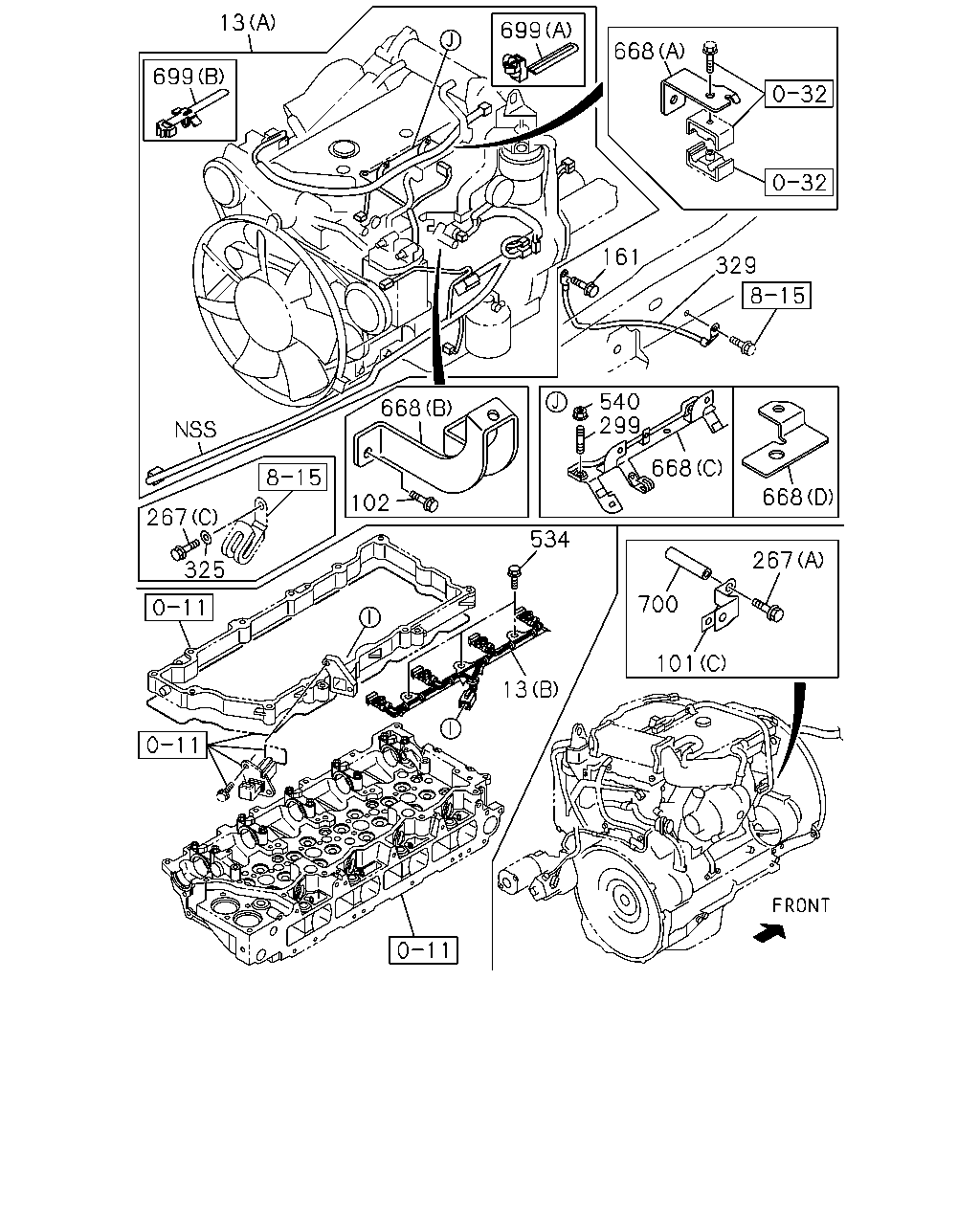

13 699 267 102 534 13 101 700 267 668 668 299 540 329 668 699 668 161 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97332-133-3	01	1	0804-1007	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97332-133-3	01	1	0804-1007	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98171-638-0	01	1	1008-	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98171-638-0	01	1	1008-	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-299-7	01	1	0804-0906	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-125-0	01	1	0907-1012	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-534-0	01	1	1101-1202	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-819-0	01	1	1203-	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-298-7	01	1	0804-0906	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-126-0	01	1	0907-1012	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-535-0	01	1	1101-1202	●	●	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-820-0	01	1	1203-	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98075-586-1	01	1	0804-0902	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98136-479-0	01	1	0903-1012	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-539-0	01	1	1101-	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98075-587-1	01	1	0804-0902	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98136-480-0	01	1	0903-1012	●	●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-540-0	01	1	1101-	●	●	●
101	BRACKET; HARNESS CONNECTOR (C)	8-98052-805-0	01	1	0804-	●	●	●
101	BRACKET; HARNESS CONNECTOR EURO3 SPECIFICATION(NT3) (A)	8-98079-137-2	01	1	0804-	●	●	●
101	BRACKET; HARNESS CONNECTOR EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	0804-	●	●	●
102	BOLT; BRKT,HARNESS CONNECTOR EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X16 FLANGE	0-28151-016-0	02	1	0804-	●	●	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE SOU	0-28050-816-0	01	1	0804-	●	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	0804-	●	●	●
267	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-	●	●	●
299	STUD; BRKT EURO2 SPECIFICATION(NT2) M6X18 L=27	0-41010-618-0	02	1	0907-1202	●	●	●
325	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) ID=8.4 OD=18	0-91610-608-0	01	1	0804-	●	●	●
329	CABLE; ENG TO FRAME	8-98039-304-2	01	1	0804-0804	●	●	●
329	CABLE; ENG TO FRAME	8-98102-465-0	01	1	0805-	●	●	●
534	BOLT EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE SOU	8-94399-863-1	03	1	0804-0805	●	●	●
534	BOLT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X55 FLANGE SOU	8-94399-863-1	03	1	0804-0805	●	●	●
534	BOLT EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	03	1	0806-	●	●	●
534	BOLT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X55 FLANGE	8-97365-449-0	03	1	0806-	●	●	●
540	NUT; BRKT FIX EURO2 SPECIFICATION(NT2) M6 FLANGE SOU	0-91180-106-0	02	1	0907-1202	●	●	●
668	BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (C)	8-98061-805-1	02	1	0907-1004	●	●	●
668	BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (C)	8-98061-805-2	01	1	1005-1202	●	●	●
668	BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98205-089-0	01	1	1203-	●	●	●
668	BRACKET; HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98011-484-0	01	1	0804-	●	●	●
668	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (A)	8-98001-095-0	01	1	0804-	●	●	●
699	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (B) L=213.5	8-98000-506-1	02	1	0903-	●	●	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (B) L=213.5	8-98000-506-1	01	1	0907-	●	●	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (A) L=146.2	8-98052-677-0	01	1	0907-	●	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	0804-	●	●	●

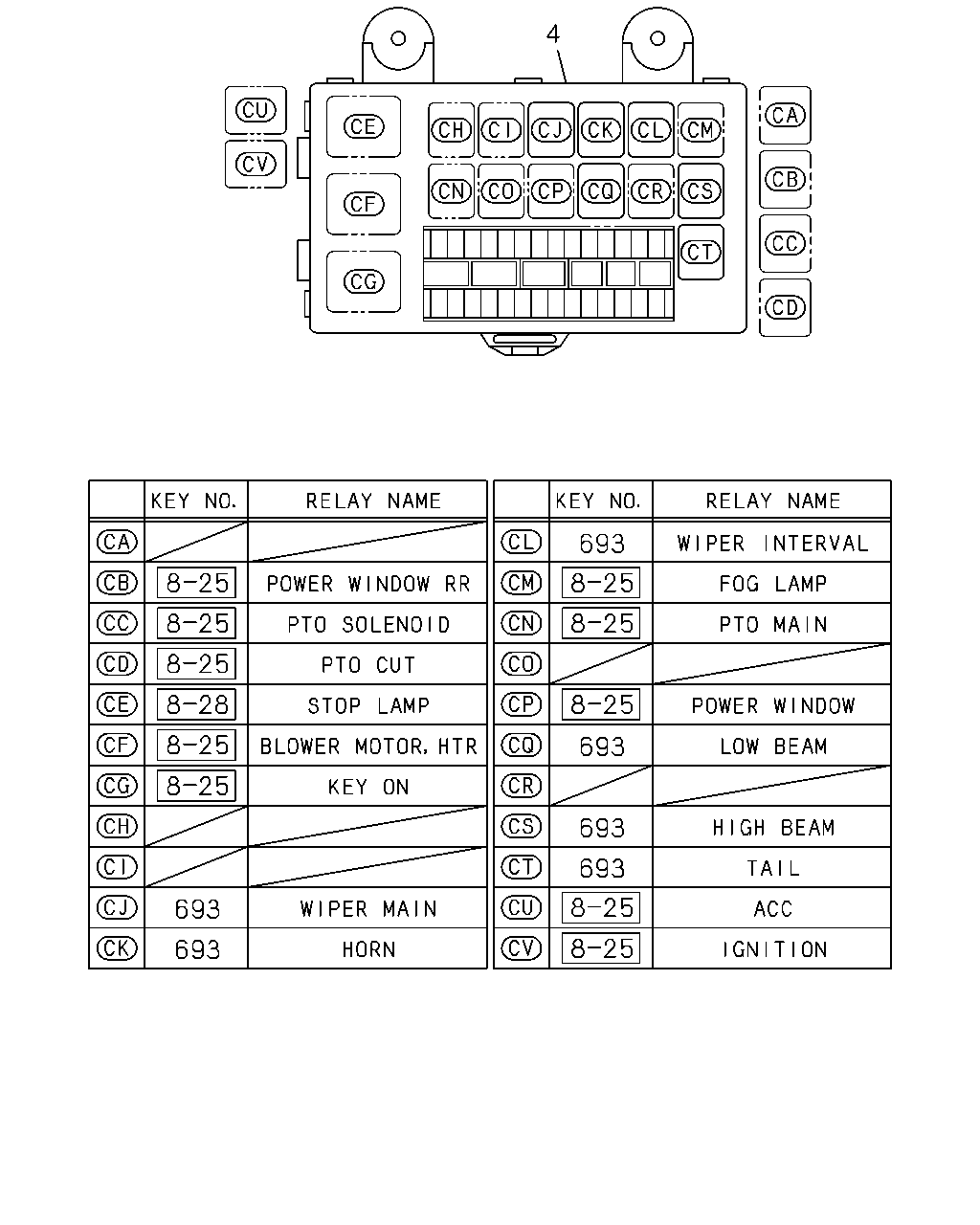

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●

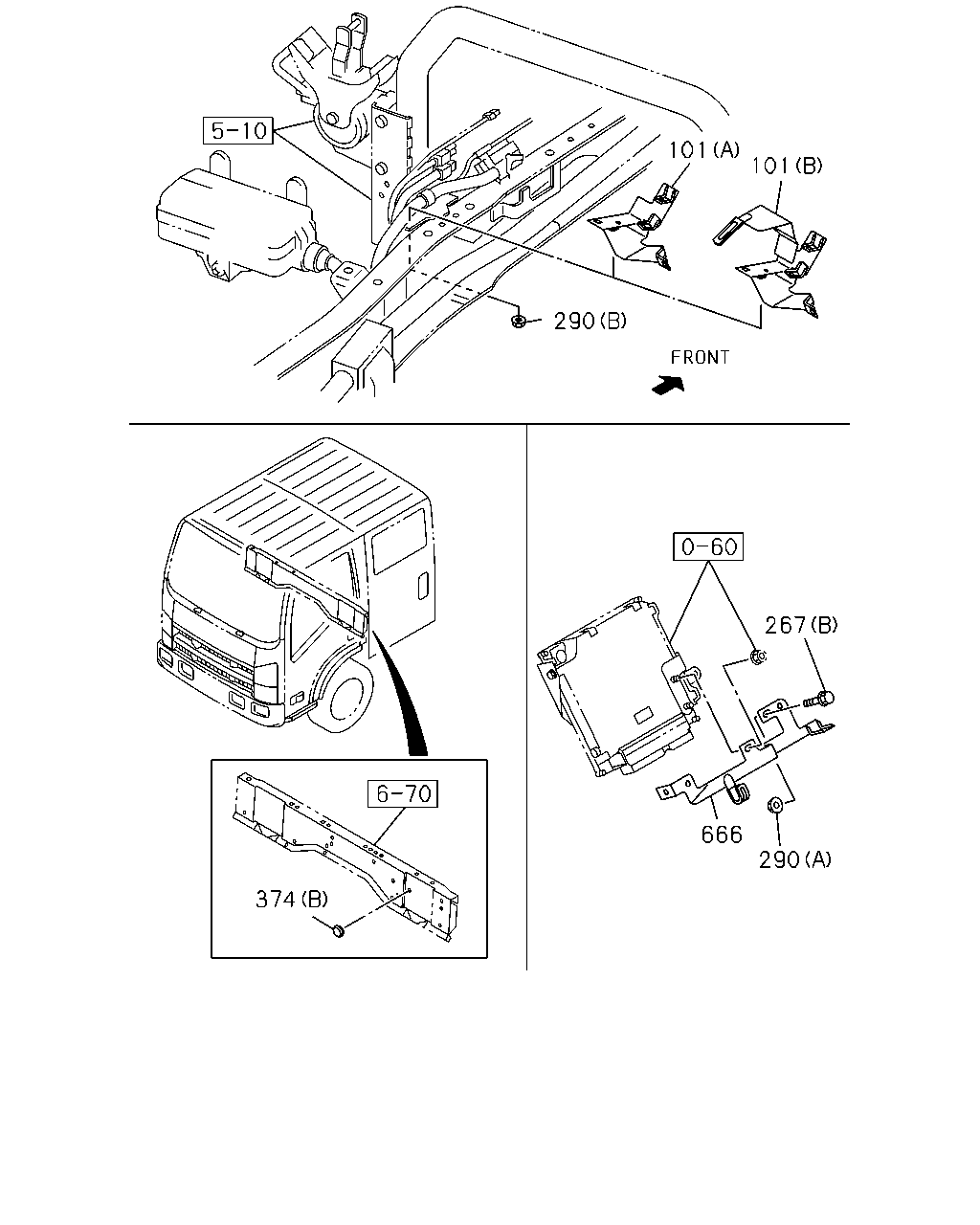

101 101 290 267 666 290 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BRACKET; HARNESS CONNECTOR (C)	8-98052-805-0	01	1	0804-	●	●	●
101	BRACKET; HARNESS CONNECTOR EURO3 SPECIFICATION(NT3) (A)	8-98079-137-2	01	1	0804-	●	●	●
101	BRACKET; HARNESS CONNECTOR EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	0804-	●	●	●
267	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
267	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	0804-	●	●	●
267	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	0804-	●	●	●
290	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
290	NUT; BRKT EURO2 SPECIFICATION(NT2) (A) M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
374	PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) OD=32 BLACK	8-98031-126-0	01	1	0804-0811	●	●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) OD=32 BLACK	8-98031-126-0	01	1	0812-	●	●
374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	0804-			●
666	BRACKET; CLIP EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	0804-	●	●	●

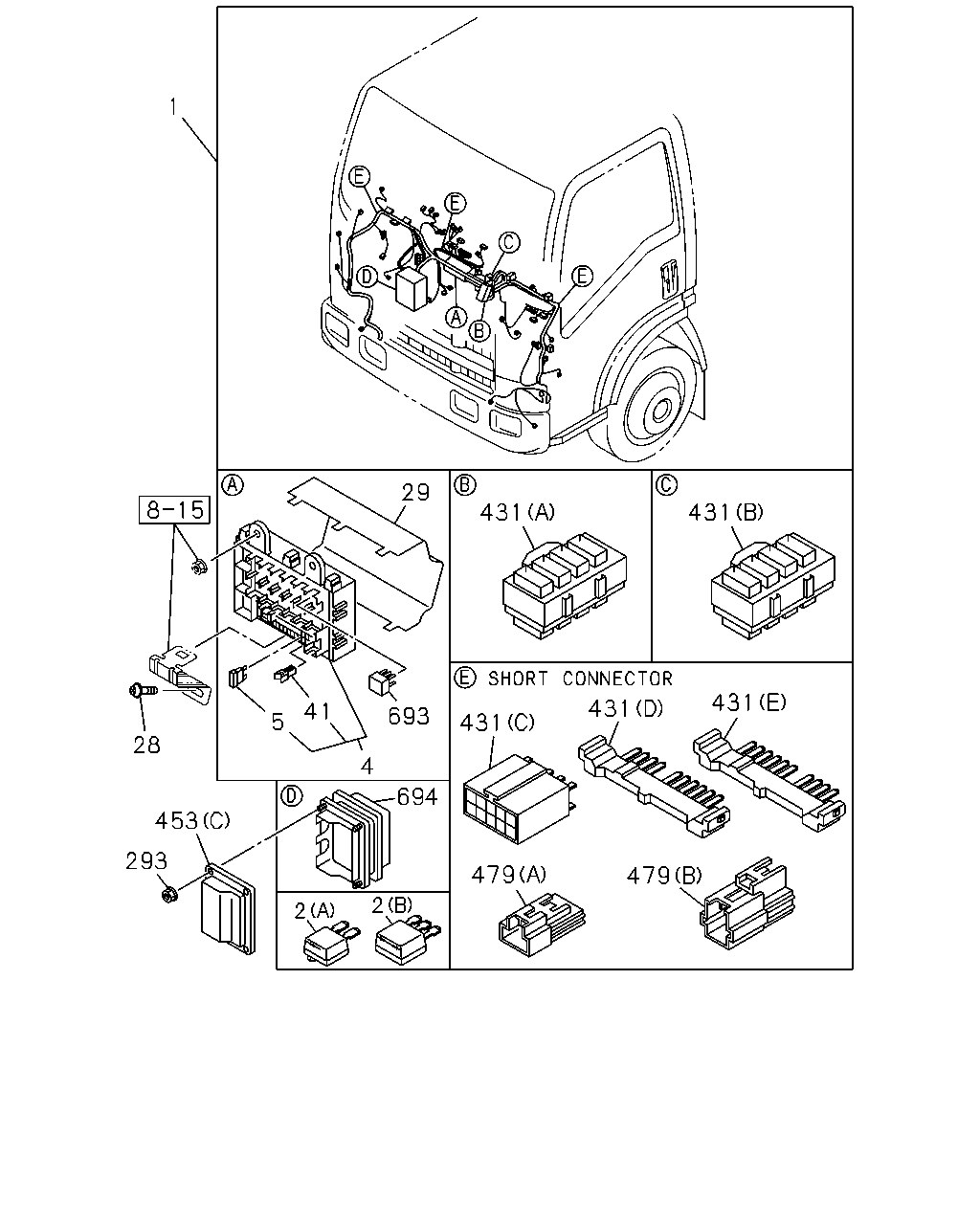

1 29 431 431 431 431 41 693 5 431 28 4 694 453 293 479 479 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-872-5	01	1	0804-1005	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-587-1	01	1	1006-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-658-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-878-6	01	1	0804-1204	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1205-	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-867-5	01	1	0804-1005	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-586-0	01	1	1006-1006	●	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-586-1	01	1	1006-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-586-1	01	1	1006-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98158-586-1	01	1	1006-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98207-656-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-870-6	01	1	0804-1204	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1205-	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-891-6	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-663-0	01	1	1205-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-894-6	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-676-0	01	1	1205-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98087-887-4	01	1	0804-1005			●
1	HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98158-585-1	01	1	1006-1204	●
1	HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-657-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98087-890-7	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-674-0	01	1	1205-			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-883-6	01	1	0804-1204			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-662-0	01	1	1205-			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-885-6	01	1	0804-1204			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-675-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98087-881-4	01	1	0804-1005			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-584-0	01	1	1006-1006	●	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-584-1	01	1	1006-1204	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98158-584-1	01	1	1006-1204		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98158-584-1	01	1	1006-1204			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98207-655-0	01	1	1205-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1205-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98087-882-7	01	1	0804-1204			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98207-673-0	01	1	1205-			●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0804-	●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0804-	●	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	0804-	●	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	0804-	●	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	0804-	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0804-	●	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	0804-	●	●	●
293	NUT M6 FLANGE SOU	0-91180-106-0	04	1	0804-	●	●	●
431	CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0804-1005	●	●	●
431	CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-1204	●	●	●
431	CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0804-1204	●	●	●
431	CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0804-1204	●	●	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0804-	●	●	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-94417-716-0	02	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94417-716-0	02	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98031-620-1	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98031-620-1	01	1	0804-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0804-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0804-	●	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●
694	BOX ASM; CONNECTOR	8-98057-772-0	01	1	0804-	●	●	●

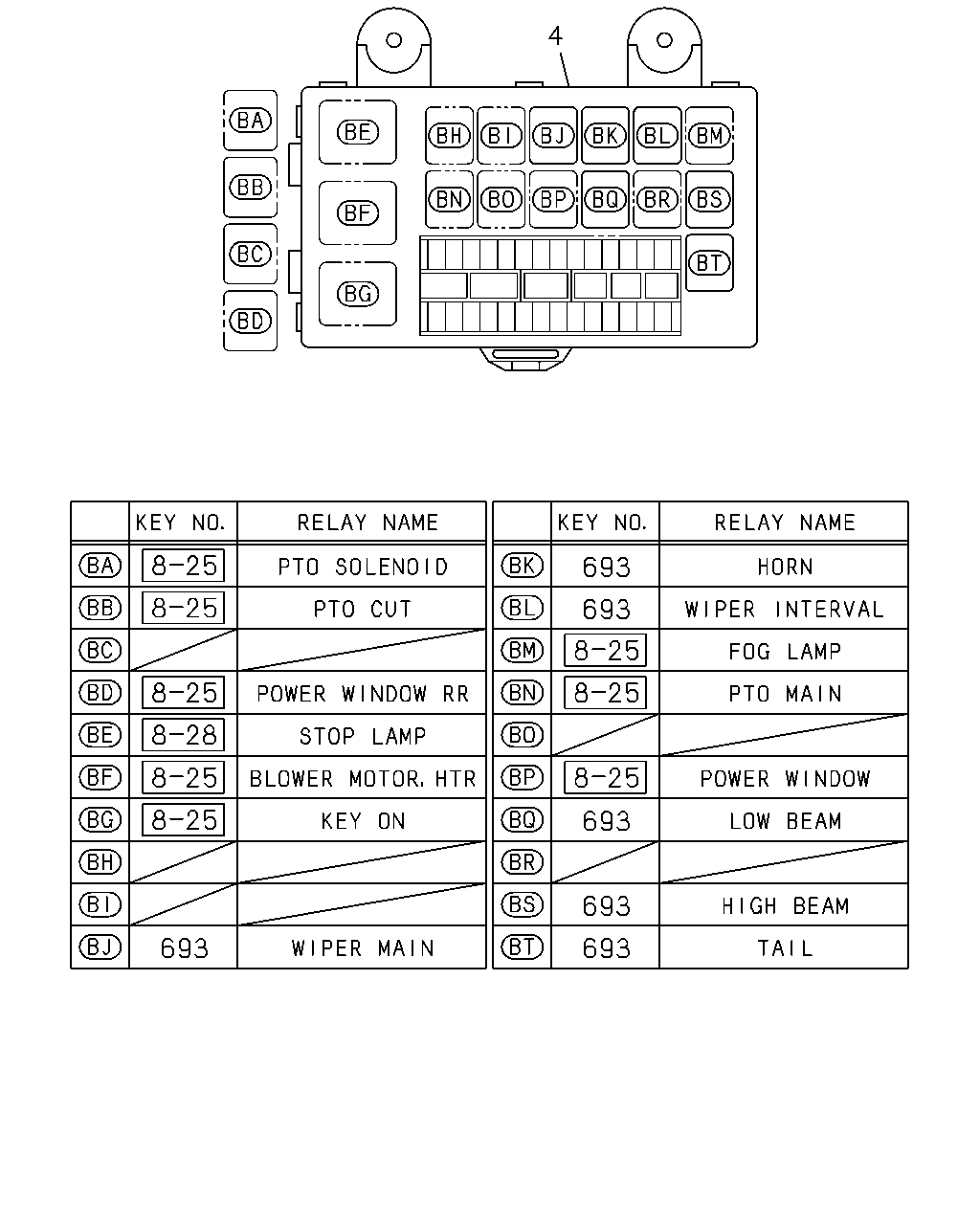

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●

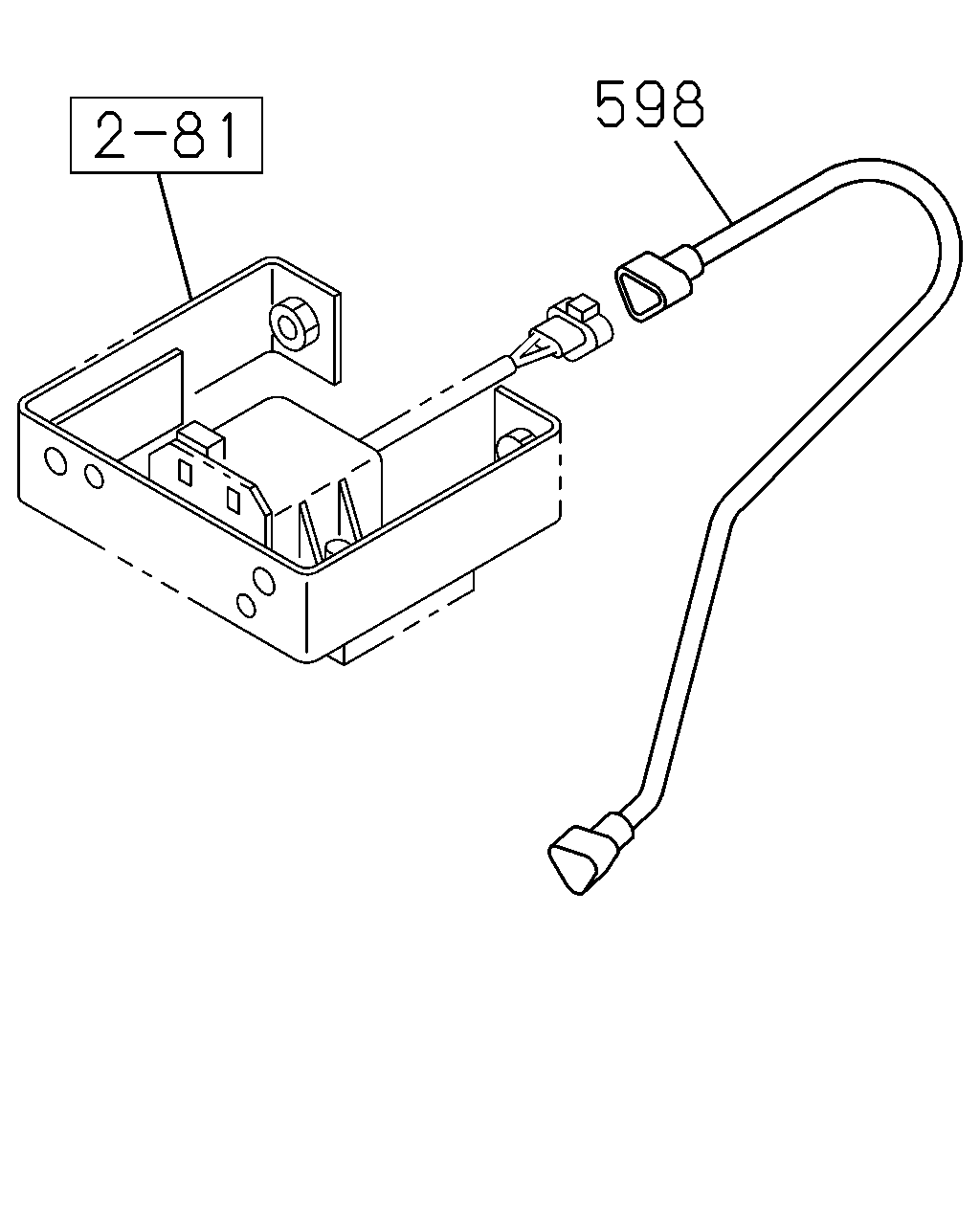

598

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	598	HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98040-290-2	01	1	0804-0806	●
	598	HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98123-454-1	01	1	0807-	●

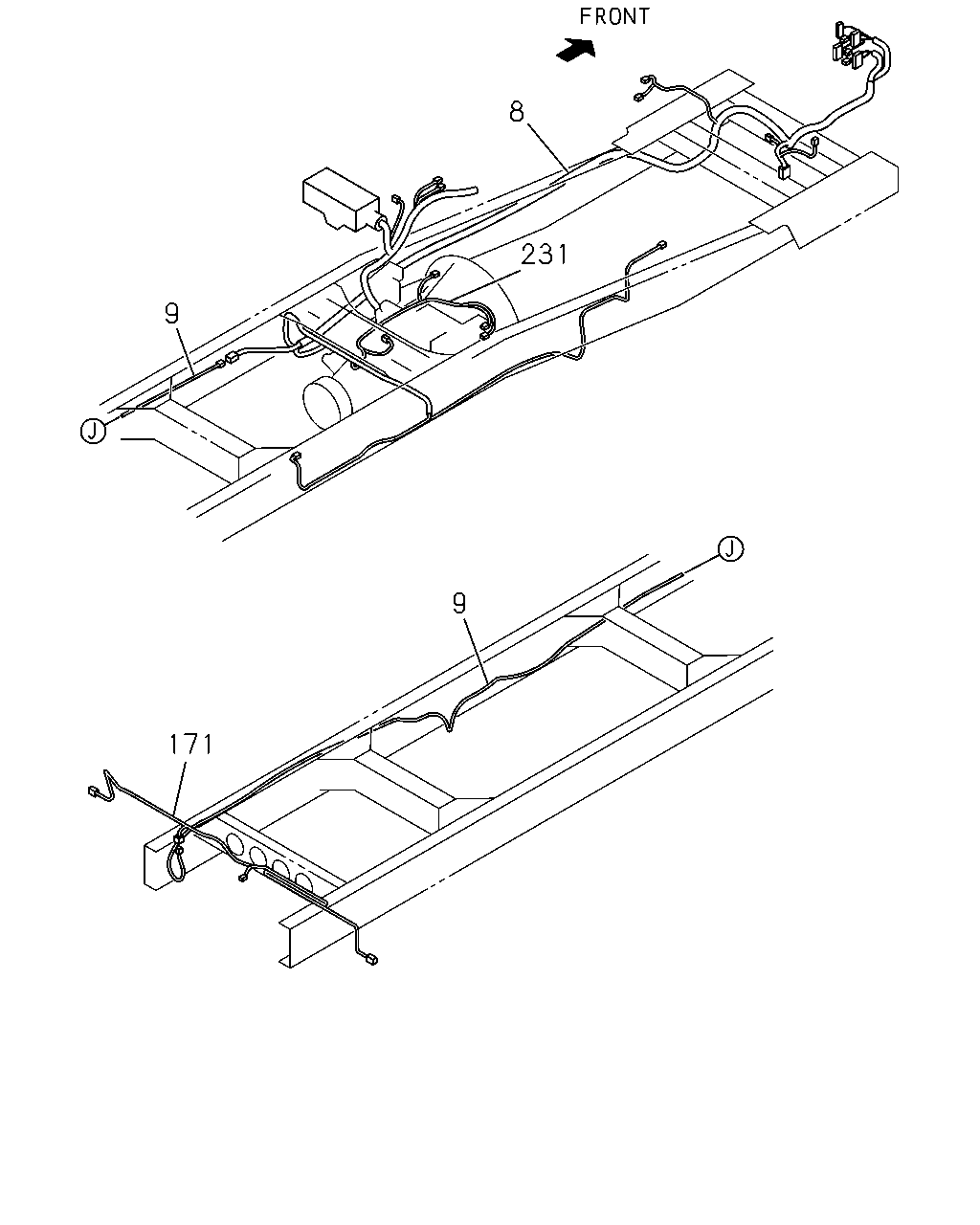

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-916-4	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-277-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
9	HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98070-314-2	01	1	0804-0805	●
9	HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98117-252-0	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98070-315-2	01	1	0804-0805	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-315-2	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98117-253-0	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-253-0	01	1	0806-		●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98070-316-1	01	1	0804-0805	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-316-1	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-254-0	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-254-0	01	1	0806-		●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98070-317-1	01	1	0804-0805	●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-317-1	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98117-255-0	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-255-0	01	1	0806-		●
9	HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98070-318-2	01	1	0804-0805	●
9	HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98117-256-0	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98067-970-2	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	0806-		●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98067-971-1	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-249-0	01	1	0806-		●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98067-972-1	01	1	0804-0805		●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-250-0	01	1	0806-		●
9	HARNESS; FRAME,RR	8-98080-015-1	01	1	0804-0805			●
9	HARNESS; FRAME,RR	8-98117-257-0	01	1	0806-			●
171	HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0804-1006	●	●	●
171	HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1007-	●	●	●
231	HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-0	01	1	0905-0905	●
231	HARNESS; TRANS DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-1	01	1	0906-	●
231	HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98150-063-1	01	1	0906-	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-1	01	1	0804-0904	●	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-1	01	1	0905-0905	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-1	01	1	0905-0905		●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-2	01	1	0906-	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	0906-		●	●

174 27 94 453 387 453 8 35 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-916-4	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-277-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	AR	1	0804-	●	●	●
35	BOX; RELAY & FUSE EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-763-0	01	1	0804-	●	●	●
35	BOX; RELAY & FUSE EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-763-0	01	1	0804-	●	●	●
94	DIODE; FRAME HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 2P-1.5A SOU	8-94422-639-1	01	1	0804-	●	●	●
94	DIODE; FRAME HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 2P-1.5A SOU	8-94422-639-1	01	1	0804-	●	●	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	AR	1	0804-	●	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	AR	1	0804-	●	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	AR	1	0804-	●	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	AR	1	0804-	●	●	●
184	COVER; RELAY & FUSE BOX EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-766-0	01	1	0804-	●	●	●
184	COVER; RELAY & FUSE BOX EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-766-0	01	1	0804-	●	●	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-94417-716-0	02	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94417-716-0	02	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98031-620-1	01	1	0804-	●	●	●
453	PROTECTOR; HARNESS EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98031-620-1	01	1	0804-	●	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●

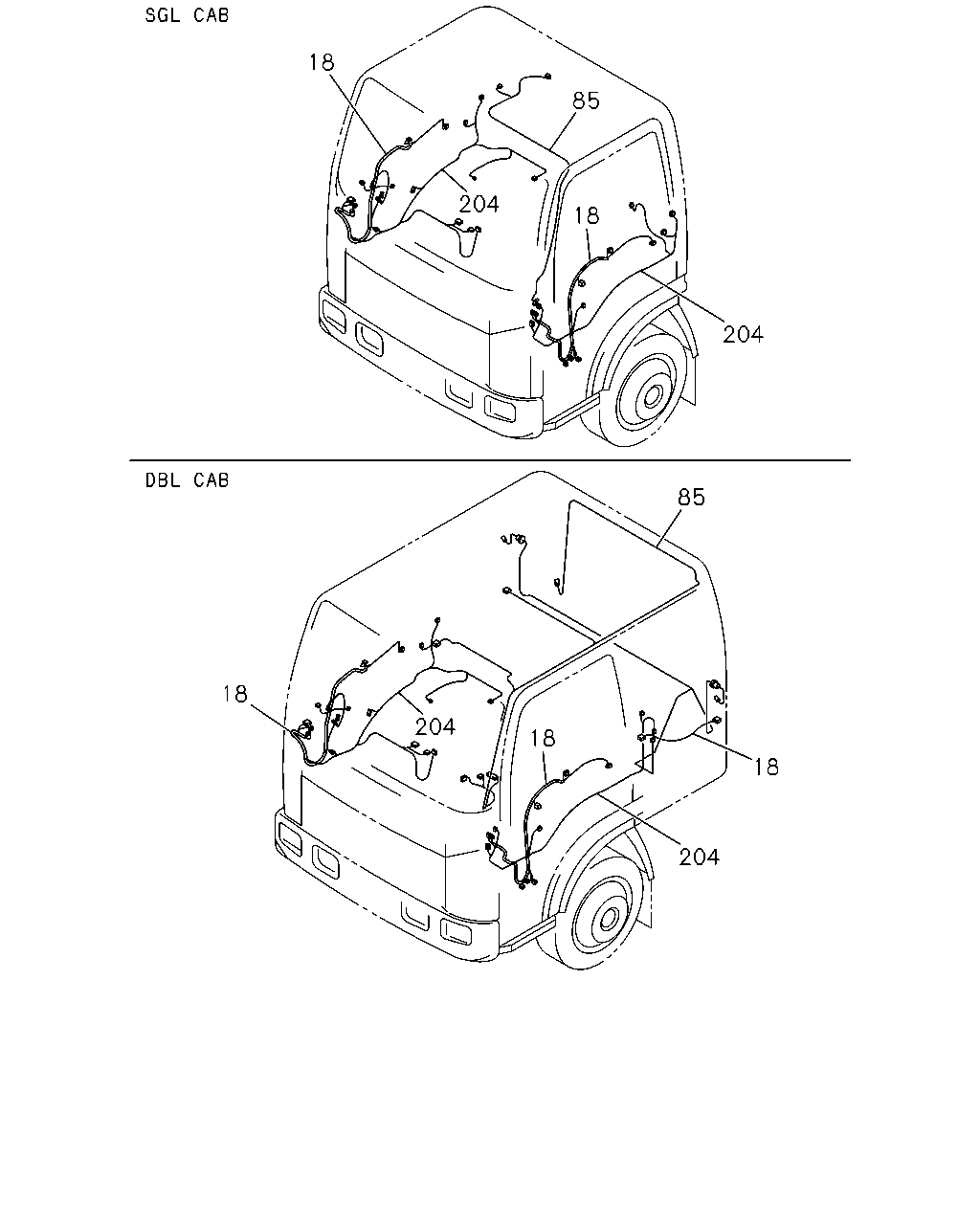

18 85 204 18 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-084-3	01	1	0804-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-084-3	01	1	0804-			●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-076-2	01	1	0804-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-076-2	01	1	0804-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-083-2	01	1	0804-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-083-2	01	1	0804-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-075-2	01	1	0804-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-075-2	01	1	0804-			●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98056-047-1	02	1	0804-1203			●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1204-			●
85	HARNESS; ROOM LAMP	8-98071-092-1	01	1	0804-0901	●	●
85	HARNESS; ROOM LAMP	8-98047-149-3	01	1	0902-	●	●
85	HARNESS; ROOM LAMP	8-98071-094-1	01	1	0804-0901			●
85	HARNESS; ROOM LAMP	8-98029-741-4	01	1	0902-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-592-3	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-592-3	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98075-612-3	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSIONCONTROL-SMOOTHER(8GF)	8-98070-807-3	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-789-4	01	1	0804-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98074-594-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98074-593-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOWFRT&REAR DOOR<A31>	8-98070-809-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-726-6	01	1	0804-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-727-6	01	1	0804-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-793-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-797-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-792-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-796-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-791-3	01	1	0804-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-795-3	01	1	0804-			●

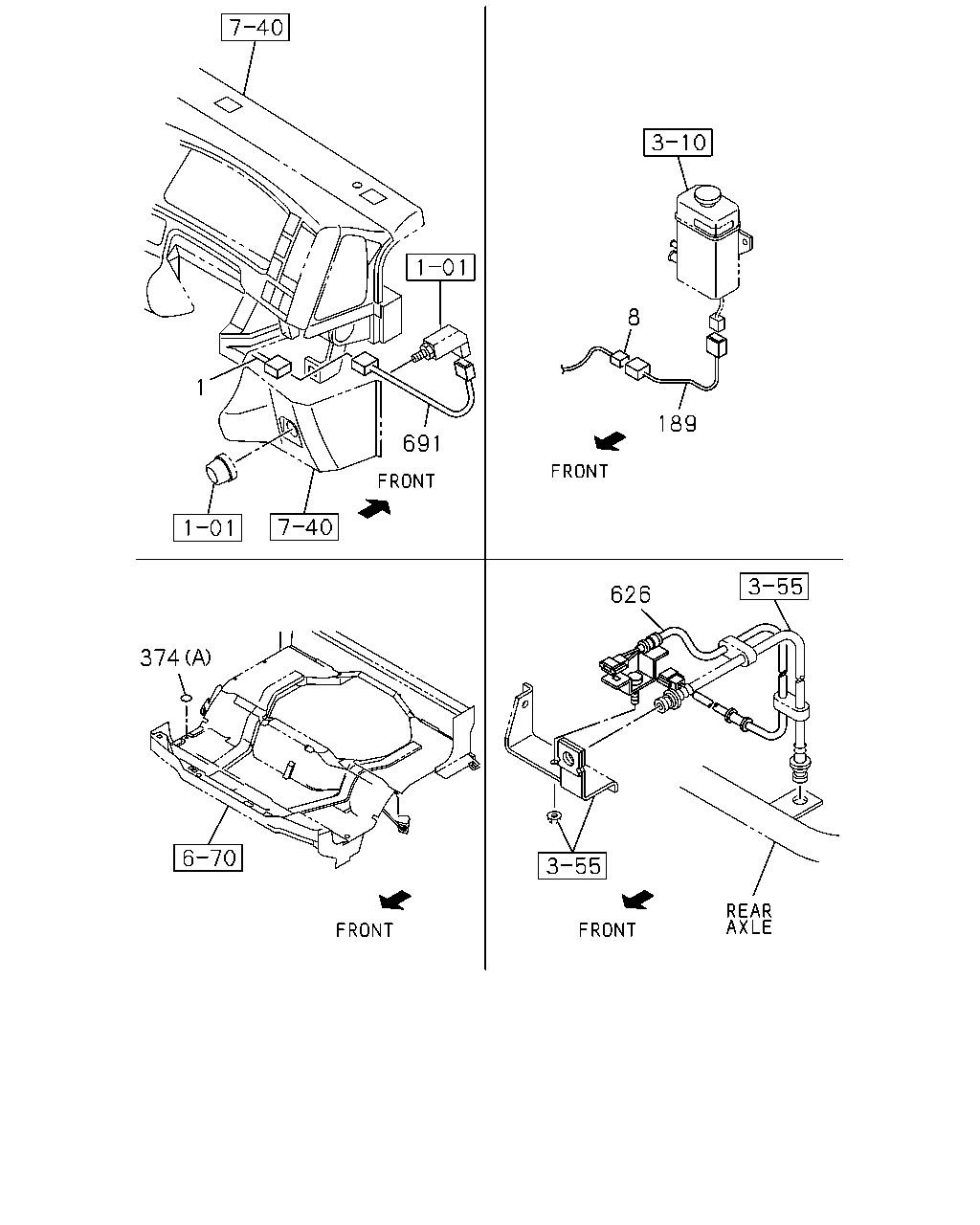

8 1 189 691 626 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-872-5	01	1	0804-1005	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-587-1	01	1	1006-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-658-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-878-6	01	1	0804-1204	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1205-	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-867-5	01	1	0804-1005	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-586-0	01	1	1006-1006	●	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-586-1	01	1	1006-1204	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-586-1	01	1	1006-1204		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98158-586-1	01	1	1006-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98207-656-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-870-6	01	1	0804-1204	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1205-	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-891-6	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-663-0	01	1	1205-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-894-6	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-676-0	01	1	1205-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98087-887-4	01	1	0804-1005			●
1	HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98158-585-1	01	1	1006-1204	●
1	HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-657-0	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98087-890-7	01	1	0804-1204			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-674-0	01	1	1205-			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-883-6	01	1	0804-1204			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-662-0	01	1	1205-			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-885-6	01	1	0804-1204			●
1	HARNESS; CAB AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-675-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98087-881-4	01	1	0804-1005			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-584-0	01	1	1006-1006	●	●	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-584-1	01	1	1006-1204	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98158-584-1	01	1	1006-1204		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98158-584-1	01	1	1006-1204			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98207-655-0	01	1	1205-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1205-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1205-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98087-882-7	01	1	0804-1204			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31>	8-98207-673-0	01	1	1205-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-916-4	01	1	0804-1409		●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-277-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	0804-1409			●
8	HARNESS; FRAME,FRT EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
189	HARNESS; EXT	8-98095-676-0	01	1	0804-1006			●
189	HARNESS; EXT POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-676-0	01	1	1007-			●
374	PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) OD=32 BLACK	8-98031-126-0	01	1	0804-0811	●	●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) OD=32 BLACK	8-98031-126-0	01	1	0812-	●	●
374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	0804-			●
626	HARNESS; FLEX HOSE	8-97253-968-1	01	1	0804-	●		●
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	0804-		●
626	HARNESS; FLEX HOSE	8-97253-969-1	01	1	0804-	●		●
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	0804-		●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
