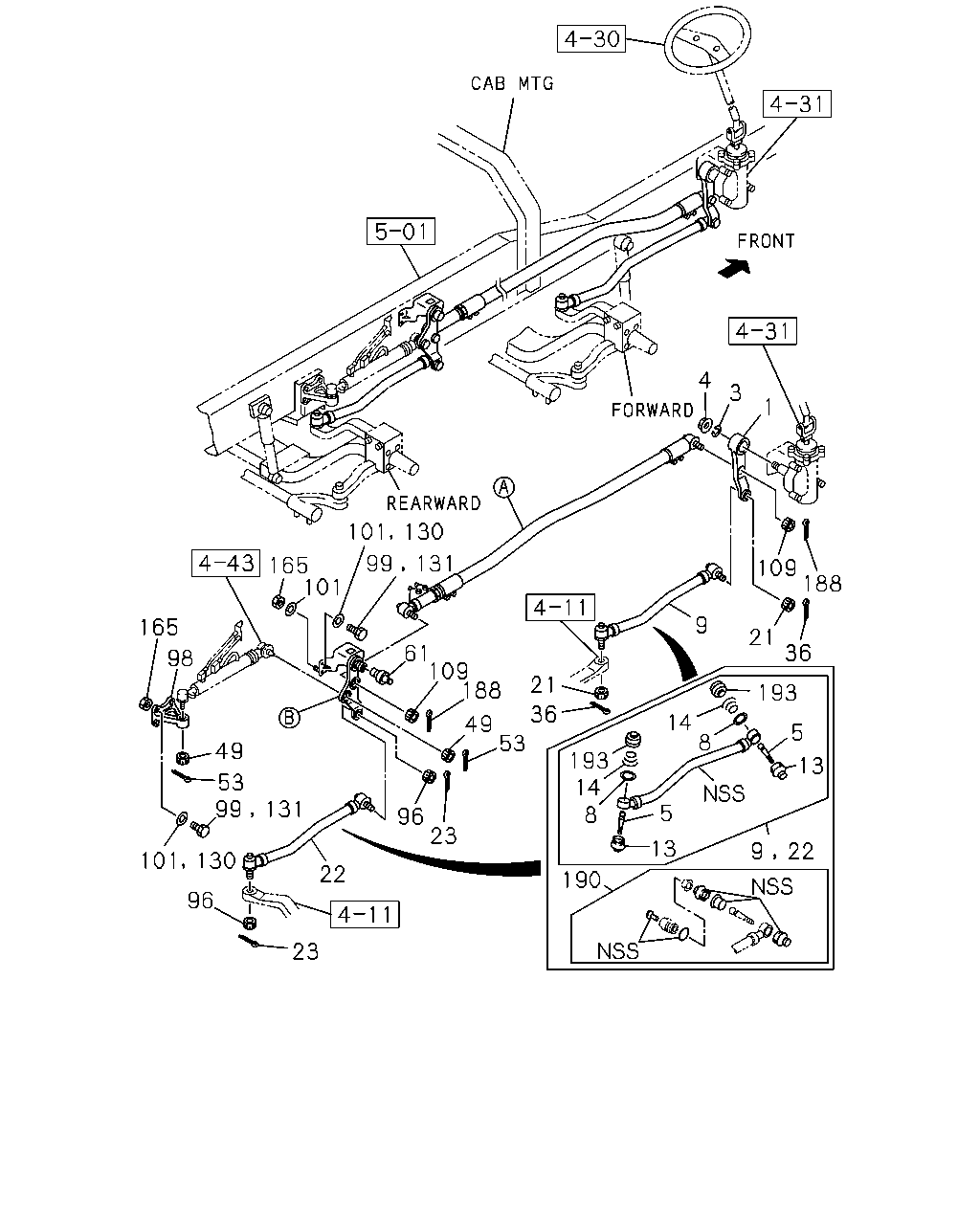

4-33 — STEERING LINKAGE (#5120) — 81 parça

4 3 1 101 130 99 131 165 101 109 188 9 165 21 36 61 109 188 98 21 193 36 14 8 49 53 5 49 193 14 8 13 53 99 131 5 96 23 13 9 22 101 130 22 190 96 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG	1-44341-450-0	01	1	9606-
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9606-
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9606-
5	BALL; JOINT,DRAG LINK	1-44361-105-1	04	1	9606-
8	SEAT; SPR,ROD END	1-43159-075-0	04	1	9606-
9	LINK; DRAG	1-44380-086-2	01	1	9606-
13	BOOT; DRAG LINK	1-43159-107-0	04	1	9606-
14	SPRING; COIL,DRAG LINK	1-43159-074-0	04	1	9606-
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9606-
22	LINK; DRAG,2ND	1-44380-096-2	01	1	9606-
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	9-08115-035-0	02	1	9606-
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9606-
49	NUT; BOOSTER,BRKT SIDE M24 SLOTTED	1-09442-020-0	02	1	9606-
53	PIN; SPLIT,BOOSTER,BRKT SIDE OD=4.6 L=35	9-08115-035-0	02	1	9606-
61	NIPPLE; PIN LINK ARM PT1/8 STRAIGHT	9-09031-010-0	01	1	9606-
96	NUT; LINK ARM M24 SLOTTED	1-09442-020-0	02	1	9606-
98	BRACKET; BOOSTER	1-44515-073-0	01	1	9606-9706
98	BRACKET; BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	9707-9905
98	BRACKET; BOOSTER 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	9707-9905
98	BRACKET; BOOSTER 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21)	1-44515-073-0	01	1	9906-0003
98	BRACKET; BOOSTER 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-44515-073-0	01	1	9906-0003
98	BRACKET; BOOSTER 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	9906-0003
98	BRACKET; BOOSTER 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	0004-
98	BRACKET; BOOSTER 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-44515-073-0	01	1	0004-
98	BRACKET; BOOSTER 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	0004-
99	BOLT; BRKT M14X50	9-92061-450-0	02	1	9606-
99	BOLT; BRKT M14X60	9-92061-460-0	01	1	9606-
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	05	1	9606-9706
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP +50MM<W60> M14X50	9-92061-450-0	05	1	9707-9905
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14X50	9-92061-450-0	05	1	9906-0003
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	05	1	0004-
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	04	1	9606-9706
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP +50MM<W60> M14X60	9-92061-460-0	04	1	9707-9905
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14X60	9-92061-460-0	04	1	9906-0003
99	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	04	1	0004-
101	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9606-
101	WASHER; PL,BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	18	1	9606-9706
101	WASHER; PL,BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP +50MM<W60> ID=15	9-09651-069-0	18	1	9707-9905
101	WASHER; PL,BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15	9-09651-069-0	18	1	9906-0003
101	WASHER; PL,BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	18	1	0004-
109	NUT; ROD M24 SLOTTED	1-09442-020-0	02	1	9606-
130	WASHER; PL,BRKT,BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	18	1	9606-9905
130	WASHER; PL,BRKT,BOOSTER 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	18	1	9906-
130	WASHER; PL,BRKT,BOOSTER 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	18	1	9906-
131	BOLT; BRKT,BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	05	1	9606-9905
131	BOLT; BRKT,BOOSTER 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50	9-92061-450-0	05	1	9906-
131	BOLT; BRKT,BOOSTER 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	05	1	9906-
131	BOLT; BRKT,BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	04	1	9606-9905
131	BOLT; BRKT,BOOSTER 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X60	9-92061-460-0	04	1	9906-
131	BOLT; BRKT,BOOSTER 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	04	1	9906-
165	NUT; BRKT M14	9-99110-514-0	09	1	9606-9706
165	NUT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	09	1	9707-9905
165	NUT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	09	1	9707-9905
165	NUT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14	9-99110-514-0	09	1	9906-0003
165	NUT; BRKT 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14	9-99110-514-0	09	1	9906-0003
165	NUT; BRKT 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	09	1	9906-0003
165	NUT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	09	1	0004-
165	NUT; BRKT 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14	9-99110-514-0	09	1	0004-
165	NUT; BRKT 6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	09	1	0004-
165	NUT; BRKT M14	9-99110-514-0	01	1	9606-
188	PIN; ROD OD=4.6 L=35	9-08115-035-0	02	1	9606-
190	REPAIR KIT; DRAG LINK	1-85574-041-0	04	1	9606-
193	PLUG; END,DRAG LINK	1-43159-093-0	04	1	9606-

85 87 86 88 89 89 89 88 86 86 88 87 65 66 97 66 67 65 137 135 33 136 65 134 137 137 135 56 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	STUD M14X37 L=66	1-09300-095-1	01	1	9606-
56	ARM; LINK,FRT,W/JOINT BALL	1-44345-179-0	01	1	9606-
65	SEAL; DUST,LINK ARM (A) ID=32	1-44159-058-1	02	1	9606-
65	SEAL; DUST,LINK ARM (B) ID=38	1-44349-017-0	02	1	9606-
66	BEARING; LINK ARM	1-09812-149-0	02	1	9606-
67	PIN; LINK ARM UPR	1-44346-011-3	01	1	9606-
85	ROD ASM; LINK	1-44380-120-2	01	1	9606-
86	BOLT; ROD END TO LINK ROD M12X45	9-91066-245-0	06	1	9606-
87	END; ROD	1-44380-121-0	02	1	9606-
88	WASHER; LK,ROD END TO LINK ROD ID=12.2	9-09150-812-0	06	1	9606-
89	NUT; ROD END TO LINK ROD M12	9-99110-512-0	06	1	9606-
97	BRACKET; LINK ARM	1-44348-077-0	01	1	9606-
134	BOLT; PIN SET LINK ARM	1-44349-016-2	01	1	9606-
135	WASHER; LK,PIN SET,LINK ARM (A) M31	1-09533-015-1	01	1	9606-
135	WASHER; LK,PIN SET,LINK ARM (B) ID=8.2	9-09150-808-0	01	1	9606-
136	WASHER; PL,SPINDLE,LINK ARM ID=8.4	9-09164-508-0	01	1	9606-
137	NUT; PIN SET LINK ARM (A) M30	1-09400-102-0	02	1	9606-
137	NUT; PIN SET LINK ARM (B) M8	9-09110-508-0	01	1	9606-
