Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

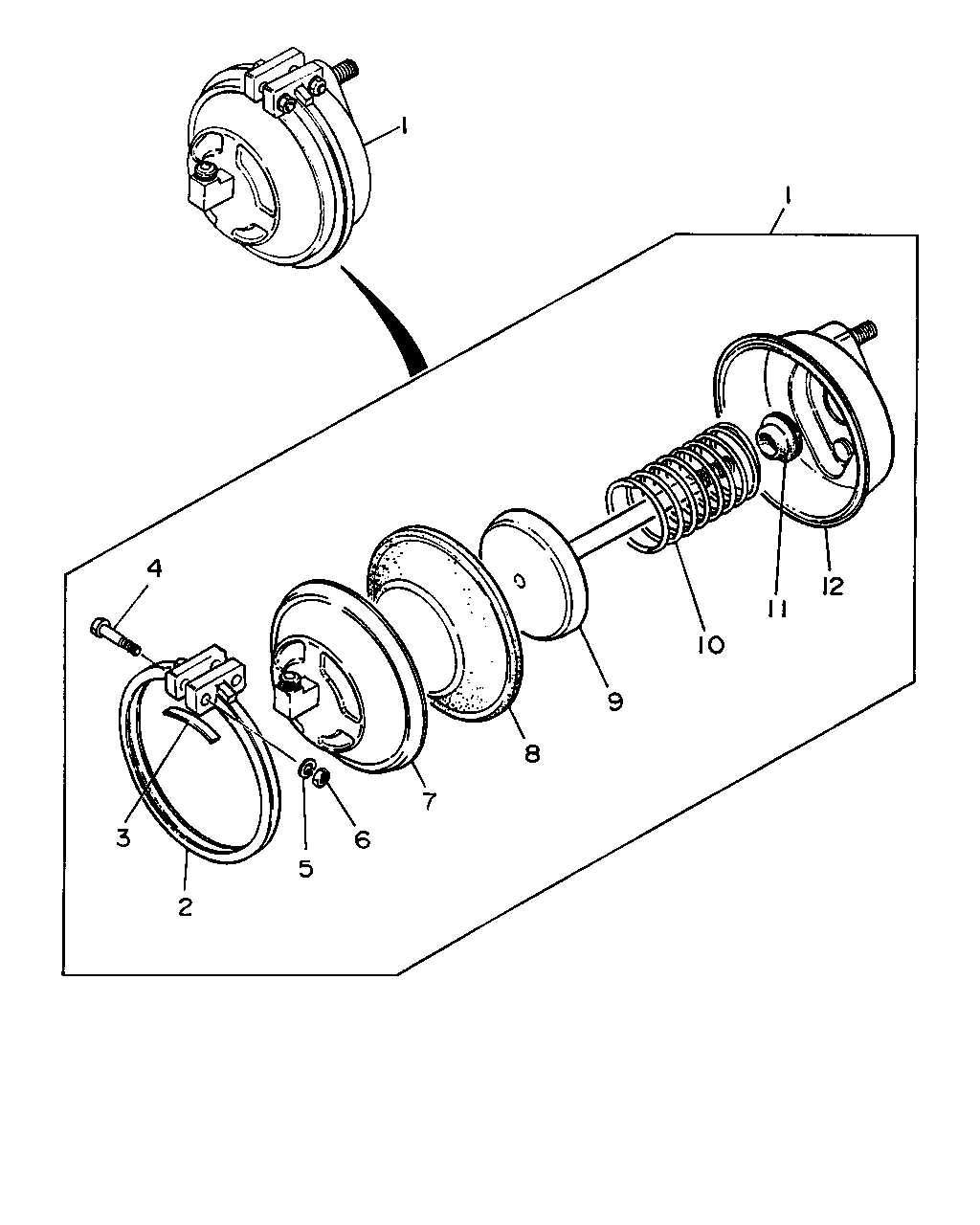

3-40 — FRONT BRAKE POWER CHAMBER
(#512) — 23 parça
1
1
12
11
10
9
8
7
6
5
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-063-1
04
1
8712-9306
1
CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48250-063-1
02
1
9307-9407
1
CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48250-425-0
02
1
9408-
1
CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48250-342-0
02
1
9307-
1
CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48250-063-1
04
1
9307-9407
1
CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48250-425-0
04
1
9408-
2
RING; CLAMP,SPR CHAMBER
9-48259-049-0
04
1
8712-
3
RETAINER; DIAPH
1-48259-016-0
04
1
8712-9306
3
RETAINER; DIAPH
9-48259-016-0
02
1
9307-
4
BOLT; CLAMP RING
1-48259-002-0
08
1
8712-
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
08
1
8712-
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
8712-
7
COVER ASM; UPR,SPR CHAMBER
1-48251-006-0
04
1
8712-9306
7
COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48251-006-0
02
1
9307-9407
7
COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48251-050-0
02
1
9408-
7
COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48251-048-0
02
1
9307-
7
COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48251-006-0
04
1
9307-9407
7
COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-48251-050-0
04
1
9408-
8
DIAPHRAGM; SPR CHAMBER
1-48252-009-0
04
1
8712-
9
PISTON; SPR CHAMBER
1-48253-003-0
04
1
8712-
10
SPRING; PISTON,SPR CHAMBER
9-48255-012-0
04
1
8712-
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
04
1
8712-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-023-0
04
1
8712-
