Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

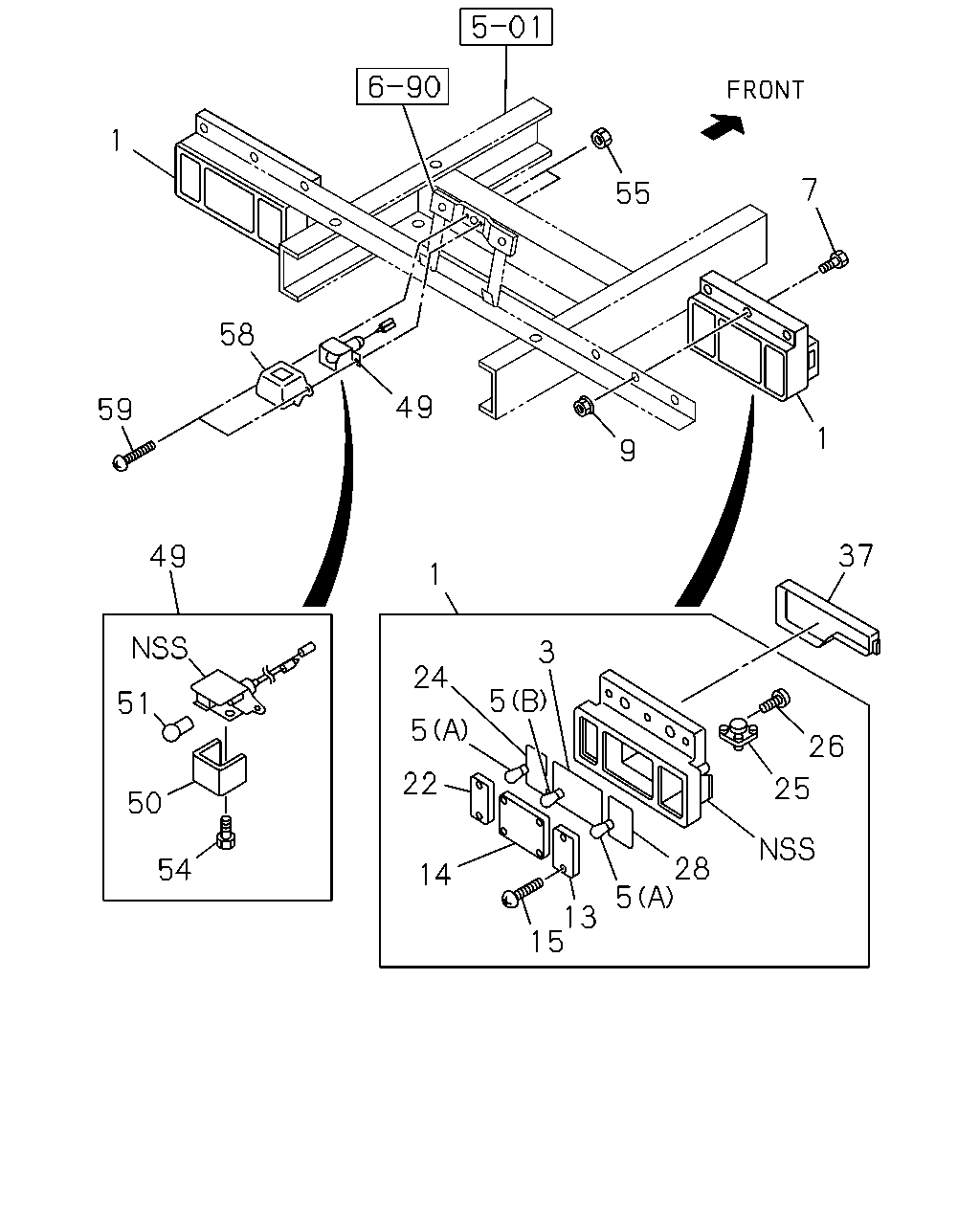

8-03 — LAMP; REAR AND REAR SIDE
(#51199) — 41 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
1
7
55
58
49
59
1
9
37
49
1
3
24
5
51
5
26
22
25
50
28
54
14
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LAMP ASM; RR COMB
RR BODY FLAT BED<RS6>
8-98002-165-0
01
1
0804-
●
1
LAMP ASM; RR COMB
RR BODY FLAT BED<RS6>
8-98002-166-0
01
1
0804-
●
1
LAMP ASM; RR COMB
EXC. RR BODY FLAT BED<RS6>
8-98034-325-0
01
1
0804-
●
1
LAMP ASM; RR COMB
8-98034-325-0
01
1
0804-
●
●
1
LAMP ASM; RR COMB
EXC. RR BODY FLAT BED<RS6>
8-98034-328-0
01
1
0804-
●
1
LAMP ASM; RR COMB
8-98034-328-0
01
1
0804-
●
●
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0804-
●
●
●
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0804-
●
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-108-0
02
1
0804-
●
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-108-0
02
1
0804-
●
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-109-0
01
1
0804-
●
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-109-0
01
1
0804-
●
●
●
7
SCREW; RR COMB LAMP
RR BODY FLAT BED<RS6> M6X20 SOU
8-94402-623-0
06
1
0804-
●
7
SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6> M6X20 SOU
8-94402-623-0
04
1
0804-
●
7
SCREW; RR COMB LAMP
M6X20 SOU
8-94402-623-0
04
1
0804-
●
●
9
NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED<RS6> M6 FLANGE
5-09440-004-0
04
1
0804-
●
9
NUT; LAMP,RR COMB
M6 FLANGE
5-09440-004-0
04
1
0804-
●
●
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
0804-
●
●
●
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
0804-
●
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
0804-
●
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
0804-
●
●
●
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0804-
●
●
●
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0804-
●
●
●
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0804-
●
●
●
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0804-
●
●
●
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0804-
●
●
●
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0804-
●
●
●
25
HORN ASM; BACK
8-94257-518-0
01
1
0804-
●
●
●
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
0804-
●
●
●
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
0804-
●
●
●
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0804-
●
●
●
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0804-
●
●
●
37
COVER; RR COMB LAMP
8-94129-274-4
01
1
0804-
●
●
●
37
COVER; RR COMB LAMP
8-94128-858-4
01
1
0804-
●
●
●
49
LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
0804-
●
●
●
50
LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
0804-
●
●
●
51
BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
0804-
●
●
●
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
0804-
●
●
●
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
8-94153-039-0
04
1
0804-
●
●
●
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
0804-
●
●
●
59
SCREW; TAP,LICENSE LAMP BODY
M5X20
9-93490-520-0
04
1
0804-
●
●
●
