◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#51198) — 88 parça
çizim 157548
1 4 20 20 420 420 408 5 5 382 457 23 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD 8-98098-480-1 01 1 0804-1208 ● ● ●
1 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ● ●
1 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ● ●
1 LAMP ASM; HEAD 8-98098-479-1 01 1 0804-1208 ● ● ●
1 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ● ●
1 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ● ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ● ●
4 HEADLAMP UNIT 8-98051-401-0 01 1 0804-1301 ● ● ●
4 HEADLAMP UNIT 8-98226-183-0 01 1 1302- ● ● ●
4 HEADLAMP UNIT 8-98051-400-0 01 1 0804-1301 ● ● ●
4 HEADLAMP UNIT 8-98226-182-0 01 1 1302- ● ● ●
5 BULB; HEADLAMP
(B) 24V 5W SOU 		1-82194-042-0 02 1 0804- ● ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0804- ● ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0804- ● ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0804- ● ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0804-0901 ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0804-0901 ● ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0804-0901 ● ● ●
86 NUT; MARKER LAMP
M6 FLANGE SOU 		0-91180-106-0 04 1 0804-0901 ● ● ●
256 LAMP; MARKER 8-97587-597-2 01 1 0804-0901 ● ● ●
256 LAMP; MARKER 8-97587-596-2 01 1 0804-0901 ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0804-0901 ● ● ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0804-1208 ● ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0804- ● ● ●
420 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0804-1301 ● ● ●
420 SPRING; BULB,HEADLAMP
(B) 		8-98218-601-0 02 1 1302- ● ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ● ●

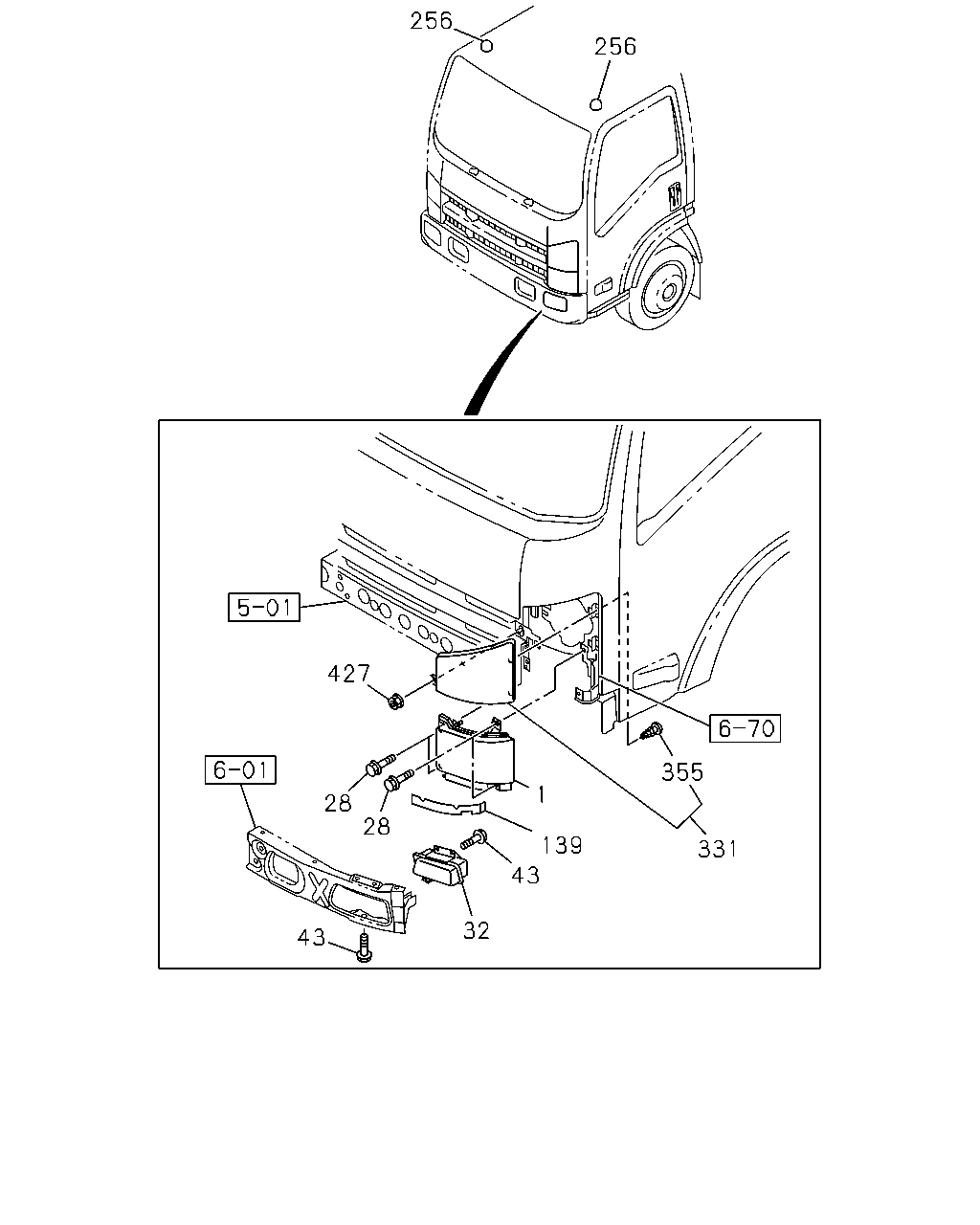

çizim 157551
256 256 427 355 1 28 28 139 331 43 32 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD 8-98098-480-1 01 1 0804-1208 ● ● ●
1 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ● ●
1 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ● ●
1 LAMP ASM; HEAD 8-98098-479-1 01 1 0804-1208 ● ● ●
1 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ● ●
1 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ● ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0804-1005 ● ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0804-0909 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0804-0909 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0804- ● ● ●
139 COVER; HEADLAMP 8-98034-056-1 02 1 0804- ● ● ●
256 LAMP; MARKER 8-97587-597-2 01 1 0804-0901 ● ● ●
256 LAMP; MARKER 8-97587-596-2 01 1 0804-0901 ● ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0804-0911 ● ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0804-0911 ● ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0804- ● ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
çizim 157553
331 431 357 355 399 432 32 49 47 15 44 36 421 448
BalonParca AdiParca NoAdetTipApplied Date A B C
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0804- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0804-0909 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0804-0909 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0804- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0804- ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 0910- ● ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 0910- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0804- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0804- ● ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0804-0911 ● ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0804-0911 ● ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0804- ● ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0804- ● ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0804- ● ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0804-0909 ● ● ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0804- ● ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0804- ● ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0910- ● ● ●

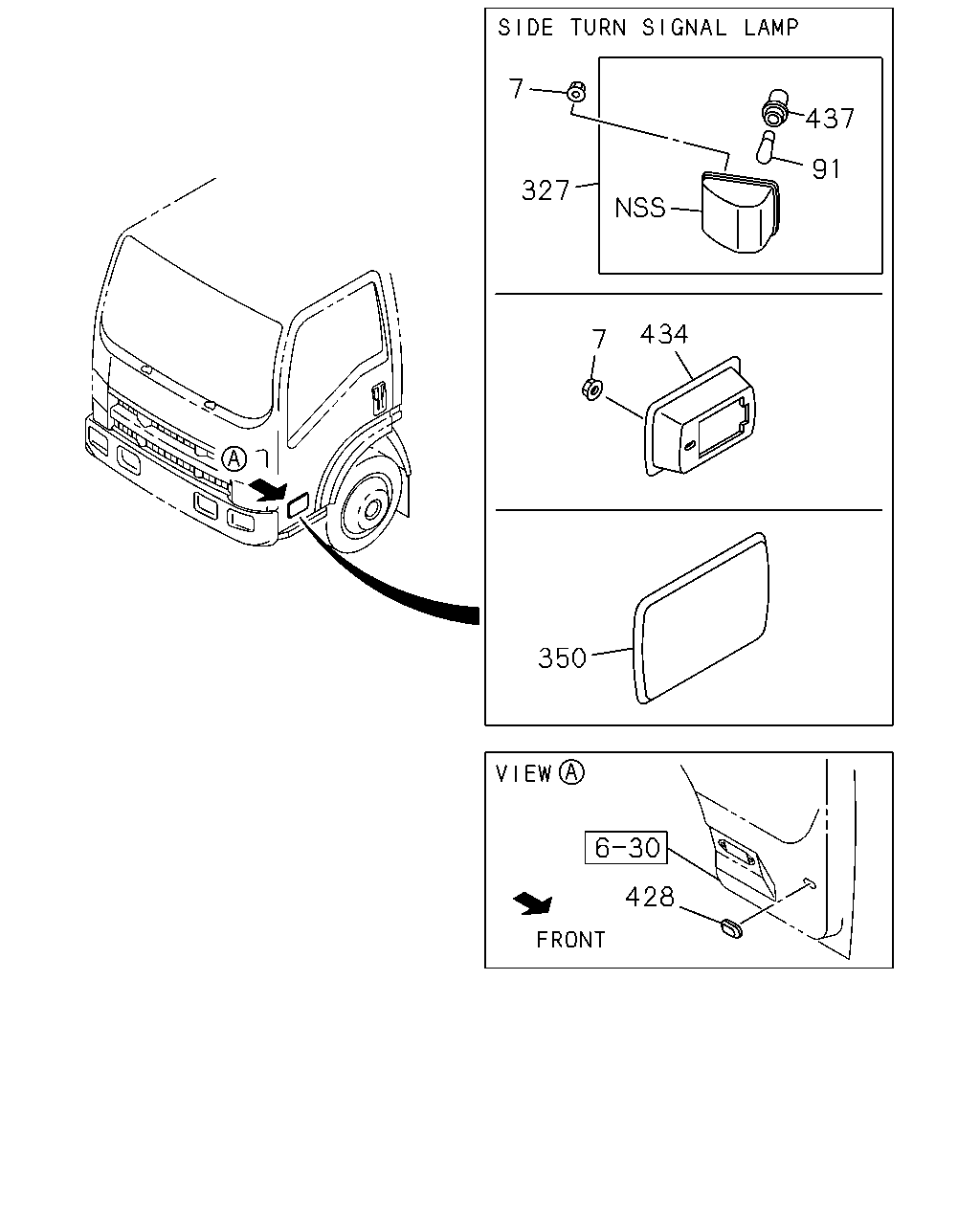

çizim 157558
7 437 91 327 434 7 350 428
BalonParca AdiParca NoAdetTipApplied Date A B C
7 NUT; FRT COMB LAMP
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0804- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0804- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0804- ● ● ●
350 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0804- ● ●
428 GROMMET; SIDE COMB LAMP 8-94430-184-1 02 1 0804- ● ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0804- ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0804- ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0804- ● ● ●
