7-55 — REAR SEAT (#51196) — 18 parça

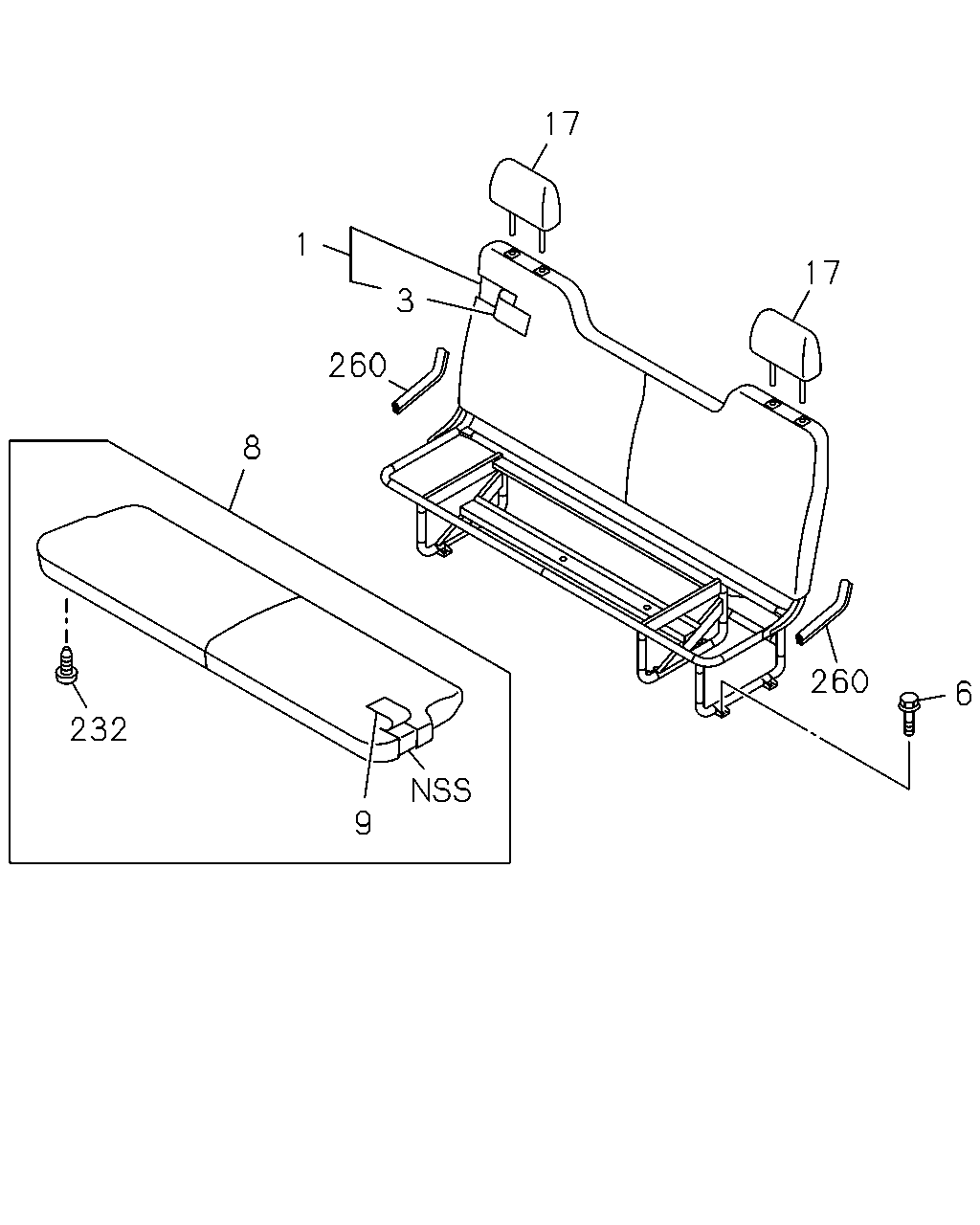

çizim 157547
17 1 17 3 260 8 260 6 232 9
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-436-3 01 1 0804-1009
1 BACK ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-358-0 01 1 1010-
1 BACK ASM; RR SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-433-1 01 1 0804-
3 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97411-865-2 01 1 0804-1009
3 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-369-0 01 1 1010-
3 COVER; TRIM,RR SEAT BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-867-1 01 1 0804-
6 BOLT; RR SEAT
M8X25 W/WASHER 		0-51640-825-0 06 1 0804-
8 CUSHION ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-437-4 01 1 0804-1009
8 CUSHION ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-364-0 01 1 1010-
8 CUSHION ASM; RR SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-440-2 01 1 0804-
9 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97411-866-1 01 1 0804-1009
9 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-372-0 01 1 1010-
9 COVER ASM; TRIM,RR,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-868-0 01 1 0804-
17 REST; HD,RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-448-1 02 1 0804-1009
17 REST; HD,RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-366-0 02 1 1010-
17 REST; HD,RR SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-447-0 02 1 0804-
232 SCREW; RR SEAT
M6X16 CK-HEAD 		9-03090-616-0 12 1 0804-
260 FINISHER; RR SEAT
L=250 SERVICED BY L=314 		8-94262-845-0 02 1 0804-
