7-40 — INSTRUMENT PANEL AND BOX (#51191) — 202 parça

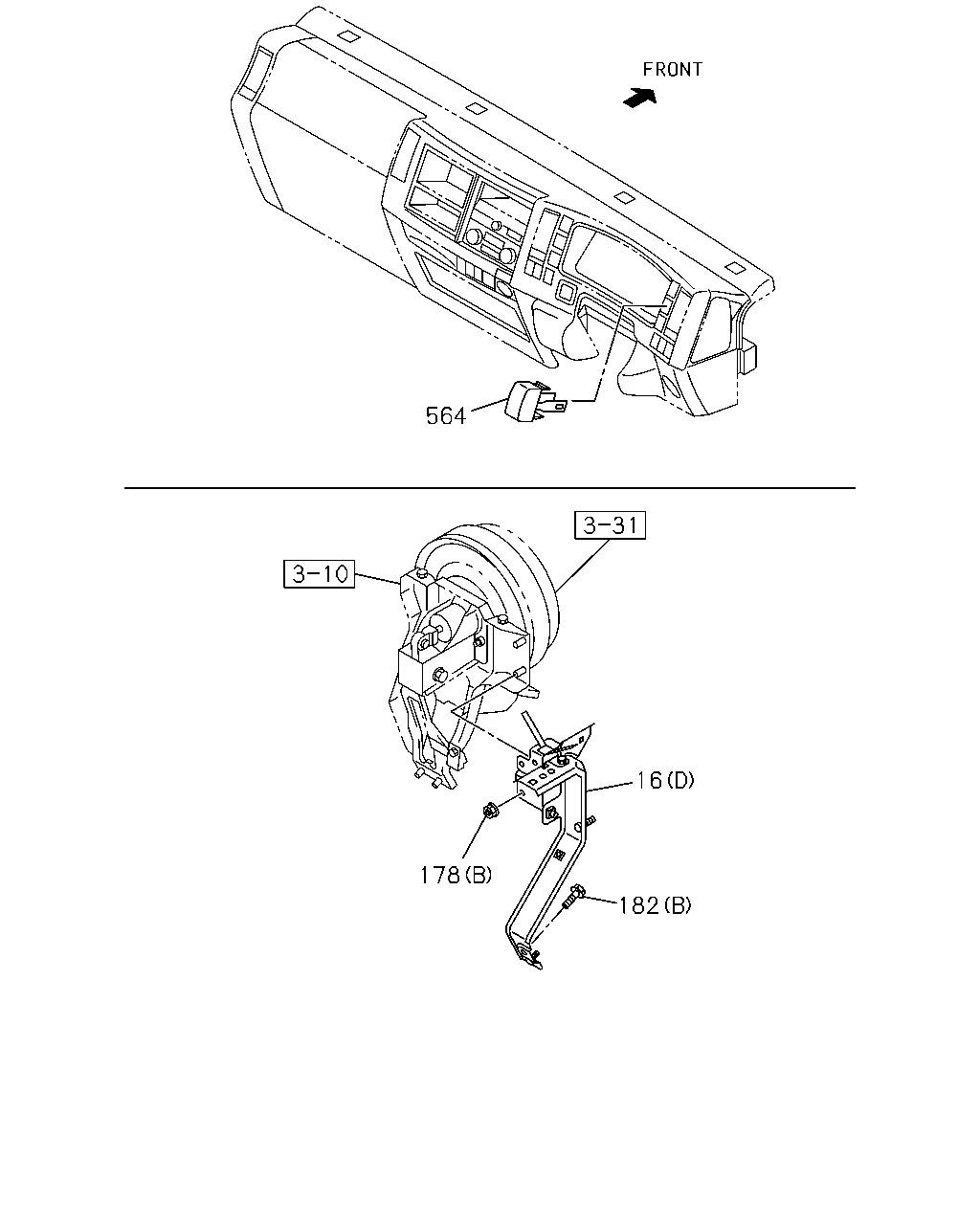

çizim 157546
564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0804- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 03 1 0804- ● ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0804- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0804- ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0804-0903 ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 0904- ● ● ●
564 COVER; SW 8-98025-954-1 03 1 0804- ● ● ●

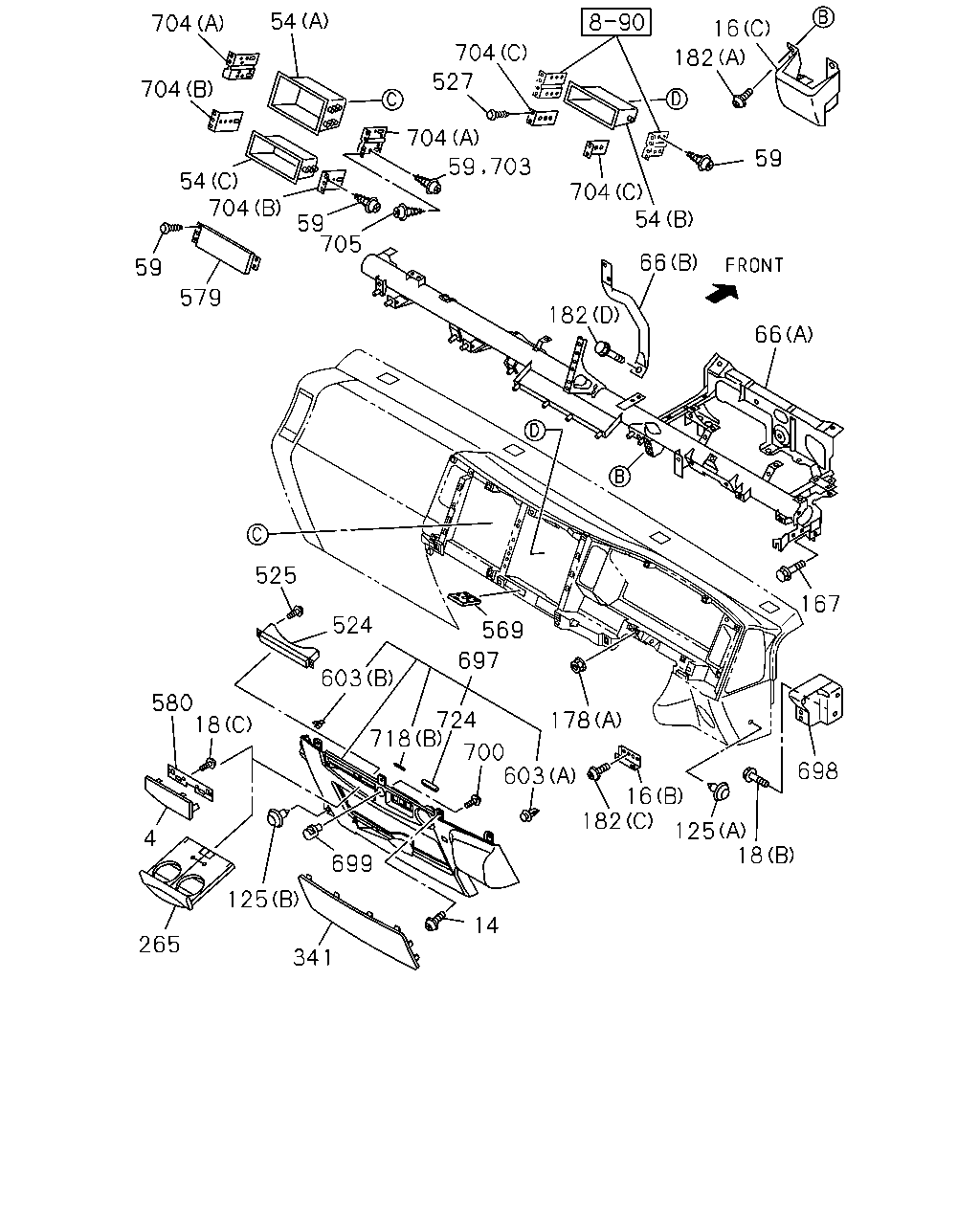

çizim 157556
14 341 265 125 699 4 580 18 525 524 603 718 700 603 182 125 18 16 178 697 569 698 167 66 182 705 579 59 59 704 54 704 704 54 704 59 703 527 704 704 66 54 182 59 16 724
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0804- ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101 ● ● ●
14 SCREW; INST PNL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0804- ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 0804- ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0804- ● ●
54 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0804- ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0804- ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0808 ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811 ● ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0804- ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-364-0 01 1 0804-0808 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98124-678-2 01 1 0809-1204 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-359-1 01 1 1205- ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-363-0 01 1 0804-0808 ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-831-3 01 1 0809-1204 ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1205- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 04 1 0804-0808 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804- ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 0804- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 03 1 0804- ● ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0804- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0804- ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0804-0903 ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 0904- ● ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0804-0909 ● ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ●
341 LID; FUSE BOX
GRAY 		8-97406-265-3 01 1 0804-1205 ● ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0804- ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101 ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 0804- ● ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0804- ● ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97408-909-0 01 1 0804-0808 ● ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0804- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0804-1205 ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0804- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0804- ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0804- ● ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ●
700 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98073-822-0 02 1 0804-0808 ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0809- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●

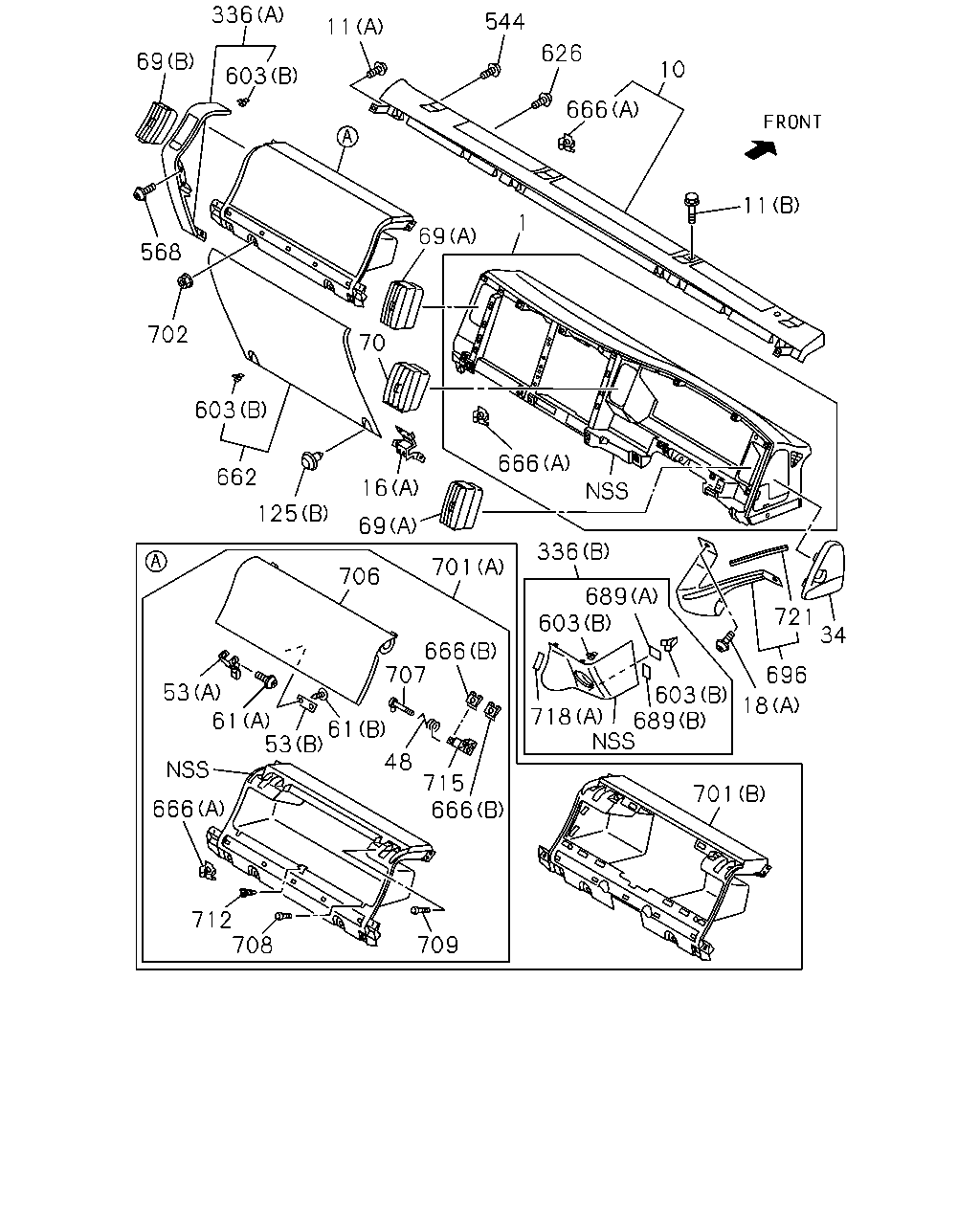

çizim 157561
69 336 603 11 544 666 626 69 1 702 568 603 662 16 706 69 10 11 70 125 666 336 53 61 53 666 712 708 61 48 715 666 709 666 707 701 689 603 603 689 718 696 18 721 34 701
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 0804- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0804-1003 ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004- ● ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0804-1101 ● ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0804- ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 0804- ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0804- ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0804-1311 ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0804-1311 ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0805-1405 ● ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ●
61 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0805-1405 ● ● ●
61 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0804- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0804- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0804- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 04 1 0804-0808 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0804- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0804- ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101 ● ● ●
544 SCREW; TRAY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ●
568 BOLT; COVER
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 0804- ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 0804- ● ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0804-0901 ● ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 0902-1003 ● ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0902-1003 ● ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1004- ● ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0804- ● ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 0804-1311 ● ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0804- ● ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0804- ● ● ●
696 BRACKET; KNEE 8-97589-189-4 01 1 0804-1211 ● ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97405-261-4 01 1 0804-0804 ● ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 0805-1405 ● ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97405-262-3 01 1 0804-0901 ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 0902- ● ● ●
702 NUT; TRAY
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-372-2 01 1 0804-0804 ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0805-1405 ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0804-1311 ● ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0804- ● ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0804- ● ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0804- ● ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0804-1311 ● ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0804-1311 ● ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0804-1211 ● ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
