◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#51189) — 103 parça

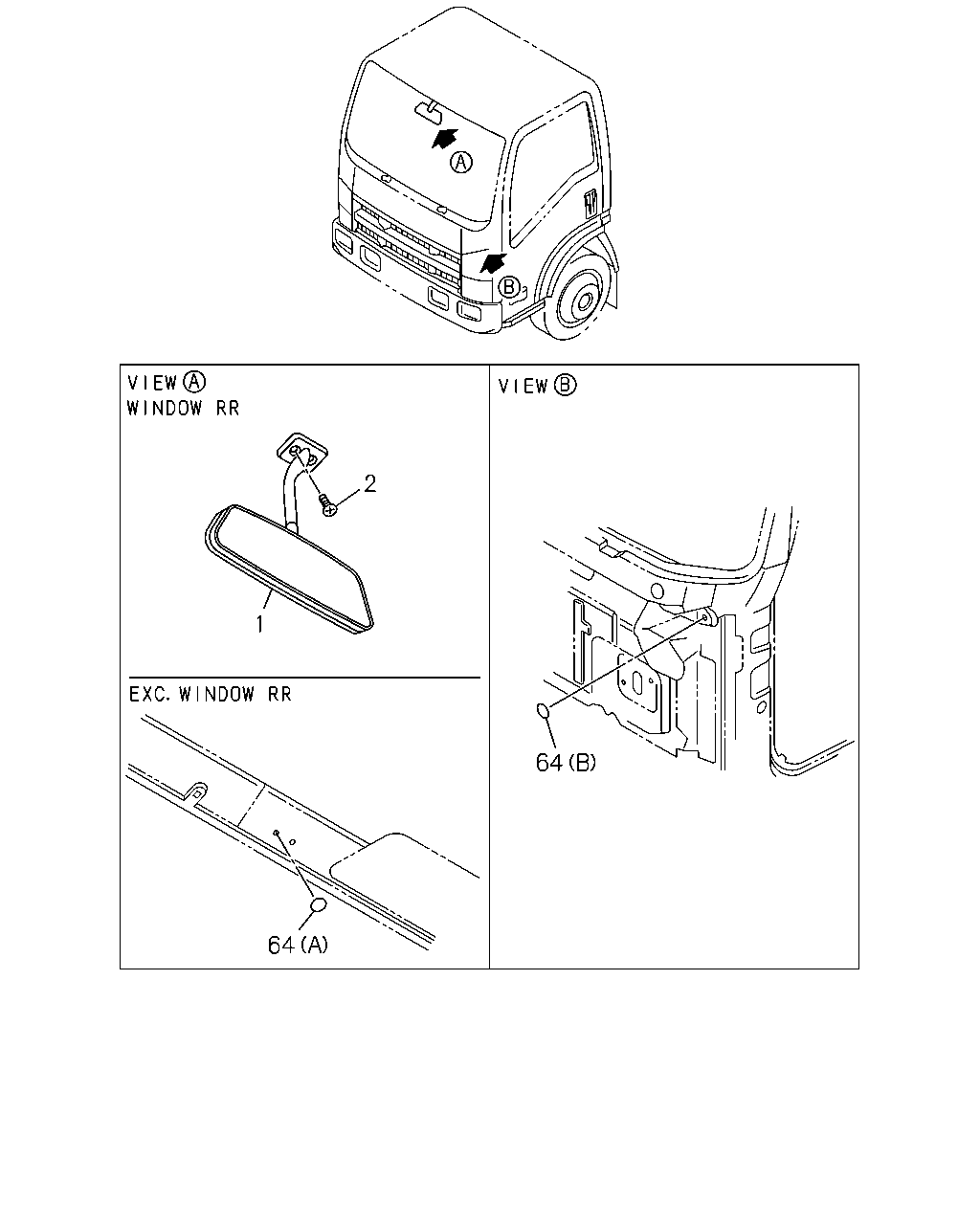

çizim 157539
2 1 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0804- ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0804- ●
2 SCREW; MIRROR TO BODY
WINDOW RR<8LF> M6X26 		8-98033-674-0 02 1 0804- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0804- ●
64 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0804- ● ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0804- ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=25 BLACK SOU 		1-76798-019-0 02 1 0804- ● ● ●

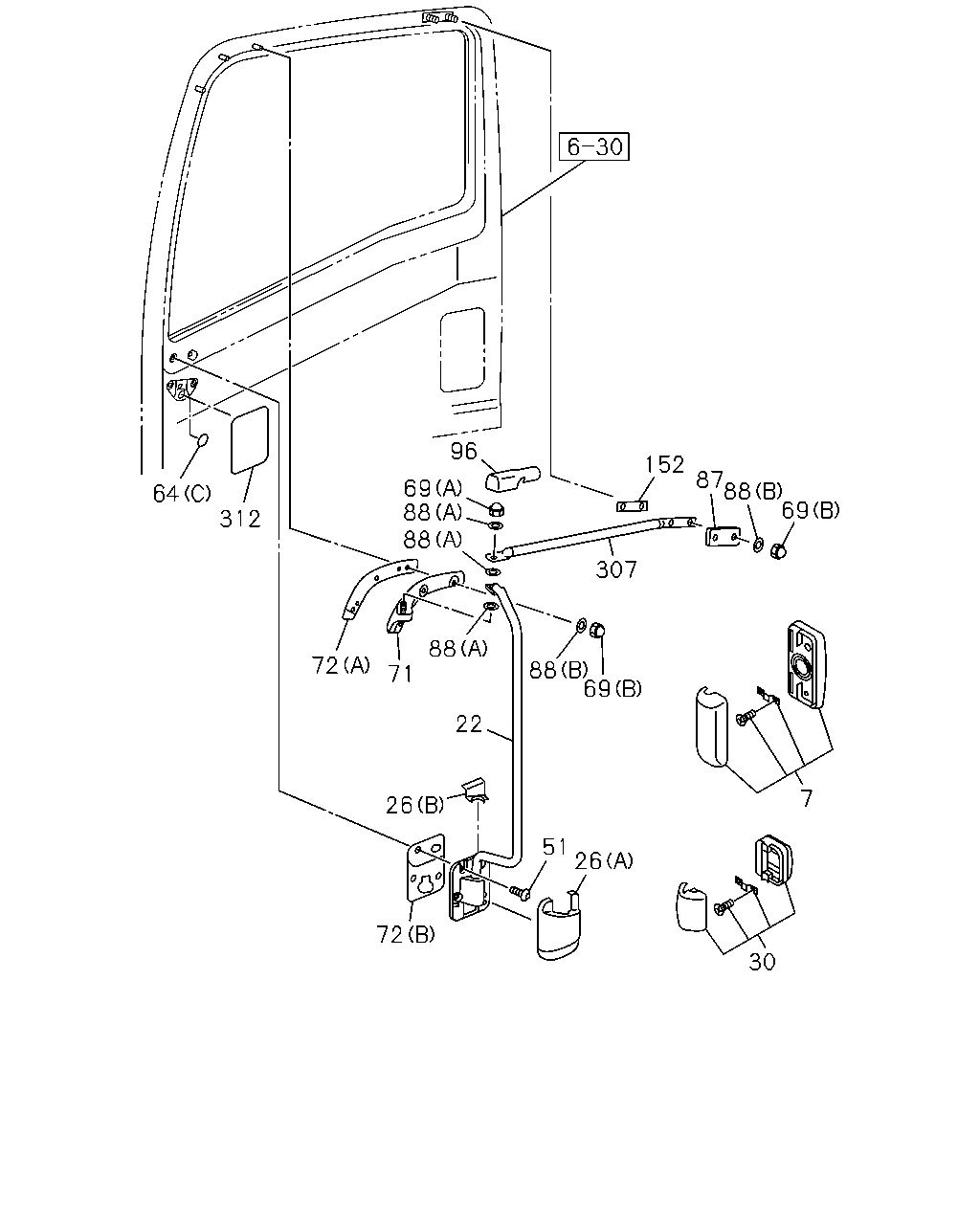

çizim 157543
96 152 87 88 69 69 88 88 64 312 307 88 72 88 69 71 22 7 26 51 26 72 30
BalonParca AdiParca NoAdetTipApplied Date A B C
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 0804- ● ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 0804- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) SOU 		8-98067-515-1 01 1 0804-0901 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98067-515-1 01 1 0902-1202 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> SOU 		8-98067-515-1 01 1 0902-1202 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) 		8-98166-181-0 01 1 1203- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1203- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98067-514-1 01 1 0804-1202 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> SOU 		8-98067-514-1 01 1 0804-1202 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) 		8-98166-180-0 01 1 1203- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1203- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 7.5-8.0TON(RPY) SOU 		8-98095-545-1 01 1 0804-0901 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> SOU 		8-98095-545-1 01 1 0804-0901 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> SOU 		8-98095-545-1 01 1 0902-1202 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-191-0 01 1 1203- ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> SOU 		8-98067-511-0 01 1 0804-1204 ● ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> 		8-98158-847-0 01 1 1205- ● ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> SOU 		8-98067-510-0 01 1 0804-1204 ● ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> 		8-98158-846-0 01 1 1205- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98067-513-0 01 1 0804-1202 ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98158-849-0 01 1 1203- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98067-512-0 01 1 0804-1202 ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98158-848-0 01 1 1203- ● ● ●
26 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-803-2 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) SOU 		8-98031-803-2 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-803-2 01 1 0804- ● ●
26 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98031-806-0 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU 		8-98031-806-0 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98031-806-0 01 1 0804- ● ●
26 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-802-2 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) SOU 		8-98031-802-2 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-802-2 01 1 0804- ● ●
26 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98031-805-0 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU 		8-98031-805-0 01 1 0804- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98031-805-0 01 1 0804- ● ●
30 MIRROR; UNDER
G.V.W. 7.5-8.0TON(RPY) 		8-98043-061-0 02 1 0804-0901 ●
30 MIRROR; UNDER 8-98043-061-0 02 1 0804-0901 ● ●
30 MIRROR; UNDER 8-98043-061-0 02 1 0902- ●
51 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 SOU 		8-97310-216-1 08 1 0804- ●
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) M8X23 SOU 		8-97310-216-1 08 1 0804- ●
51 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M8X23 SOU 		8-97310-216-1 08 1 0804- ● ●
64 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) OD=52 BLACK SOU 		1-76798-041-0 02 1 0804- ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0804- ● ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0804- ● ●
64 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) OD=25 BLACK SOU 		1-76798-019-0 02 1 0804- ● ● ●
69 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT SOU 		8-98059-913-0 02 1 0804-1404 ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) M10 CAP NUT SOU 		8-98059-913-0 02 1 0804-1404 ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT SOU 		8-98059-913-0 02 1 0804-1404 ● ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) M10 CAP NUT SOU 		1-09984-134-0 02 1 1405- ●
69 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT SOU 		1-09984-134-0 02 1 1405- ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT SOU 		1-09984-134-0 02 1 1405- ● ●
69 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT SOU 		8-98059-914-0 10 1 0804- ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) M8 CAP NUT SOU 		8-98059-914-0 10 1 0804- ●
69 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT SOU 		8-98059-914-0 10 1 0804- ● ●
71 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98031-794-2 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98031-794-2 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98031-794-2 01 1 0804- ● ●
71 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98031-793-2 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98031-793-2 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98031-793-2 01 1 0804- ● ●
72 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98080-418-0 02 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) SOU 		8-98080-418-0 02 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) SOU 		8-98080-418-0 02 1 0804- ● ●
72 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-797-0 01 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) SOU 		8-98031-797-0 01 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-797-0 01 1 0804- ● ●
72 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-796-0 01 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) SOU 		8-98031-796-0 01 1 0804- ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) SOU 		8-98031-796-0 01 1 0804- ● ●
87 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-789-0 02 1 0804- ●
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98063-789-0 02 1 0804- ●
87 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-789-0 02 1 0804- ● ●
88 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 0804- ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (B) ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 0804- ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 0804- ● ●
88 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 0804- ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) (A) ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 0804- ●
88 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 0804- ● ●
96 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98080-173-0 02 1 0804- ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98080-173-0 02 1 0804- ●
96 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98080-173-0 02 1 0804- ● ●
152 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-786-0 02 1 0804- ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98063-786-0 02 1 0804- ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-786-0 02 1 0804- ● ●
307 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-785-2 01 1 0804- ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98063-785-2 01 1 0804- ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-785-2 01 1 0804- ● ●
307 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-784-2 01 1 0804- ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) SOU 		8-98063-784-2 01 1 0804- ●
307 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SOU 		8-98063-784-2 01 1 0804- ● ●
312 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98164-812-0 02 1 1003- ● ● ●
