Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

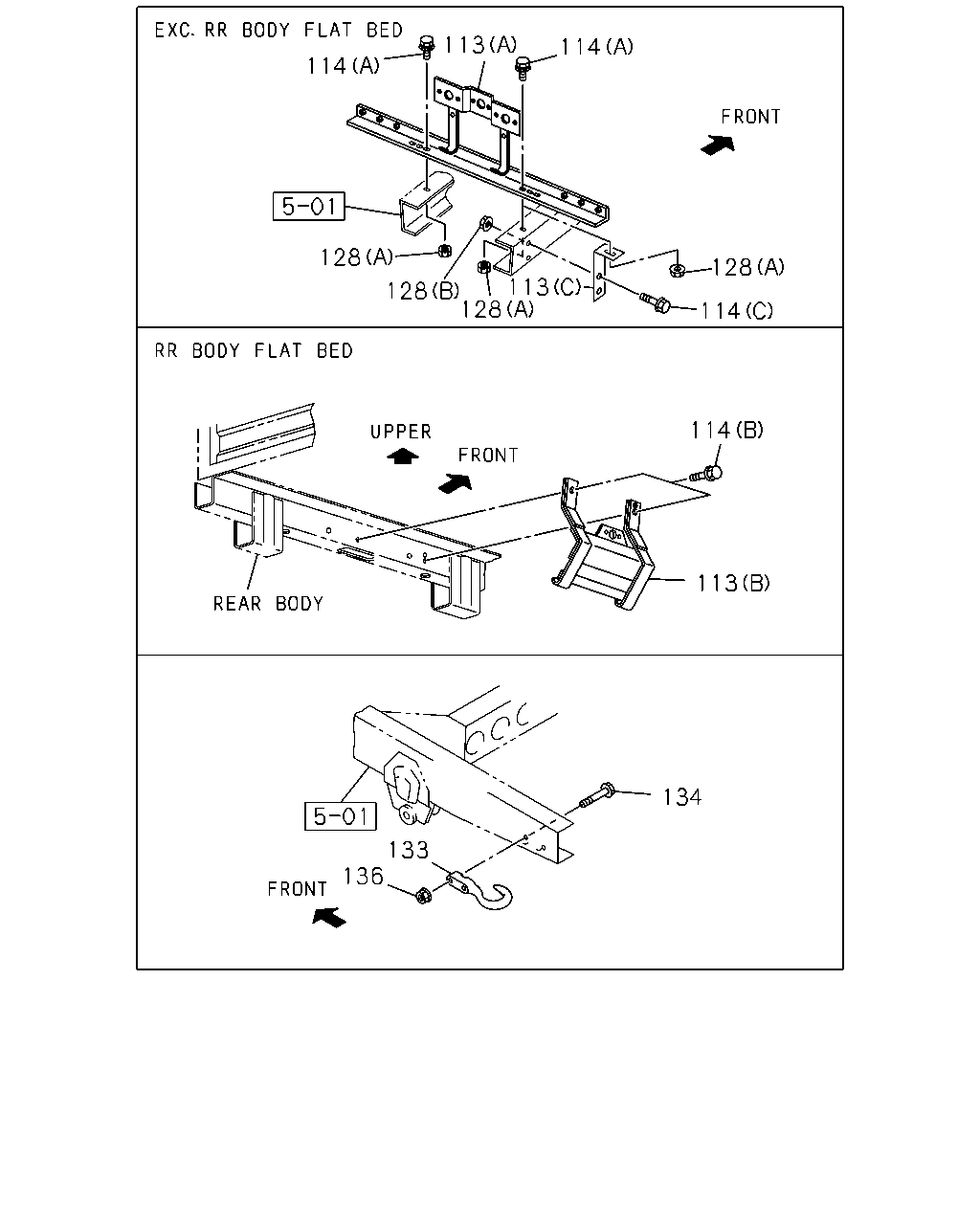

6-90 — REAR BUMPER
(#51186) — 19 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
113
114
114
128
128
128
113
128
114
114
113
134
133
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
113
BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B)
8-97077-573-2
01
1
0804-
●
113
BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (A) SOU
8-98029-390-3
01
1
0804-
●
113
BRACKET; LICENSE PLATE
(A) SOU
8-98029-390-3
01
1
0804-
●
●
113
BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED<RS6> (C)
8-98091-681-0
02
1
0804-
●
113
BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) (C)
8-98091-681-0
02
1
0804-
●
114
BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> (B) M6X25 FLANGE SOU
0-28650-625-0
02
1
0804-
●
114
BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (A) M8X40 FLANGE SOU
0-28650-840-0
02
1
0804-
●
114
BOLT; BRKT,LICENSE PLATE
(A) M8X40 FLANGE SOU
0-28650-840-0
02
1
0804-
●
●
114
BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED<RS6> (C) M10X25 FLANGE
0-28661-025-0
04
1
0804-
●
114
BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) (C) M10X25 FLANGE
0-28661-025-0
04
1
0804-
●
128
NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> (A) M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
128
NUT; CROSS PLATE
(A) M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
128
NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED<RS6> (B) M10 FLANGE SOU
0-91180-110-0
04
1
0804-
●
128
NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) (B) M10 FLANGE SOU
0-91180-110-0
04
1
0804-
●
133
HOOK
SOU
8-94249-270-2
01
1
0804-1209
●
●
●
133
HOOK
SOU
8-94249-270-2
01
1
1210-
●
●
●
134
BOLT; HOOK
M14X50 SOU
0-10856-450-0
02
1
0804-
●
●
●
136
NUT; HOOK
M14 FLANGE SOU
0-91180-214-0
02
1
0804-1209
●
●
●
136
NUT; HOOK
M14 FLANGE SOU
0-91180-214-0
02
1
1210-
●
●
●
