◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11438 - FTS(PAKISTAN)D-TIRE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#51183) — 85 parça

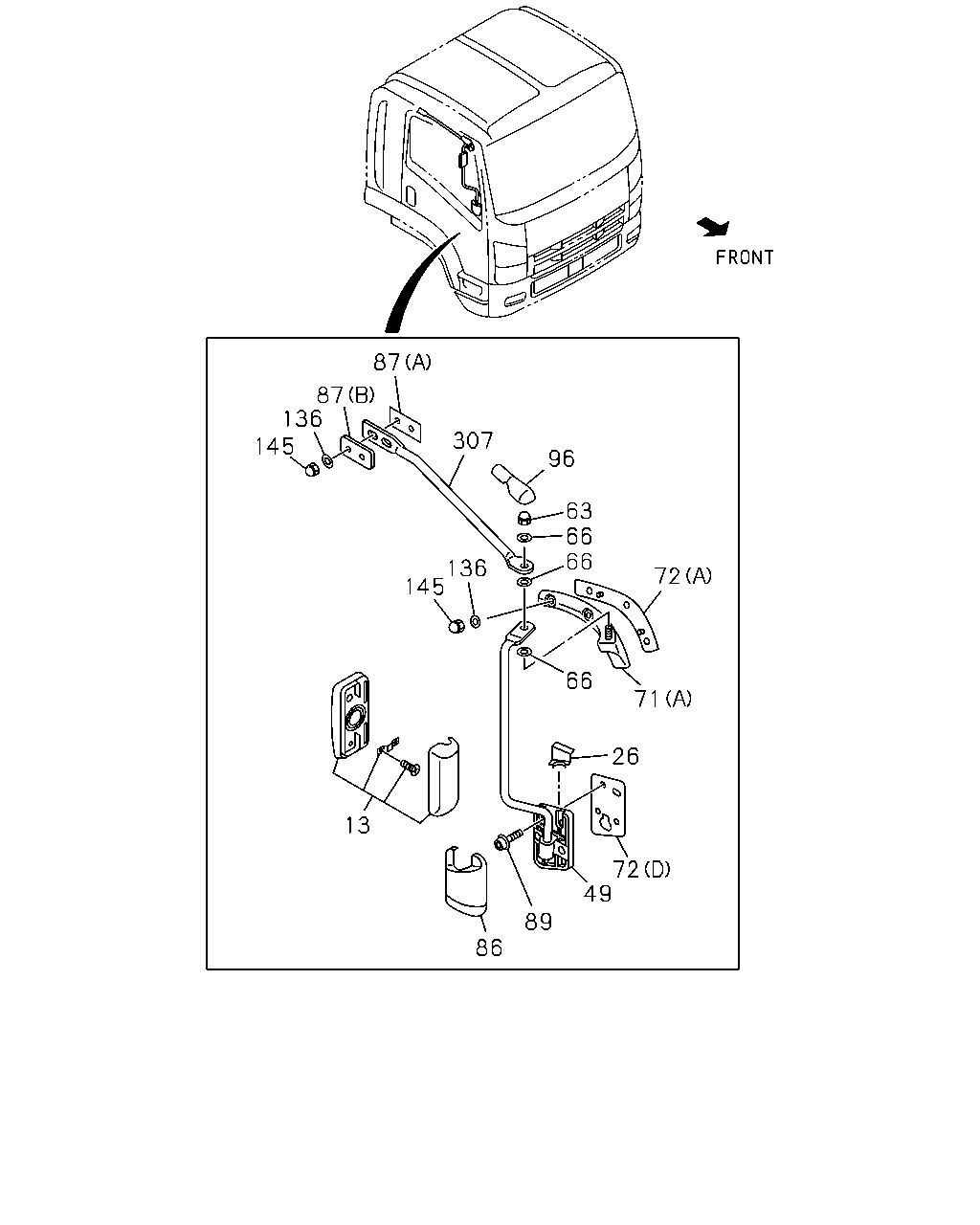

çizim 149505
87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 89 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1101-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1101-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1101-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1101-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 1101-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 1101-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1101-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1101-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1101-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98060-240-0 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98092-492-3 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1101-
72 SHEET
(A) 		8-98031-797-0 01 1 1101-
72 SHEET
(B) 		8-98060-245-1 01 1 1101-
72 SHEET
(C) 		8-98064-776-0 01 1 1101-
72 SHEET
(D) 		8-98101-865-0 01 1 1101-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(A) 		8-98031-796-0 01 1 1101-
72 SHEET
(D) 		8-98101-864-0 01 1 1101-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1101-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1101-
87 SPACER
(A) 		8-98063-786-0 02 1 1101-
87 SPACER
(B) 		8-98063-789-0 02 1 1101-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1101-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1101-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1101-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1101-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1101-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1101-

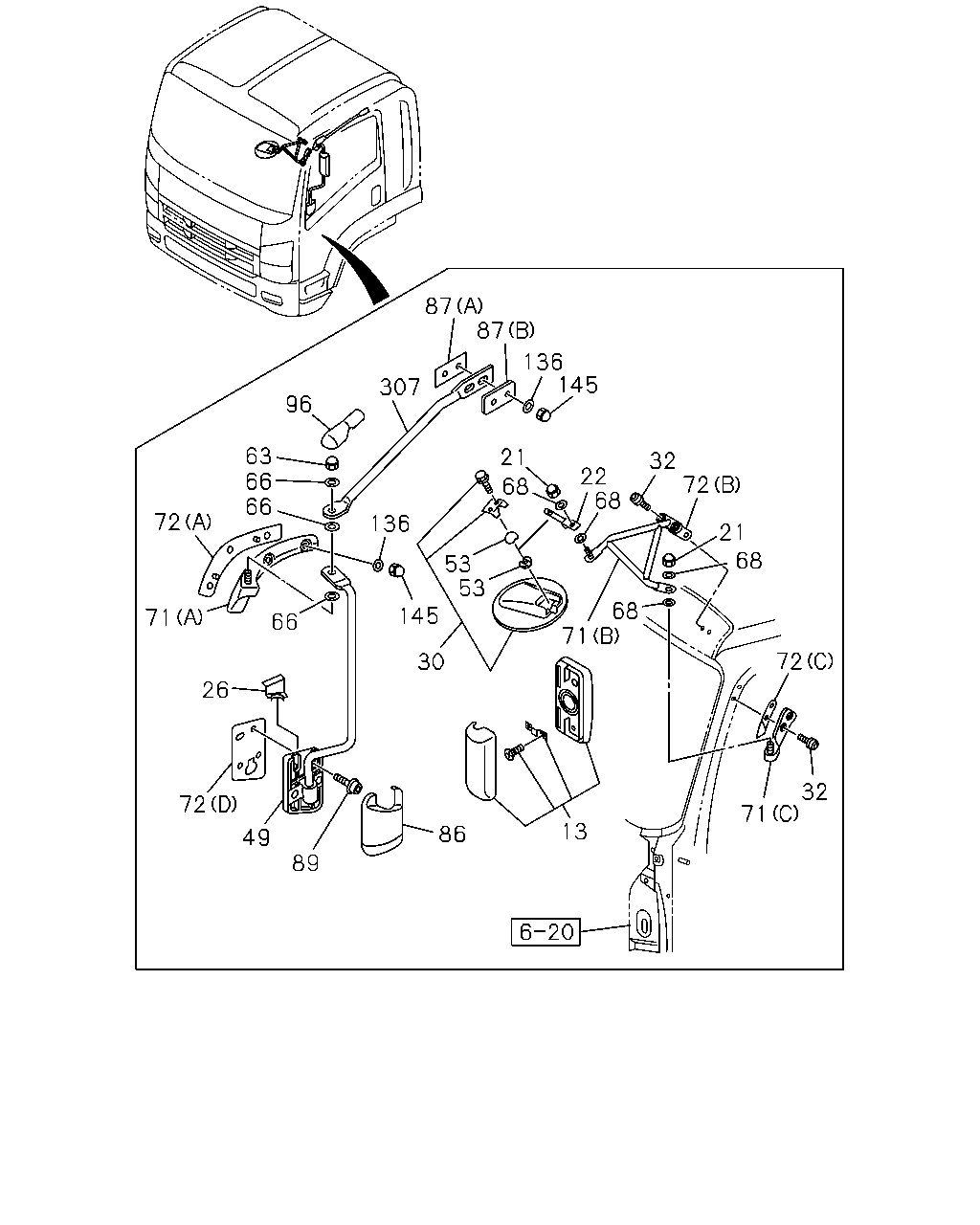

çizim 149514
87 87 136 145 307 96 63 66 66 21 32 72 22 68 68 72 136 21 68 53 53 68 71 145 71 66 72 30 26 32 71 72 13 86 49 89
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1101-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1101-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1101-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1101-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1101-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1101-
30 MIRROR; UNDER 8-98055-994-0 01 1 1101-1504
30 MIRROR; UNDER 8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1101-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 1101-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 1101-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1101-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1101-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1101-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1101-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1101-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98060-240-0 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98092-492-3 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1101-
72 SHEET
(A) 		8-98031-797-0 01 1 1101-
72 SHEET
(B) 		8-98060-245-1 01 1 1101-
72 SHEET
(C) 		8-98064-776-0 01 1 1101-
72 SHEET
(D) 		8-98101-865-0 01 1 1101-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(A) 		8-98031-796-0 01 1 1101-
72 SHEET
(D) 		8-98101-864-0 01 1 1101-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1101-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1101-
87 SPACER
(A) 		8-98063-786-0 02 1 1101-
87 SPACER
(B) 		8-98063-789-0 02 1 1101-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1101-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1101-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1101-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1101-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1101-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1101-

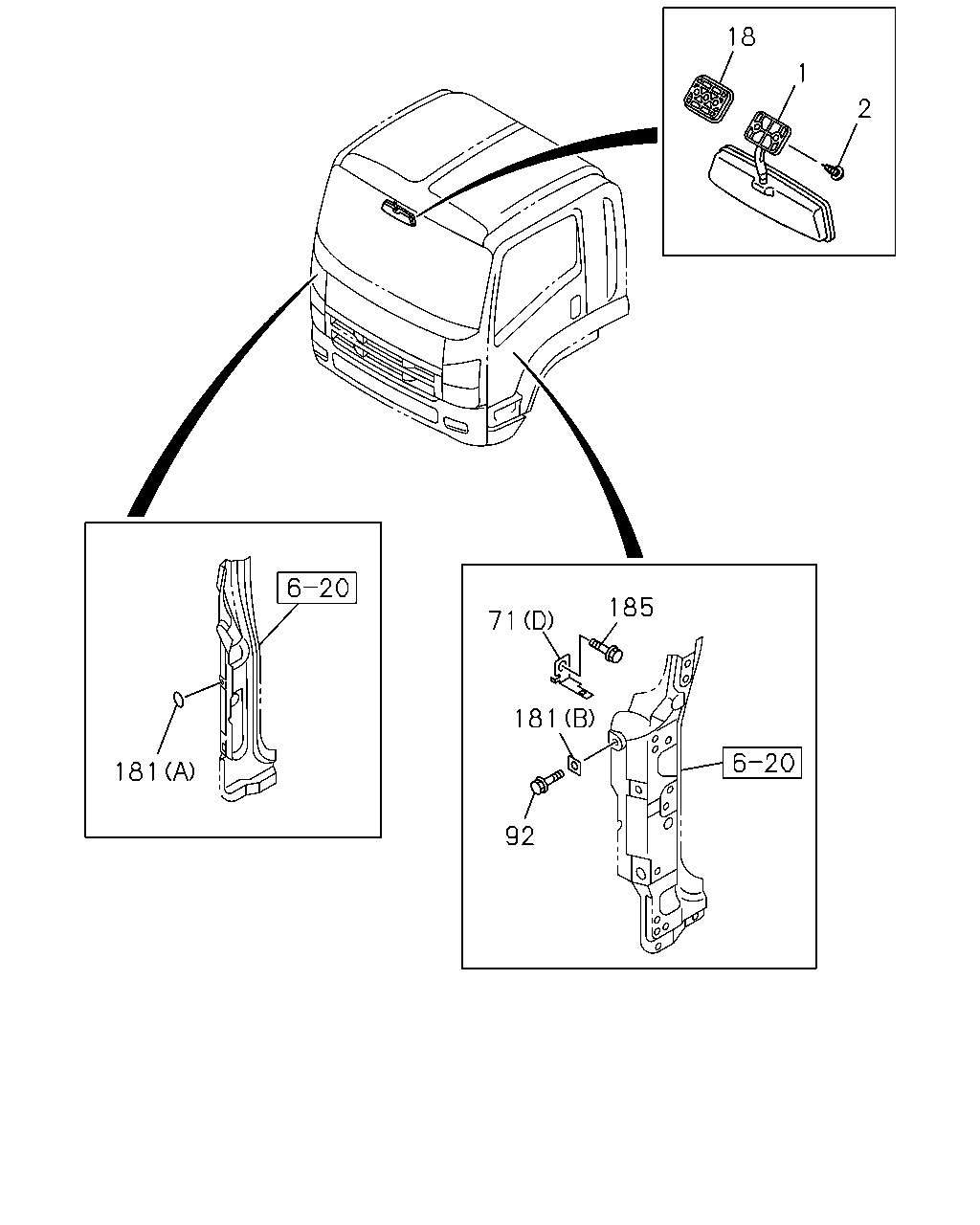

çizim 149519
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1101-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1101-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1101-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98060-240-0 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98092-492-3 01 1 1101-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1101-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1101-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1101-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1101-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1101-1202
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
