◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11438 - FTS(PAKISTAN)D-TIRE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

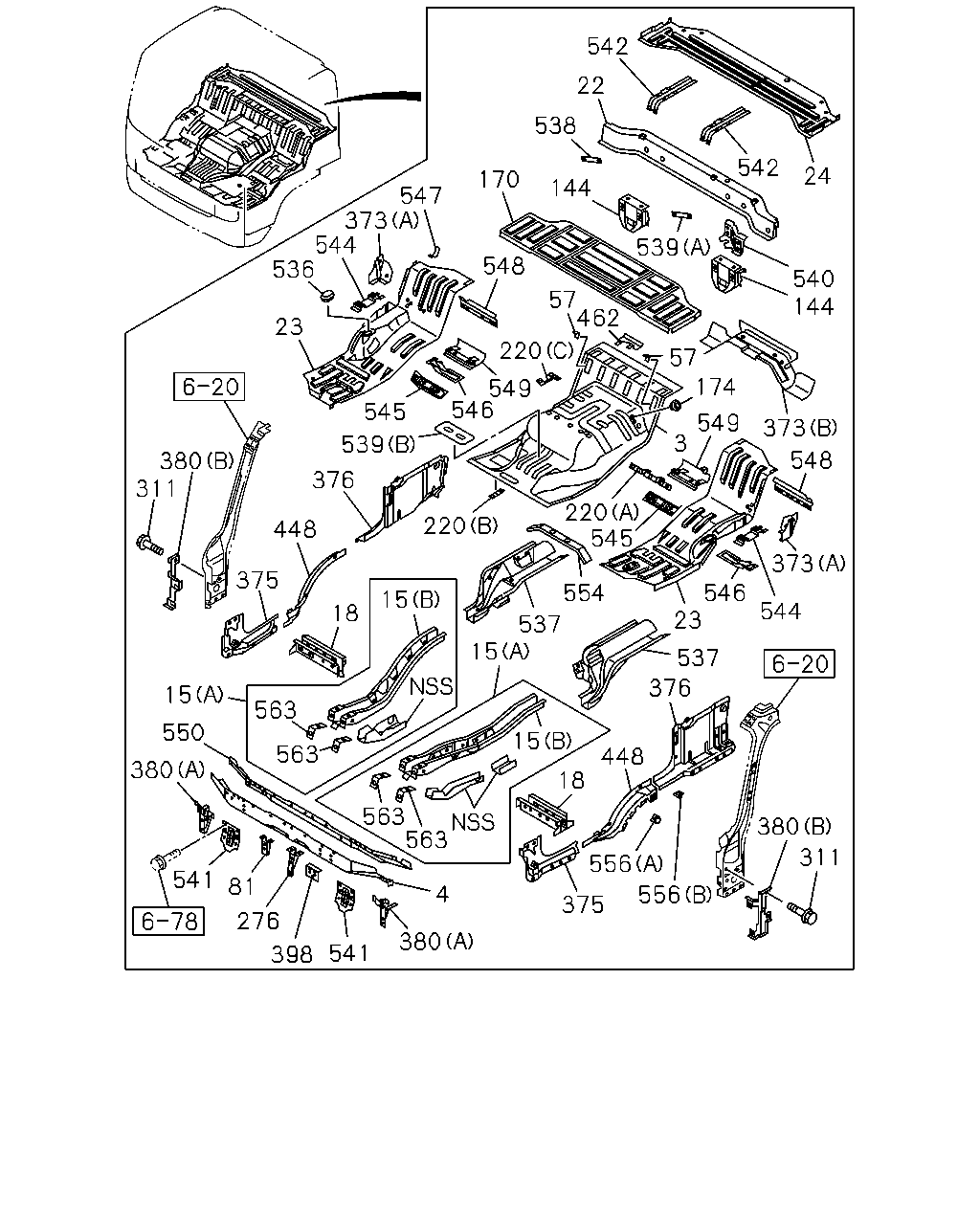

6-70 — FLOOR PANEL (#51173) — 63 parça
çizim 149515
542 22 538 542 24 170 144 547 373 544 536 539 548 540 144 57 462 23 220 57 174 549 546 545 549 373 3 539 548 380 311 376 220 545 220 448 373 375 554 546 23 15 544 18 537 15 537 376 15 563 550 563 15 448 380 18 563 563 380 311 556 541 556 81 4 375 276 380 541 398
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1101-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1101-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1101-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1101-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1101-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1101-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1101-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1101-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1101-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1101-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1101-
24 PANEL; BED PAN 8-97584-378-6 01 1 1101-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1101-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1101-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1101-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1101-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1101-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1101-
220 PATCH
(A) 		8-97588-840-4 01 1 1101-
220 PATCH
(B) 		8-97589-603-3 01 1 1101-
220 PATCH
(C) 		8-97589-627-2 01 1 1101-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1101-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1101-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1101-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1101-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1101-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1101-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1101-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1101-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1101-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1101-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1101-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1101-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1101-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1101-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1101-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1101-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1101-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1101-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1101-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1101-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1101-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1101-
539 PATCH ASM; SAFTY HOOK
(B) 		8-98131-661-0 01 1 1101-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1101-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1101-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1101-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1101-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1101-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1101-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1101-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1101-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1101-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1101-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1101-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1101-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1101-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1101-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1101-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1101-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1101-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1101-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
