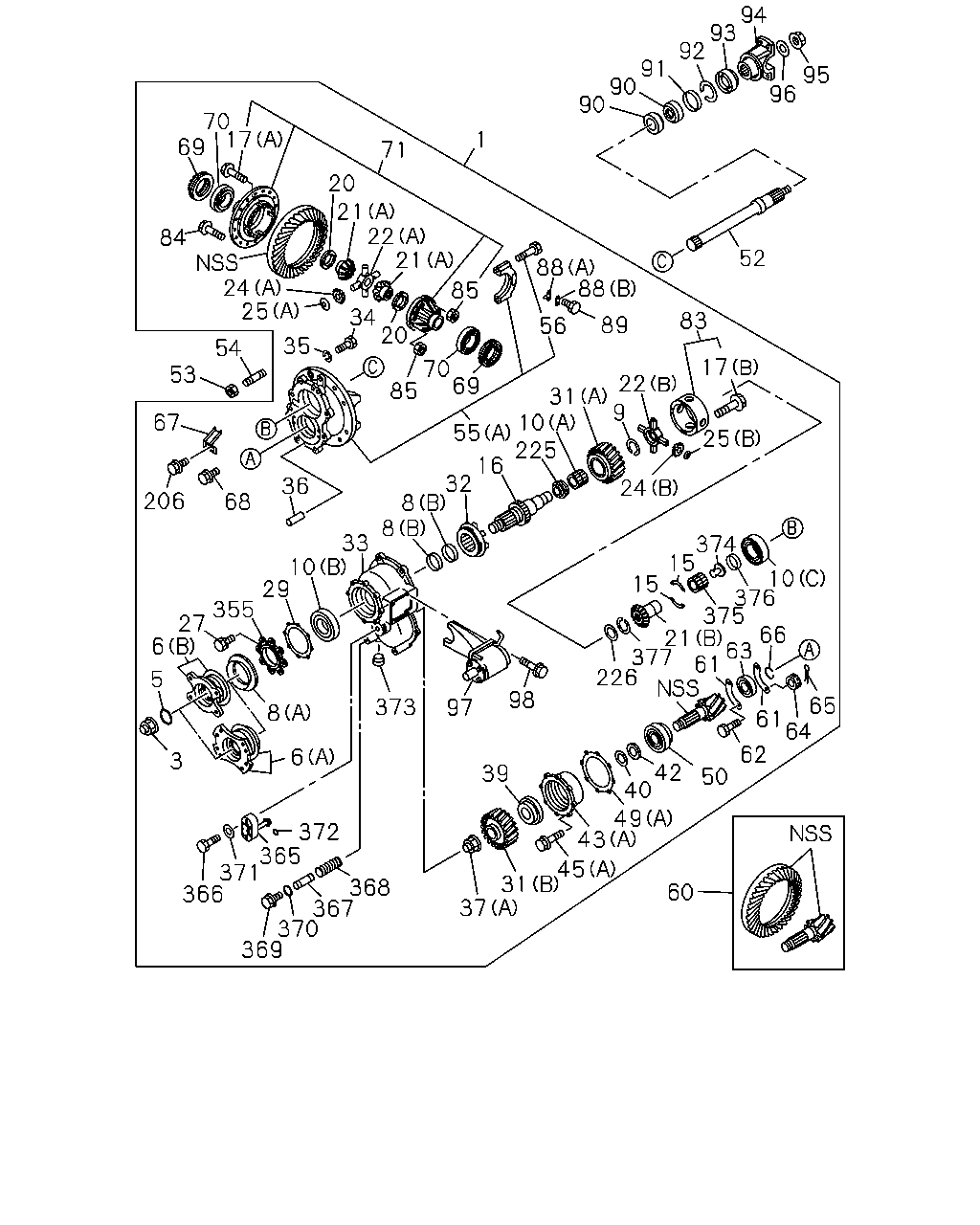

4-25 — REAR FINAL DRIVE (#5117) — 502 parça

94 93 92 91 90 90 95 96 70 17 69 1 71 20 21 22 21 24 25 84 52 88 88 85 34 20 83 89 56 35 54 70 69 85 17 53 22 31 10 225 9 67 25 55 16 32 8 8 36 24 206 68 33 10 29 355 27 6 374 15 10 376 375 21 66 63 377 61 226 15 5 98 65 61 64 373 97 8 62 6 3 42 40 39 50 49 43 372 365 371 366 368 367 370 369 45 31 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR REARWARD 45/7	1-41001-391-0	01	1	9606-	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41001-552-0	01	1	9606-9701	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41002-036-0	01	1	9702-9905	●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 45/7	1-41002-036-0	01	1	9906-	●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 45/7	1-41002-056-0	01	1	9906-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9606-		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41001-652-0	01	1	9606-9701		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41002-038-0	01	1	9702-9905		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 43/7	1-41002-038-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/7	1-41002-058-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9606-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 39/7	1-41001-558-0	01	1	9606-9701			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 39/7	1-41002-060-0	01	1	9702-9706			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/7	1-41002-060-0	01	1	9707-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/7	1-41002-209-0	01	1	9707-			●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 39/7	1-41001-556-0	01	1	9610-9701			●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 39/7	1-41002-040-0	01	1	9702-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/8	1-41001-394-0	01	1	9606-				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41001-612-0	01	1	9606-9701				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41002-062-0	01	1	9702-9706				●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8	1-41002-062-0	01	1	9707-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8	1-41002-211-0	01	1	9707-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9606-					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-614-0	01	1	9606-9701					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-064-0	01	1	9702-9706					●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-064-0	01	1	9707-9905					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-064-0	01	1	9906-9909					●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-064-0	01	1	9910-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-215-0	01	1	9707-9905					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/7	1-41002-207-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-215-0	01	1	9910-					●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-396-0	01	1	9606-						●
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41001-616-0	01	1	9606-9701						●
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41002-066-0	01	1	9702-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9606-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9606-9701							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41002-034-0	01	1	9702-9905							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 41/6	1-41002-034-0	01	1	9906-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 41/6	1-41002-054-0	01	1	9906-							●
3	NUT; INPUT SHAFT FORWARD M46 FLANGE	1-09449-071-0	01	1	9606-	●	●	●	●	●	●	●
5	GASKET; INPUT SHAFT FORWARD ID=57	1-09623-386-0	01	1	9606-	●	●	●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT (B)	1-37245-265-1	01	1	9606-9609	●	●					●
6	FLANGE ASM; INPUT SHAFT P90 PROP SHAFT(C5T) (B)	1-37245-265-2	01	1	9610-	●	●	●				●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT(C5X) (A)	1-37245-267-2	01	1	9606-9905			●	●	●	●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT(C5X) (A)	1-37245-267-2	01	1	9906-	●	●	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A) FORWARD OIL	1-09625-323-0	01	1	9606-	●	●	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B) FORWARD RING	1-41349-145-0	02	1	9606-	●	●	●	●	●	●	●
9	RING; SNAP,BRG,INPUT FORWARD	1-09588-192-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) FORWARD INPUT SHAFT JTEKT	1-09811-346-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) FORWARD INPUT SHAFT NSK	1-09811-347-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (B) FORWARD INPUT FRONT NSK	1-09812-094-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (C) FORWARD INPUT REAR JTEKT	1-09812-182-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (C) FORWARD INPUT REAR NSK	1-09812-183-0	01	1	9606-	●	●	●	●	●	●	●
10	BEARING; INPUT SHAFT (B) FORWARD INPUT FRONT JTEKT	1-09812-198-0	01	1	9606-	●	●	●	●	●	●	●
15	CATCHER; OIL FORWARD	1-41129-007-0	01	1	9606-	●	●	●	●	●	●	●
16	SHAFT ASM; INPUT FORWARD	1-41341-025-0	01	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X125	1-09070-007-0	04	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X125	1-09070-007-0	04	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X113	1-09070-018-0	08	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X113	1-09070-018-0	08	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) FORWARD M10X55	1-09070-108-0	08	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.8	1-41562-112-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.8	1-41562-112-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.9	1-41562-113-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.9	1-41562-113-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.0	1-41562-114-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.0	1-41562-114-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.1	1-41562-115-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.1	1-41562-115-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.2	1-41562-116-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.2	1-41562-116-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.3	1-41562-117-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.3	1-41562-117-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.4	1-41562-118-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.4	1-41562-118-0	AR	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) FORWARD AND REARWARD Z=16	1-41561-086-0	02	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) FORWARD AND REARWARD Z=16	1-41561-086-0	02	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) FORWARD Z=16	1-41561-103-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (A) FORWARD AND REARWARD OD=35	1-41521-037-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (A) FORWARD AND REARWARD OD=35	1-41521-037-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (B) FORWARD	1-41521-049-2	01	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (A) FORWARD AND REARWARD Z=10	1-41551-025-0	04	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (A) FORWARD AND REARWARD Z=10	1-41551-025-0	04	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (B) FORWARD Z=10	1-41551-031-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (A) FORWARD AND REARWARD T=1.6	1-41552-017-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (A) FORWARD AND REARWARD T=1.6	1-41552-017-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (B) FORWARD T=1.6	1-41552-023-0	04	1	9606-	●	●	●	●	●	●	●
27	BOLT; BRG RET FORWARD M12X35 W/LK WASHER	0-50051-235-0	08	1	9606-	●	●	●	●	●	●	●
29	SHIM; BRG RET FORWARD T=0.30	1-41349-146-0	AR	1	9606-	●	●	●	●	●	●	●
29	SHIM; BRG RET FORWARD T=0.40	1-41349-147-0	AR	1	9606-	●	●	●	●	●	●	●
29	SHIM; BRG RET FORWARD T=0.50	1-41349-148-0	AR	1	9606-	●	●	●	●	●	●	●
29	SHIM; BRG RET FORWARD T=1.000	1-41349-149-0	AR	1	9606-	●	●	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) FORWARD Z=16	1-41351-030-0	01	1	9606-	●	●	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) FORWARD Z=31	1-41352-029-0	01	1	9606-	●	●	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK FORWARD	1-41355-038-0	01	1	9606-	●	●	●	●	●	●	●
33	CASE; POWER DIVIDER FORWARD	1-41321-024-1	01	1	9606-	●	●	●	●	●	●	●
34	BOLT; CASE TO CARRIER FORWARD M14X40	0-23801-440-0	10	1	9606-	●	●	●	●	●	●	●
35	WASHER; CASE TO CARRIER FORWARD ID=14.2	9-09150-814-0	10	1	9606-	●	●	●	●	●	●	●
36	PIN; STRAIGHT FORWARD OD=14 L=28	9-08161-428-0	02	1	9606-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) FORWARD M42 FLANGE	1-09449-043-1	01	1	9606-9801	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) FORWARD M42	1-09449-061-0	01	1	9802-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) REARWARD M46 FLANGE	1-09449-071-0	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION FORWARD NSK	1-09812-073-1	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION FORWARD JTEKT	1-09812-074-1	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION REARWARD NSK	1-09812-075-0	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION REARWARD JTEKT	1-09812-076-1	01	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.25	1-41229-245-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.25	1-41229-245-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.26	1-41229-246-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.26	1-41229-246-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.27	1-41229-247-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.27	1-41229-247-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.28	1-41229-248-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.28	1-41229-248-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.29	1-41229-249-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.29	1-41229-249-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.30	1-41229-250-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.30	1-41229-250-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.31	1-41229-251-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.31	1-41229-251-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.32	1-41229-252-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.32	1-41229-252-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.33	1-41229-253-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.33	1-41229-253-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.34	1-41229-254-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.34	1-41229-254-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.35	1-41229-255-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.35	1-41229-255-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=7.60	1-41229-237-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=7.80	1-41229-238-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=8.00	1-41229-239-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=8.20	1-41229-240-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=8.40	1-41229-241-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=8.60	1-41229-242-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=8.80	1-41229-243-0	AR	1	9606-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE FORWARD T=9.00	1-41229-244-0	AR	1	9606-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION (B) REARWARD T=81	1-41151-030-0	01	1	9606-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION (A) FORWARD T=53	1-41151-053-0	01	1	9606-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) REARWARD M16X55	0-16806-655-0	08	1	9606-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) FORWARD M16X40	1-09070-107-0	08	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.50	1-41154-024-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=1.00	1-41154-025-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.30	1-41154-057-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.40	1-41154-058-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.50	1-41154-071-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=1.000	1-41154-072-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.30	1-41154-073-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.40	1-41154-074-0	AR	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION REARWARD NSK	1-09812-073-1	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION REARWARD JTEKT	1-09812-074-1	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION FORWARD NSK	1-09812-075-0	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION FORWARD JTEKT	1-09812-076-1	01	1	9606-	●	●	●	●	●	●	●
52	SHAFT; OUTPUT FORWARD	1-41343-020-0	01	1	9606-	●	●	●	●	●	●	●
53	NUT; FINAL DRIVE SET FORWARD M16	9-99110-516-0	01	1	9606-9706	●	●	●	●	●	●	●
53	NUT; FINAL DRIVE SET FORWARD M16	9-99110-516-0	01	1	9707-9905	●	●	●	●	●	●	●
53	NUT; FINAL DRIVE SET FORWARD M16	9-99110-516-0	01	1	9906-	●	●	●	●	●	●	●
54	STUD; FINAL DRIVE SET FORWARD M16X32 L=56	9-09830-243-0	01	1	9606-	●	●	●	●	●	●	●
55	CARRIER; DIFF (B) REARWARD	1-41110-109-0	01	1	9606-	●	●	●	●	●	●	●
55	CARRIER; DIFF (A) FORWARD	1-41310-050-0	01	1	9606-	●	●	●	●	●	●	●
56	BOLT; BRG CAP FORWARD AND REARWARD M20X112	1-09070-042-0	04	1	9606-	●	●	●	●	●	●	●
56	BOLT; BRG CAP FORWARD AND REARWARD M20X112	1-09070-042-0	04	1	9606-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 45/7	1-41210-463-0	01	1	9606-9901	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 45/7	1-41210-602-0	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 45/7	1-41210-474-0	01	1	9606-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/7	1-41210-464-0	01	1	9606-9901		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/7	1-41210-603-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/7	1-41210-475-0	01	1	9606-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-465-0	01	1	9606-9901			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	9902-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	9606-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/8	1-41210-466-0	01	1	9606-9901				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/8	1-41210-605-0	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/8	1-41210-477-0	01	1	9606-				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-467-0	01	1	9606-9901					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	9606-9905					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	9906-					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-468-0	01	1	9606-9901						●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-608-0	01	1	9902-						●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-479-0	01	1	9606-						●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/6	1-41210-462-0	01	1	9606-9901							●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/6	1-41210-601-0	01	1	9902-							●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/6	1-41210-473-0	01	1	9606-							●
61	RETAINER; PILOT BRG,PINION FORWARD AND REARWARD T=3.2	1-41227-012-0	02	1	9606-	●	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION FORWARD AND REARWARD T=3.2	1-41227-012-0	02	1	9606-	●	●	●	●	●	●	●
62	BOLT; RET FORWARD AND REARWARD M8X40 W/PIN HOLE	1-09042-038-1	02	1	9606-	●	●	●	●	●	●	●
62	BOLT; RET FORWARD AND REARWARD M8X40 W/PIN HOLE	1-09042-038-1	02	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD JTEKT	1-09810-182-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD JTEKT	1-09810-182-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD NSK	1-09810-183-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD NSK	1-09810-183-0	01	1	9606-	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8	9-09117-408-0	02	1	9606-9707	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8	9-09117-408-0	02	1	9606-9707	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET FORWARD AND REARWARD	9-08112-012-0	02	1	9606-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET FORWARD AND REARWARD	9-08112-012-0	02	1	9606-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG FORWARD AND REARWARD OD=37.2	1-09588-086-1	01	1	9606-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG FORWARD AND REARWARD OD=37.2	1-09588-086-1	01	1	9606-	●	●	●	●	●	●	●
67	PICKUP; OIL,CARRIER FORWARD	1-41129-008-0	01	1	9606-	●	●	●	●	●	●	●
68	BOLT; OIL PICKUP FIX FORWARD M8X12 FLANGE	8-94479-696-1	02	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=30	1-41121-002-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=30	1-41121-002-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=26	1-41121-001-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=26	1-41121-001-0	01	1	9606-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-141-0	01	1	9606-	●	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-141-0	01	1	9606-	●	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-142-0	01	1	9606-						●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-142-0	01	1	9606-						●
83	CAGE ASM; DIFF FORWARD	1-41510-224-0	01	1	9606-	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR FORWARD AND REARWARD M18X38 FLANGE	1-09009-049-1	16	1	9606-	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR FORWARD AND REARWARD M18X38 FLANGE	1-09009-049-1	16	1	9606-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING FORWARD AND REARWARD M16	9-99110-516-0	12	1	9606-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING FORWARD AND REARWARD M16	9-99110-516-0	12	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) FORWARD AND REARWARD T=3.2	1-41124-006-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) FORWARD AND REARWARD T=3.2	1-41124-006-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) FORWARD AND REARWARD T=1.0	9-41124-005-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) FORWARD AND REARWARD T=1.0	9-41124-005-0	02	1	9606-	●	●	●	●	●	●	●
89	BOLT; LK PLATE FORWARD AND REARWARD M8X16	0-20800-816-0	04	1	9606-	●	●	●	●	●	●	●
89	BOLT; LK PLATE FORWARD AND REARWARD M8X16	0-20800-816-0	04	1	9606-	●	●	●	●	●	●	●
90	BEARING; OUTPUT SHAFT FORWARD NSK	1-09812-068-0	02	1	9606-	●	●	●	●	●	●	●
90	BEARING; OUTPUT SHAFT FORWARD JTEKT	1-09812-069-0	02	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=4.60	1-41349-020-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=4.70	1-41349-021-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=4.80	1-41349-022-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=4.90	1-41349-023-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=5.00	1-41349-024-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=5.10	1-41349-025-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=5.20	1-41349-026-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=5.30	1-41349-027-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=4.50	1-41349-091-0	AR	1	9606-	●	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT FORWARD T=5.40	1-41349-092-0	AR	1	9606-	●	●	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT FORWARD OD=90.5	9-09180-185-0	01	1	9606-	●	●	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT FORWARD	1-09625-217-0	01	1	9606-	●	●	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT FORWARD (W/DUST COVER)	1-37245-130-1	01	1	9606-	●	●	●	●	●	●	●
95	NUT; OUTPUT SHAFT FORWARD M36 FLANGE	1-09449-067-0	01	1	9606-	●	●	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT FORWARD ID=42	1-09623-387-0	01	1	9606-	●	●	●	●	●	●	●

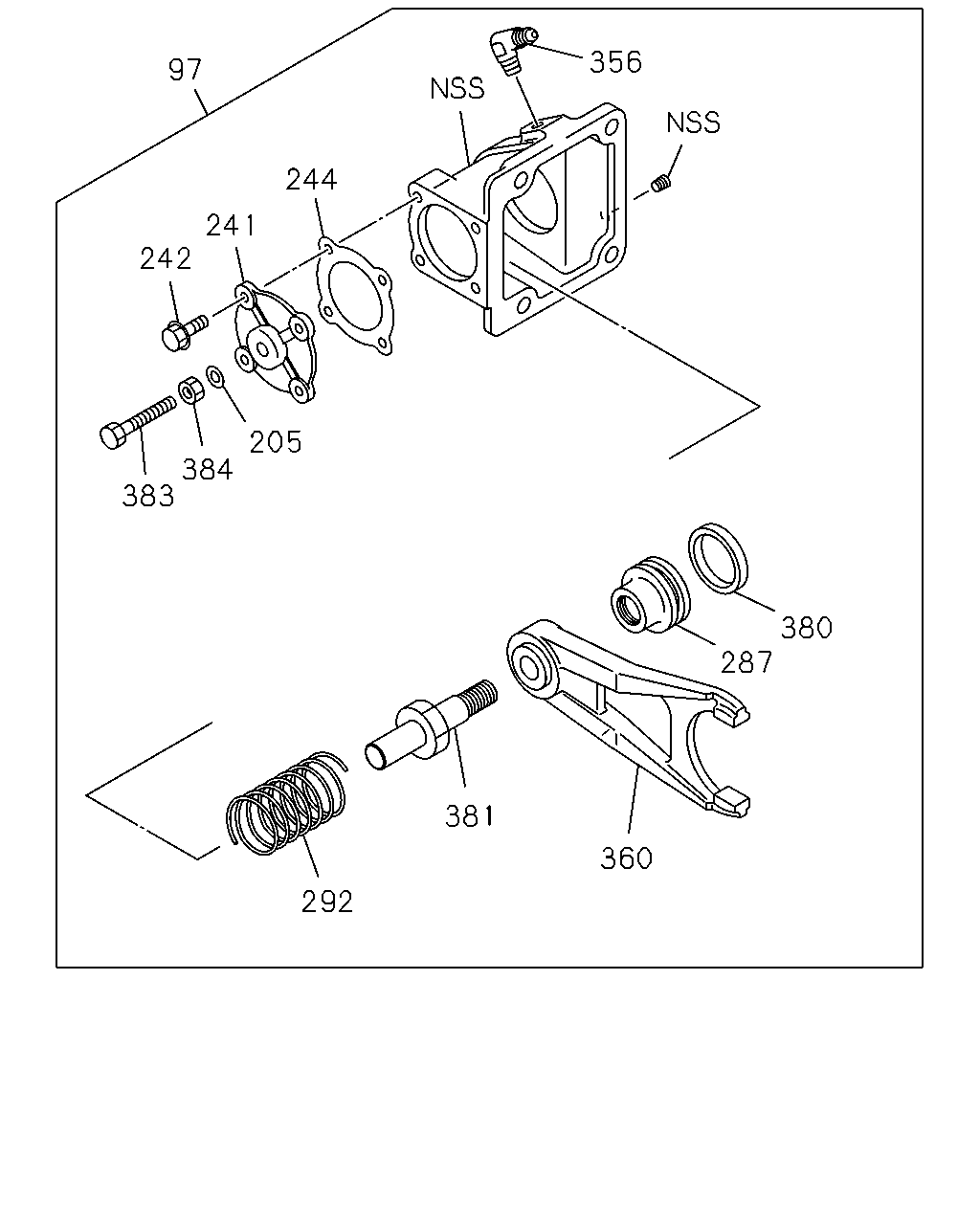

97	SHIFT UNIT; DIFF LOCK FORWARD	1-48260-052-1	01	1	9606-9701	●	●	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK FORWARD	1-48260-060-1	01	1	9702-	●	●	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER FORWARD M10X50 FLANGE	0-28181-050-0	01	1	9606-	●	●	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER FORWARD M10X25 FLANGE	0-28781-025-0	03	1	9606-	●	●	●	●	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=5.9	1-41552-024-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.0	1-41552-025-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.1	1-41552-026-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.2	1-41552-027-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.3	1-41552-028-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.4	1-41552-029-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.5	1-41552-030-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.6	1-41552-031-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.7	1-41552-032-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.8	1-41552-033-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=6.9	1-41552-034-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=7.0	1-41552-035-2	AR	1	9606-	●	●	●	●	●	●	●
225	WASHER; THRUST FORWARD T=7.1	1-41552-036-2	AR	1	9606-	●	●	●	●	●	●	●
226	WASHER; THRUST FORWARD	1-41562-267-0	01	1	9606-	●	●	●	●	●	●	●
355	RETAINER; BRG FORWARD	1-41227-011-0	01	1	9606-9702	●	●	●	●	●	●	●
355	RETAINER; BRG FORWARD	1-41227-011-0	01	1	9703-9706	●	●				●	●
355	RETAINER; BRG P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-011-0	01	1	9703-9706			●	●	●
355	RETAINER; BRG P90 PROP SHAFT(C5T) FORWARD	1-41227-011-0	01	1	9703-9706			●
355	RETAINER; BRG P90 PROP SHAFT(C5T) FORWARD	1-41227-011-0	01	1	9707-9905	●	●	●				●
355	RETAINER; BRG P115 PROP SHAFT(C5X) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, BRAKE LINING MATERIAL NON ASBESTOS<SKR> FORWARD	1-41227-011-0	01	1	9707-9905			●	●	●	●
355	RETAINER; BRG INTERNATIONAL STANDARD ISO 10STUD<B3V> P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-011-0	01	1	9707-9905			●	●	●
355	RETAINER; BRG FORWARD	1-41227-011-0	01	1	9906-9906	●				●	●	●
355	RETAINER; BRG P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-011-0	01	1	9906-9906		●	●	●
355	RETAINER; BRG P90 PROP SHAFT(C5T) FORWARD	1-41227-011-0	01	1	9906-9906		●	●
355	RETAINER; BRG FORWARD	1-41227-016-0	01	1	9907-	●				●	●	●
355	RETAINER; BRG P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-016-0	01	1	9907-		●	●	●
355	RETAINER; BRG P90 PROP SHAFT(C5T) FORWARD	1-41227-016-0	01	1	9907-		●	●
355	RETAINER; BRG P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-014-1	01	1	9707-9905			●	●	●
355	RETAINER; BRG P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD	1-41227-014-1	01	1	9906-9909		●	●	●
355	RETAINER; BRG BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> P115 PROP SHAFT(C5X) FORWARD	1-41227-014-1	01	1	9910-		●	●	●	●
365	PUMP ASM; OIL FORWARD	1-41381-008-1	01	1	9606-	●	●	●	●	●	●	●
366	BOLT; PUMP FORWARD M8X40	0-10805-840-0	04	1	9606-	●	●	●	●	●	●	●
367	STRAINER; OIL PUMP FORWARD	1-41383-003-0	01	1	9606-	●	●	●	●	●	●	●
368	SPRING; STRAINER FORWARD	1-09580-504-0	01	1	9606-	●	●	●	●	●	●	●
369	PLUG; STRAINER FORWARD M24X17 FLANGE	1-09604-023-0	01	1	9606-	●	●	●	●	●	●	●
370	GASKET; STRAINER FORWARD ID=26.8	1-09623-058-0	01	1	9606-	●	●	●	●	●	●	●
371	WASHER; LK,PUMP FORWARD ID=8.2	9-09150-808-0	04	1	9606-	●	●	●	●	●	●	●
372	BALL; CASE FORWARD	9-00097-517-0	01	1	9606-	●	●	●	●	●	●	●
373	PLUG; CASE FORWARD PT1/4	1-09605-019-0	01	1	9606-	●	●	●	●	●	●	●
374	PLUG; INPUT SHAFT FORWARD	1-09609-020-1	01	1	9606-	●	●	●	●	●	●	●
375	BEARING; SIDE GEAR FORWARD JTEKT	1-09811-348-0	01	1	9606-	●	●	●	●	●	●	●
375	BEARING; SIDE GEAR FORWARD NSK	1-09811-362-0	01	1	9606-	●	●	●	●	●	●	●
376	SPACER; BRG,SIDE GEAR FORWARD	1-41349-150-0	01	1	9606-	●	●	●	●	●	●	●
377	RING; SNAP,BRG,SIDE GEAR FORWARD	1-09587-091-0	01	1	9606-	●	●	●	●	●	●	●

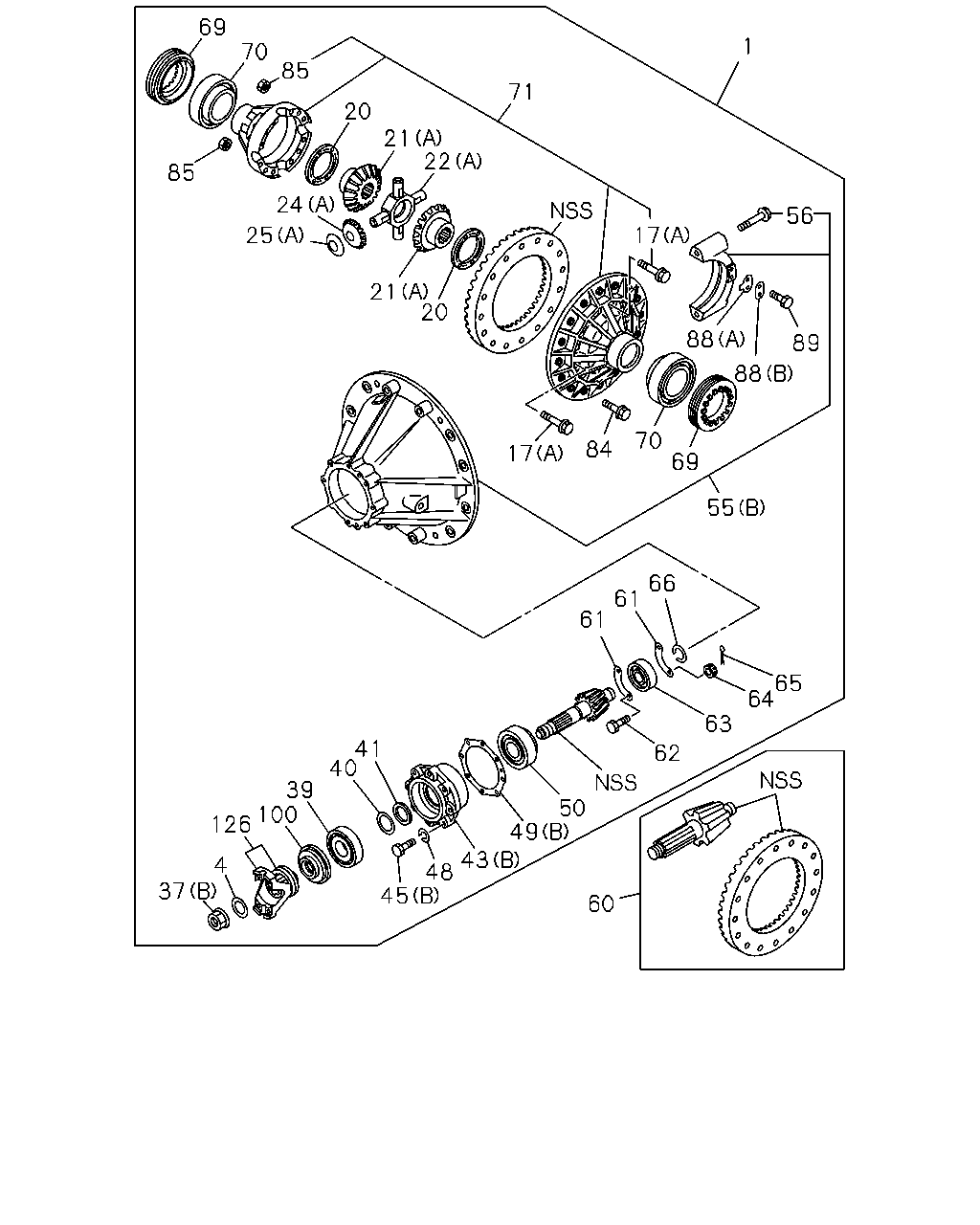

69 1 70 85 71 20 21 22 85 24 56 25 17 21 20 88 89 88 70 84 17 69 55 66 61 61 65 64 63 41 40 62 50 49 43 48 45 39 100 126 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR REARWARD 45/7	1-41001-391-0	01	1	9606-	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41001-552-0	01	1	9606-9701	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41002-036-0	01	1	9702-9905	●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 45/7	1-41002-036-0	01	1	9906-	●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 45/7	1-41002-056-0	01	1	9906-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9606-		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41001-652-0	01	1	9606-9701		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41002-038-0	01	1	9702-9905		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 43/7	1-41002-038-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/7	1-41002-058-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9606-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 39/7	1-41001-558-0	01	1	9606-9701			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 39/7	1-41002-060-0	01	1	9702-9706			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/7	1-41002-060-0	01	1	9707-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/7	1-41002-209-0	01	1	9707-			●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 39/7	1-41001-556-0	01	1	9610-9701			●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 39/7	1-41002-040-0	01	1	9702-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/8	1-41001-394-0	01	1	9606-				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41001-612-0	01	1	9606-9701				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41002-062-0	01	1	9702-9706				●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8	1-41002-062-0	01	1	9707-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8	1-41002-211-0	01	1	9707-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9606-					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41001-614-0	01	1	9606-9701					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-064-0	01	1	9702-9706					●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-064-0	01	1	9707-9905					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-064-0	01	1	9906-9909					●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-064-0	01	1	9910-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-215-0	01	1	9707-9905					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/7	1-41002-207-0	01	1	9906-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/8	1-41002-215-0	01	1	9910-					●
1	DRIVE ASM; FINAL,RR REARWARD 41/9	1-41001-396-0	01	1	9606-						●
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41001-616-0	01	1	9606-9701						●
1	DRIVE ASM; FINAL,RR FORWARD 41/9	1-41002-066-0	01	1	9702-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9606-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9606-9701							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41002-034-0	01	1	9702-9905							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT(C5T) FORWARD 41/6	1-41002-034-0	01	1	9906-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT(C5X) FORWARD 41/6	1-41002-054-0	01	1	9906-							●
4	GASKET; FLANGE,FINAL PINION REARWARD ID=57	1-09623-386-0	01	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X125	1-09070-007-0	04	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X125	1-09070-007-0	04	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X113	1-09070-018-0	08	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) FORWARD AND REARWARD M16X113	1-09070-018-0	08	1	9606-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) FORWARD M10X55	1-09070-108-0	08	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.8	1-41562-112-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.8	1-41562-112-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.9	1-41562-113-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=2.9	1-41562-113-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.0	1-41562-114-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.0	1-41562-114-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.1	1-41562-115-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.1	1-41562-115-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.2	1-41562-116-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.2	1-41562-116-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.3	1-41562-117-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.3	1-41562-117-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.4	1-41562-118-0	AR	1	9606-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR FORWARD AND REARWARD T=3.4	1-41562-118-0	AR	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) FORWARD AND REARWARD Z=16	1-41561-086-0	02	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) FORWARD AND REARWARD Z=16	1-41561-086-0	02	1	9606-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) FORWARD Z=16	1-41561-103-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (A) FORWARD AND REARWARD OD=35	1-41521-037-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (A) FORWARD AND REARWARD OD=35	1-41521-037-1	01	1	9606-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION (B) FORWARD	1-41521-049-2	01	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (A) FORWARD AND REARWARD Z=10	1-41551-025-0	04	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (A) FORWARD AND REARWARD Z=10	1-41551-025-0	04	1	9606-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF (B) FORWARD Z=10	1-41551-031-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (A) FORWARD AND REARWARD T=1.6	1-41552-017-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (A) FORWARD AND REARWARD T=1.6	1-41552-017-0	04	1	9606-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION (B) FORWARD T=1.6	1-41552-023-0	04	1	9606-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) FORWARD M42 FLANGE	1-09449-043-1	01	1	9606-9801	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) FORWARD M42	1-09449-061-0	01	1	9802-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) REARWARD M46 FLANGE	1-09449-071-0	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION FORWARD NSK	1-09812-073-1	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION FORWARD JTEKT	1-09812-074-1	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION REARWARD NSK	1-09812-075-0	01	1	9606-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION REARWARD JTEKT	1-09812-076-1	01	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.25	1-41229-245-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.25	1-41229-245-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.26	1-41229-246-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.26	1-41229-246-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.27	1-41229-247-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.27	1-41229-247-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.28	1-41229-248-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.28	1-41229-248-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.29	1-41229-249-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.29	1-41229-249-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.30	1-41229-250-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.30	1-41229-250-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.31	1-41229-251-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.31	1-41229-251-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.32	1-41229-252-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.32	1-41229-252-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.33	1-41229-253-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.33	1-41229-253-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.34	1-41229-254-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.34	1-41229-254-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.35	1-41229-255-0	AR	1	9606-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION FORWARD AND REARWARD T=3.35	1-41229-255-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=7.60	1-41229-237-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=7.80	1-41229-238-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=8.00	1-41229-239-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=8.20	1-41229-240-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=8.40	1-41229-241-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=8.60	1-41229-242-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=8.80	1-41229-243-0	AR	1	9606-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REARWARD T=9.00	1-41229-244-0	AR	1	9606-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION (B) REARWARD T=81	1-41151-030-0	01	1	9606-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION (A) FORWARD T=53	1-41151-053-0	01	1	9606-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) REARWARD M16X55	0-16806-655-0	08	1	9606-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) FORWARD M16X40	1-09070-107-0	08	1	9606-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION REARWARD ID=16.2	9-09150-516-0	08	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.50	1-41154-024-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=1.00	1-41154-025-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.30	1-41154-057-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) REARWARD T=0.40	1-41154-058-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.50	1-41154-071-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=1.000	1-41154-072-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.30	1-41154-073-0	AR	1	9606-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) FORWARD T=0.40	1-41154-074-0	AR	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION REARWARD NSK	1-09812-073-1	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION REARWARD JTEKT	1-09812-074-1	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION FORWARD NSK	1-09812-075-0	01	1	9606-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION FORWARD JTEKT	1-09812-076-1	01	1	9606-	●	●	●	●	●	●	●
55	CARRIER; DIFF (B) REARWARD	1-41110-109-0	01	1	9606-	●	●	●	●	●	●	●
55	CARRIER; DIFF (A) FORWARD	1-41310-050-0	01	1	9606-	●	●	●	●	●	●	●
56	BOLT; BRG CAP FORWARD AND REARWARD M20X112	1-09070-042-0	04	1	9606-	●	●	●	●	●	●	●
56	BOLT; BRG CAP FORWARD AND REARWARD M20X112	1-09070-042-0	04	1	9606-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 45/7	1-41210-463-0	01	1	9606-9901	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 45/7	1-41210-602-0	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 45/7	1-41210-474-0	01	1	9606-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/7	1-41210-464-0	01	1	9606-9901		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/7	1-41210-603-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/7	1-41210-475-0	01	1	9606-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-465-0	01	1	9606-9901			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	9902-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	9606-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/8	1-41210-466-0	01	1	9606-9901				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/8	1-41210-605-0	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/8	1-41210-477-0	01	1	9606-				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-467-0	01	1	9606-9901					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	9606-9905					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	9906-					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-468-0	01	1	9606-9901						●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/9	1-41210-608-0	01	1	9902-						●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-479-0	01	1	9606-						●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/6	1-41210-462-0	01	1	9606-9901							●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/6	1-41210-601-0	01	1	9902-							●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/6	1-41210-473-0	01	1	9606-							●
61	RETAINER; PILOT BRG,PINION FORWARD AND REARWARD T=3.2	1-41227-012-0	02	1	9606-	●	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION FORWARD AND REARWARD T=3.2	1-41227-012-0	02	1	9606-	●	●	●	●	●	●	●
62	BOLT; RET FORWARD AND REARWARD M8X40 W/PIN HOLE	1-09042-038-1	02	1	9606-	●	●	●	●	●	●	●
62	BOLT; RET FORWARD AND REARWARD M8X40 W/PIN HOLE	1-09042-038-1	02	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD JTEKT	1-09810-182-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD JTEKT	1-09810-182-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD NSK	1-09810-183-0	01	1	9606-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT FORWARD AND REARWARD NSK	1-09810-183-0	01	1	9606-	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8	9-09117-408-0	02	1	9606-9707	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8	9-09117-408-0	02	1	9606-9707	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
64	NUT; RET FORWARD AND REARWARD M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET FORWARD AND REARWARD	9-08112-012-0	02	1	9606-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET FORWARD AND REARWARD	9-08112-012-0	02	1	9606-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG FORWARD AND REARWARD OD=37.2	1-09588-086-1	01	1	9606-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG FORWARD AND REARWARD OD=37.2	1-09588-086-1	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=30	1-41121-002-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=30	1-41121-002-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=26	1-41121-001-0	01	1	9606-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD AND REARWARD M155 H=26	1-41121-001-0	01	1	9606-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9606-9702	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD AND REARWARD JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-141-0	01	1	9606-	●	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-141-0	01	1	9606-	●	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-142-0	01	1	9606-						●
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD AND REARWARD	1-41510-142-0	01	1	9606-						●
84	BOLT; FINAL DRIVE GEAR FORWARD AND REARWARD M18X38 FLANGE	1-09009-049-1	16	1	9606-	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR FORWARD AND REARWARD M18X38 FLANGE	1-09009-049-1	16	1	9606-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING FORWARD AND REARWARD M16	9-99110-516-0	12	1	9606-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING FORWARD AND REARWARD M16	9-99110-516-0	12	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) FORWARD AND REARWARD T=3.2	1-41124-006-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) FORWARD AND REARWARD T=3.2	1-41124-006-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) FORWARD AND REARWARD T=1.0	9-41124-005-0	02	1	9606-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) FORWARD AND REARWARD T=1.0	9-41124-005-0	02	1	9606-	●	●	●	●	●	●	●
89	BOLT; LK PLATE FORWARD AND REARWARD M8X16	0-20800-816-0	04	1	9606-	●	●	●	●	●	●	●
89	BOLT; LK PLATE FORWARD AND REARWARD M8X16	0-20800-816-0	04	1	9606-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION REARWARD NOK	1-09625-322-0	01	1	9606-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION REARWARD	1-37245-225-1	01	1	9606-9901	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION REARWARD	1-37245-336-0	01	1	9902-	●	●	●	●	●	●	●

356 97 244 241 242 205 384 383 380 287 381 360 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
97	SHIFT UNIT; DIFF LOCK FORWARD	1-48260-052-1	01	1	9606-9701	●	●	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK FORWARD	1-48260-060-1	01	1	9702-	●	●	●	●	●	●	●
205	WASHER; PL FORWARD ID=10.5 OD=18	9-09160-510-0	01	1	9606-	●	●	●	●	●	●	●
241	COVER; SHIFT HSG FORWARD	1-48266-012-1	01	1	9606-	●	●	●	●	●	●	●
242	BOLT; COVER FORWARD M8X20	0-20800-820-0	04	1	9606-	●	●	●	●	●	●	●
244	GASKET; COVER FORWARD	1-48269-062-0	01	1	9606-	●	●	●	●	●	●	●
287	PISTON; SHIFT UNIT FORWARD	1-48262-011-1	01	1	9606-9701	●	●	●	●	●	●	●
287	PISTON; SHIFT UNIT FORWARD	1-48262-012-0	01	1	9702-	●	●	●	●	●	●	●
292	SPRING; PISTON FORWARD	1-48265-007-0	01	1	9606-	●	●	●	●	●	●	●
356	NIPPLE; SHIFT UNIT FORWARD M20 & PT1/4 ELBOW	1-48269-012-0	01	1	9606-9701	●	●	●	●	●	●	●
356	NIPPLE; SHIFT UNIT FORWARD M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9702-	●	●	●	●	●	●	●
360	FORK; SHIFT FORWARD	1-48269-066-0	01	1	9606-	●	●	●	●	●	●	●
380	GASKET; PISTON FORWARD	1-48269-064-0	01	1	9606-	●	●	●	●	●	●	●
381	ROD; SHIFT FORWARD	1-48263-005-0	01	1	9606-	●	●	●	●	●	●	●
383	BOLT; SET,SHIFT UNIT FORWARD M10X45	0-20801-045-0	01	1	9606-	●	●	●	●	●	●	●
384	NUT; LK,SHIFT UNIT FORWARD M10	9-09111-410-0	01	1	9606-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
