Isuzu WW
▶
TRUCKS
▶
FTS
▶
11438 - FTS(PAKISTAN)D-TIRE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

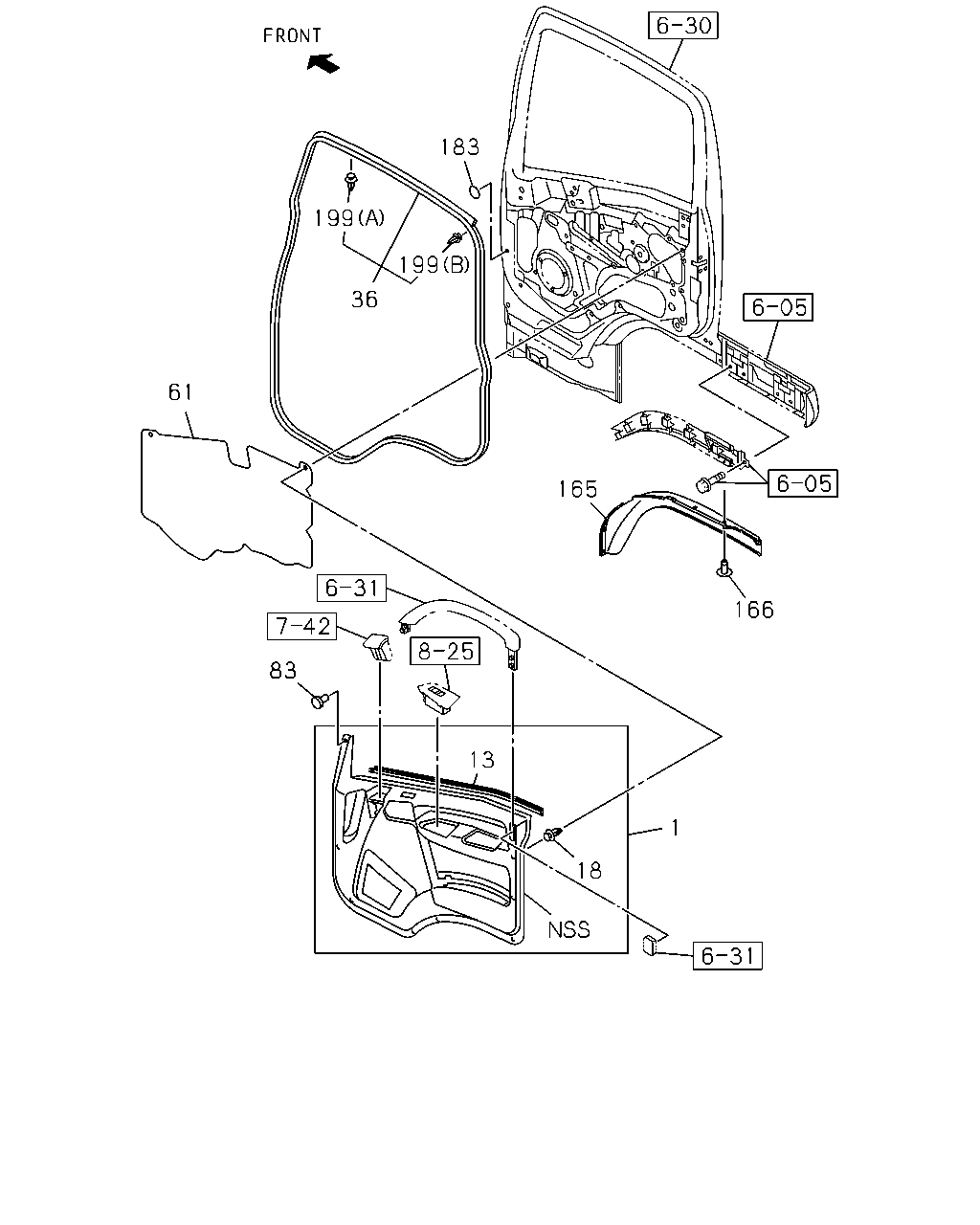

6-35 — FRONT DOOR TRIM
(#51168) — 18 parça
183
199
199
36
61
165
166
83
13
1
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-307-6
01
1
1101-
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-305-6
01
1
1101-
13
SEAL; DOOR TRIM
8-98029-202-1
01
1
1101-
13
SEAL; DOOR TRIM
8-98029-201-1
01
1
1101-
18
CLIP; DOOR PAD
8-98004-025-0
07
1
1101-
18
CLIP; DOOR PAD
8-98004-025-0
07
1
1101-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
1101-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1101-
61
SEAL; WATER,DOOR PAD
8-98029-396-0
02
1
1101-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1101-
165
LINER; DOOR LWR
8-98038-286-1
01
1
1101-1412
165
LINER; DOOR LWR
8-98299-436-0
01
1
1501-
165
LINER; DOOR LWR
8-98038-285-1
01
1
1101-1412
165
LINER; DOOR LWR
8-98299-434-0
01
1
1501-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
08
1
1101-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1101-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
1101-
199
CLIP; SEAL
(B) RED
8-98062-271-0
02
1
1101-
