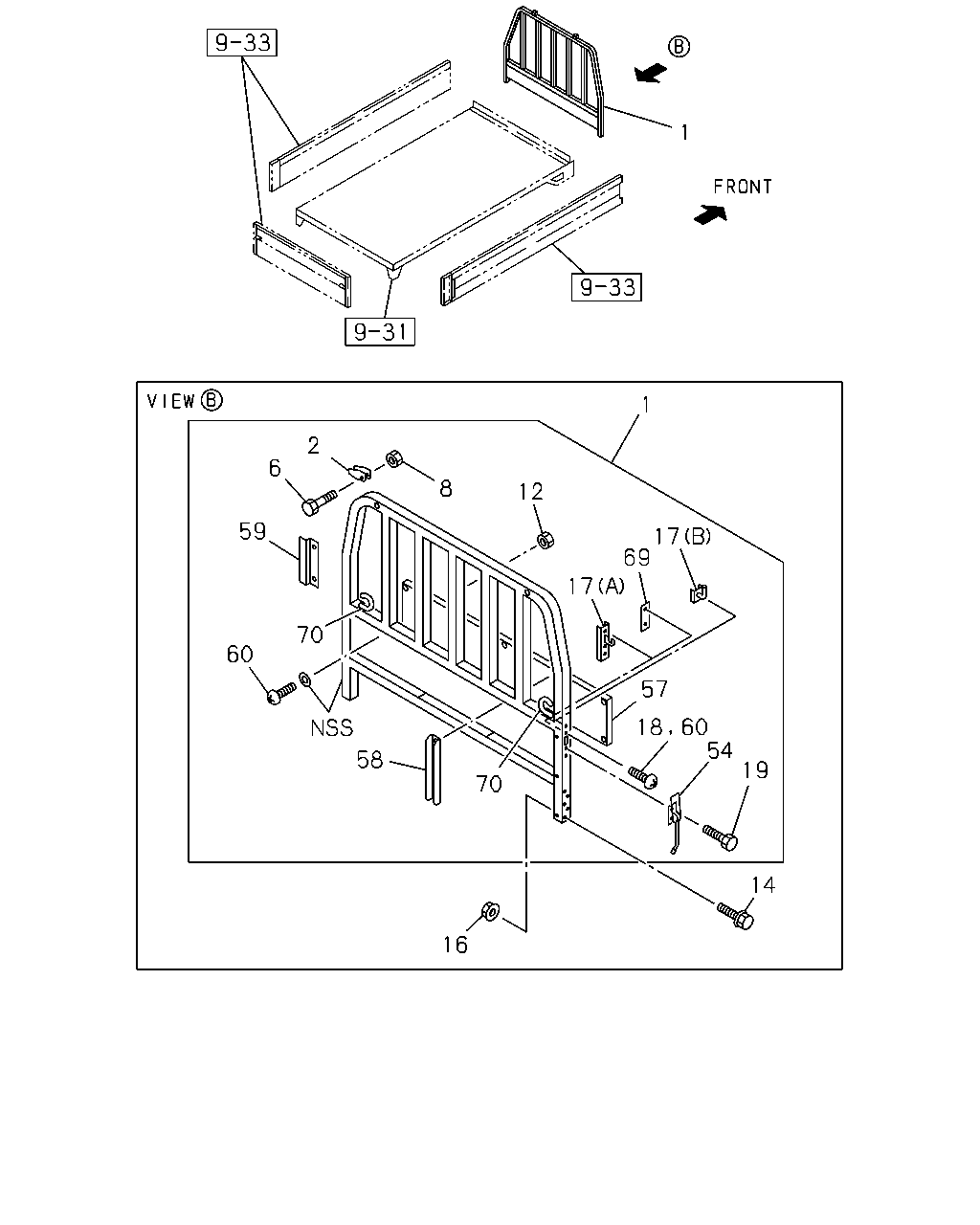

9-32 — REAR BODY; GUARD FRAME (#51163) — 98 parça

1 1 8 2 6 37 14 37 16 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97590-492-1	01	1	0211-0501	●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-1	01	1	0211-0501		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97590-512-1	01	1	0211-0501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97592-148-0	01	1	0502-0801			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97594-697-0	01	1	0802-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97590-476-1	01	1	0211-0501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97590-476-1	01	1	0211-0501				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97592-147-0	01	1	0502-0801			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97592-147-0	01	1	0502-0801				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97594-696-0	01	1	0802-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97594-696-0	01	1	0802-				●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-94193-798-0	02	1	0211-0501	●
2	17.447 STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	0211-0501		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-396-0	02	1	0211-			●	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-94193-950-0	02	1	0211-0501	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-1	02	1	0211-0501		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-488-0	02	1	0211-			●	●	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10 TAKADA	8-94193-951-0	02	1	0211-0501	●
8	17.447 NUT; STOPPER BOLT RR BODY NON FLAT BED(RS5) TAKADA	8-94197-155-0	02	1	0211-0501		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10	8-97590-493-0	02	1	0211-			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10X22	8-97233-077-0	08	1	0211-0501	●		●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10X22	8-97233-077-0	08	1	0502-1401			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1402-			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22	8-97233-077-0	04	1	0211-0501		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10 FLANGE	8-97065-439-0	08	1	0211-0501	●		●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10 FLANGE	8-97065-439-0	08	1	0502-1401			●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	08	1	1402-			●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	0211-0501		●
37	17.455 BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
37	17.455 BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) (B) M10X22	8-97233-077-0	06	1	0211-0501		●
42	17.447 WASHER; PL RR BODY NON FLAT BED(RS5) 06.760 ID=8.4 OD=22	9-09160-708-0	04	1	0211-0501		●

1 1 2 6 8 12 59 17 69 17 70 60 57 54 58 19 70 14 16 18 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97590-492-1	01	1	0211-0501	●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-1	01	1	0211-0501		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97590-512-1	01	1	0211-0501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97592-148-0	01	1	0502-0801			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97594-697-0	01	1	0802-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97590-476-1	01	1	0211-0501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97590-476-1	01	1	0211-0501				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97592-147-0	01	1	0502-0801			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97592-147-0	01	1	0502-0801				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97594-696-0	01	1	0802-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6)	8-97594-696-0	01	1	0802-				●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-94193-798-0	02	1	0211-0501	●
2	17.447 STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	0211-0501		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-396-0	02	1	0211-			●	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-94193-950-0	02	1	0211-0501	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-1	02	1	0211-0501		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-488-0	02	1	0211-			●	●	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10 TAKADA	8-94193-951-0	02	1	0211-0501	●
8	17.447 NUT; STOPPER BOLT RR BODY NON FLAT BED(RS5) TAKADA	8-94197-155-0	02	1	0211-0501		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10	8-97590-493-0	02	1	0211-			●	●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-0	04	1	0211-0501	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-0	05	1	0211-0501			●	●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-2	04	1	0502-			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10X22	8-97233-077-0	08	1	0211-0501	●		●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10X22	8-97233-077-0	08	1	0502-1401			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1402-			●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22	8-97233-077-0	04	1	0211-0501		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10 FLANGE	8-97065-439-0	08	1	0211-0501	●		●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10 FLANGE	8-97065-439-0	08	1	0502-1401			●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	08	1	1402-			●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	0211-0501		●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) (A)	8-94194-628-0	02	1	0211-0501	●		●	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) (B)	8-97591-974-0	01	1	0502-0801			●	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) (B) TAKADA	8-97593-683-0	02	1	0802-			●	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) (B)	8-97591-975-0	01	1	0502-0801			●	●	●
18	17.455 SCREW; HOOK TO GUARD FRAME RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-1	02	1	0211-0501	●		●	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) M8X20	8-94193-942-0	04	1	0211-0501	●		●	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	0502-			●	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) 17.490	8-94193-936-0	02	1	0211-0501	●		●	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) 17.490	8-94193-936-0	02	1	0502-0801			●	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) TAKADA	8-97593-639-1	02	1	0802-			●	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-94194-455-0	01	1	0211-0211	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-97591-874-0	01	1	0212-0501	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97591-875-0	01	1	0212-0501			●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-97591-875-0	01	1	0212-0501				●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97592-247-0	01	1	0502-0801			●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-97592-247-0	01	1	0502-0801				●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH>	8-97594-709-0	01	1	0802-			●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-97594-709-0	01	1	0802-				●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6)	8-94194-459-0	01	1	0211-0211			●	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97591-877-0	01	1	0212-0501			●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97592-249-0	01	1	0502-0801			●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH>	8-97594-712-0	01	1	0802-			●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-97590-017-0	02	1	0211-0501	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-97590-019-0	02	1	0211-			●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6)	8-97590-024-0	01	1	0211-0501	●		●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6)	8-97590-024-0	01	1	0502-0801			●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	0802-			●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6)	8-97590-023-0	01	1	0211-0501	●		●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6)	8-97590-023-0	01	1	0502-0801			●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	0802-			●	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-1	04	1	0211-0501	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-1	05	1	0211-0501			●	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X35	8-94193-941-1	04	1	0502-0801			●	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-3	04	1	0802-			●	●	●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97591-976-0	02	1	0502-			●	●	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-97592-598-0	02	1	0802-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
