9-01 — TOOLS (#51160) — 68 parça

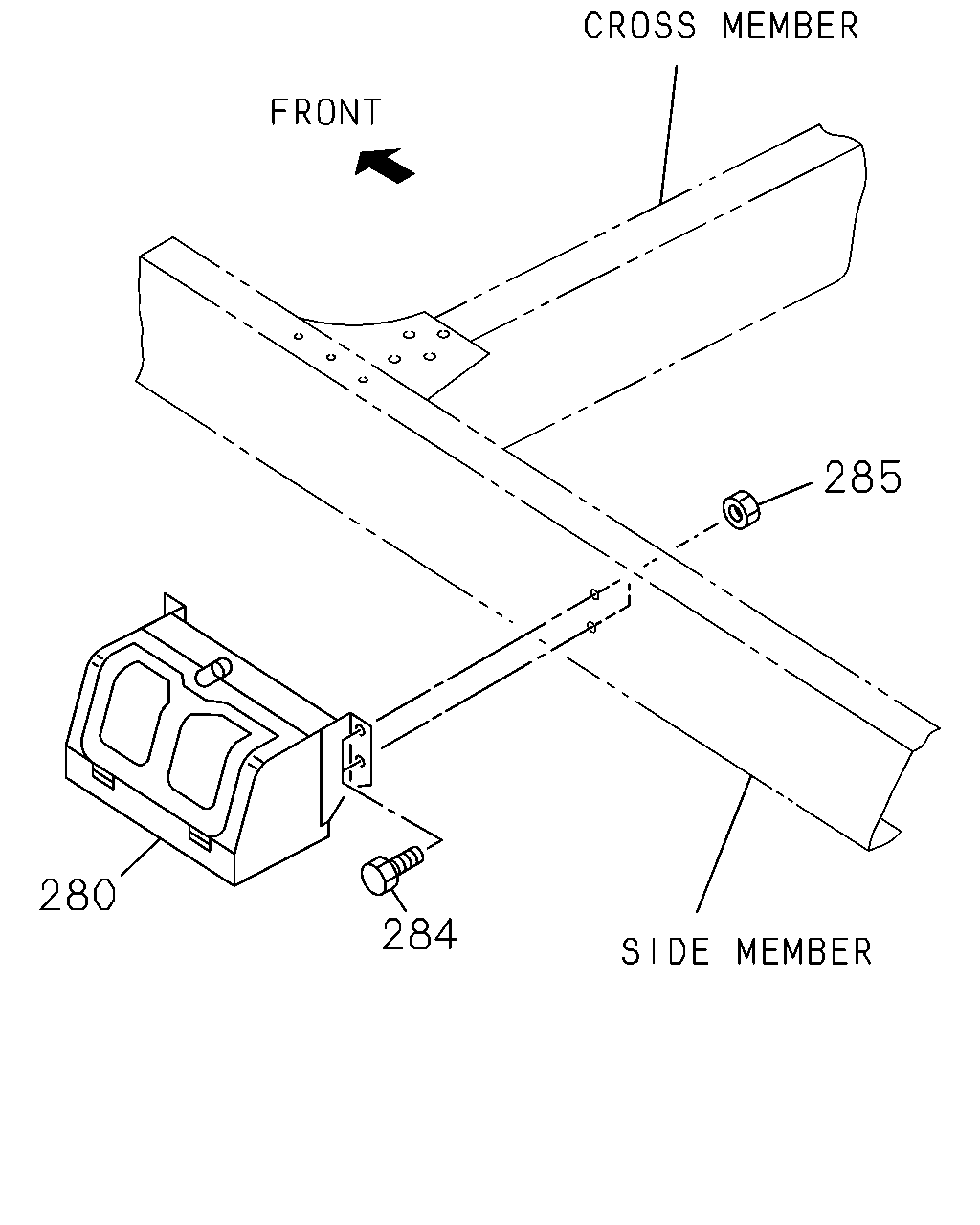

çizim 46287
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0211- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ●

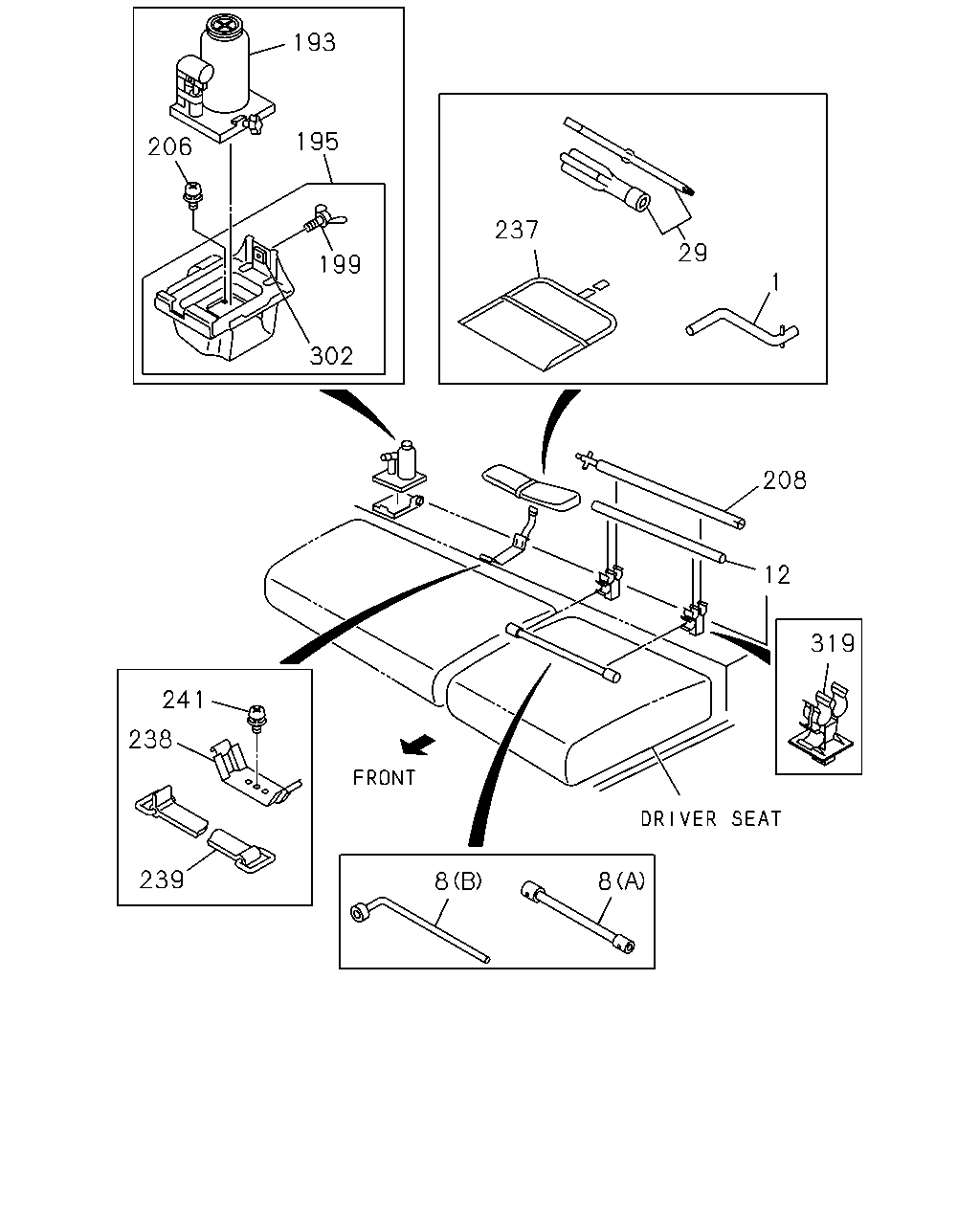

çizim 46736
193 195 206 237 29 199 1 302 208 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0211-0501 ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4HF1-S ENG(RLS) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 		8-97218-985-0 01 1 0211-0501 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 		8-97218-985-0 01 1 0211-0501 ●
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0502- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 		8-97218-985-0 01 1 0502- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 		8-97218-985-0 01 1 0502- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0211-0501 ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0502- ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 0211-1104 ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1105- ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 0211- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0211-1001 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0211-0501 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0502-1104 ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1105- ● ● ● ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-074-3 01 1 0211-0709 ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-98090-823-0 01 1 0710-1311 ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-98239-828-0 01 1 1312-1506 ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) EXC. VIN MODEL YEAR 2015(VZF) 4TON 		8-98239-828-0 01 1 1507- ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 5TON 		8-97131-076-2 01 1 0211-0305 ●
193 08.820 JACK ASM
5TON 		8-97131-076-2 01 1 0211-0305 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 5TON 		8-97371-124-0 01 1 0306-0501 ●
193 08.820 JACK ASM
5TON 		8-97371-124-0 01 1 0306-0501 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 5TON 		8-97371-124-0 01 1 0502-0805 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 5TON 		8-98114-047-0 01 1 0806-1506 ●
193 08.820 JACK ASM
EXC. VIN MODEL YEAR 2015(VZF),FRT INDEPENDENT SUSPENSION(6PP) 5TON 		8-98114-047-0 01 1 1507- ●
193 08.820 JACK ASM
4TON 		8-97131-075-2 01 1 0211-0305 ● ● ● ●
193 08.820 JACK ASM
4TON 		8-97371-123-0 01 1 0306-0504 ● ● ● ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0505- ● ● ● ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-994-3 01 1 0211-0805 ●
195 08.820 BRACKET; JACK 8-97856-994-3 01 1 0806- ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-997-4 01 1 0211-0805 ●
195 08.820 BRACKET; JACK 8-97856-997-4 01 1 0211-0805 ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-4 01 1 0806- ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0211-0501 ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0502- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 0211-0805 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 0211-0501 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0211-0501 ● ● ● ● ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 0502-0805 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0502-0805 ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0806- ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0501 ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0502-0612 ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0211-0501 ● ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0502-1108 ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0211-0501 ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0502-1104 ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1105- ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0211- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0211-0501 ● ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0502- ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0211-0501 ● ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0502- ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0211-0501 ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0502- ● ● ● ● ●
