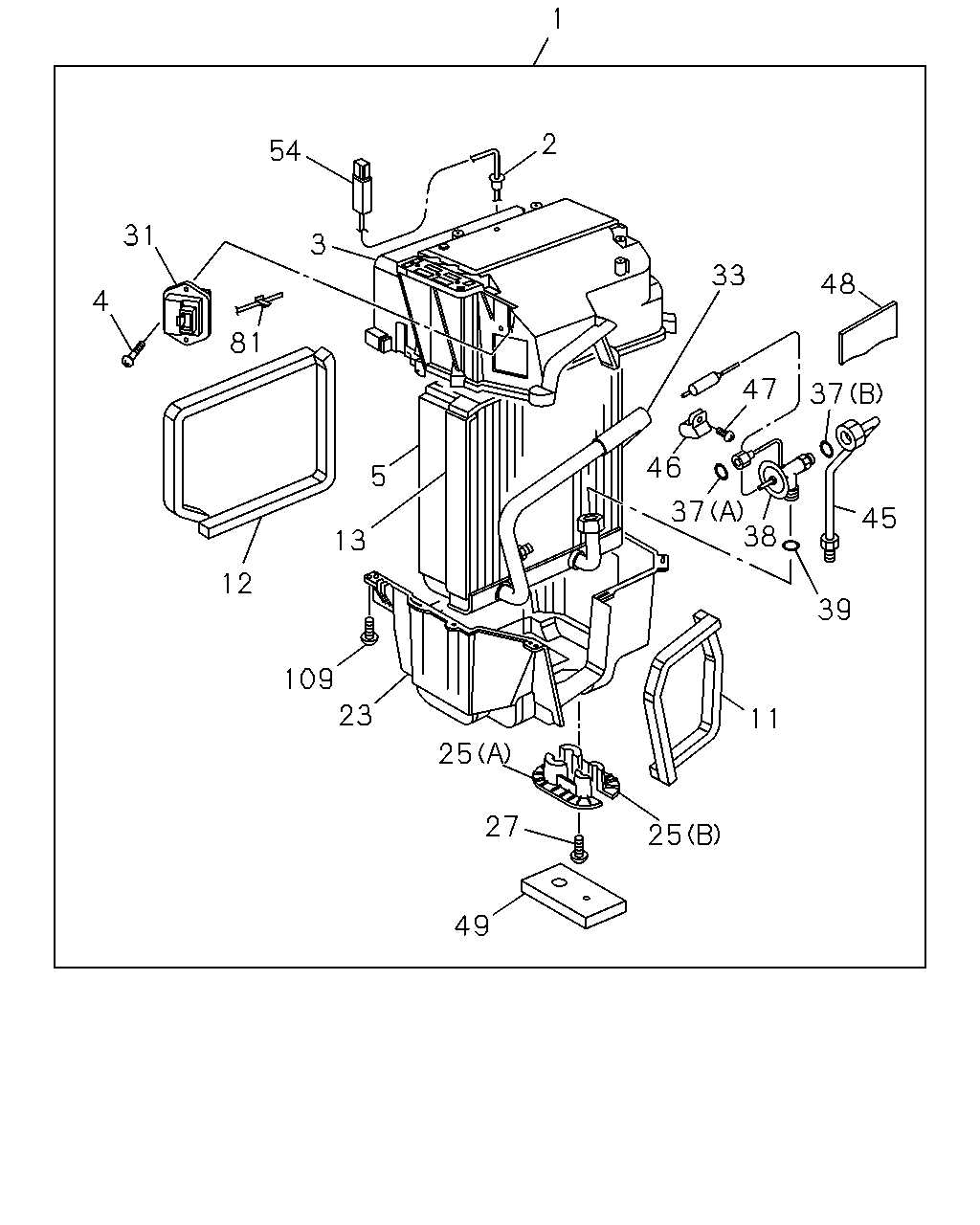

8-74 — EVAPORATOR (#51156) — 128 parça

44 48 33 47 37 46 13 37 38 45 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.210 EVAPORATOR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0502-	●	●	●
5	09.210 EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0502-				●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0211-0501	●	●	●	●	●	●
5	09.210 EVAPORATOR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97205-564-0	01	1	0502-		●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0211-0501	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0211-0501				●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0211-0501	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0211-0501						●
33	09.211 LINING; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0502-	●	●	●	●
33	09.211 LINING; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97085-278-2	01	1	0502-		●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0211-0501	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0502-	●	●	●	●
37	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (A) ID=4.5	8-94248-212-0	01	1	0502-		●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 (B) ID=6.07	8-94461-902-0	01	1	0211-0501	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 (B) ID=6.07	8-94461-902-0	01	1	0502-	●	●	●	●
37	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.195 (B) ID=6.07	8-94461-902-0	01	1	0502-		●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0211-0501	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0502-	●	●	●	●
38	09.213 VALVE; EXPANSION 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> "R-134A"	8-97112-753-0	01	1	0502-		●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0211-0501	●	●	●	●	●	●
39	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0502-	●	●	●	●
39	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-94481-717-0	01	1	0502-		●	●
44	09.210 EVAPORATOR ASM; A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0502-	●	●	●
44	09.210 EVAPORATOR ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0502-				●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0211-0501	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97191-213-0	01	1	0502-		●	●
45	09.220 PIPE; EXPANSION VLV 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0502-	●	●	●
45	09.220 PIPE; EXPANSION VLV HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0502-				●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0211-0501	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97205-565-0	01	1	0502-		●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0211-0501	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0502-	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	1-83574-214-0	01	1	0502-		●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0211-0501	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0502-	●	●	●	●
47	09.214 SCREW; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97130-601-0	01	1	0502-		●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0211-0501	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0502-	●	●	●	●
48	09.214 INSULATOR; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	1-83579-784-0	01	1	0502-		●	●

1 2 54 31 3 33 48 4 81 47 37 46 5 37 38 45 13 12 39 109 23 11 25 27 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.210 EVAPORATOR ASM 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-728-1	01	1	0502-	●	●	●
1	09.210 EVAPORATOR ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-728-1	01	1	0502-				●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97073-611-1	01	1	0211-0501	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97073-611-1	01	1	0211-0501						●
1	09.210 EVAPORATOR ASM 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97374-883-0	01	1	0502-		●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE>	8-97071-220-1	01	1	0211-0501	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97071-220-1	01	1	0211-0501				●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	0211-0501	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	0502-	●	●	●	●
2	09.211 GROMMET; CASE,EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-94380-565-0	01	1	0502-		●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	0211-0501	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	0502-	●	●	●	●
3	09.211 CASE; EVAP,UPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97102-597-0	01	1	0502-		●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	0211-0501	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 08.852 M4X16	8-94324-850-0	02	1	0502-		●	●
5	09.210 EVAPORATOR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0502-	●	●	●
5	09.210 EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0502-				●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0211-0501	●	●	●	●	●	●
5	09.210 EVAPORATOR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97205-564-0	01	1	0502-		●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0211-0501	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0502-	●	●	●	●
11	09.211 LINING; EVAP A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97114-549-0	01	1	0502-		●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97188-565-0	01	1	0211-0501	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97188-565-0	01	1	0502-	●	●	●	●
12	09.211 LINING; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97188-565-0	01	1	0502-		●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0211-0501	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0211-0501				●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	0211-0501	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	0502-	●	●	●	●
23	09.211 CASE; EVAP,LWR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97102-598-1	01	1	0502-		●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	0211-0501	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	0502-	●	●	●	●
25	09.211 COVER; EVAP PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (A)	8-97085-281-0	01	1	0502-		●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	0211-0501	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	0502-	●	●	●	●
25	09.211 COVER; EVAP PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (B)	8-97085-282-0	01	1	0502-		●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	0211-0501	●	●	●	●	●	●
27	09.211 SCREW; COVER 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	0502-	●	●	●	●
27	09.211 SCREW; COVER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 08.852 M4X16	8-94324-850-0	01	1	0502-		●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97234-546-0	01	1	0211-0501	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97234-546-0	01	1	0211-0501						●
31	09.277 RESISTOR; POWER EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 08.855	8-97358-389-0	01	1	0502-		●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE>	8-97234-545-0	01	1	0211-0501	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97234-545-0	01	1	0211-0501				●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0211-0501	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0211-0501						●
33	09.211 LINING; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0502-	●	●	●	●
33	09.211 LINING; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97085-278-2	01	1	0502-		●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0211-0501	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0502-	●	●	●	●
37	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (A) ID=4.5	8-94248-212-0	01	1	0502-		●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 (B) ID=6.07	8-94461-902-0	01	1	0211-0501	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 (B) ID=6.07	8-94461-902-0	01	1	0502-	●	●	●	●
37	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.195 (B) ID=6.07	8-94461-902-0	01	1	0502-		●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0211-0501	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0502-	●	●	●	●
38	09.213 VALVE; EXPANSION 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> "R-134A"	8-97112-753-0	01	1	0502-		●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0211-0501	●	●	●	●	●	●
39	09.214 GASKET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0502-	●	●	●	●
39	09.214 GASKET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-94481-717-0	01	1	0502-		●	●
45	09.220 PIPE; EXPANSION VLV 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0502-	●	●	●
45	09.220 PIPE; EXPANSION VLV HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0502-				●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0211-0501	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97205-565-0	01	1	0502-		●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0211-0501	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0502-	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	1-83574-214-0	01	1	0502-		●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0211-0501	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0502-	●	●	●	●
47	09.214 SCREW; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97130-601-0	01	1	0502-		●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0211-0501	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0502-	●	●	●	●
48	09.214 INSULATOR; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	1-83579-784-0	01	1	0502-		●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0211-0501	●	●	●	●	●	●
49	09.211 GROMMET; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0502-	●	●	●	●
49	09.211 GROMMET; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97069-404-1	01	1	0502-		●	●
54	09.172 THERMOSTAT; A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-0	01	1	0502-	●	●	●
54	09.172 THERMOSTAT; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-0	01	1	0502-				●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97302-052-0	01	1	0211-0501	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97302-052-0	01	1	0211-0501						●
54	09.172 THERMOSTAT; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97302-052-0	01	1	0502-		●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 09.275 "R-134A"	8-97087-577-1	01	1	0211-0501	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-1	01	1	0211-0501				●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	0211-0501	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	0502-	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-94481-724-0	01	1	0502-		●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	0211-0501	●	●	●	●	●	●
109	09.211 BOLT; EVAP 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	0502-	●	●	●	●
109	09.211 BOLT; EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 08.852 M4X16	8-94324-850-0	05	1	0502-		●	●
