8-65 — CONTROL LEVER; HEATER AND AIR CON (#51153) — 55 parça

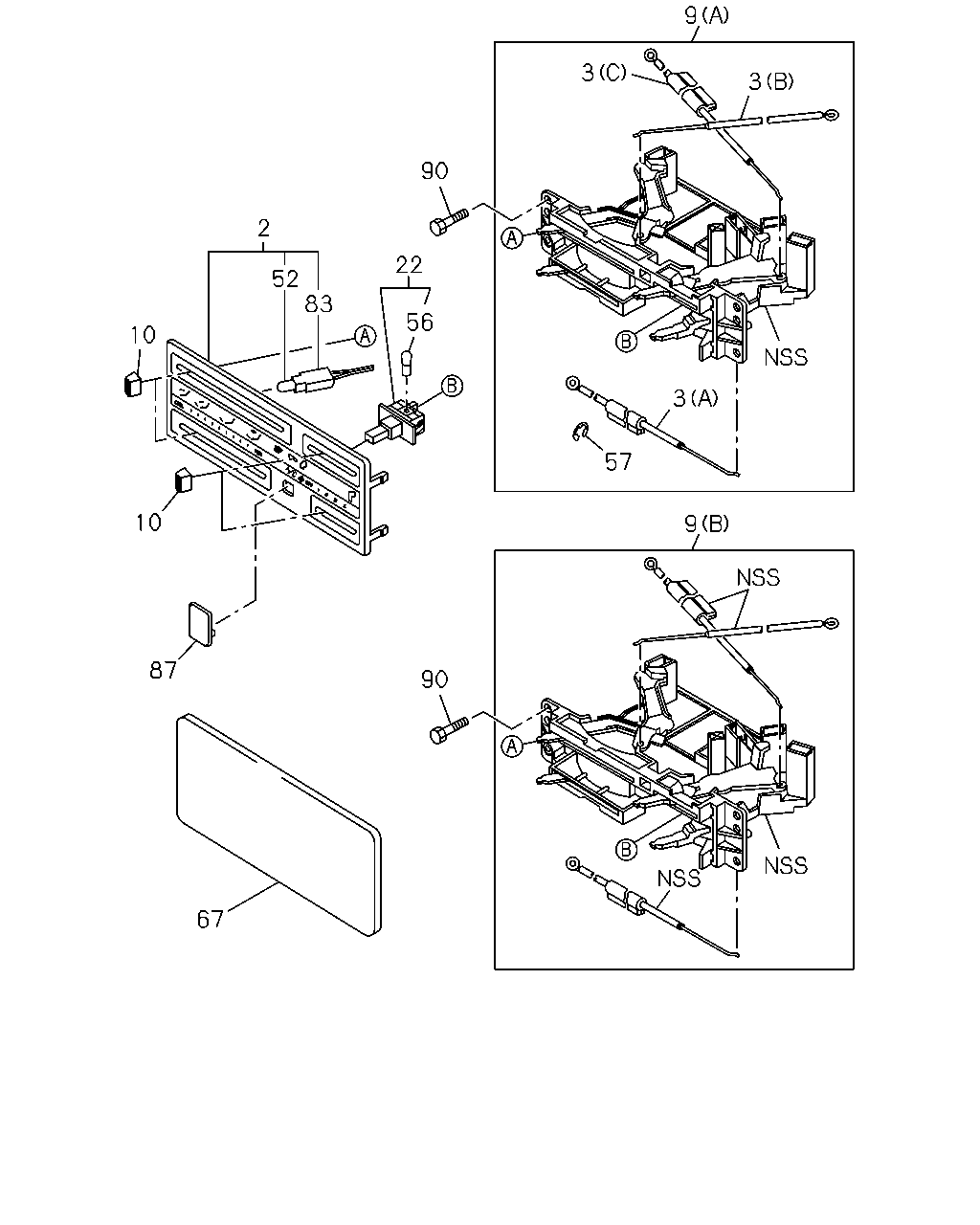

çizim 46739
9 3 3 90 2 22 52 83 56 10 3 57 10 9 87 90 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-2 01 1 0211- ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0211- ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 0211-0501 ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0211-0501 ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 0502- ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0502- ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0211-0501 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (B) MODE 		8-97101-674-0 01 1 0502- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 0502- ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97101-675-3 01 1 0211-0501 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (C) FRESH 		8-97101-675-0 01 1 0502- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97101-675-0 01 1 0502- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-2 01 1 0211-0501 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-2 01 1 0502- ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-831-1 01 1 0211-0501 ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-831-1 01 1 0502- ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97071-219-0 01 1 0211-0501 ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97071-219-0 01 1 0502- ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97071-219-0 01 1 0502- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-198-0 01 1 0502- ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0211-0501 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0502- ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0211-0501 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0502- ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0502- ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 0502- ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0502- ● ● ●
22 08.852 SWITCH; A/C,MAIN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0502- ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-1 01 1 0211-0501 ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 0211-0501 ●
22 08.852 SWITCH; A/C,MAIN
4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 		8-97048-329-1 01 1 0502- ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-97117-963-0 01 1 0211-0501 ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0211-0501 ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97182-225-0 01 1 0211- ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0211- ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 0211-0501 ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0211-0501 ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 0502- ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0502- ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97182-224-0 01 1 0211-0501 ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 28V 33MA 		8-97182-224-0 01 1 0211-0501 ●
56 08.991 BULB; SWITCH,A/C
4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 28V 33MA 		8-97182-224-0 01 1 0502- ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 0211-0501 ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA 		8-94337-134-0 01 1 0211-0501 ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97311-509-0 01 1 0211-0501 ● ● ● ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97311-509-0 01 1 0502- ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0502- ● ● ● ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0211-0501 ● ● ● ● ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0502- ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0211-0501 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0502- ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0211-0501 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0502-1210 ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ● ● ● ●
