Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#51150) — 276 parça

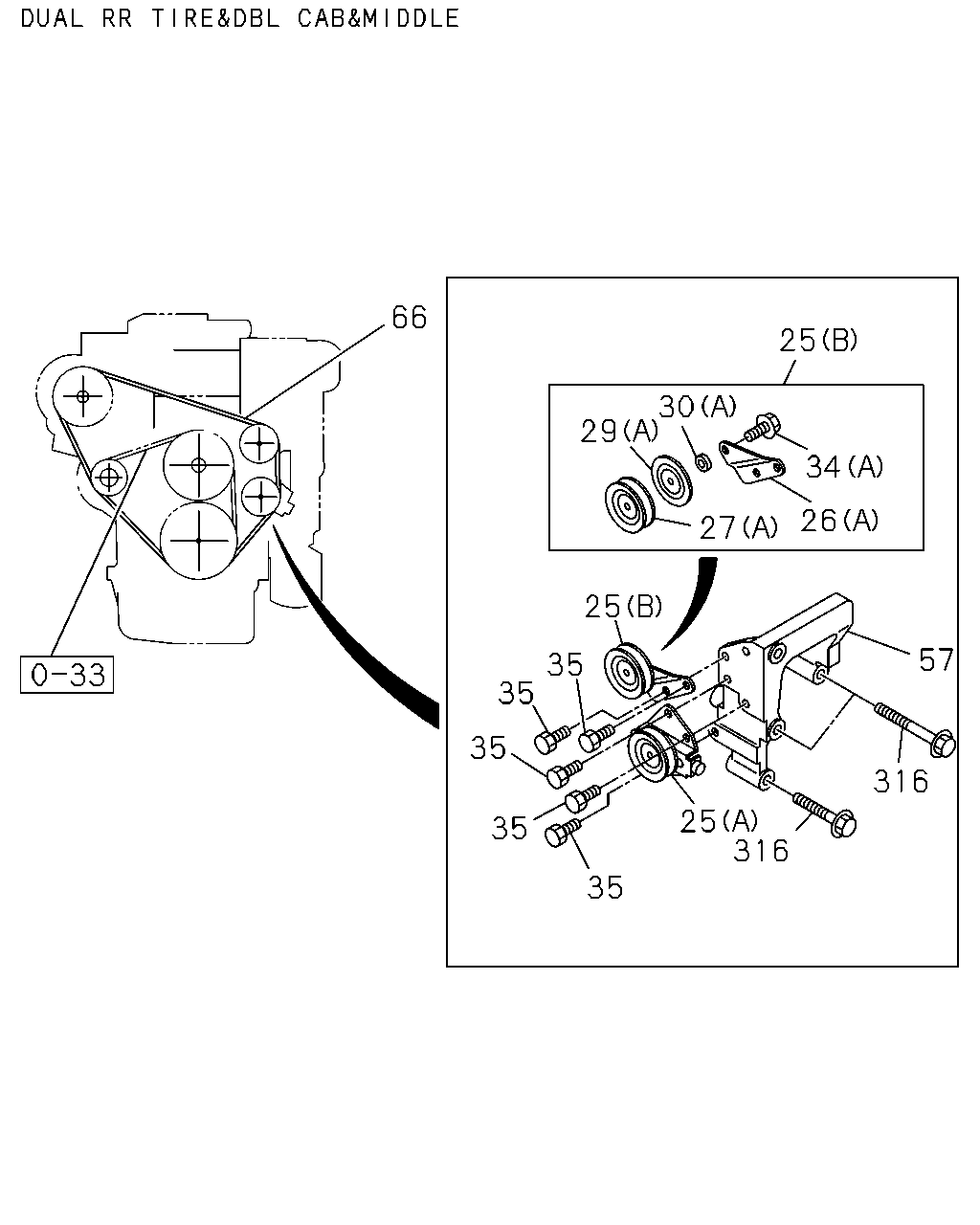

66 25 316 25 316 25 26 30 27 34 29 31 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0211-0501	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0502-1006	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1007-	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1007-		●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	0211-				●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	0211-				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0502-1006	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	1007-	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	1007-		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-362-0	01	1	0211-				●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0502-1006	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	1007-	●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	1007-		●	●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	9-13663-606-0	01	1	0211-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0406-0501	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0502-1006	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-		●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	0406-0501	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	0502-1006	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	1007-		●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	0211-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0502-1006	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	1007-	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	1007-		●	●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	0211-				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0406-0501	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0502-1006	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1007-	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1007-		●	●
33	09.181 NUT; IDLER PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0406-0501	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0502-1006	●	●	●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1007-	●
33	09.181 NUT; IDLER PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1007-		●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0502-1006	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	1007-	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	1007-		●	●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30	0-28121-030-0	01	1	0211-				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-				●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0211-0501	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0502-0512	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	0601-1006	●	●	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-		●	●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0211-0501	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0502-1006	●	●	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-		●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	0211-0512				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28151-000-0	01	1	0601-				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE	0-28181-060-0	02	1	0211-0512				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X60 FLANGE	0-28151-060-0	02	1	0601-				●

78 378 177 210 177 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.115 M6X20 FLANGE	0-28250-620-0	02	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.115 M6X20 FLANGE	0-28250-620-0	02	1	0601-					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28250-820-0	01	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28250-820-0	01	1	0601-					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50640-616-0	03	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50640-616-0	03	1	0601-					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	01	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	01	1	0601-					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	0502-0512	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	0502-0512					●
78	09.211 BOLT; EVAP,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50641-040-0	01	1	0601-	●	●	●
78	09.211 BOLT; EVAP,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50641-040-0	01	1	0601-					●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512		●	●
78	09.211 BOLT; EVAP,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-		●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●	●
78	09.211 BOLT; EVAP,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0211-0501	●	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97090-310-1	01	1	0502-0611		●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.242	8-98029-613-0	01	1	0612-1009		●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.242	8-98151-264-0	01	1	1010-		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	0211-0404	●	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0405-0501	●	●	●	●	●	●
177	09.242 BRACKET; PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (A)	8-97358-577-0	01	1	0502-		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97090-311-1	01	1	0211-0501	●	●	●	●	●	●
177	09.242 BRACKET; PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (B)	8-97377-782-1	01	1	0502-		●	●
177	09.242 BRACKET; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-1	01	1	0502-	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501				●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-1006	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-1006				●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-		●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0801	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-1004	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1005-1405	●		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1406-	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	0211-0501	●	●	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97096-815-0	01	1	0502-		●	●

66 25 30 29 34 26 27 25 57 35 35 35 316 25 316 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0211-0501	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0502-1006	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1007-	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1007-		●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	0211-				●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	0211-				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0502-1006	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	1007-	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	1007-		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-362-0	01	1	0211-				●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0502-1006	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	1007-	●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	1007-		●	●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	9-13663-606-0	01	1	0211-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0406-0501	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0502-1006	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-		●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	0406-0501	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	0502-1006	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-115-0	01	1	1007-		●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	0211-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0502-1006	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	1007-	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	1007-		●	●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	0211-				●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0502-1006	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	1007-	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	1007-		●	●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30	0-28121-030-0	01	1	0211-				●
35	09.181 BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	05	1	0211-0512				●
35	09.181 BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE	0-28050-816-0	05	1	0601-				●
57	09.171 BRACKET; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	0211-				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-				●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0211-0501	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0502-0512	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	0601-1006	●	●	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-		●	●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0211-0501	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0502-1006	●	●	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-		●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	0211-0512				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28151-000-0	01	1	0601-				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE	0-28181-060-0	02	1	0211-0512				●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X60 FLANGE	0-28151-060-0	02	1	0601-				●

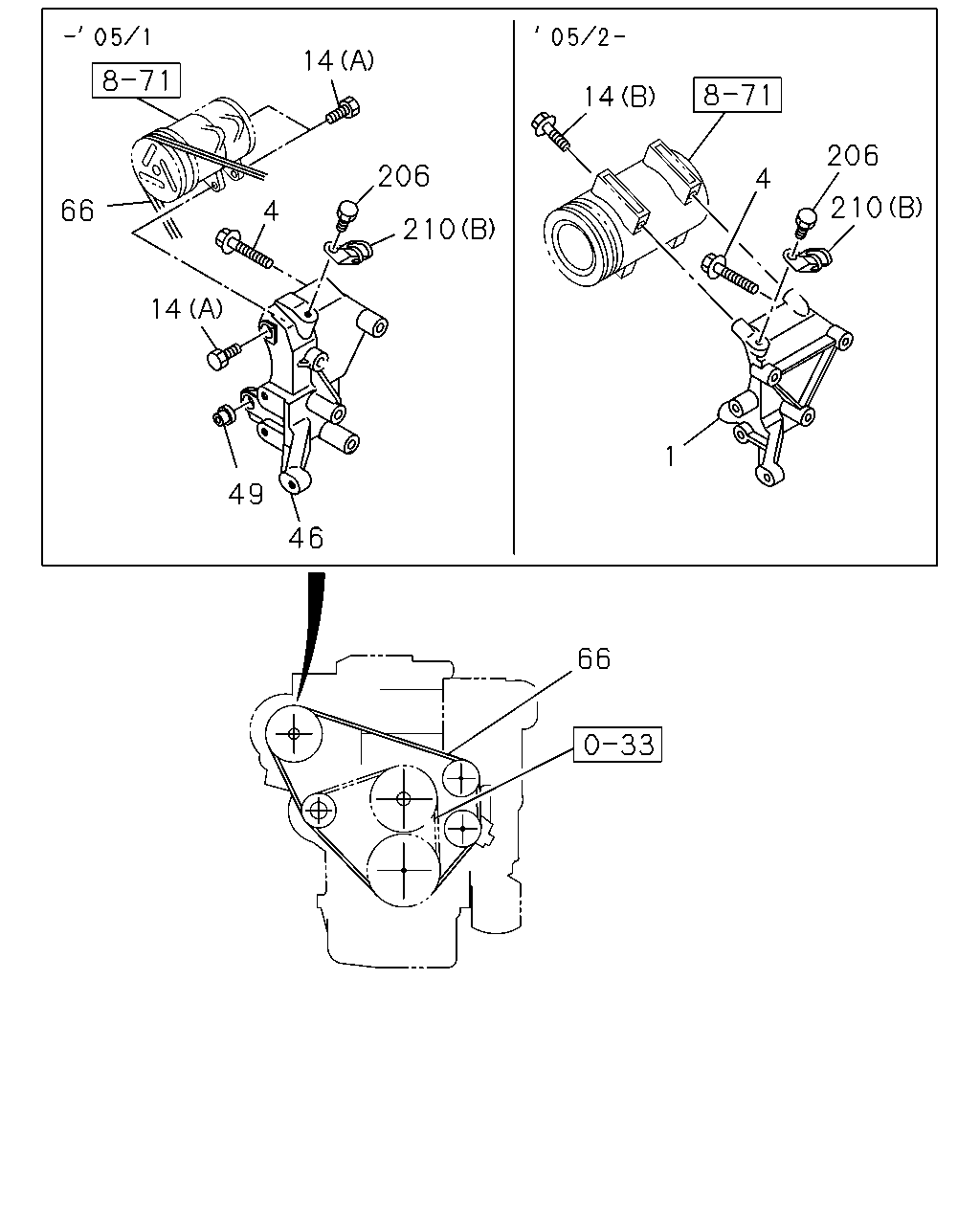

14 14 206 206 4 210 66 4 210 14 1 49 46 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.242 BRACKET; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	0502-1006	●	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	0502-1006				●
1	09.242 BRACKET; A/C 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	1007-	●
1	09.242 BRACKET; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	1007-		●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	1007-				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0501	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0501				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0502-0512	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0502-0512				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-1006	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-1006				●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	1007-	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	1007-		●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	1007-				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0502-0805	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0502-0805				●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-1006	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-1006				●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1007-	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1007-		●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1007-				●
14	09.171 BOLT; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 (A) M10X40	0-28281-040-0	04	1	0211-0501	●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 03.708 (A) M10X40	0-28281-040-0	04	1	0211-0501				●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B) M8X90 FLANGE	0-28080-890-0	04	1	0502-0512	●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) (B) M8X90 FLANGE	0-28080-890-0	04	1	0502-0512				●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) M8X90 FLANGE	0-28050-890-0	04	1	0601-1006	●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) M8X90 FLANGE	0-28050-890-0	04	1	0601-1006				●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) M8X90 FLANGE	0-28050-890-0	04	1	1007-	●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) M8X90 FLANGE	0-28050-890-0	04	1	1007-		●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) M8X90 FLANGE	0-28050-890-0	04	1	1007-				●
14	09.171 BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 03.613 (A) M10X40 FLANGE	0-28651-040-0	04	1	1005-			●
46	09.171 BRACKET; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0501	●	●	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0501				●
49	09.171 COLLAR; BRKT,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	0211-0501	●	●	●
49	09.171 COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-				●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501				●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-1006				●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-		●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-				●
206	09.242 BOLT; CLIP BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0211-0501	●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0211-0501				●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0502-0512	●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0502-0512				●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0601-1006	●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0601-1006				●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1007-	●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1007-		●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1007-				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501				●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-1006	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-1006				●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-		●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0801	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-1004	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1005-1405	●		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1406-	●	●	●	●

177 177 166 8 225 410 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0502-0512		●	●
8	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0211-0501	●	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97090-310-1	01	1	0502-0611		●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.242	8-98029-613-0	01	1	0612-1009		●	●
166	09.226 BRACKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.242	8-98151-264-0	01	1	1010-		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	0211-0404	●	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0405-0501	●	●	●	●	●	●
177	09.242 BRACKET; PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (A)	8-97358-577-0	01	1	0502-		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97090-311-1	01	1	0211-0501	●	●	●	●	●	●
177	09.242 BRACKET; PIPE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> (B)	8-97377-782-1	01	1	0502-		●	●
177	09.242 BRACKET; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-1	01	1	0502-	●	●	●	●	●	●
224	09.195 TANK ASM; RECEIVER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97367-088-0	01	1	0502-		●	●
225	09.172 SWITCH; RECEIVER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW>	8-97366-963-0	01	1	0502-		●	●
410	09.172 GASKET; PRESSURE SWITCH 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. FRAME-KICK UP<7EW> 09.190	8-94154-048-0	01	1	0502-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
