◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#5115) — 87 parça

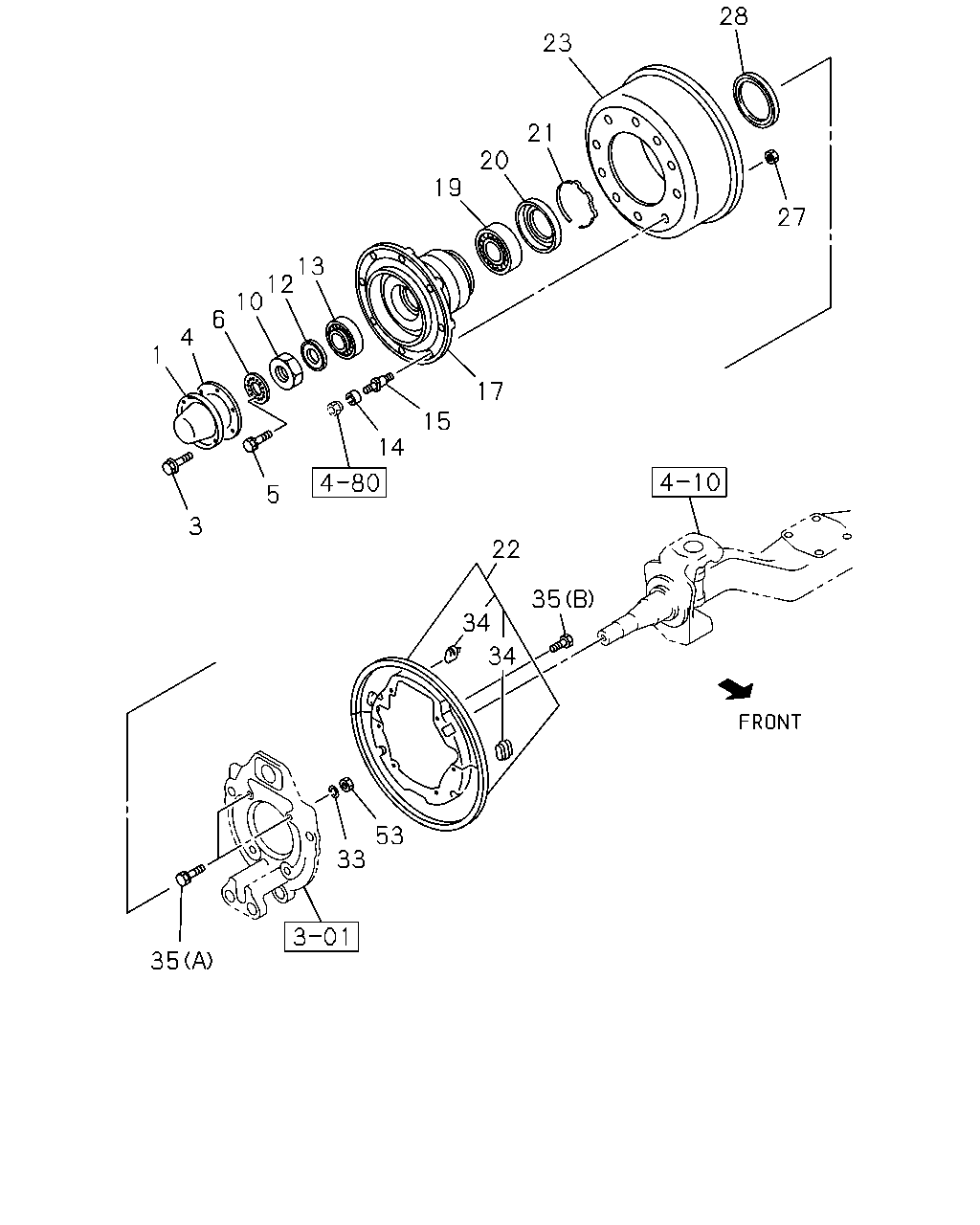

çizim 39303
28 23 21 20 19 27 13 12 10 6 4 1 17 15 14 5 3 22 35 34 34 53 33 35
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 04 1 9606-9701
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9702-
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9702-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 24 1 9606-9701
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9702-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9702-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 04 1 9606-9701
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9702-9906
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9702-9906
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 9907-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 9907-
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 08 1 9606-9701
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9702-9702
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9702-9702
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702-
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702-
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 04 1 9606-9701
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9702-
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9702-
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 04 1 9606-9701
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 9702-
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 9702-
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 04 1 9606-9701
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9702-
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9702-
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 04 1 9606-9701
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9702-9809
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9702-9809
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 9810-
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 9810-
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-085-0 04 1 9606-9701
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-085-0 02 1 9702-9809
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-085-0 02 1 9702-9809
14 RING; SPR,FRT WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42339-025-1 80 1 9606-9704
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 40 1 9606-9701
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9702-9905
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9702-9905
15 PIN; WHEEL,FRT AXLE
EXC. DISC WHEEL AL<SDM> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9906-
15 PIN; WHEEL,FRT AXLE
EXC. DISC WHEEL AL<SDM> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9906-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9906-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9906-
17 HUB; FRT AXLE 1-42312-100-0 04 1 9606-9701
17 HUB; FRT AXLE 1-42312-100-1 02 1 9702-
17 HUB; FRT AXLE 1-42312-100-1 02 1 9702-
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 04 1 9606-9701
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9702-9809
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9702-9809
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 9810-
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 9810-
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-143-0 04 1 9606-9701
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-143-0 02 1 9702-9809
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-143-0 02 1 9702-9809
20 COVER; HUB BRG INNER 1-42319-039-0 04 1 9606-9701
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9702-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9702-
21 RING; SNAP,HUB 1-09587-017-0 04 1 9606-9701
21 RING; SNAP,HUB 1-09587-017-0 02 1 9702-
21 RING; SNAP,HUB 1-09587-017-0 02 1 9702-
22 COVER SET; FRT BRK DRUM 1-47151-459-1 04 1 9606-9701
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 9702-
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 9702-
23 DRUM; BRK,FRT 1-42315-337-0 04 1 9606-9701
23 DRUM; BRK,FRT 1-42315-337-0 02 1 9702-
23 DRUM; BRK,FRT 1-42315-337-0 02 1 9702-
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 40 1 9606-9701
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 9702-
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 9702-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 04 1 9606-9701
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9702-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9702-
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 08 1 9606-9701
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9702-
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9702-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 08 1 9606-9701
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9702-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9702-
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 24 1 9606-9701
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9702-
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9702-
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-1 08 1 9606-9701
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 9702-
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 9702-
53 NUT; DRUM COVER
M16 		9-99110-416-0 08 1 9606-9701
53 NUT; DRUM COVER
M16 		9-99110-416-0 04 1 9702-9902
53 NUT; DRUM COVER
M16 		9-99110-416-0 04 1 9702-9902
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9903-
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9903-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
