Sayfa 8-45 - Isuzu EPC

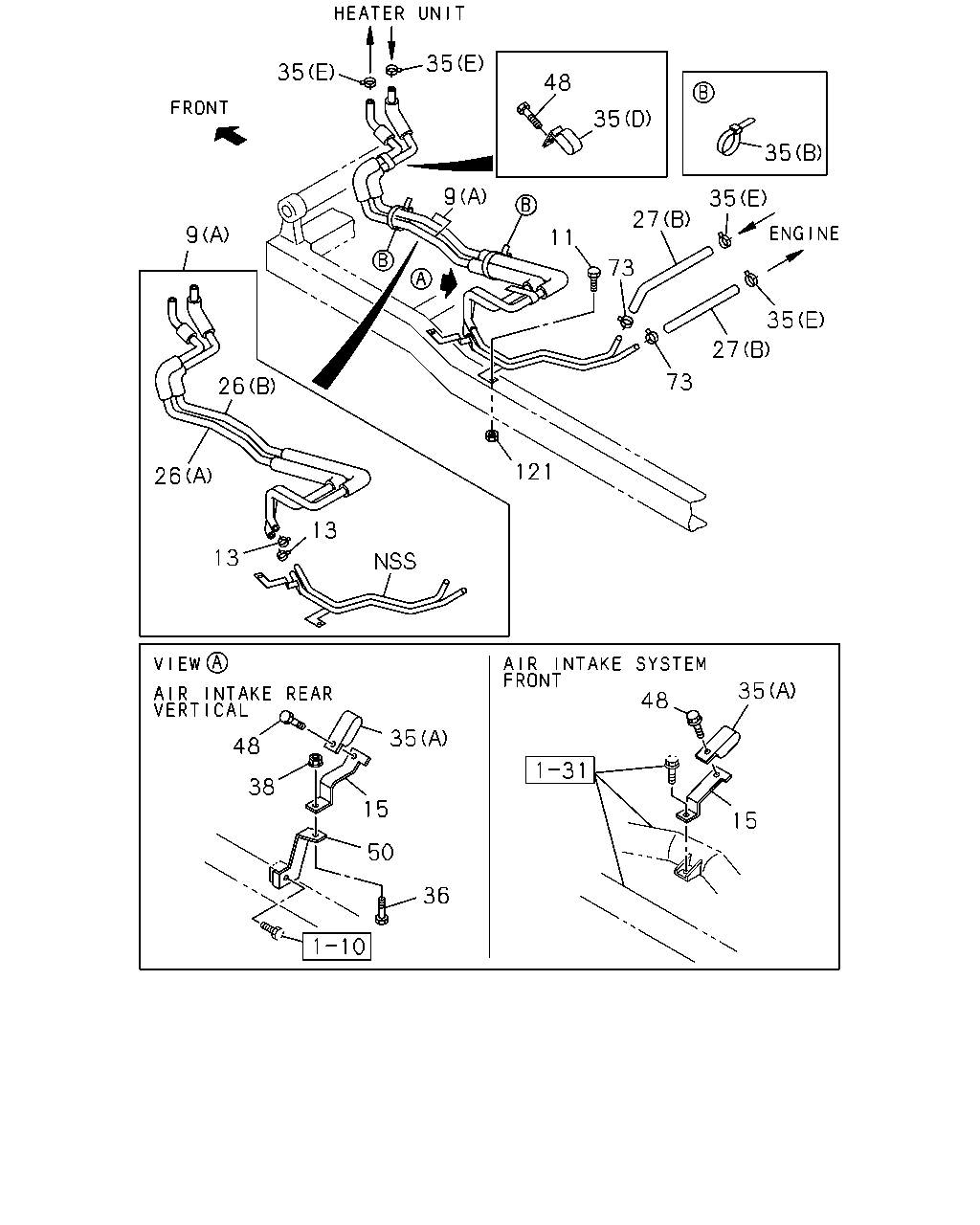

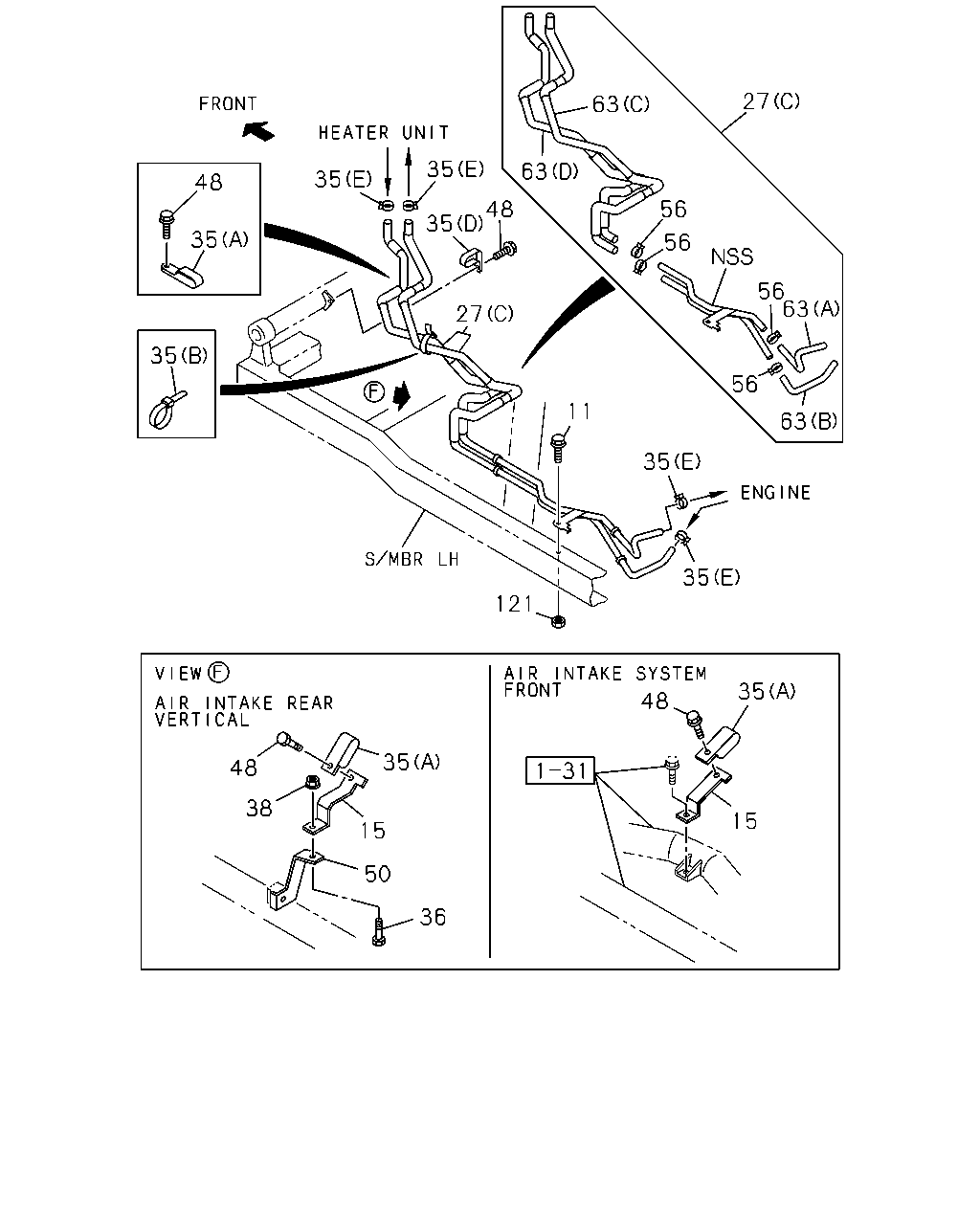

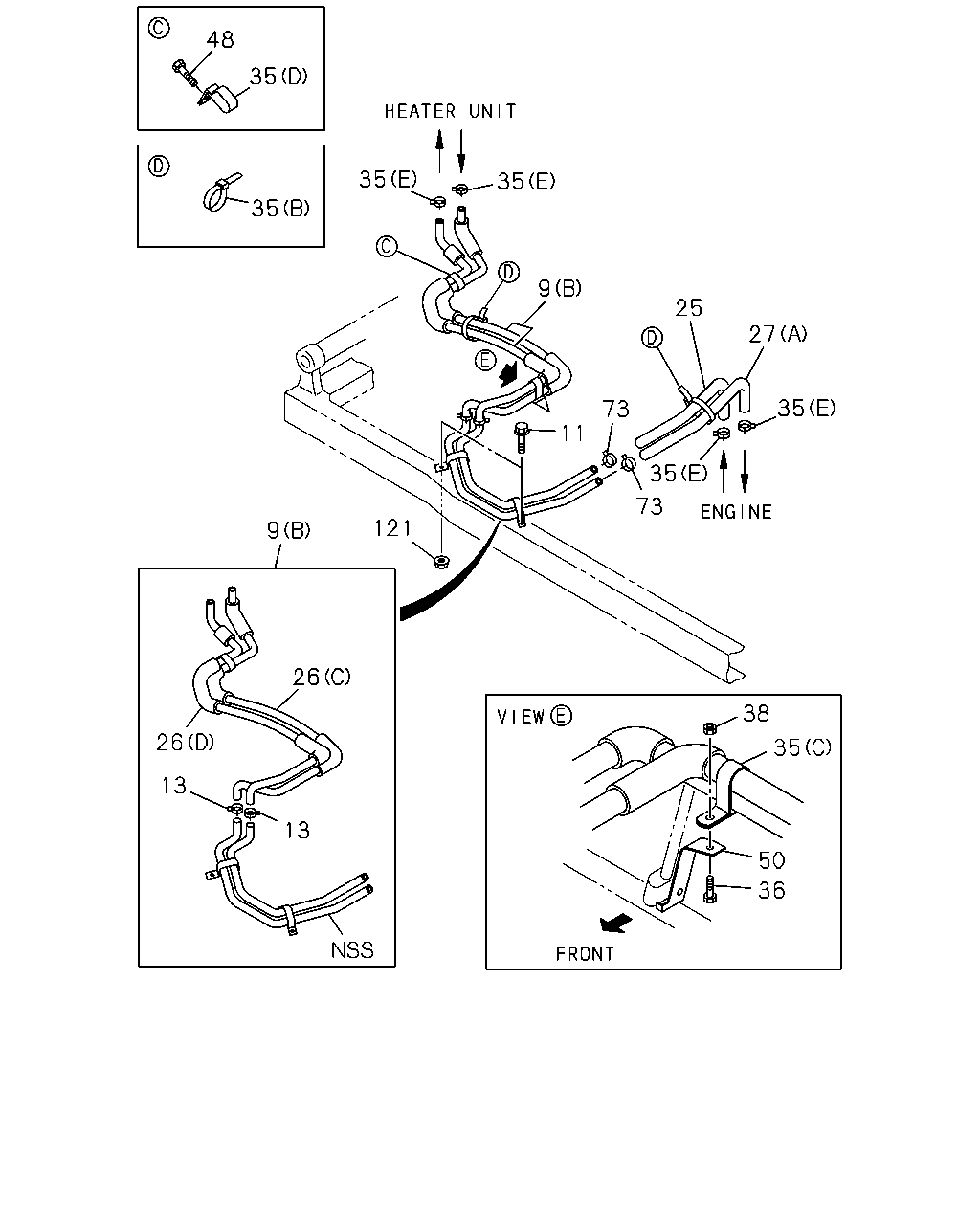

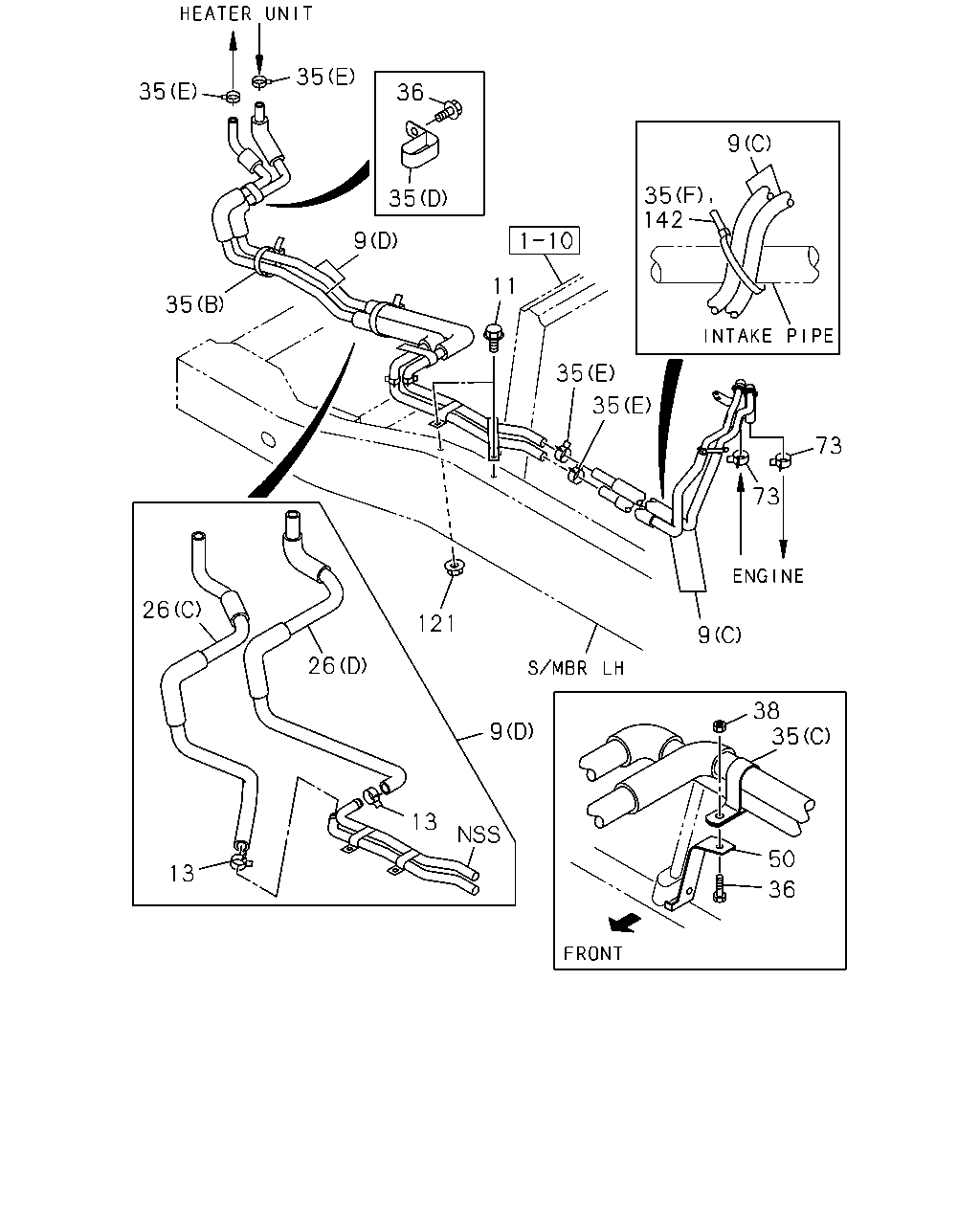

8-45 — HEATER PIPING (#51149) — 655 parça

48 35 35 35 35 9 25 27 35 73 11 35 73 121 9 26 38 26 35 13 13 50 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-185-0	01	1	0211-0501	●	●	●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504	●		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504					●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0505-	●		●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97231-907-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0502-0910			●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0911-	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (C)	8-97261-456-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) (C)	8-97261-456-3	01	1	0502-				●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97260-268-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97260-268-4	01	1	0502-				●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0504	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●	●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004						●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504			●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0505-0910	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0910			●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL>	8-97204-606-1	01	1	0211-0501			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74)	8-97204-606-1	01	1	0502-0604			●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-				●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0211-0501			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0502-1004			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	1005-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0211-0501						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0502-1004						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	1005-						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0211-0501	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0211-0501	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-0504	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0508-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A)	8-97204-607-1	01	1	0211-0501			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97204-607-1	01	1	0502-0604			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97205-283-0	02	1	0605-0910			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> (A)	8-97205-283-0	02	1	0911-0911			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-283-0	02	1	0911-	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98032-129-0	01	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (E) ID=22	8-97359-141-0	04	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0505-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	1005-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●		●	●		●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-				●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501			●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0505-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	0611-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	1005-1205	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-98166-023-0	01	1	1206-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0211-0501				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0502-0504	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0505-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (F) L=450	1-09707-142-1	01	1	0502-				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (F) L=350	8-94152-256-1	01	1	0502-				●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304			●	●
36	08.846 BOLT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501			●	●		●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●					●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●					●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-			●	●		●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0307				●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0308-0501				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304			●	●
38	08.846 NUT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501			●	●		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●					●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●					●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401			●	●		●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-			●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0211-0303			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.417	8-97072-530-0	01	1	0304-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0304-				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRAME-KICK UP<7EW>	8-97230-028-0	01	1	0304-			●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507	●		●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507				●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0508-0610	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310				●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0504	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0505-0602	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●		●	●	●

27 63 35 63 35 48 48 35 56 35 56 56 63 27 35 56 11 63 35 35 121 35 48 35 48 38 15 15 50 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0504	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●	●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004						●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●		●	●		●
15	08.846 BRACKET; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	0211-0501	●
15	08.846 BRACKET; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	0211-0501			●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	0502-1004	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	0502-1004			●	●
15	08.846 BRACKET; WATER HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	1005-	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	1005-			●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	0211-0501	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0502-0504	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	0502-0504	●					●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0505-1004	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	0505-1004	●					●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	1005-	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	1005-	●					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0211-0501			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0502-1004			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	1005-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0211-0501						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0502-1004						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	1005-						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0211-0501	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0211-0501	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-0504	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0508-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A)	8-97204-607-1	01	1	0211-0501			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97204-607-1	01	1	0502-0604			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97205-283-0	02	1	0605-0910			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> (A)	8-97205-283-0	02	1	0911-0911			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-283-0	02	1	0911-	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98032-129-0	01	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (E) ID=22	8-97359-141-0	04	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0505-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	1005-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●		●	●		●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-				●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501			●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0505-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	0611-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	1005-1205	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-98166-023-0	01	1	1206-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0211-0501				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0502-0504	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0505-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (F) L=450	1-09707-142-1	01	1	0502-				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (F) L=350	8-94152-256-1	01	1	0502-				●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304			●	●
36	08.846 BOLT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501			●	●		●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●					●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●					●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-			●	●		●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0307				●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0308-0501				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304			●	●
38	08.846 NUT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501			●	●		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●					●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●					●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401			●	●		●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-			●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0211-0303			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.417	8-97072-530-0	01	1	0304-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0304-				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRAME-KICK UP<7EW>	8-97230-028-0	01	1	0304-			●
56	08.846 CLAMP; HTR HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0211-0501	●		●	●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0211-0501						●
56	08.846 CLAMP; HTR HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0502-1004	●		●	●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0502-1004						●
56	08.846 CLAMP; HTR HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1005-	●
56	08.846 CLAMP; HTR HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1005-			●	●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1005-						●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97107-611-0	01	1	0211-0501	●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97107-611-0	01	1	0211-0501			●	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97107-611-0	01	1	0502-1004	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97107-611-0	01	1	0502-1004			●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97107-611-0	01	1	1005-	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97107-611-0	01	1	1005-			●	●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97107-612-0	01	1	0211-0501	●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97107-612-0	01	1	0211-0501			●	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97107-612-0	01	1	0502-1004	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97107-612-0	01	1	0502-1004			●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97107-612-0	01	1	1005-	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97107-612-0	01	1	1005-			●	●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97239-090-0	01	1	0211-0501	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97239-090-0	01	1	0211-0501						●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97239-090-0	01	1	0502-1004	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97239-090-0	01	1	0502-1004						●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97239-090-0	01	1	1005-	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97239-090-0	01	1	1005-						●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97239-091-0	01	1	0211-0501	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97239-091-0	01	1	0211-0501						●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97239-091-0	01	1	0502-1004	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97239-091-0	01	1	0502-1004						●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (D)	8-97239-091-0	01	1	1005-	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97239-091-0	01	1	1005-						●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	0211-0501	●		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	0211-0501						●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	0502-1004	●		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	0502-1004						●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	1005-	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	1005-			●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	1005-						●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	0211-0501	●		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	0211-0501						●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	0502-1004	●		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	0502-1004						●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	1005-	●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	1005-			●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	1005-						●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0504	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0505-0602	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●		●	●	●

35 35 48 35 35 9 35 27 9 11 73 35 27 73 26 121 26 13 13 35 48 35 48 38 15 15 50 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-185-0	01	1	0211-0501	●	●	●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504	●		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504					●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0505-	●		●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97231-907-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0502-0910			●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0911-	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (C)	8-97261-456-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) (C)	8-97261-456-3	01	1	0502-				●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97260-268-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97260-268-4	01	1	0502-				●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0504	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●	●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004						●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504			●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0505-0910	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0910			●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	0211-0501	●
15	08.846 BRACKET; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	0211-0501			●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	0502-1004	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	0502-1004			●	●
15	08.846 BRACKET; WATER HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-781-0	01	1	1005-	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-781-0	01	1	1005-			●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	0211-0501	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0502-0504	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	0502-0504	●					●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0505-1004	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	0505-1004	●					●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	1005-	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC>	8-97101-872-0	01	1	1005-	●					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-				●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0211-0501			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	0502-1004			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97129-198-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97129-198-1	01	1	1005-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0211-0501	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0211-0501						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	0502-1004	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	0502-1004						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97219-007-1	01	1	1005-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97219-007-1	01	1	1005-						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0211-0501	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0211-0501	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-0504	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0505-0507				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0508-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A)	8-97204-607-1	01	1	0211-0501			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97204-607-1	01	1	0502-0604			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (A)	8-97205-283-0	02	1	0605-0910			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> (A)	8-97205-283-0	02	1	0911-0911			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(X74) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-283-0	02	1	0911-	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98032-129-0	01	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (E) ID=22	8-97359-141-0	04	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0505-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	1005-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●		●	●		●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-				●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501			●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0505-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	0611-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	1005-1205	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-98166-023-0	01	1	1206-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0211-0501				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0502-0504	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0505-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (F) L=450	1-09707-142-1	01	1	0502-				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (F) L=350	8-94152-256-1	01	1	0502-				●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304			●	●
36	08.846 BOLT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501			●	●		●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●					●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●					●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-			●	●		●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0307				●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0308-0501				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304			●	●
38	08.846 NUT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501			●	●		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●					●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●					●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401			●	●		●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-			●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0504	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0505-0512	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-1004	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1005-	●		●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0211-0303			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.417	8-97072-530-0	01	1	0304-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0304-				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRAME-KICK UP<7EW>	8-97230-028-0	01	1	0304-			●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507	●		●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507				●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0508-0610	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310				●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0504	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0505-0602	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●		●	●	●

35 35 36 9 35 142 35 9 11 35 35 35 73 73 26 121 9 26 38 35 9 13 50 13 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-185-0	01	1	0211-0501	●	●	●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504	●		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0502-0504					●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	0505-	●		●	●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97231-907-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0502-0910			●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	0911-	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (C)	8-97261-456-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) (C)	8-97261-456-3	01	1	0502-				●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97260-268-3	01	1	0211-0501				●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97260-268-4	01	1	0502-				●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0504	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512	●		●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●	●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004						●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504			●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0505-0910	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0910			●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0911-	●		●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504	●		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0502-0504					●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0505-	●		●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0911-				●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910			●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-0910				●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0911-				●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98032-129-0	01	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (E) ID=22	8-94382-401-0	04	1	0502-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (E) ID=22	8-97359-141-0	04	1	0611-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	0505-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	1005-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0211-0501	●		●	●		●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0502-0610				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910			●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-0910				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0911-				●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501			●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0502-0504	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	0505-0610	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	0611-1004	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-97359-144-0	01	1	1005-1205	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	8-98166-023-0	01	1	1206-	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0211-0501				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0502-0504	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0505-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (F) L=450	1-09707-142-1	01	1	0502-				●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (F) L=350	8-94152-256-1	01	1	0502-				●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0304			●	●
36	08.846 BOLT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0305-0501			●	●		●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●					●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●		●	●
36	08.846 BOLT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1004	●					●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1005-			●	●		●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0307				●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0308-0501				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512				●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0304			●	●
38	08.846 NUT; BRKT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0305-0501			●	●		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●					●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●		●	●
38	08.846 NUT; BRKT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1004	●					●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1005-1401			●	●		●
38	08.846 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-			●	●		●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0211-0303			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.417	8-97072-530-0	01	1	0304-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0304-				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0211-0303	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0304-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRAME-KICK UP<7EW>	8-97230-028-0	01	1	0304-			●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0504	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507	●		●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0505-0507				●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0508-0610	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-	●		●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310				●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0504	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0505-0602	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401	●		●	●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-	●		●	●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 L=450	1-09707-142-1	01	1	0211-0501				●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.852 L=350	8-94152-256-1	01	1	0211-0501				●

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	F
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2) 01.166	8-94107-793-0	01	1	1005-1202	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0211-0501	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0211-0501	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0502-1202	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	1203-	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2) 01.166 ID=25	8-94233-115-0	01	1	1005-1202	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0211-0501	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0211-0501	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0502-1202	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	1203-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
