8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#51146) — 60 parça

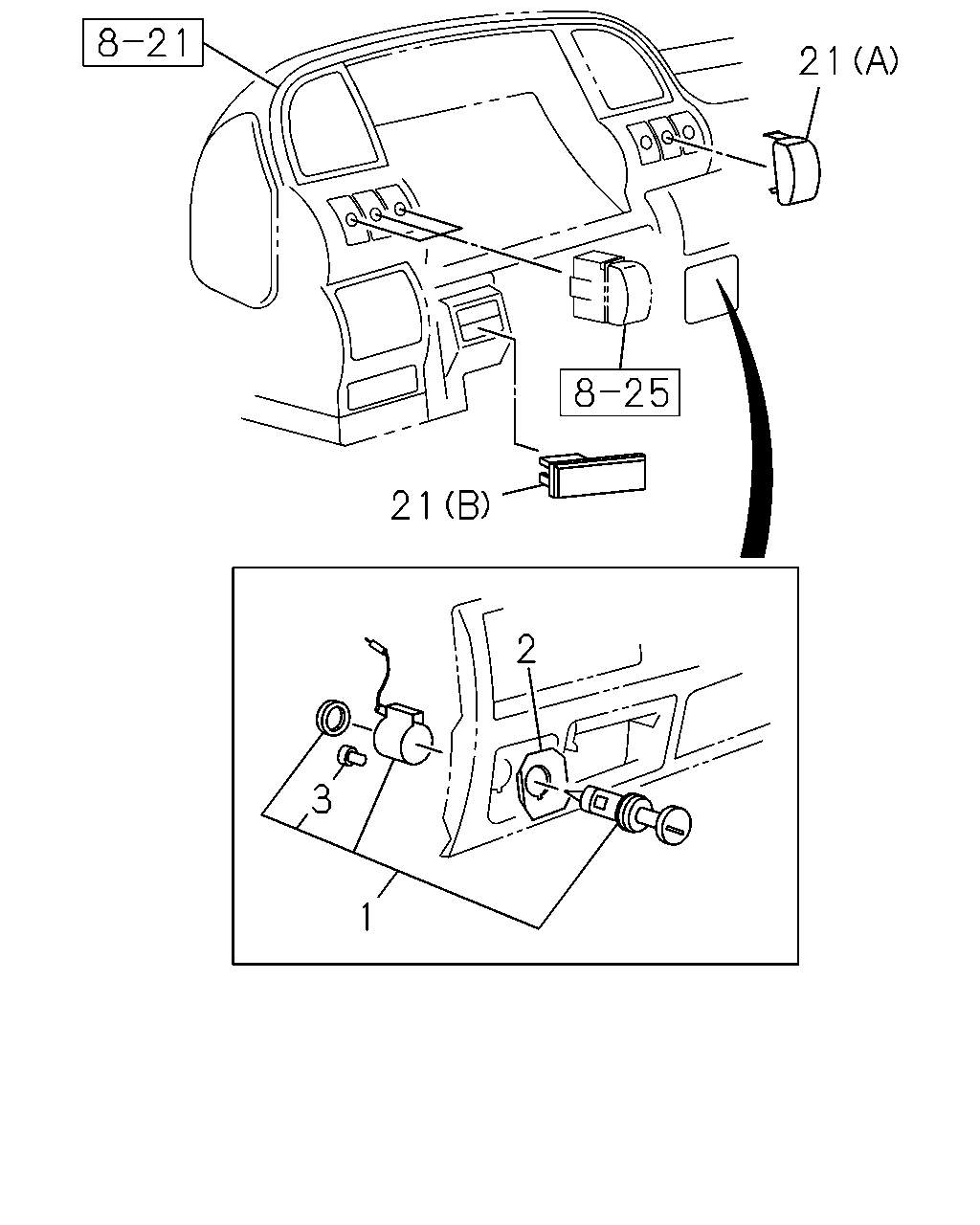

çizim 46656
21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0211- ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211- ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0211-0501 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0211-0501 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0502- ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0502- ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0501 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0502-0706 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0211- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211- ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0211-0501 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0211-0501 ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0502- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0502- ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97136-694-0 01 1 0502-0504 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0502-0504 ● ● ● ● ●
21 09.744 COVER; HOLE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97136-694-0 01 1 0505-1004 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0505-1004 ● ● ● ● ●
21 09.744 COVER; HOLE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 1005- ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 1005- ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 02 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0502- ● ●

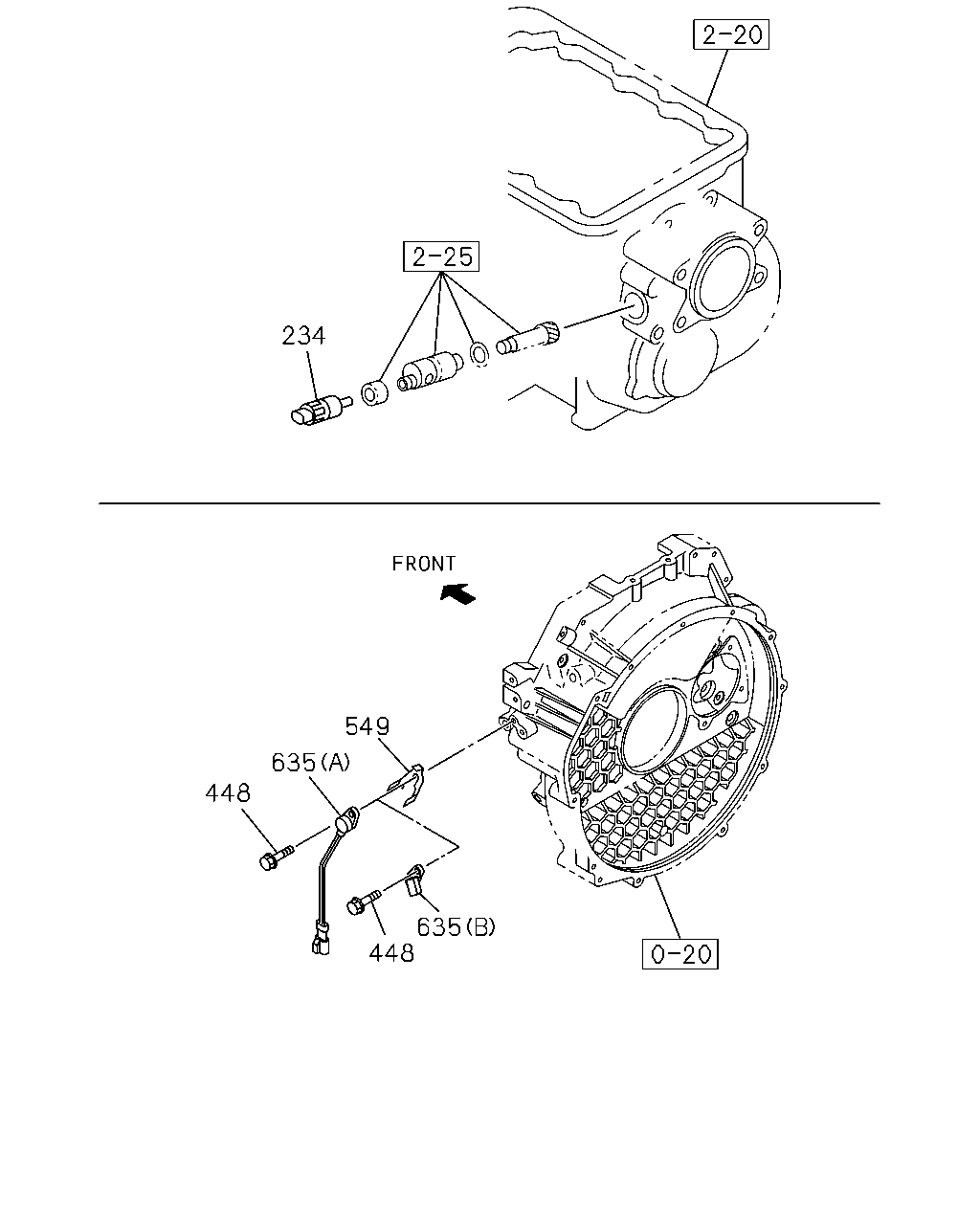

çizim 46697
234 549 635 448 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0512 ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-1004 ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1005-1405 ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1406- ● ● ● ●
549 02.510 SHEET
4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0211-0501 ● ● ● ●
549 02.510 SHEET
4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0502-1004 ● ● ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 1005-1405 ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 1406- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) (B) YAZAKI 		8-97214-325-0 01 1 1005- ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) (A) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0501 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) (A) CALSONIC KANSEI 		8-97163-104-0 01 1 0502- ● ● ● ●

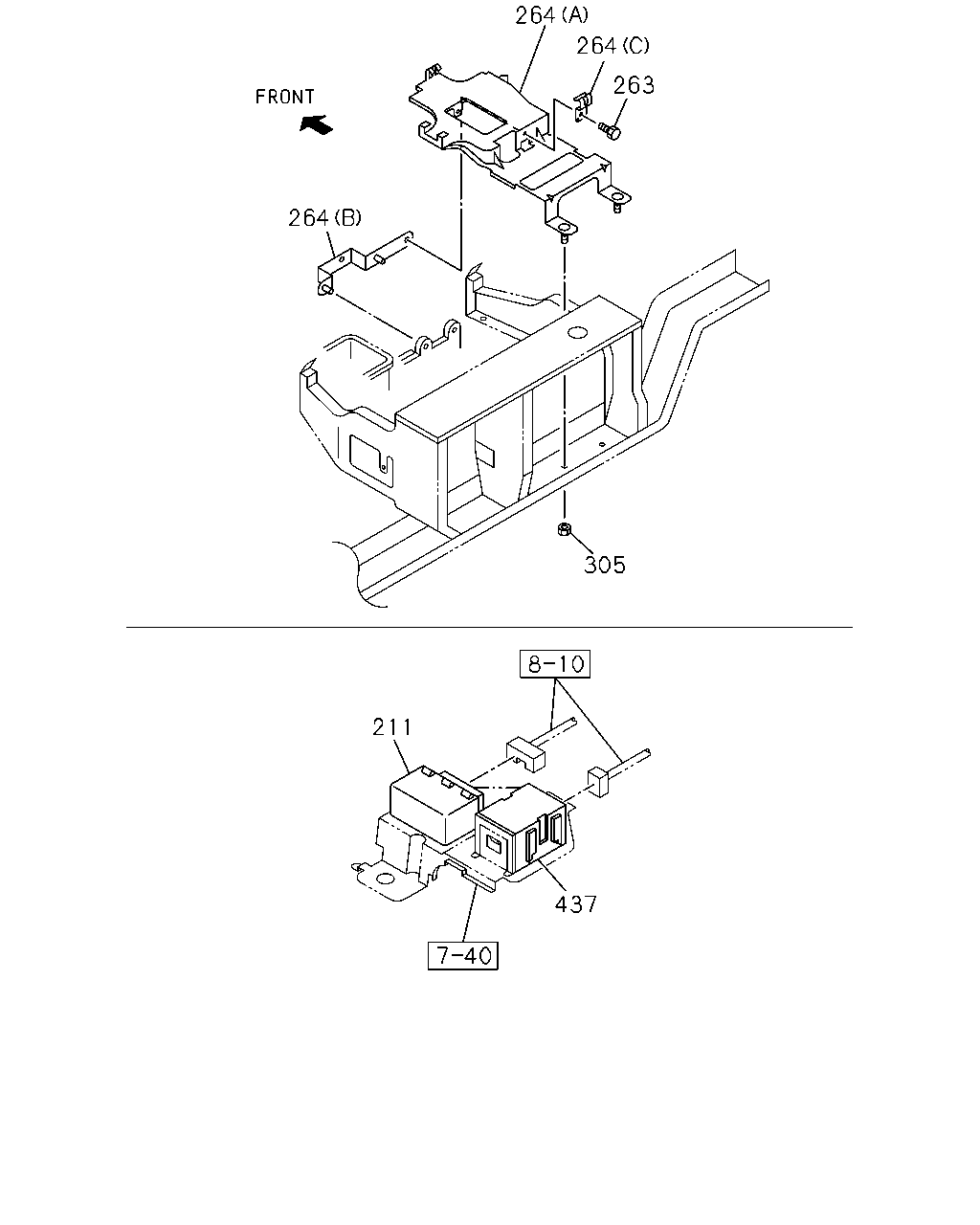

çizim 100875
264 264 263 264 305 211 437
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0502- ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) M6X20 FLANGE 		0-28250-620-0 02 1 1005- ●
263 04.115 BOLT; CONT UNIT
4JH1 ENG(RJX) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (C) 		8-97240-154-1 01 1 0211-0501 ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (C) 		8-97240-154-1 01 1 0502- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (A) 		8-97309-165-4 01 1 0211-0501 ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (A) 		8-97309-165-4 01 1 0502- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (B) 		8-97312-796-2 01 1 0211-0501 ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (B) 		8-97312-796-2 01 1 0502- ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0502-0602 ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> KOITO 		8-97359-129-0 01 1 0502- ● ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> KOITO 		8-97359-129-0 01 1 0502- ●
