8-15 — FIXING PARTS; WIRING HARNESS (#51143) — 992 parça

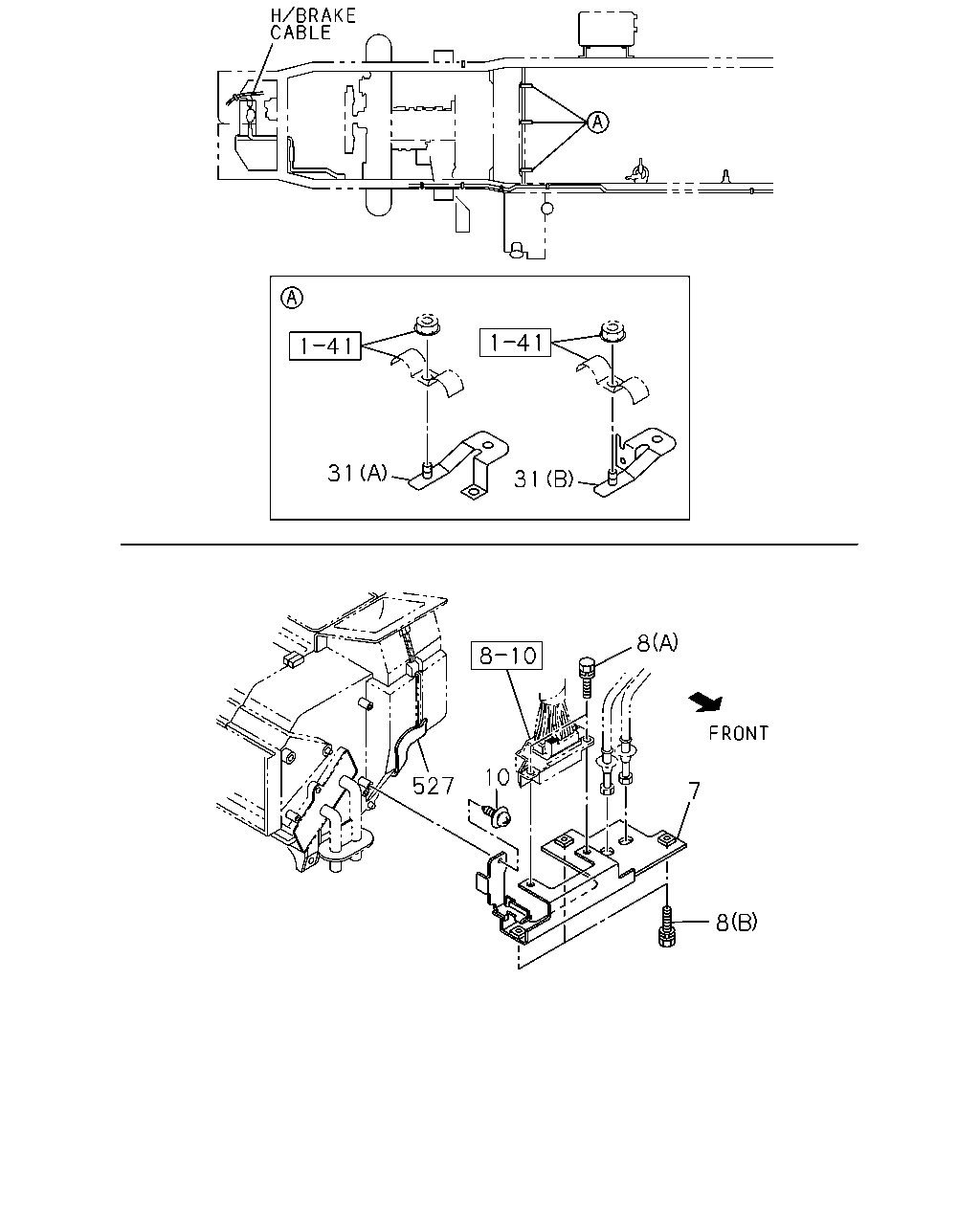

çizim 46092
31 31 8 10 527 7 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 0211-0501 ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 0502- ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0502-1210 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0501 ● ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0502-0604 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0612 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 02 1 1405- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (C) 		8-98019-633-0 01 1 1405- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0502-0504 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0505- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0502-0504 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0505- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97357-142-0 03 1 0211-0211 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 03 1 0211-0501 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 03 1 0502-1404 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> (C) 		8-97362-859-0 03 1 1405- ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 0211-0501 ● ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 0502- ● ● ● ● ●
çizim 46129
31 53 53 53 53 312 312 412 510 27 514 504 504 514 514 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 02.559 PROTECTOR; EDGE
4JH1 ENG(RJX) 03.008 L=80 		5-22439-006-0 01 1 0301-0501 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 02 1 1405- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> (C) 		8-98019-633-0 01 1 1405- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0502-0504 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=20 		8-94165-263-1 01 1 0505- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0502-0504 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97077-845-0 02 1 0505- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97357-142-0 03 1 0211-0211 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 03 1 0211-0501 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C) 		8-97362-859-0 03 1 0502-1404 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> (C) 		8-97362-859-0 03 1 1405- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HF1-S ENG(RLS) (B) 		8-97357-140-0 01 1 0211-0501 ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4HF1-S ENG(RLS) (B) 		8-97357-140-0 01 1 0211-0501 ●
53 02.483 BRACKET; HARNESS
(B) 		8-97357-140-0 01 1 0211-0501 ●
53 02.483 BRACKET; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97357-140-0 01 1 0502-1004 ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) 		8-97357-140-0 01 1 1005- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98003-047-0 01 1 0502- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-98003-046-0 01 1 0502- ●
53 02.483 BRACKET; HARNESS
(D) 		8-98003-046-0 01 1 0502- ● ●
53 02.483 BRACKET; HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 0211-0501 ●
53 02.483 BRACKET; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 0502- ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS) (A) 		8-97018-095-3 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97018-095-3 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 0502-1004 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-97018-095-3 01 1 1005- ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 1005- ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-N ENG(RJZ) (A) 		8-97018-095-3 01 1 1005- ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97018-095-3 01 1 1005- ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97046-762-0 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) 		8-97046-762-0 01 1 0502- ●
412 02.559 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0211-0211 ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) 		8-97324-451-1 01 1 0212- ● ● ●
412 02.559 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0212- ●
504 02.559 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) L=200 		8-97096-423-0 01 1 0211-0501 ●
504 02.559 PROTECTOR; HARNESS
04.785 (A) L=200 		8-97096-423-0 01 1 0211-0501 ● ● ● ●
504 02.559 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> 04.785 (A) L=200 		8-97096-423-0 01 1 0211-0501 ●
504 02.559 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) L=200 		8-97096-423-0 01 1 0502- ●
504 02.559 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> 04.785 (A) L=200 		8-97096-423-0 01 1 0502- ●
504 02.559 PROTECTOR; HARNESS
04.785 (A) L=200 		8-97096-423-0 01 1 0502- ● ● ●
504 02.559 PROTECTOR; HARNESS
4JH1 ENG(RJX) 02.343 (B) L=120 		8-97117-880-0 01 1 0211-0212 ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0211-0501 ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0502- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
ADJUST HEADLAMP<6RC> 03.885 (D) L=50 		8-94270-377-1 01 1 0506-0508 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0502- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0502-1005 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0502-1005 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0502-1005 ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP) (A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0211-0501 ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0211-0501 ● ● ●
514 02.559 FINISHER; HARNESS
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0211-0501 ●
514 02.559 FINISHER; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) L=120 SERVICED BY L=500 		1-79937-746-0 02 1 0502-0504 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) L=120 SERVICED BY L=500 		1-79937-746-0 02 1 0505- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0211-0501 ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0502-0502 ●
514 02.559 FINISHER; HARNESS
(C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0503-1005 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0503-1005 ●
514 02.559 FINISHER; HARNESS
(C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1006-1508 ●
514 02.559 FINISHER; HARNESS
(C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●

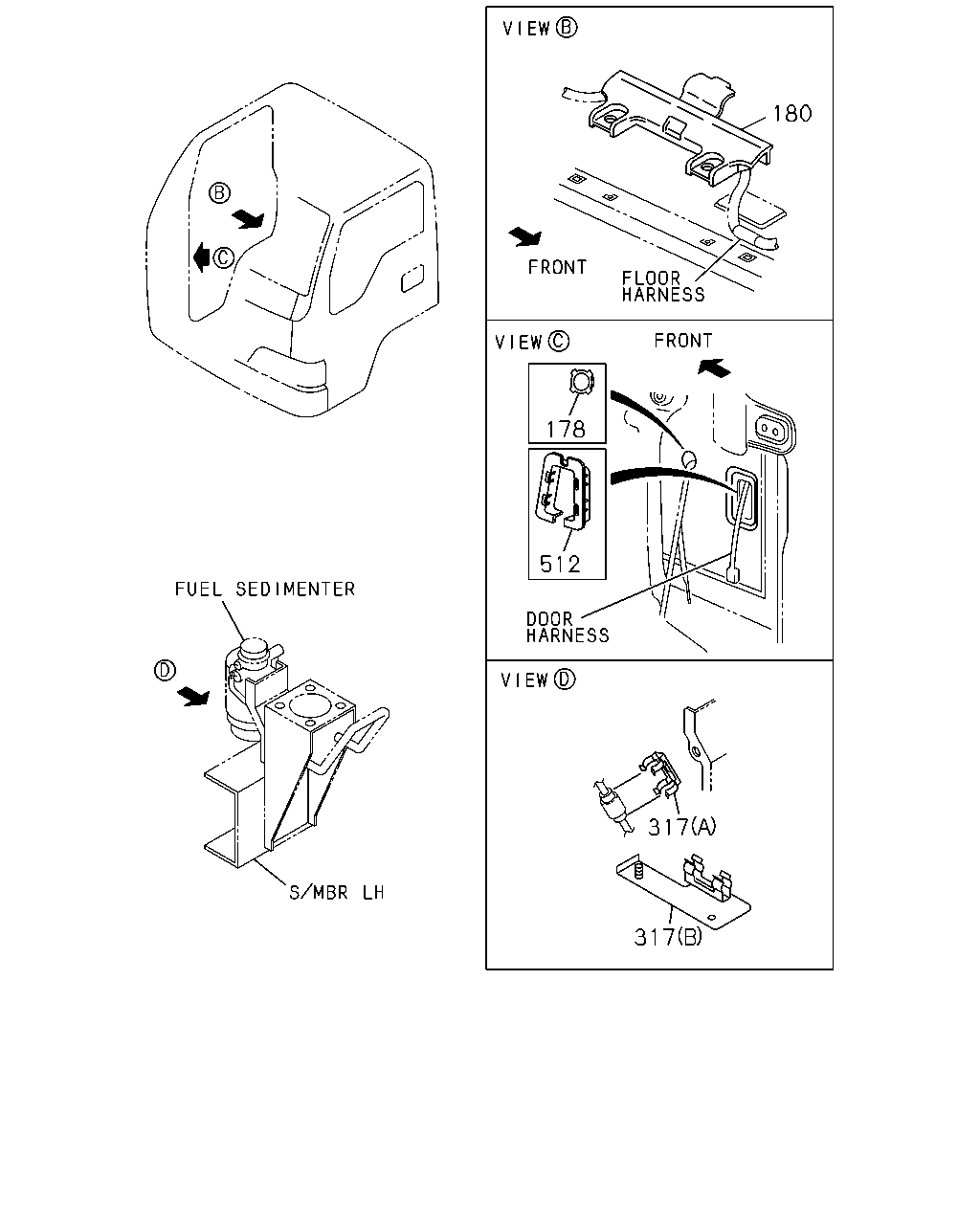

çizim 46163
180 178 512 317 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0211-0501 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0502- ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0211-0501 ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0502- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0502-0504 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0502-0504 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0505-0910 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0505-0910 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0911- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0911- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 0211-0501 ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 0211-0501 ●
317 02.559 CLAMP; CONNECTOR
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 0502-1004 ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 0502-1004 ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 1005- ●
317 02.559 CLAMP; CONNECTOR
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 1005- ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 1005- ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ●
çizim 46200
16 48 488 48 14 16 48 162 208 220 483 205 16 48 142 488 16 464 488 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0211-0309 ● ● ●
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 L=140 		5-09707-031-1 01 1 0211-0309 ● ● ●
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 L=140 		5-09707-031-1 01 1 0310-0501 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0310-0501 ● ● ●
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 L=140 		5-09707-031-1 01 1 0502-0504 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 03.162 L=140 		5-09707-031-1 01 1 0502-0504 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 L=140 		5-09707-031-1 01 1 0505- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 L=140 		5-09707-031-1 01 1 0505- ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0303-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=24 H=40 L=24 		1-09701-243-1 AR 1 0911- ●
16 02.559 CLIP; HARNESS
02.589 (R) ID=27 		5-09700-323-0 AR 1 0911- ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (AA) ID=9.6 		8-94147-870-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0502-0910 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0910- ●
48 02.559 CLIP; FRAME HARNESS
(Y) T=5.5 		8-97371-951-0 AR 1 1406- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) T=4.5 & 9 		8-97371-947-0 AR 1 1406- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) L=170.3 		1-09987-182-0 01 1 0211-0501 ● ● ●
142 02.559 CLIP; HARNESS,ENG
L=170.3 		1-09987-182-0 01 1 0211-0501 ●
142 02.559 CLIP; HARNESS,ENG
4HF1-N ENG(RJZ) L=170.3 		1-09987-182-0 01 1 0502-1004 ● ● ●
142 02.559 CLIP; HARNESS,ENG
L=170.3 		1-09987-182-0 01 1 0502-1004 ●
142 02.559 CLIP; HARNESS,ENG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) L=170.3 		1-09987-182-0 01 1 1005- ●
142 02.559 CLIP; HARNESS,ENG
4HF1-N ENG(RJZ) L=170.3 		1-09987-182-0 01 1 1005- ● ●
142 02.559 CLIP; HARNESS,ENG
L=170.3 		1-09987-182-0 01 1 1005- ●
162 02.559 CLIP; SW HARNESS
4HF1-S ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0211-0501 ● ●
162 02.559 CLIP; SW HARNESS
4JH1 ENG(RJX),4HF1-S ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0211-0501 ●
162 02.559 CLIP; SW HARNESS
03.162 L=140 		5-09707-031-1 01 1 0211-0501 ●
162 02.559 CLIP; SW HARNESS
4JH1-TC ENG(RDM) 03.162 L=140 		5-09707-031-1 01 1 0502-0506 ●
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0211-0211 ● ● ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM) L=135 		1-09987-143-1 01 1 0212- ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0212- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 0211-0501 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0211-0501 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0502-0504 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0502-0504 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0505- ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0211-0501 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0211-0501 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0502-0504 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0502-0504 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0505- ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1 ENG(RJX) 03.162 L=140 		5-09707-031-1 02 1 0211-0501 ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1-TC ENG(RDM) 03.162 L=140 		5-09707-031-1 02 1 0502- ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0502-1004 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 1005- ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0211-0501 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0502-0504 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0505-0507 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0505-0507 ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0508-0606 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0211-0501 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0502-0504 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0505-0507 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0505-0507 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0508- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 02 1 0310-0501 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 02 1 0502- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140 		5-09707-031-1 01 1 0310-0501 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140 		5-09707-031-1 01 1 0310-0501 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 01 1 0502-1405 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 01 1 1406- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) 02.343 (B) ID=16 L=20 		9-09525-535-0 01 1 0211-0501 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) 02.343 (B) ID=16 L=20 		9-09525-535-0 01 1 0502-0606 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) (B) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED(RS6) 02.587 (B) L=112 		8-94232-618-0 04 1 0211-0501 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5) 02.587 (B) L=112 		8-94232-618-0 04 1 0211-0501 ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (B) L=112 		8-94232-618-0 04 1 0211-0501 ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (B) L=112 		8-94232-618-0 04 1 0502- ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED(RS6) 02.587 (B) L=112 		8-94232-618-0 04 1 0502- ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0211-0309 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5) (A) L=250 		5-09707-030-1 01 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5) (A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0502- ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0502- ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (C) L=170.3 		1-09987-182-0 02 1 0310-0501 ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (C) L=170.3 		1-09987-182-0 02 1 0502- ●
488 02.559 CLIP; CABLE,TRAILER
(C) L=170.3 		1-09987-182-0 02 1 0502- ●
488 02.559 CLIP; CABLE,TRAILER
REAR BODY LAGER WIDTH<8EH> 02.587 (B) L=112 		8-94232-618-0 05 1 0211- ●
çizim 46201
483 48 483 48 48 48 48 16 16 49 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0303-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=24 H=40 L=24 		1-09701-243-1 AR 1 0911- ●
16 02.559 CLIP; HARNESS
02.589 (R) ID=27 		5-09700-323-0 AR 1 0911- ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (AA) ID=9.6 		8-94147-870-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0502-0910 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0910- ●
48 02.559 CLIP; FRAME HARNESS
(Y) T=5.5 		8-97371-951-0 AR 1 1406- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) T=4.5 & 9 		8-97371-947-0 AR 1 1406- ● ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4JH1 ENG(RJX) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0211-0501 ●
49 02.559 CLIP; GEN HARNESS
4JH1-TC ENG(RDM) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0502- ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0211-0501 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0502-0504 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0505-0507 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0505-0507 ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0508-0606 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0211-0501 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0502-0504 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0505-0507 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0505-0507 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0508- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 02 1 0310-0501 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 02 1 0502- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140 		5-09707-031-1 01 1 0310-0501 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140 		5-09707-031-1 01 1 0310-0501 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 01 1 0502-1405 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140 		5-09707-031-1 01 1 1406- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) 02.343 (B) ID=16 L=20 		9-09525-535-0 01 1 0211-0501 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) 02.343 (B) ID=16 L=20 		9-09525-535-0 01 1 0502-0606 ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) (B) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
çizim 46577
219 219 219 294 515 219 294 469 515 524 294 519 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
219 02.559 NUT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
219 02.559 NUT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ● ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0502-0504 ● ● ● ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ● ● ● ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0505-0602 ● ● ● ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 01.062 (D) M6 FLANGE 		0-91180-106-0 01 1 0603-1004 ● ● ● ● ●
219 02.559 NUT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.062 (D) M6 FLANGE 		0-91180-106-0 01 1 0603-1004 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (D) M6 FLANGE 		0-91180-106-0 01 1 1005- ● ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 01.062 (D) M6 FLANGE 		0-91180-106-0 01 1 1005- ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97108-658-0 01 1 0211-0501 ●
219 02.559 NUT
(E) 		8-97108-658-0 01 1 0211-0501 ● ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> (E) 		8-97108-658-0 01 1 0211-0501 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97108-658-0 01 1 0502- ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> (E) 		8-97108-658-0 01 1 0502- ●
219 02.559 NUT
(E) 		8-97108-658-0 01 1 0502- ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ● ●
219 02.559 NUT
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0502-0504 ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0502-0504 ● ● ● ●
219 02.559 NUT
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0505-0910 ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0505-0910 ● ● ● ●
219 02.559 NUT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0911- ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0911- ● ● ● ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0211-0211 ● ● ● ● ●
219 02.559 NUT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0211-0211 ● ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0211-0211 ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0211-0211 ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0211-0211 ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ● ● ● ● ●
219 02.559 NUT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ● ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ●
219 02.559 NUT
4JH1 ENG(RJX),4HF1-S ENG(RLS) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 NA ENG(RLF) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0212-0305 ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0306-0501 ● ● ● ● ●
219 02.559 NUT
4JB1 NA ENG(RLF) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0306-0501 ● ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0306-0501 ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0306-0501 ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 NA ENG(RLF) 04.594 (D) M6 FLANGE 		0-91150-106-0 01 1 0306-0501 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
219 02.559 NUT
04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM) 04.594 (D) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 (D) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 01.062 (D) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
219 02.559 NUT
01.062 (D) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM) 01.062 (D) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
219 02.559 NUT
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0211-0501 ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0211-0501 ●
219 02.559 NUT
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0502-1004 ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0502-1004 ●
219 02.559 NUT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 1005- ●
219 02.559 NUT
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 1005- ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 1005- ●
294 02.559 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0911- ●
294 02.559 NUT
04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0211-0211 ● ● ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0212-0602 ● ● ●
294 02.559 NUT
04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0212-0602 ●
294 02.559 NUT
M/T MYY5T(RSM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ●
294 02.559 NUT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603- ●
294 02.559 NUT
4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
294 02.559 NUT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
294 02.559 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
294 02.559 NUT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
294 02.559 NUT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0603-1004 ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
294 02.559 NUT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
294 02.559 NUT
4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
294 02.559 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
469 02.559 NUT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ● ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ● ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ● ● ● ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-1004 ● ● ● ●
469 02.559 NUT; PROTECTOR
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ●
469 02.559 NUT; PROTECTOR
01.062 M8 FLANGE 		0-91180-108-0 01 1 1005- ● ●
515 02.559 NUT; BRKT
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ●
515 02.559 NUT; BRKT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
515 02.559 NUT; BRKT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
515 02.559 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
515 02.559 NUT; BRKT
EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
515 02.559 NUT; BRKT
EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
515 02.559 NUT; BRKT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
515 02.559 NUT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
515 02.559 NUT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 0211-0501 ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 0502-0504 ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 0505-0602 ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.042 M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ● ●
524 02.559 NUT; HARNESS
4JH1 ENG(RJX) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0211-0501 ●
524 02.559 NUT; HARNESS
4JH1-TC ENG(RDM) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0502-0602 ●
524 02.559 NUT; HARNESS
4JH1-TC ENG(RDM) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603- ●
çizim 46616
16 48 16 208 16 48 52 48 16 48 48 48 48 48 48 208 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0303-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=24 H=40 L=24 		1-09701-243-1 AR 1 0911- ●
16 02.559 CLIP; HARNESS
02.589 (R) ID=27 		5-09700-323-0 AR 1 0911- ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (AA) ID=9.6 		8-94147-870-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0502-0910 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0910- ●
48 02.559 CLIP; FRAME HARNESS
(Y) T=5.5 		8-97371-951-0 AR 1 1406- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) T=4.5 & 9 		8-97371-947-0 AR 1 1406- ● ● ● ● ●
52 02.559 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
52 02.559 CLIP; HARNESS TO BRKT
01.240 ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
52 02.559 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47 		5-09700-319-0 01 1 0502- ●
52 02.559 CLIP; HARNESS TO BRKT
01.240 ID=14 L=47 		5-09700-319-0 01 1 0502- ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 0211-0501 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0211-0501 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0502-0504 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0502-0504 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 0505- ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0211-0501 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0211-0501 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0502-0504 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0502-0504 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 0505- ● ● ● ●
çizim 46690
16 264 16 264 16 48 16 16 48 48 464 397 48 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0303-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=24 H=40 L=24 		1-09701-243-1 AR 1 0911- ●
16 02.559 CLIP; HARNESS
02.589 (R) ID=27 		5-09700-323-0 AR 1 0911- ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (AA) ID=9.6 		8-94147-870-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0502-0910 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0910- ●
48 02.559 CLIP; FRAME HARNESS
(Y) T=5.5 		8-97371-951-0 AR 1 1406- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) T=4.5 & 9 		8-97371-947-0 AR 1 1406- ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 0211-0501 ● ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 0502- ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 (A) ID=10 & 16 		8-94413-325-0 02 1 0211-0501 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0211-0501 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0502- ● ● ● ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 0211-0501 ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 0502- ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502-0504 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0505-1004 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1005- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0502-1004 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 1005- ● ● ●
çizim 48384
38 150 38 460 38 139 150 8 139 150 139 139 377 481 8 38 139 150 139 466 386 358 377 386 386 139 159 159 64 511 511 10 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0502-1210 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0501 ● ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0502-0604 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0612 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.685 (D) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (D) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0305 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0305 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0306-0501 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0306-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0306-0501 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0502-0512 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.685 (D) M6X25 FLANGE 		0-28650-625-0 02 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE 		0-28650-625-0 02 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (D) M6X25 FLANGE 		0-28650-625-0 02 1 0601- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0502-0504 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0502-0504 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0505-0604 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0505-0604 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0605-0910 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0605-0910 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0911- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0911- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 NA ENG(RLF) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0211-0211 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0211-0211 ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0211-0211 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0211-0211 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 NA ENG(RLF) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0212-0501 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0212-0501 ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0212-0501 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (C) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 03.162 (C) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 06.008 (E) M8X12,M8X30 L=50 		8-97032-290-0 01 1 0211-0805 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.510 (E) M8X12,M8X30 L=50 		8-98028-225-0 01 1 0806- ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0211-0501 ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0502- ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (G) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0911- ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ● ● ●
139 02.559 BOLT; BRKT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0502-0512 ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0502-0512 ●
139 02.559 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97028-451-3 01 1 0211-0501 ● ● ● ●
139 02.559 BOLT; BRKT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97028-451-3 01 1 0502- ● ● ● ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> (F) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> 06.216 (F) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
139 02.559 BOLT; BRKT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
139 02.559 BOLT; BRKT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
139 02.559 BOLT; BRKT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 00.685 (E) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
139 02.559 BOLT; BRKT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0211-0501 ●
139 02.559 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0502-0512 ●
139 02.559 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
150 02.343 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
150 02.343 BOLT; CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ● ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0502-0504 ● ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0505-0507 ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0505-0507 ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ● ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0211-0501 ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0502-0512 ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ● ● ● ● ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ● ● ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ● ●
358 02.480 BOLT; EARTH
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ● ● ●
358 02.480 BOLT; EARTH
4HF1-N ENG(RJZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ● ● ●
358 02.480 BOLT; EARTH
4HF1-N ENG(RJZ) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-0501 ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-1004 ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0211-0501 ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-1004 ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
466 02.483 BOLT; HEAT PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0211-0512 ●
466 02.483 BOLT; HEAT PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0211-0501 ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0502-0504 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0502-0504 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0505-0512 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0505-0512 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0601-1004 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0601-1004 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ●
466 02.483 BOLT; HEAT PROTECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ●
466 02.483 BOLT; HEAT PROTECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ●
466 02.483 BOLT; HEAT PROTECTOR
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1005- ● ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0911- ●
511 02.559 SCREW; HARNESS COVER
08.845 (A) M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0211-0501 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 (A) M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0502-0604 ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702 ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
04.681 (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703- ● ● ● ● ●
çizim 100845
16 116 48 16 48 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0211-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0303-0501 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=80 		5-09700-307-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=12 		5-09700-331-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94327-067-1 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) L=100 		8-94442-388-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (P) ID=12 		8-97367-983-0 AR 1 0502- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=24 H=40 L=24 		1-09701-243-1 AR 1 0911- ●
16 02.559 CLIP; HARNESS
02.589 (R) ID=27 		5-09700-323-0 AR 1 0911- ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0211-0501 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (AA) ID=9.6 		8-94147-870-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=31 L=30 		1-09700-969-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (P) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Z) ID=31.5 H=23 L=25 		1-09701-017-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		5-09700-321-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0502-0910 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (C) L=140 		5-09707-031-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) T=9.2 		5-09709-013-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (W) T=4.5 & 9 		5-09709-023-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (Y) T=5.5 		5-09709-047-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) T=4.5 & 13 		5-09709-096-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (V) L=330 		5-09709-118-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (Q) ID=8.3 & 16.5 		8-94169-027-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=20 		8-94169-650-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=10 & 11 		8-94438-996-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=14-20 		8-97061-603-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (T) ID=13 L=20 		9-09525-235-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (U) ID=27 		5-09700-323-0 AR 1 0910- ●
48 02.559 CLIP; FRAME HARNESS
(Y) T=5.5 		8-97371-951-0 AR 1 1406- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) T=4.5 & 9 		8-97371-947-0 AR 1 1406- ● ● ● ● ●
116 02.559 CLIP; ROOF HARNESS
CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE 		1-09987-214-0 01 1 0211- ●
183 02.559 CLIP; CONNECTOR
4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 0211-0501 ● ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
