◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#51142) — 1593 parça

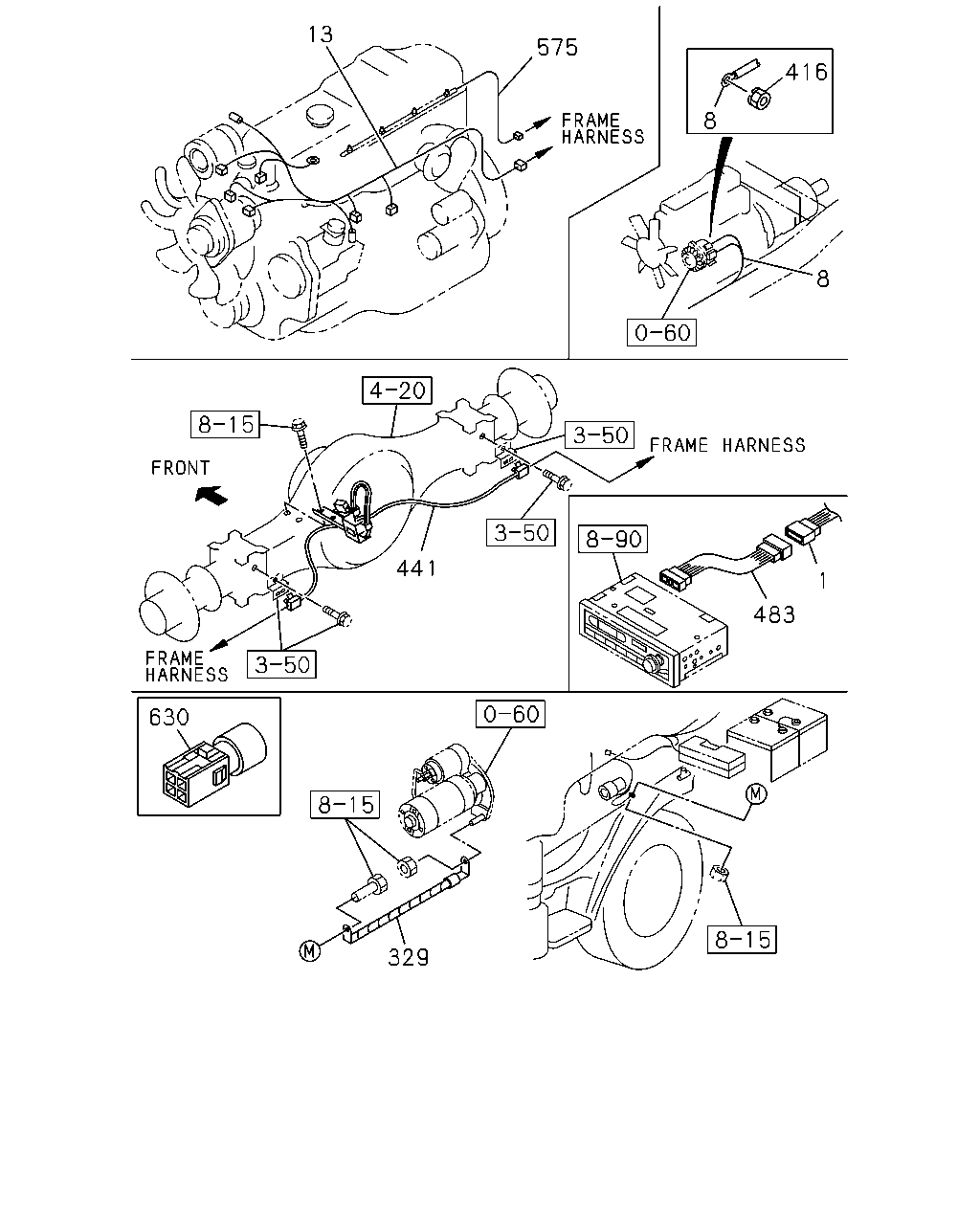

çizim 46090
13 575 416 8 8 441 1 483 630 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

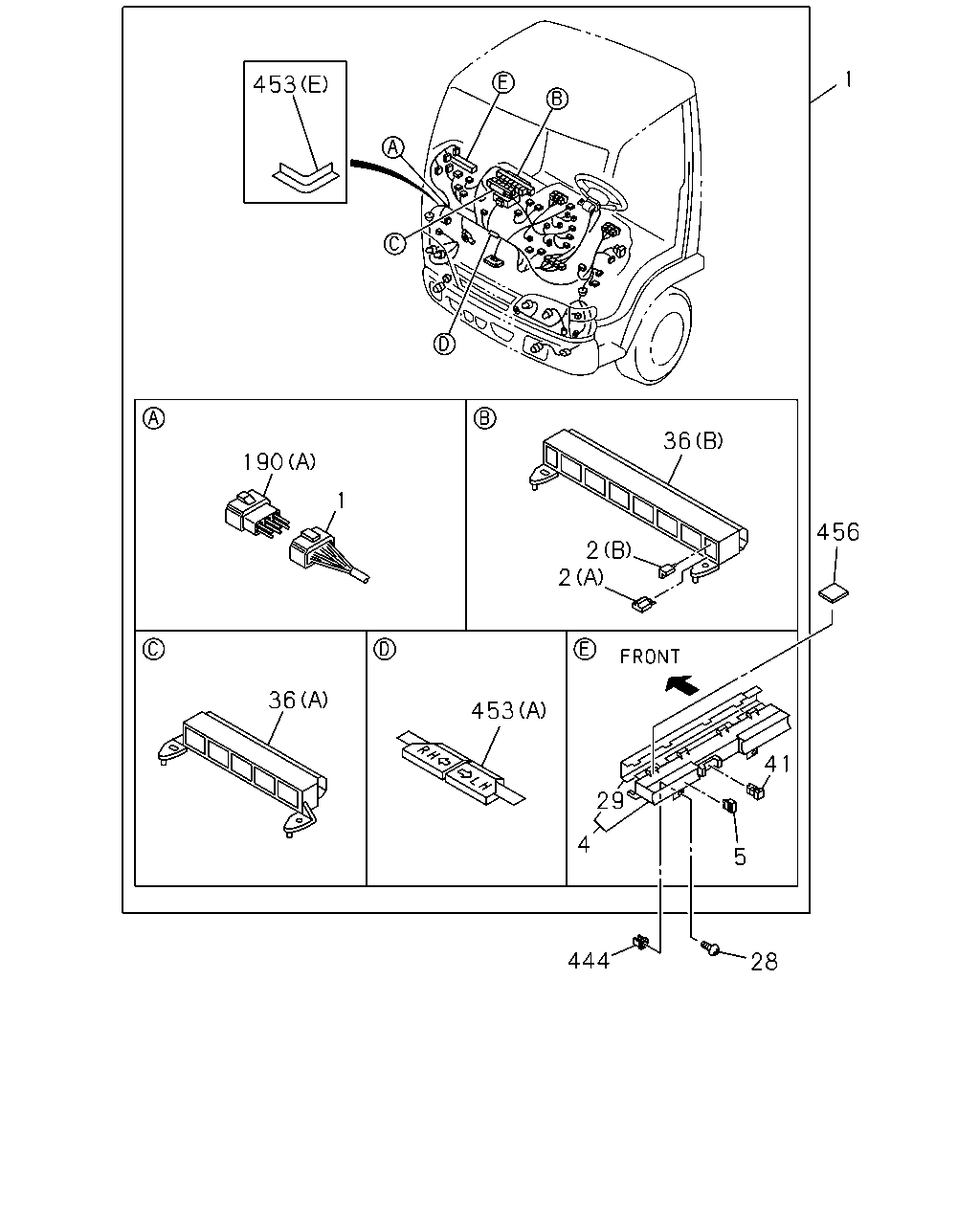

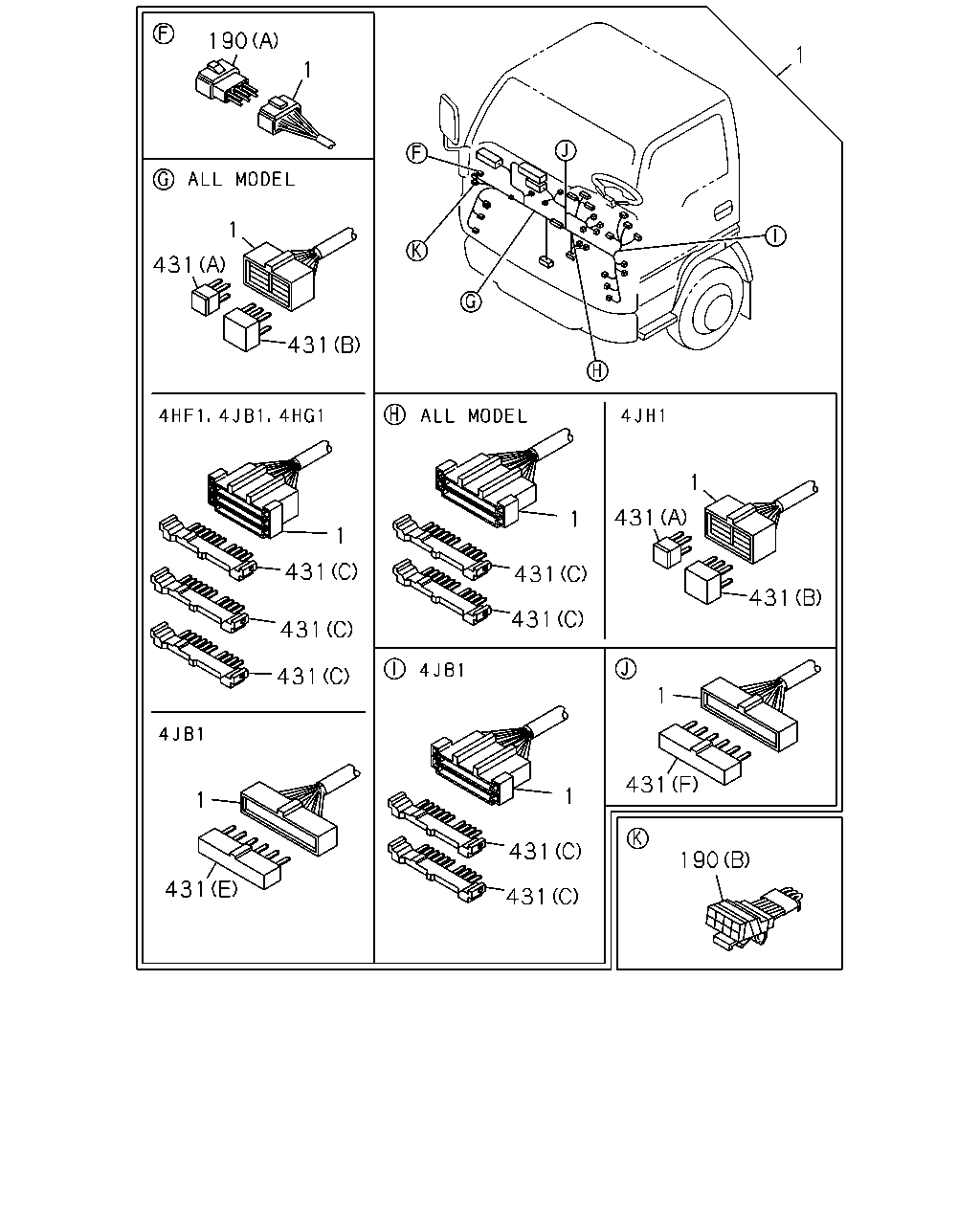

1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> 		8-98324-029-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-099-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> 		8-98217-099-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98217-105-0 01 1 1207-1511 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-105-1 01 1 1512- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S) 		8-98217-097-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207-1508 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98166-742-1 01 1 1005-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98166-742-1 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> 		8-98166-742-1 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98158-155-0 01 1 0911-1402 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98158-155-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98158-155-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-98016-889-3 01 1 0505-1508 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 0211-0309 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S),CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0310-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97185-299-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-598-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-615-4 01 1 0503-1508 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98010-615-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1207-1508 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-0910 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2 015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0211-0309 ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0309 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0310-0501 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-836-1 01 1 0211-0501 ●

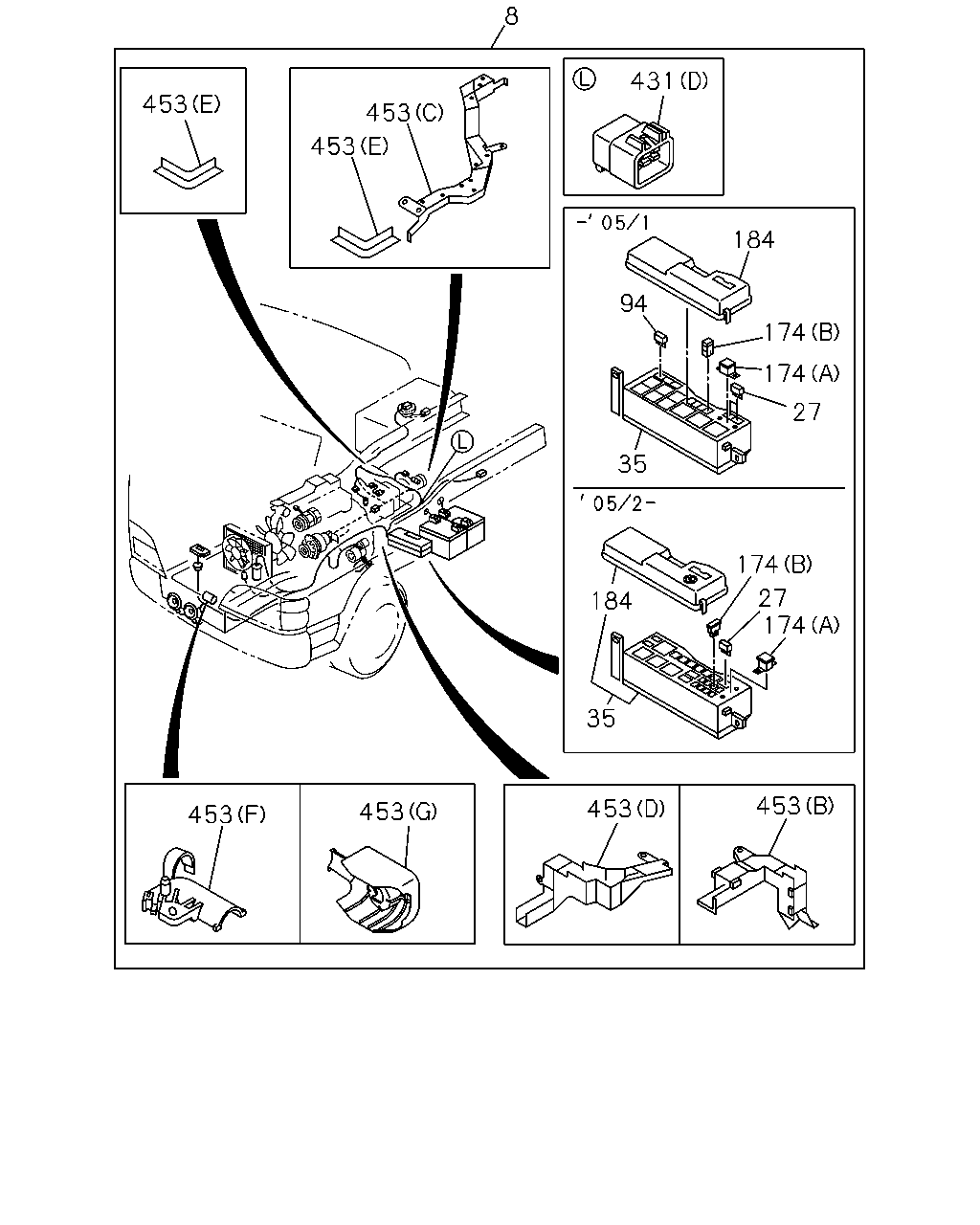

8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> 		8-98278-305-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> 		8-98278-305-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98166-414-0 01 1 1005-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF) 		8-98166-414-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. REAR WIDE TREAD(V4T) 		8-97377-877-1 01 1 0911-0911 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97377-877-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-97377-877-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98158-814-0 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98016-898-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-98016-898-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97372-859-1 01 1 0310-0501 ●
8 02.480 HARNESS; FRAME,FRT
TURKISH EQUIPMENT(S6S) 		8-97372-859-1 01 1 0310-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97377-881-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-881-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-498-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) 		8-97377-882-1 01 1 0502-0910 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-882-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-499-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97260-499-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97383-588-2 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-495-1 01 1 0211-0309 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,TURKISH EQUIPMENT(S6S),REAR WIDE TREAD(V4T),FRT IND EPENDENT SUSPENSION(6PP) 		8-97260-495-2 01 1 0310-0501 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S),REAR WIDETREAD(V4T),FRT INDEPENDENT SUSPENSIO N(6PP) 		8-97377-876-1 01 1 0502- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-496-3 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97383-596-0 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> 		8-97383-596-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97357-069-1 01 1 0211-0211 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97362-339-0 01 1 0212-0303 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-890-2 01 1 0304-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 0502-1405 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97383-595-1 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97357-070-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97260-500-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97377-880-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-497-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97359-613-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97364-766-1 01 1 0304-0501 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> 		8-97360-784-1 01 1 1406- ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 		8-97360-767-1 01 1 1005- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-2 01 1 0505-1004 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-2 01 1 1005- ● ●
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97173-694-1 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97173-694-1 01 1 0211-0501 ● ● ●
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) 		8-97173-694-2 01 1 0502- ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0211-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0502- ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97356-988-0 01 1 0211-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 0211-0501 ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) FRAME-KICK UP<7EW> 		8-97356-990-0 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97356-990-0 01 1 0502- ●
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0502-0910 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) COLOMBIA EQUIPMENT(X74) FAN FLUID DRIVE<KA3> 		8-97218-750-1 01 1 0911-0911 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15) FAN FLUID DRIVE<KA3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97218-750-1 01 1 0911- ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) COLOMBIA EQUIPMENT(X74) FAN FLUID DRIVE<KA3> 		8-97218-750-1 01 1 0911- ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) GENERATOR 60A(86M) 		8-97240-032-5 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) EXC. GENERATOR 12V80A(K97) 		8-97240-032-7 01 1 0502- ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) EXC. GENERATOR 60A(86M) 		8-97261-132-4 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) GENERATOR 12V80A(K97) 		8-97261-132-6 01 1 0502- ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97260-486-1 01 1 0211-0501 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97260-486-1 01 1 0502-0504 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97260-486-1 01 1 0505- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1-S ENG(RLS) 		8-97177-383-0 01 1 0211-0501 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 0502-1004 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 1005-1405 ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 1406- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0211-0501 ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97305-771-0 01 1 0502- ●
416 02.559 NUT; TERMINAL
4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ● ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-1004 ● ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-1004 ●
416 02.559 NUT; TERMINAL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 1005- ●
416 02.559 NUT; TERMINAL
4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 1005- ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 1005- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-220-4 01 1 0911- ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97372-297-0 01 1 0308-0310 ● ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97373-419-0 01 1 0311-0501 ● ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 0502-1112 ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 1201- ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
4JB1 NA ENG(RLF) FOR EGYPT(CR8) ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 1201- ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502- ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0211-0501 ●
575 02.525 HARNESS; GLOW PLUG
4JB1 NA ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 0211-0501 ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC),4JH1 ENG(RJX) 		8-97212-328-0 01 1 0211-0501 ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0502-0504 ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC) 		8-97212-328-0 01 1 0505-0507 ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC) 		8-97212-328-0 01 1 0508- ● ● ●
630 02.559 CONNECTOR; SHORT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-277-0 01 1 0911- ●

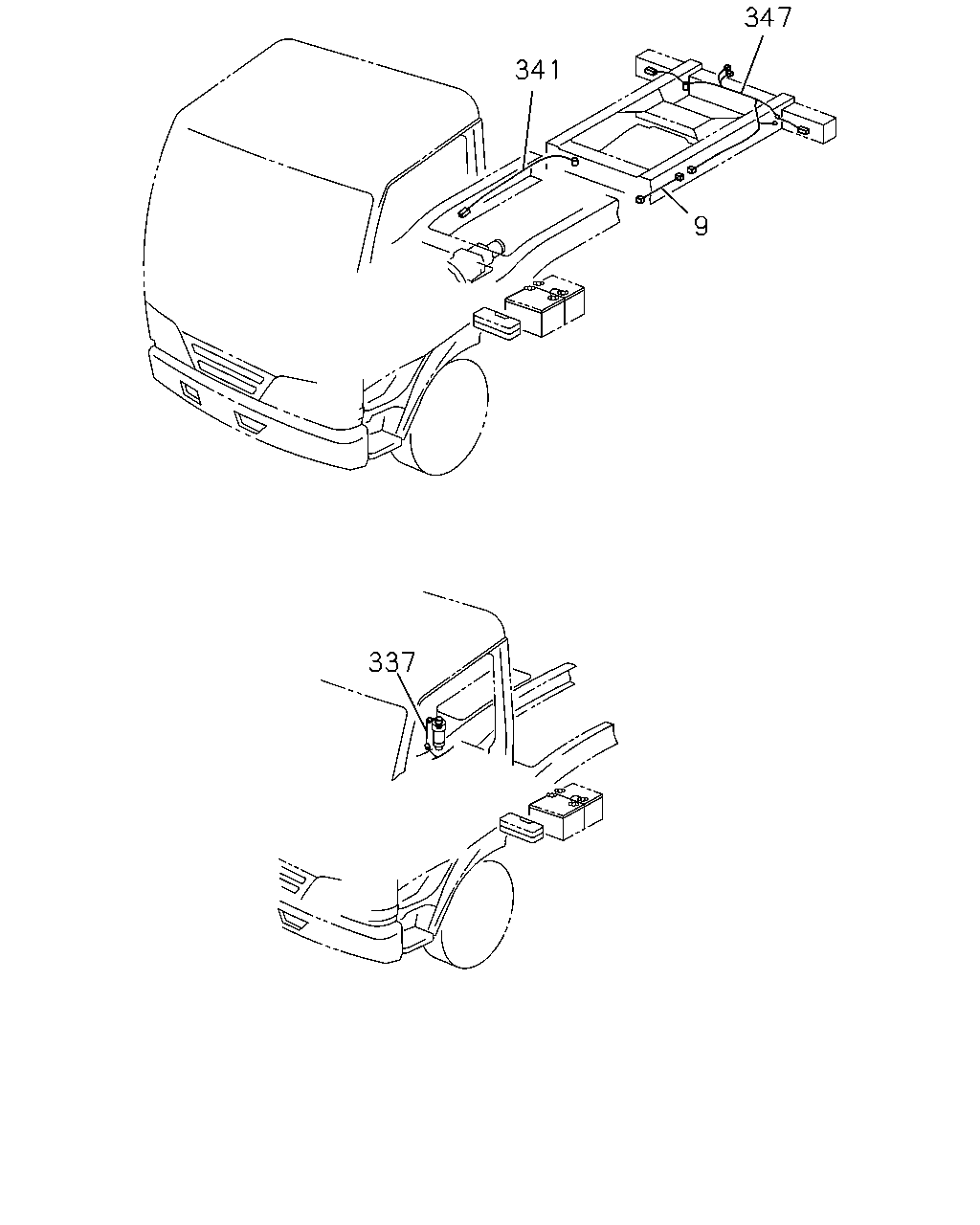

çizim 46162
347 341 9 337
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98004-054-2 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 		8-97381-165-1 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502-0910 ● ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0502-0910 ●
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0911- ● ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 0502- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0211-0501 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0502- ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0211-0501 ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211-0501 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502-0504 ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502-0504 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0505- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> 02.596 		8-98222-483-0 01 1 1405- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303-0309 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0303-0309 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0310-0501 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0310-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0502-1404 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0502-1404 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. JAPAN PRODUCTION<C1H>,RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S), DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 1405- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> EXC. JAPAN PRODUCTION<C1H> 		8-97364-151-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-565-0 01 1 0211-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0303-0309 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0303-0309 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. TURKISH EQUIPMENT(S6S),REAR BODYLAGER WIDTH<8EH> 		8-97364-150-0 01 1 0310-0501 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0502-1404 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0502-1404 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. JAPAN PRODUCTION<C1H>,REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. JAPAN PRODUCTION<C1H> 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
TURKISH EQUIPMENT(S6S) 		8-97364-153-0 01 1 0310-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
TURKISH EQUIPMENT(S6S) 		8-97364-153-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-153-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97364-149-0 01 1 0303-0501 ●

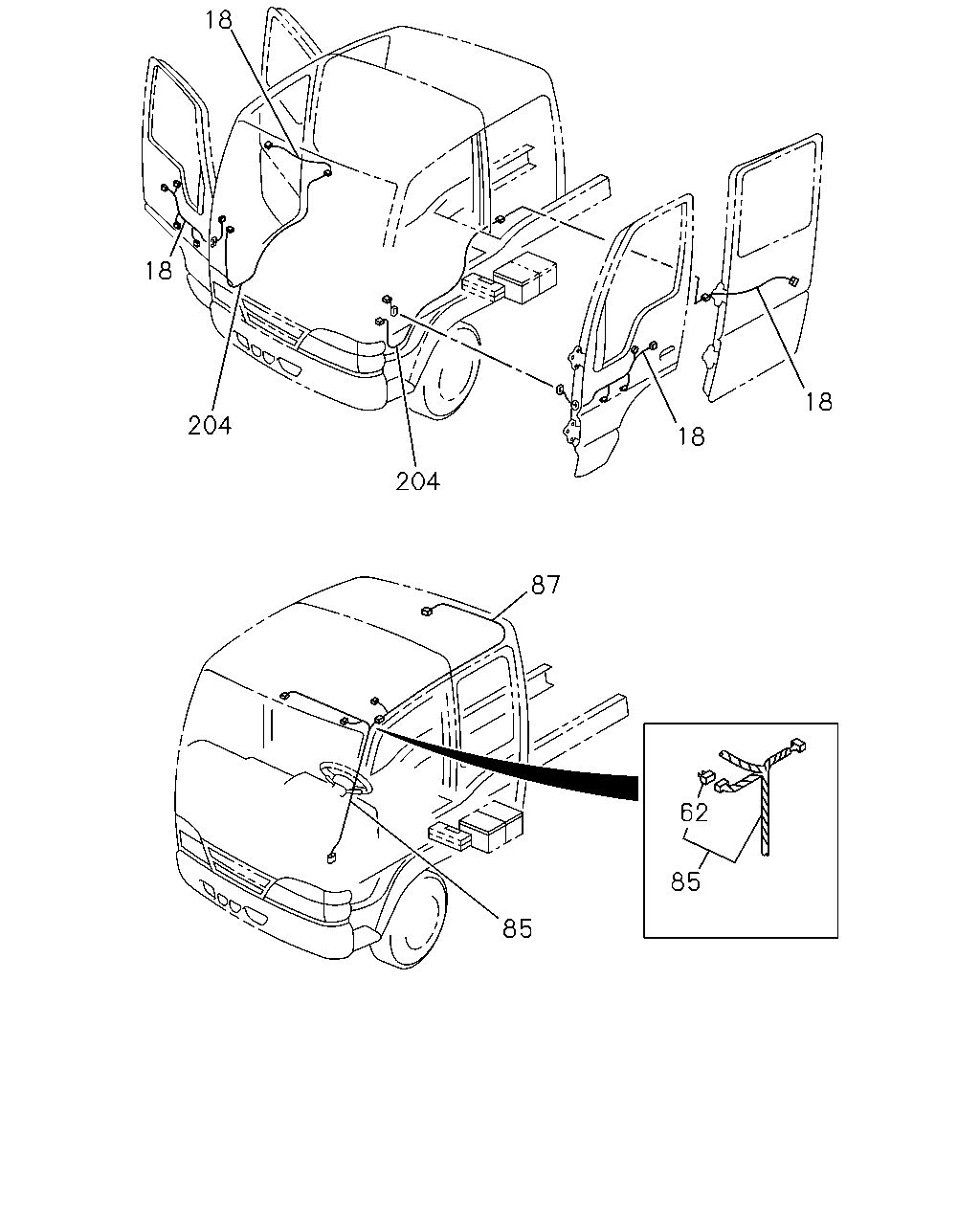

çizim 46235
18 18 18 204 18 204 87 62 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●

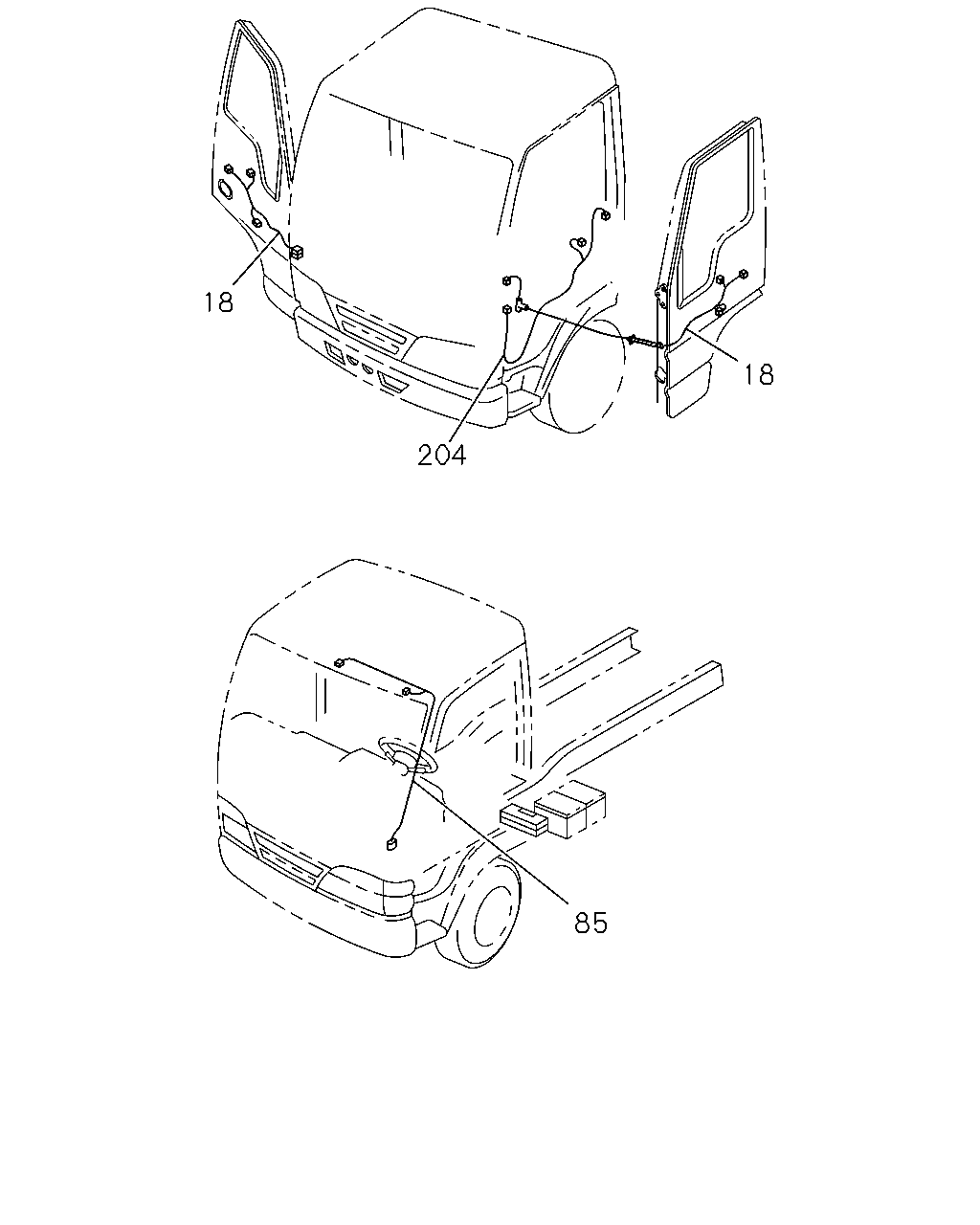

18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0502- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211-0501 ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0502- ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303-0501 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0502- ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97364-157-0 01 1 0303- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0211-0501 ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0502- ●
çizim 46242
1 453 36 190 1 456 2 2 36 453 41 29 4 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> 		8-98324-029-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-099-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> 		8-98217-099-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98217-105-0 01 1 1207-1511 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-105-1 01 1 1512- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S) 		8-98217-097-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207-1508 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98166-742-1 01 1 1005-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98166-742-1 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> 		8-98166-742-1 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98158-155-0 01 1 0911-1402 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98158-155-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98158-155-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-98016-889-3 01 1 0505-1508 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 0211-0309 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S),CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0310-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97185-299-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-598-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-615-4 01 1 0503-1508 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98010-615-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1207-1508 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-0910 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2 015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0211-0309 ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0309 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0310-0501 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-836-1 01 1 0211-0501 ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0502-0910 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0502- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0911- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502-0910 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502-0910 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502-0910 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0911- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0911- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0911- ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0502-1508 ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (A) 		8-97087-640-2 01 1 1509- ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) (A) 		5-82690-411-0 01 1 0505-0505 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
(A) 		5-82690-411-0 01 1 0506-1508 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 		5-82690-411-0 01 1 1509- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (A) 		5-82690-411-0 01 1 1509- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211-0501 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 03 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-1004 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1005-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0502-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> (C) 		8-97075-705-2 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0304-0309 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0310-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0310-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0310-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0310-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
TURKISH EQUIPMENT(S6S) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0409 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
TURKISH EQUIPMENT(S6S) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0410-0410 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0411-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0411-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0911-1508 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 1509- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0911-1004 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1005- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0211-0211 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0212-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94417-716-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 0212-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (G) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0502-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> (F) 		8-97075-706-4 01 1 1406- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0502- ● ● ● ● ●
çizim 46658
8 431 453 453 453 184 94 174 174 27 35 174 27 174 184 35 453 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> EXC. FRAME-KICK UP<7EW> 		8-98278-305-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> 		8-98278-305-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98166-414-0 01 1 1005-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF) 		8-98166-414-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. REAR WIDE TREAD(V4T) 		8-97377-877-1 01 1 0911-0911 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97377-877-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-97377-877-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98158-814-0 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98016-898-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-98016-898-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97372-859-1 01 1 0310-0501 ●
8 02.480 HARNESS; FRAME,FRT
TURKISH EQUIPMENT(S6S) 		8-97372-859-1 01 1 0310-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97377-881-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-881-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-498-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) 		8-97377-882-1 01 1 0502-0910 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-882-1 01 1 0911- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-499-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97260-499-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97383-588-2 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-495-1 01 1 0211-0309 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,TURKISH EQUIPMENT(S6S),REAR WIDE TREAD(V4T),FRT IND EPENDENT SUSPENSION(6PP) 		8-97260-495-2 01 1 0310-0501 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S),REAR WIDETREAD(V4T),FRT INDEPENDENT SUSPENSIO N(6PP) 		8-97377-876-1 01 1 0502- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-496-3 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97383-596-0 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> 		8-97383-596-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97357-069-1 01 1 0211-0211 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97362-339-0 01 1 0212-0303 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-890-2 01 1 0304-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 0502-1405 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97383-595-1 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 0502-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> 		8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 1406-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H>, FRAME-KICKUP<7EW> 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> 		8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT 8-97383-595-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97357-070-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97260-500-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97377-880-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-497-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97359-613-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97364-766-1 01 1 0304-0501 ●
27 08.965 FUSE UNIT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 15A MINI BLUE 		8-97062-023-0 01 1 0502- ●
27 08.965 FUSE UNIT
15A MINI BLUE 		8-97062-023-0 01 1 0502- ●
27 08.965 FUSE UNIT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 15A BLUE 		5-82516-003-0 01 1 0310-0501 ●
27 08.965 FUSE UNIT
TURKISH EQUIPMENT(S6S) 15A BLUE 		5-82516-003-0 01 1 0310-0501 ●
27 08.965 FUSE UNIT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 10A MINI RED 		8-97062-022-0 01 1 0502- ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 01 1 0502- ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502- ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0211-0501 ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502-0910 ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502-0910 ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0911- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0911- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (C) 10P GREEN 		1-82699-599-0 05 1 0502-1004 ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 05 1 0502-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 05 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0502-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0502-0910 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0502-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (F) 6P 		1-82691-206-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 02 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 02 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0502-0910 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0502-0910 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0504 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) 4P 		8-97077-939-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0505-0511 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0512-0910 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (A) 4P 		8-97077-939-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0504 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (B) 6P 		8-97077-941-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0505-0511 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0512-0910 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 6P 		8-97077-941-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 0505-1004 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 0505-1004 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN 		1-82699-599-0 02 1 0506-1508 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P 		8-97077-939-0 02 1 0506-0511 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0702-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P 		8-97077-941-0 02 1 0506-0511 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0702-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 03 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-1004 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1005-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1005-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0502-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> (C) 		8-97075-705-2 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0304-0309 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0304-0309 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0304-0309 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0310-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0310-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0310-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0310-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
TURKISH EQUIPMENT(S6S) (E) 		8-94452-553-0 01 1 0310-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0409 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
TURKISH EQUIPMENT(S6S) (E) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0410-0410 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0410-0410 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0411-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0411-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0411-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 		8-97093-668-1 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 0911-1508 ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0911-1508 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (F) 		8-97093-668-1 01 1 1509- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 1509- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 		8-97120-589-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0505-0910 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0505-0910 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-0911 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0911-0911 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 0911-1004 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0911-1004 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97120-589-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1005- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0211-0211 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0212-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94417-716-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 0212-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (G) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 0502-1004 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 1005- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0502-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. JAPAN PRODUCTION<C1H> (F) 		8-97075-706-4 01 1 1406- ●
çizim 46698
190 1 1 1 431 431 1 431 1 1 431 431 431 431 431 431 1 431 1 1 431 190 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> 		8-98324-029-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-099-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> 		8-98217-099-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98217-105-0 01 1 1207-1511 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-105-1 01 1 1512- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98217-098-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-098-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-104-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. TURKISH EQUIPMENT(S6S) 		8-98217-097-0 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207-1508 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> 		8-98217-097-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98166-742-1 01 1 1005-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98166-742-1 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> 		8-98166-742-1 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98158-155-0 01 1 0911-1402 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98158-155-0 01 1 1403-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98158-155-0 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-98016-889-3 01 1 0505-1508 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98016-889-3 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
TURKISH EQUIPMENT(S6S) 		8-97372-855-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) 		8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB 8-97383-597-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 0211-0309 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S),CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0310-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S) 		8-97381-169-4 01 1 1207-1508 ● ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97381-169-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97185-299-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-598-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-615-4 01 1 0503-1508 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-98010-615-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1207-1508 ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0211-0303 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-3 01 1 0304-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-0910 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 0911-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-170-4 01 1 1207-1508 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2 015(VZF),ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> 		8-97381-170-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0211-0309 ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0309 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> ENGINE POWER N-SPEC(7QV) 		8-97352-231-1 01 1 0310-0501 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0310-0501 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ● ● ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502-1508 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-601-4 01 1 1509- ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-836-1 01 1 0211-0501 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) (A) 		5-82690-411-0 01 1 0505-0505 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
(A) 		5-82690-411-0 01 1 0506-1508 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 		5-82690-411-0 01 1 1509- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (A) 		5-82690-411-0 01 1 1509- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (C) 10P GREEN 		1-82699-599-0 05 1 0502-1004 ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 05 1 0502-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 05 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0502-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0502-0910 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0502-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (F) 6P 		1-82691-206-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (F) 6P 		1-82691-206-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 02 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. ADJUST HEADLAMP<6RC> (F) 6P 		1-82691-206-0 02 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0502-0910 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0502-0910 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1005-1508 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0504 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) 4P 		8-97077-939-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0505-0511 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0512-0910 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (A) 4P 		8-97077-939-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0504 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502-0504 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (B) 6P 		8-97077-941-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0505-0511 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0505-0511 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0512-0910 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0512-0910 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0911-1004 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0911-1004 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 6P 		8-97077-941-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1005-1508 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. PROVISIONAL PACKAGE SPEC<BCC>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 02 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 0505-1004 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 0505-1004 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 1005-1508 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 6P 		8-97381-428-0 01 1 1509- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN 		1-82699-599-0 02 1 0506-1508 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 05 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P 		8-97077-939-0 02 1 0506-0511 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (A) 4P 		8-97077-939-0 02 1 0702-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P 		8-97077-941-0 02 1 0506-0511 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0512-0701 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (B) 6P 		8-97077-941-0 02 1 0702-1508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF),ADJUST HEADLAM P<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1509-1511 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) TURKISH EQUIPMENT(S6S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC>, PHILIPPINE ISLANDS EQUIPMENT(B15),TURKI SH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> PHILIPPINE ISLANDS EQUIPMENT(B15) VIN MODEL YEAR 2015(VZF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. TURKISH EQUIPMENT(S6S),VIN MODELYEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) PHILIPPINE ISLANDS EQUIPMENT(B15) EXC. VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),TURKISH EQUIPMENT(S6S),VIN MODEL YEAR 2015(VZF),ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
PROVISIONAL PACKAGE SPEC<BCC> EXC. ADJUST HEADLAMP<6RC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 6P 		8-97077-941-0 01 1 1512- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1512- ●
çizim 100870
18 18 204 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0502- ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303-0501 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0502- ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97364-157-0 01 1 0303- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0502- ●
çizim 101000
337 339 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98004-054-2 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 		8-97381-165-1 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502-0910 ● ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0502-0910 ●
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0911- ● ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0911- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 0502- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0211-0501 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0502- ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> 		8-98213-781-0 01 1 1405- ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> 02.596 		8-98222-483-0 01 1 1405- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303-0309 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0303-0309 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0310-0501 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0310-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S),DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0502-1404 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0502-1404 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. JAPAN PRODUCTION<C1H>,RR BODY FLAT BED(RS6),TURKISH EQUIPMENT(S6S), DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 1405- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> EXC. JAPAN PRODUCTION<C1H> 		8-97364-151-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-565-0 01 1 0211-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0303-0309 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0303-0309 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. TURKISH EQUIPMENT(S6S),REAR BODYLAGER WIDTH<8EH> 		8-97364-150-0 01 1 0310-0501 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0502-1404 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0502-1404 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. JAPAN PRODUCTION<C1H>,REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) EXC. JAPAN PRODUCTION<C1H> 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 1405- ●
347 02.480 HARNESS; CABLE,RR BODY
TURKISH EQUIPMENT(S6S) 		8-97364-153-0 01 1 0310-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
TURKISH EQUIPMENT(S6S) 		8-97364-153-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-153-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97364-149-0 01 1 0303-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
