7-50 — FRONT SEAT (#51136) — 167 parça

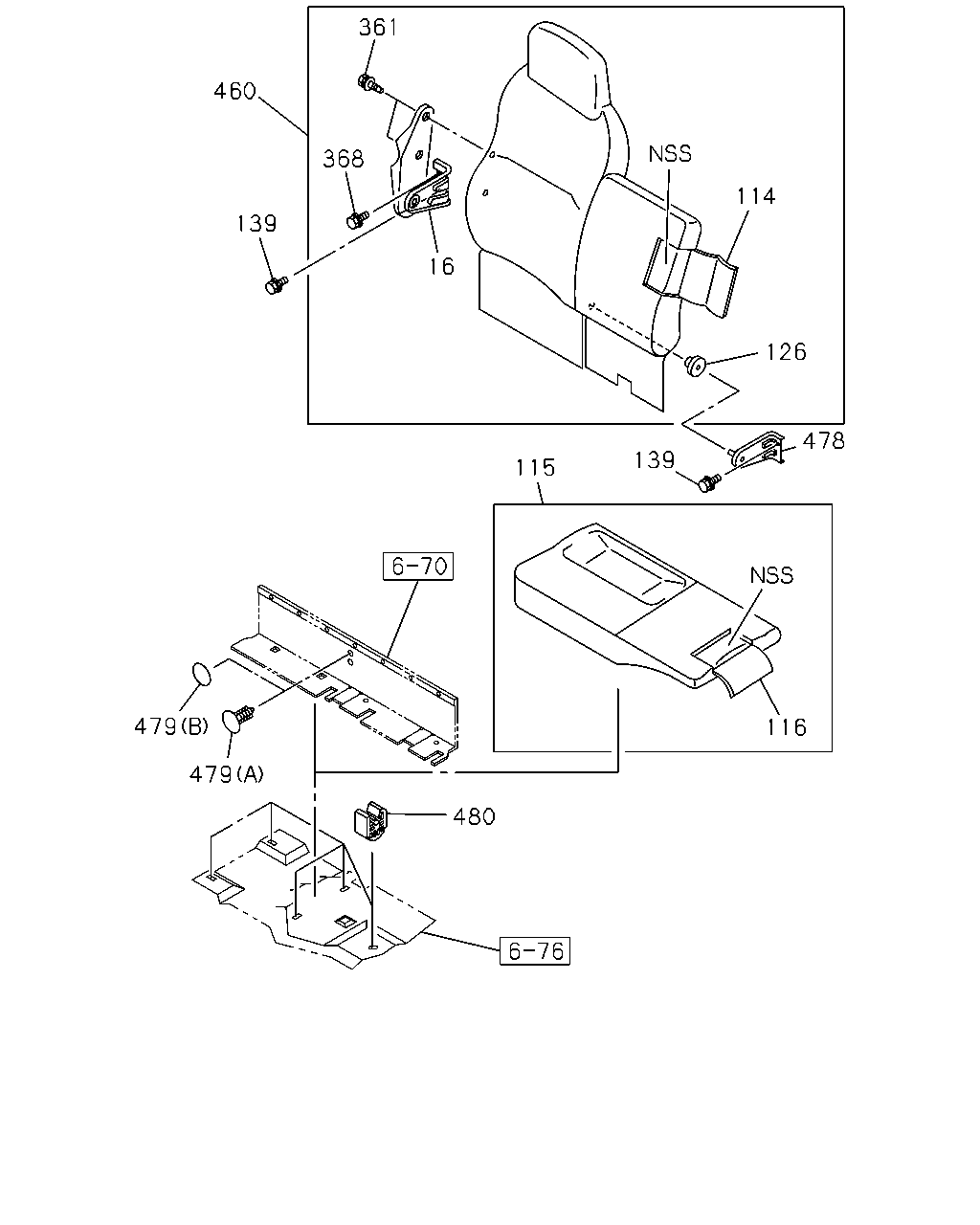

çizim 46614
361 460 368 114 139 16 126 478 139 115 479 116 479 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.682 ADJUSTER ASM; RECLINING
BLACK W/KNOB 		8-97859-274-3 01 1 0211-0501 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
BLACK W/KNOB 		8-97859-274-3 01 1 0502- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-773-1 01 1 0211-0501 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-497-2 01 1 0502- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-772-1 01 1 0211-0501 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-373-2 01 1 0502- ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-724-2 01 1 0211-0501 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-469-3 01 1 0502- ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-723-1 01 1 0211-0501 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-362-3 01 1 0502- ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97394-779-2 01 1 0211-0501 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97400-503-1 01 1 0502- ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-778-1 01 1 0211-0501 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-355-1 01 1 0502- ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0211-0501 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0502-0804 ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0211-0501 ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0502- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0211-0501 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0502- ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0502- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-718-2 01 1 0211-0501 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-465-3 01 1 0502- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-717-2 01 1 0211-0501 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-361-3 01 1 0502- ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 0211-0501 ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 0502- ● ● ● ● ●
479 16.716 PLUG; HINGE
04.931 (A) OD=15 L=14.5 		1-76378-157-0 02 1 0211-0501 ● ● ● ● ● ●
479 16.716 PLUG; HINGE
04.931 (A) OD=15 L=14.5 		1-76378-157-0 02 1 0502-0506 ● ● ● ● ●
479 16.716 PLUG; HINGE
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0507- ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0211-0501 ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0502- ● ● ● ● ●
çizim 46654
1 17 71 99 18 2 19 12 24 228 13 15 72 69 382 67 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-596-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97394-596-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-596-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-596-2 01 1 0304-0501 ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-596-2 01 1 0304-0501 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97394-596-2 01 1 0304-0501 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-476-3 01 1 0502- ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0211-0303 ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0304-0501 ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0304-0501 ●
1 16.720 BACK ASM; SEAT
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0304-0501 ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-365-3 01 1 0502- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-608-2 01 1 0211-0501 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-484-3 01 1 0502- ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-604-2 01 1 0211-0501 ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-377-3 01 1 0502- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-597-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97394-597-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-597-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-597-1 01 1 0304-0501 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-597-1 01 1 0304-0501 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97394-597-1 01 1 0304-0501 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-477-2 01 1 0502- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0211-0303 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0304-0501 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0304-0501 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0304-0501 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-366-2 01 1 0502- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-609-1 01 1 0211-0501 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-485-2 01 1 0502- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-605-1 01 1 0211-0501 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-378-2 01 1 0502- ●
12 16.670 CUSHION; SEAT,FRT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-606-0 01 1 0211-0501 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0502- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0502- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-610-1 01 1 0211-0501 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-482-1 01 1 0502- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-482-1 01 1 0502- ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-598-1 01 1 0211-0501 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-478-1 01 1 0502- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-594-0 01 1 0211-0501 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-367-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-607-0 01 1 0211-0501 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0502- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-611-1 01 1 0211-0501 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-483-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97400-483-1 01 1 0502- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-599-1 01 1 0211-0501 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-479-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-595-0 01 1 0211-0501 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-368-1 01 1 0502- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0211-0501 ● ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0502- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97262-070-1 01 1 0502- ●
17 16.682 BOLT; RECLINING
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> M8X20 		8-97255-906-0 02 1 0211-0303 ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> M8X20 		8-97255-906-0 02 1 0211-0303 ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0211-0303 ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0304-0501 ● ● ● ● ●
17 16.682 BOLT; RECLINING
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> M8X20 		8-97255-906-0 02 1 0304-0501 ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> M8X20 		8-97255-906-0 02 1 0304-0501 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0502- ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-018-0 01 1 0211-0303 ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-018-0 01 1 0211-0303 ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0211-0303 ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0304-0501 ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-018-0 01 1 0304-0501 ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-018-0 01 1 0304-0501 ●
18 16.682 COVER; RECLINING
GRAY 		8-97400-369-0 01 1 0502-0505 ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0506- ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0303 ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0303 ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0303 ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0304-0501 ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0304-0501 ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0304-0501 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0502-0604 ● ● ● ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-019-0 01 1 0211-0303 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-019-0 01 1 0211-0303 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 0211-0303 ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 0304-0501 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-019-0 01 1 0304-0501 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-019-0 01 1 0304-0501 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97400-370-0 01 1 0502-0505 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0506-0804 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> 		8-97854-947-3 01 1 0211-0303 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> 		8-97854-947-3 01 1 0304-0501 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. BRAZIL EQUIPMENT(RWF) 		8-97854-670-3 01 1 0211-0303 ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0211-0303 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0304-0501 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. BRAZIL EQUIPMENT(RWF) 		8-97854-670-3 01 1 0304-0501 ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0502- ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0502- ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0502- ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0211-0303 ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0211-0303 ● ●
71 16.682 BOLT; ADJ TO SEAT
01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0211-0303 ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0304-0501 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0304-0501 ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0304-0501 ●
71 16.682 BOLT; ADJ TO SEAT
01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0502-0512 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
00.724 M8X35 W/LK WASHER 		0-50540-835-0 02 1 0601- ● ● ● ● ●
72 16.682 SPACER; SEAT ADJ
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-671-0 02 1 0211-0303 ● ●
72 16.682 SPACER; SEAT ADJ
MANUAL TILT CAB<RWZ> 		8-97854-671-0 02 1 0211-0303 ● ●
72 16.682 SPACER; SEAT ADJ 8-97854-671-0 02 1 0211-0303 ● ● ● ●
72 16.682 SPACER; SEAT ADJ 8-97854-671-0 02 1 0304-0501 ● ● ● ● ●
72 16.682 SPACER; SEAT ADJ
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-671-0 02 1 0304-0501 ●
72 16.682 SPACER; SEAT ADJ
MANUAL TILT CAB<RWZ> 		8-97854-671-0 02 1 0304-0501 ●
72 16.682 SPACER; SEAT ADJ 8-97854-671-0 02 1 0502- ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-087-0 01 1 0211-0303 ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> 		8-97854-087-0 01 1 0211-0303 ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0211-0303 ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0304-0501 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-087-0 01 1 0304-0501 ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> 		8-97854-087-0 01 1 0304-0501 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0502- ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 11.377 M4X6 		8-97042-273-0 01 1 0211-0303 ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> 11.377 M4X6 		8-97042-273-0 01 1 0211-0303 ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0211-0303 ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0304-0501 ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 11.377 M4X6 		8-97042-273-0 01 1 0304-0501 ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> 11.377 M4X6 		8-97042-273-0 01 1 0304-0501 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0502- ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0211-0501 ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
