◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#5113) — 1490 parça

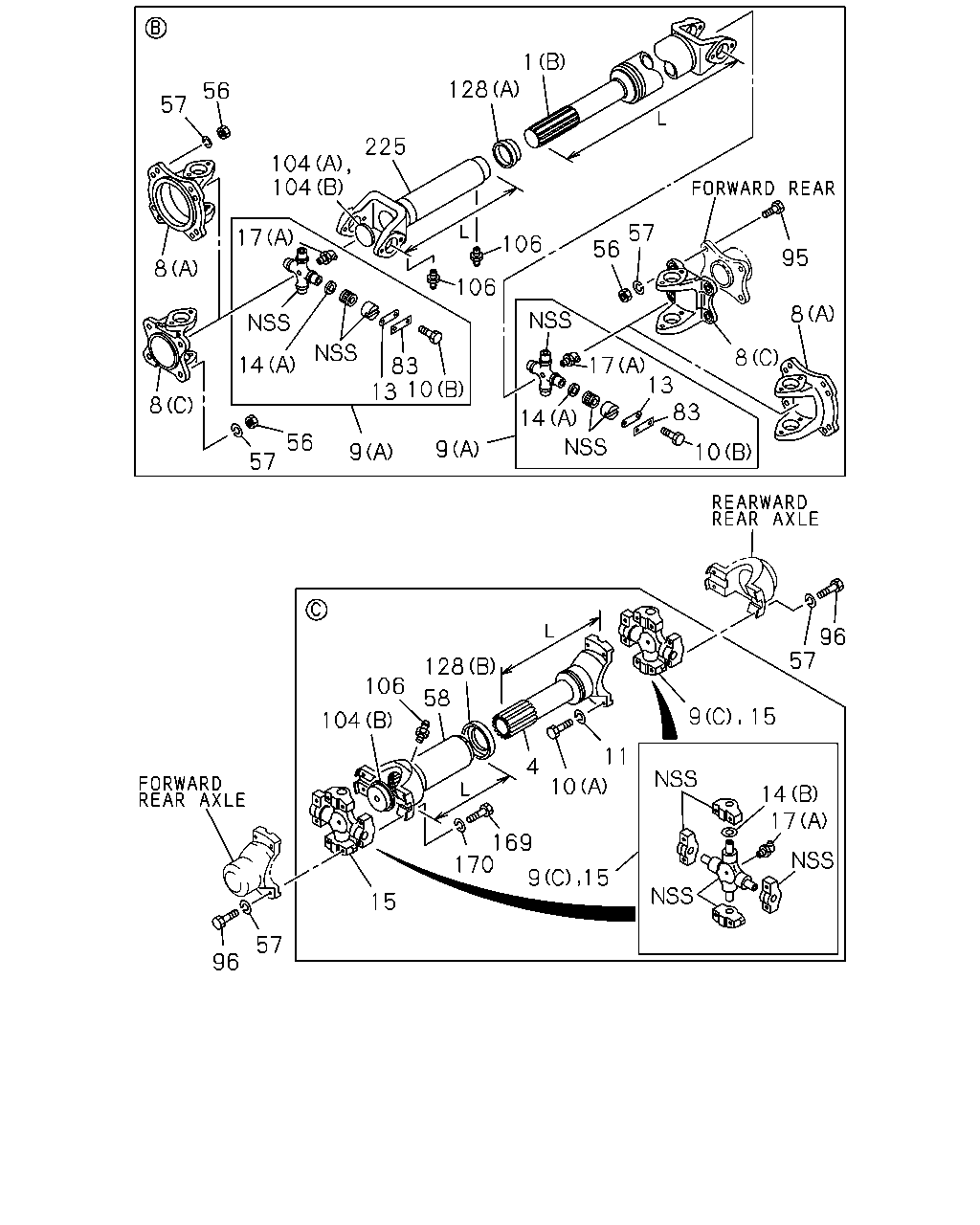

çizim 4518
1 128 56 57 225 104 104 57 56 17 106 95 8 106 8 8 14 17 83 13 10 13 83 8 14 56 9 9 10 57 96 57 128 106 58 9 15 104 11 4 10 14 17 169 170 9 15 15 57 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9606-9609 ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9606-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 03 1 9606-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9701-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9707-9905 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9906-9906 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9907- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9907- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9701-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9606-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9606- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9606-9609 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9606-9609 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 08 1 9606-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9606-9612 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9606-9701 ● ●
15 UNIVERSAL CENTER 1-37300-100-0 01 1 9702-9705 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 02 1 9706-9905 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 16 1 9606-9706 ● ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9707- ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 08 1 9606-9706 ● ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9606- ● ●
58 FLANGE; SPLINED 1-37245-157-1 01 1 9606-9701 ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 04 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9606-9612 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9706 ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X48 		1-09000-383-0 08 1 9707- ● ●
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9606- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9606-9612 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9606-9612 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9701-9706 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9707-9905 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9906- ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606-9612 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9606- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 9606- ● ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9606-9612 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9606- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9606- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9606- ● ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9606-9612 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9701-9706 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9701-9706 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9707-9905 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9707-9905 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9906- ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9906- ●

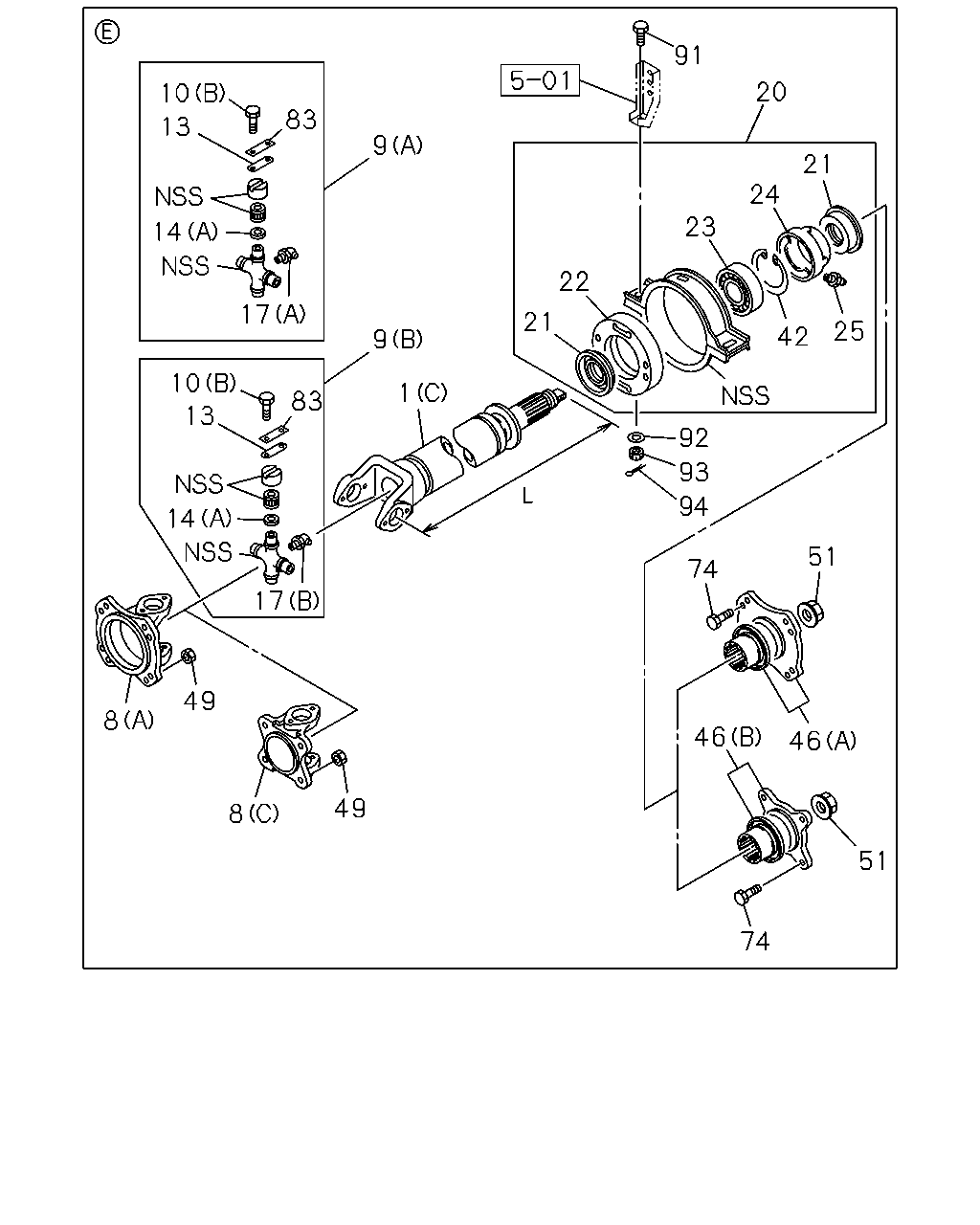

çizim 5156
91 20 10 83 13 9 21 24 23 14 22 17 21 25 42 9 10 1 83 13 92 93 94 14 51 74 17 49 8 46 46 49 8 51 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9606-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 03 1 9606-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9701-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9707-9905 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9906-9906 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9907- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9907- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9701-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9606-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9606-9609 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9606-9609 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 08 1 9606-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9606-9612 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●

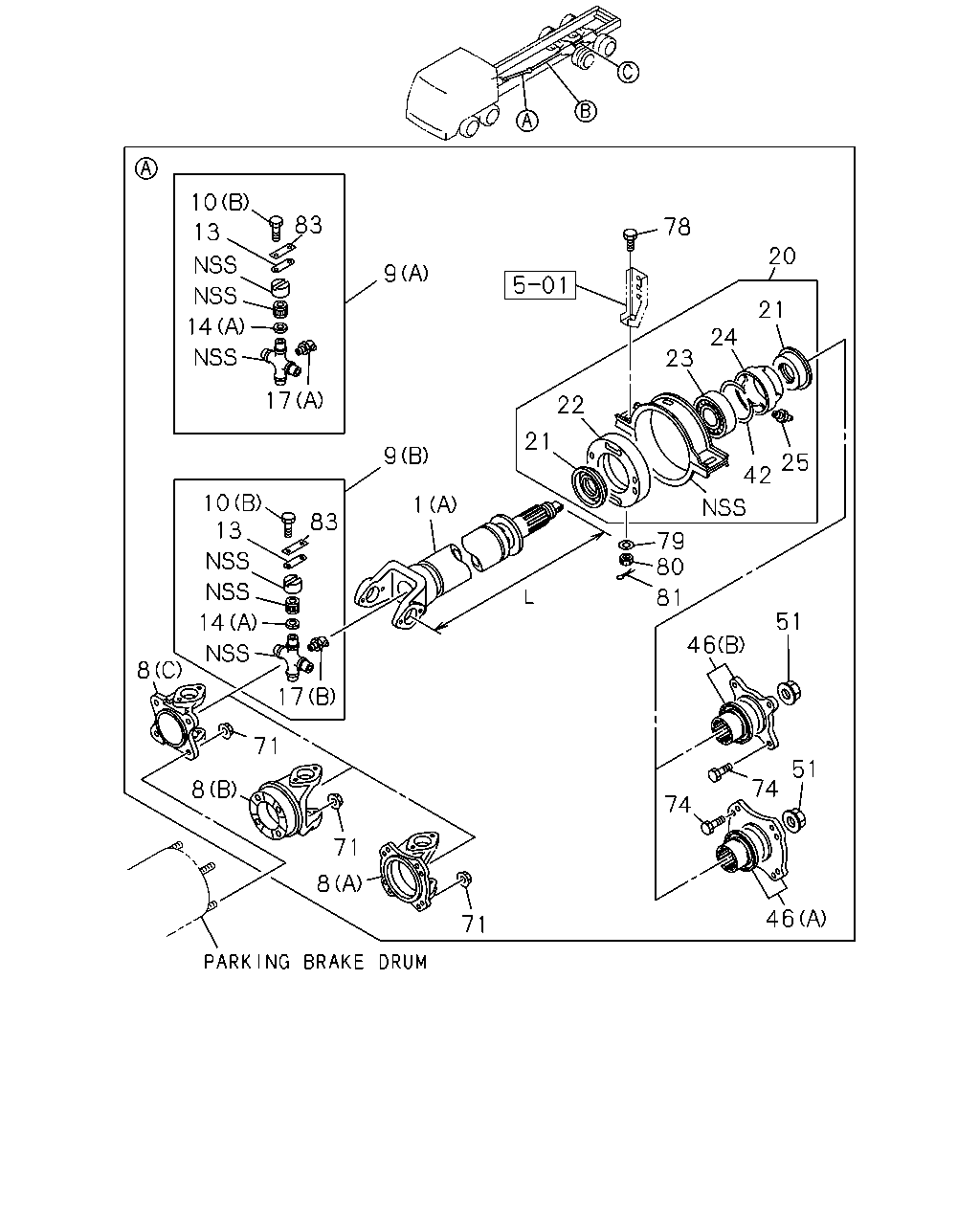

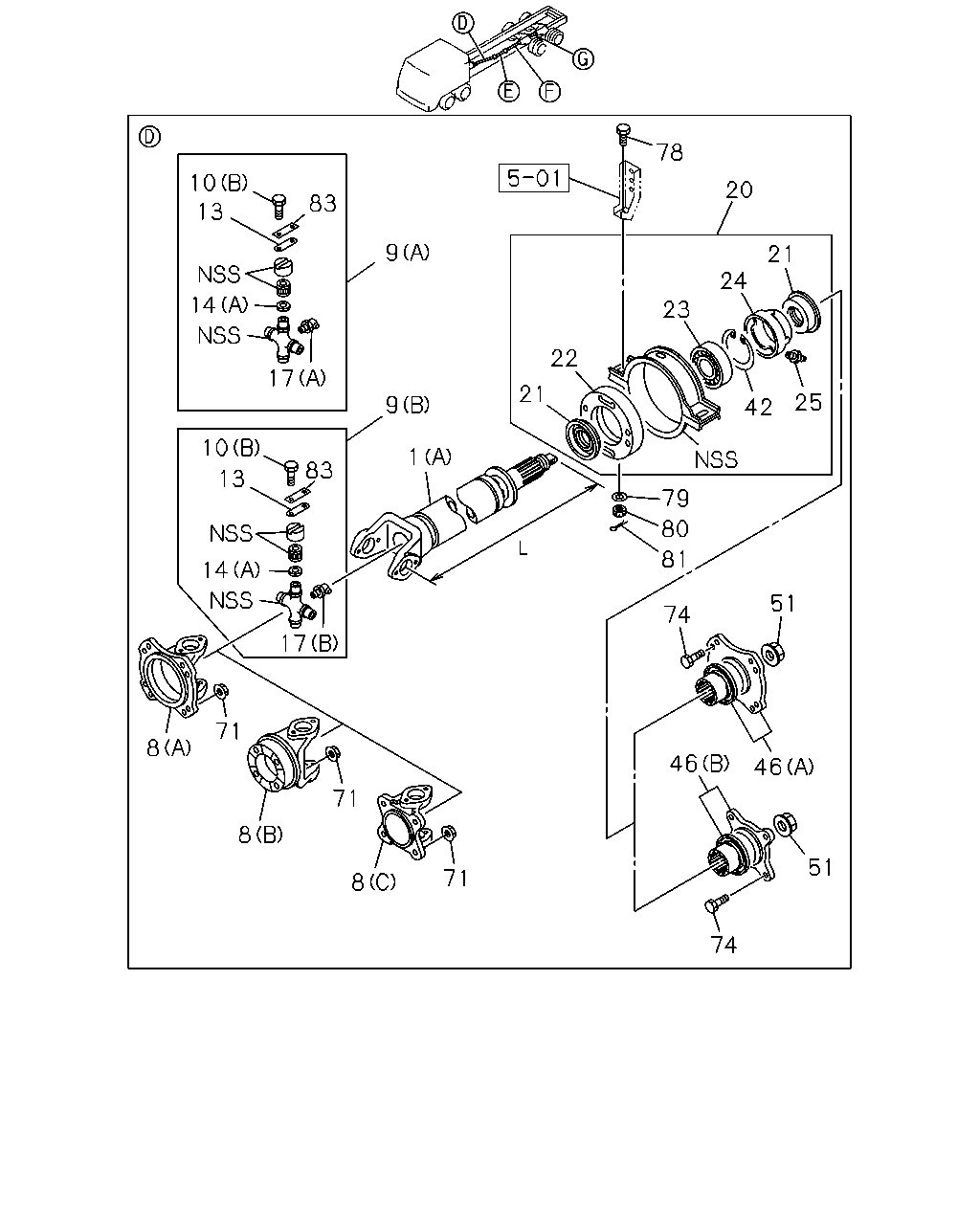

20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9606-9609 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9606-9612 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9906-9906 ● ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9907- ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9606-9609 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ● ●
21 SEAL; OIL,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9606-9612 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9906-9906 ● ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9907- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9606-9609 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9606-9612 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9906-9906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9907- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9606-9609 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9606-9612 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9906-9906 ● ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9907- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9606-9609 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9606-9612 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9906-9906 ● ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ●
42 RING; SNAP,CTR BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9606-9612 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ● ●
42 RING; SNAP,CTR BRG
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9906-9906 ● ●
42 RING; SNAP,CTR BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9907- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9606-9609 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9606-9612 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9906-9906 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9907- ● ●
49 NUT; YOKE
EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 04 1 9606-9609 ●
49 NUT; YOKE
10PE1S(60L) EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 04 1 9610-9905 ●
49 NUT; YOKE
10PE1N(61L) EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 04 1 9906- ●
49 NUT; YOKE
10PE1S(60L) P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 08 1 9606-9905 ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9606-9609 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ● ●
51 NUT; FLANGE,SPLINED
10PE1N(61L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ●
51 NUT; FLANGE,SPLINED
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9606-9612 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9906-9906 ● ●
51 NUT; FLANGE,SPLINED
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9907- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9906- ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ● ●
74 BOLT; YOKE,TRANS
10PE1N(61L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 04 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9606-9612 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
91 BOLT; HOLDER SET,CTR BRG
10PE1S(60L) M16X45 		1-09042-030-0 02 1 9606-9905 ●
91 BOLT; HOLDER SET,CTR BRG
10PE1N(61L) M16X45 		1-09042-030-0 02 1 9906- ●
92 WASHER; LK,HOLDER SET,CTR BRG
10PE1S(60L) ID=17 		1-09503-241-0 02 1 9606-9905 ●
92 WASHER; LK,HOLDER SET,CTR BRG
10PE1N(61L) ID=17 		1-09503-241-0 02 1 9906- ●
93 NUT; HOLDER SET,CTR BRG
10PE1S(60L) M16 SLOTTED 		9-99116-516-0 02 1 9606-9905 ●
93 NUT; HOLDER SET,CTR BRG
10PE1N(61L) M16 SLOTTED 		9-99116-516-0 02 1 9906- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
10PE1S(60L) OD=3.7 L=25 		9-08114-025-0 02 1 9606-9905 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
10PE1N(61L) OD=3.7 L=25 		9-08114-025-0 02 1 9906- ●
çizim 5157
1 1 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9606-9609 ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 9610- ● ●
çizim 5228
10 83 78 13 20 9 21 14 24 23 17 22 21 9 25 42 10 13 1 83 79 80 81 51 14 46 8 17 71 51 74 8 74 71 8 46 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9606-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 03 1 9606-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9701-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9707-9905 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9906-9906 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9907- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9907- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9701-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9606-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9606-9609 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9606-9609 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 08 1 9606-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9606-9612 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9606-9609 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9606-9612 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9906-9906 ● ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9907- ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9606-9609 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ● ●
21 SEAL; OIL,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9606-9612 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9906-9906 ● ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9907- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9606-9609 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9606-9612 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9906-9906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9907- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9606-9609 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9606-9612 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9906-9906 ● ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9907- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9606-9609 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9606-9612 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9906-9906 ● ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ●
42 RING; SNAP,CTR BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9606-9612 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ● ●
42 RING; SNAP,CTR BRG
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9906-9906 ● ●
42 RING; SNAP,CTR BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9907- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9606-9609 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9606-9612 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9906-9906 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9907- ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9606-9609 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ● ●
51 NUT; FLANGE,SPLINED
10PE1N(61L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ●
51 NUT; FLANGE,SPLINED
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9606-9612 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9906-9906 ● ●
51 NUT; FLANGE,SPLINED
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9907- ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9606-9905 ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9906- ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. ZF M/T<X9E> M16 FLANGE 		1-09449-065-0 08 1 9606-9905 ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. FULLER M/T<X9B>,ZF M/T<X9E> M16 FLANGE 		1-09449-065-0 08 1 9906- ● ●
71 NUT; YOKE
EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 04 1 9606- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9906- ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ● ●
74 BOLT; YOKE,TRANS
10PE1N(61L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9606- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9606- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9606- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 04 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9606-9612 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
çizim 5485
78 10 13 20 83 9 21 24 14 23 22 17 21 25 9 42 10 1 83 13 79 80 81 14 51 74 17 71 8 46 46 71 8 51 71 8 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9606-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 03 1 9606-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9701-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9707-9905 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9906-9906 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9907- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9907- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9701-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9606-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9606-9609 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9606-9609 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 08 1 9606-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9606-9612 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9606-9609 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9610-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9906- ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9606-9612 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ● ●
20 BEARING ASM; CTR,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9701-9905 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9906-9906 ● ●
20 BEARING ASM; CTR,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37510-101-0 01 1 9907- ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9606-9609 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9610-9905 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ● ●
21 SEAL; OIL,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9906- ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9606-9612 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ● ●
21 SEAL; OIL,CENTER BRG
10PE1S(60L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9701-9905 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9906-9906 ● ●
21 SEAL; OIL,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) OD=114 		1-09625-222-1 02 1 9907- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9606-9609 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9610-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9606-9612 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9701-9905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9906-9906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 9907- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9606-9609 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9610-9905 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9906- ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9606-9612 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ● ●
23 BEARING; CENTER,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9701-9905 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9906-9906 ● ●
23 BEARING; CENTER,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 9907- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9606-9609 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9610-9905 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ● ●
24 RETAINER; CENTER BRG,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9906- ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9606-9612 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ● ●
24 RETAINER; CENTER BRG,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9701-9905 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9906-9906 ● ●
24 RETAINER; CENTER BRG,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37529-067-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9609 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1S(60L) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9905 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9906-9906 ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ● ●
25 NIPPLE; GREASE,CENTER BRG
10PE1N(61L) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 9907- ●
42 RING; SNAP,CTR BRG
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9606-9612 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ● ●
42 RING; SNAP,CTR BRG
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9701-9905 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9906-9906 ● ●
42 RING; SNAP,CTR BRG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 9907- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9606-9609 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9610-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1N(61L) P90 PROP SHAFT(C5T) (B) 		1-37245-271-1 01 1 9906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9606-9612 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9701-9905 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9906-9906 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37240-088-1 01 1 9907- ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9606-9609 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9610-9905 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ● ●
51 NUT; FLANGE,SPLINED
10PE1N(61L) P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9906- ●
51 NUT; FLANGE,SPLINED
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9606-9612 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ● ●
51 NUT; FLANGE,SPLINED
10PE1S(60L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9701-9905 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9906-9906 ● ●
51 NUT; FLANGE,SPLINED
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 9907- ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9606-9905 ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9906- ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. ZF M/T<X9E> M16 FLANGE 		1-09449-065-0 08 1 9606-9905 ● ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. FULLER M/T<X9B>,ZF M/T<X9E> M16 FLANGE 		1-09449-065-0 08 1 9906- ● ●
71 NUT; YOKE
EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 04 1 9606- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9606 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9905 ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9906- ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606-9609 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ● ●
74 BOLT; YOKE,TRANS
10PE1S(60L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9610-9905 ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ● ●
74 BOLT; YOKE,TRANS
10PE1N(61L) EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9906- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9606- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9606- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9606- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 04 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9606-9612 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
çizim 5805
1 128 225 56 104 104 8 17 106 106 14 83 56 8 9 56 56 95 8 95 8 8 57 56 95 57 56 17 14 13 9 10 8 83 13 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1497 		1-37124-202-0 01 1 9606- ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) ENGINE REAR PTO<SV1> EURO2 SPECIFICATION<THN> (A) L=831 		1-37152-883-0 01 1 0002- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) L=545 		1-37124-309-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) L=928 		1-37152-216-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. ENGINE REAR PTO<SV1> (A) L=928 		1-37152-216-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> (A) L=1353 		1-37152-217-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1347 		1-37151-465-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9702-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) ENGINE REAR PTO<SV1> (A) L=858 		1-37152-250-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (A) L=901 		1-37152-229-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=901 		1-37152-229-0 01 1 9906-0001 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> EXC. ENGINE REAR PTO<SV1> (A) L=901 		1-37152-229-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9606-9905 ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1158 		1-37152-130-0 01 1 9906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (B) L=787 		1-37124-203-0 01 1 9906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9606-9609 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9610-9905 ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT(C5T) (C) L=968 		1-37152-131-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (B) L=750 		1-37124-201-0 01 1 9606-9905 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9906- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT(C5X) (C) L=961 		1-37152-129-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT(C5T) BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1142 		1-37151-445-0 01 1 9606-9905 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1131 		1-37152-128-0 01 1 9606-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) L=1355 		1-37124-042-0 01 1 9707-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9610-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (B) L=1392 		1-37124-299-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9606-9706 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9707-9803 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) L=1376 		1-37151-973-0 01 1 9804-9905 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906-9906 ●
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO14918(Y4C) P115 PROP SHAFT(C5X) (A) L=1386 		1-37152-621-0 01 1 9906- ●
1 SHAFT; PROP
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9701-9905 ●
1 SHAFT; PROP
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (A) L=1331 		1-37152-228-0 01 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9606-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9610- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9606-9609 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9610-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 03 1 9606-9905 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9701-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9707-9905 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT(C5X) EURO2 SPECIFICATION<THN> (B) 		1-37211-069-2 01 1 9906-9906 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-9906 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) 		1-37211-069-2 01 1 9907- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9907- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9606-9612 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9701-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9906- ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9606-9706 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9803 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT(C5X) (A) 		1-37211-068-1 01 1 9804-9905 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9606-9609 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) 		1-37355-020-0 04 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9606-9609 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9610-9905 ●
13 COVER; FRT UJT,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) 		1-37355-020-0 08 1 9906- ●
13 COVER; FRT UJT,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 08 1 9606-9905 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9606-9612 ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9701-9706 ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9707-9905 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9906-9906 ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ● ●
13 COVER; FRT UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37355-021-0 04 1 9907- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 16 1 9606-9706 ● ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9707- ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 08 1 9606-9706 ● ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 04 1 9606- ● ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9606-9612 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9701-9706 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9707-9905 ●
83 PLATE; LK,UJT,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37356-009-0 04 1 9906- ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9606-9706 ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT(C5X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X48 		1-09000-383-0 08 1 9707- ● ●
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 04 1 9606- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9606-9612 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9606-9612 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9701-9706 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9707-9905 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9906- ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606-9612 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9606- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 9606- ● ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9606-9612 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9606- ● ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9606-9612 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9701-9706 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9701-9706 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9707-9905 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9707-9905 ●
225 YOKE; SLEEVE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9906- ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=345 		1-37241-107-1 01 1 9906- ●
çizim 42618
96 57 128 106 58 9 15 104 11 4 10 169 14 17 170 15 57 96 9 15
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9606-9609 ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 9610- ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9606-9701 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 9706- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 9606- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9606-9612 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-093-0 AR 1 9701- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9606-9706 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9707-9905 ● ●
10 BOLT; UJT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
6WA1 TC-C(55L),10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		9-02061-020-0 08 1 9906- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9606-9609 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9610-9612 ●
10 BOLT; UJT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9701-9706 ●
10 BOLT; UJT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9707-9905 ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) EURO2 SPECIFICATION<THN> (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 16 1 9906- ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9606- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9606-9609 ●
10 BOLT; UJT
10PE1S(60L) P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (B) M10X20 		9-02061-020-0 24 1 9610-9905 ●
10 BOLT; UJT
10PE1N(61L) P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 24 1 9906- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9606- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9606-9609 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9610-9905 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 9906- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9606- ● ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9606-9609 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 9610- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9606-9609 ●
14 COVER; DUST,SPIDER
10PE1S(60L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9610-9905 ●
14 COVER; DUST,SPIDER
10PE1N(61L) P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 9906- ●
14 COVER; DUST,SPIDER
10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 12 1 9606-9905 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9606-9612 ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9701-9706 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9707-9905 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 9906- ●
14 COVER; DUST,SPIDER
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9606-9612 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9701-9905 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9906-9906 ● ●
14 COVER; DUST,SPIDER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 9907- ● ●
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9606-9701 ● ●
15 UNIVERSAL CENTER 1-37300-100-0 01 1 9702-9705 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 02 1 9706-9905 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9606-9609 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9610- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9701-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9906-9906 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ● ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1N(61L) P90 PROP SHAFT(C5T) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9907- ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 9606-9905 ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N), TRANSMISSION-FULLERRTL0147 13 OD(Y2P) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
10PE1S(60L) P90 PROP SHAFT(C5T) MJA7 M/T<X9Q> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9606-9612 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9701-9706 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-S(56L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9707-9905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T),P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9906- ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9606- ● ●
58 FLANGE; SPLINED 1-37245-157-1 01 1 9606-9701 ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9606- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9606-9612 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9606-9612 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9701-9706 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9701-9706 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9707-9905 ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9707-9905 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9906- ● ●
104 PLUG; SLEEVE YOKE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 9906- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606-9612 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9701-9706 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9707-9905 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906- ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9606- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 9606- ● ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9606-9612 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9701-9706 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9707-9905 ●
128 SEAL; SLEEVE
6WA1 TC-C(55L) P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 9906- ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9606- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9606- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
