6-80 — BACK PANEL (#51125) — 104 parça

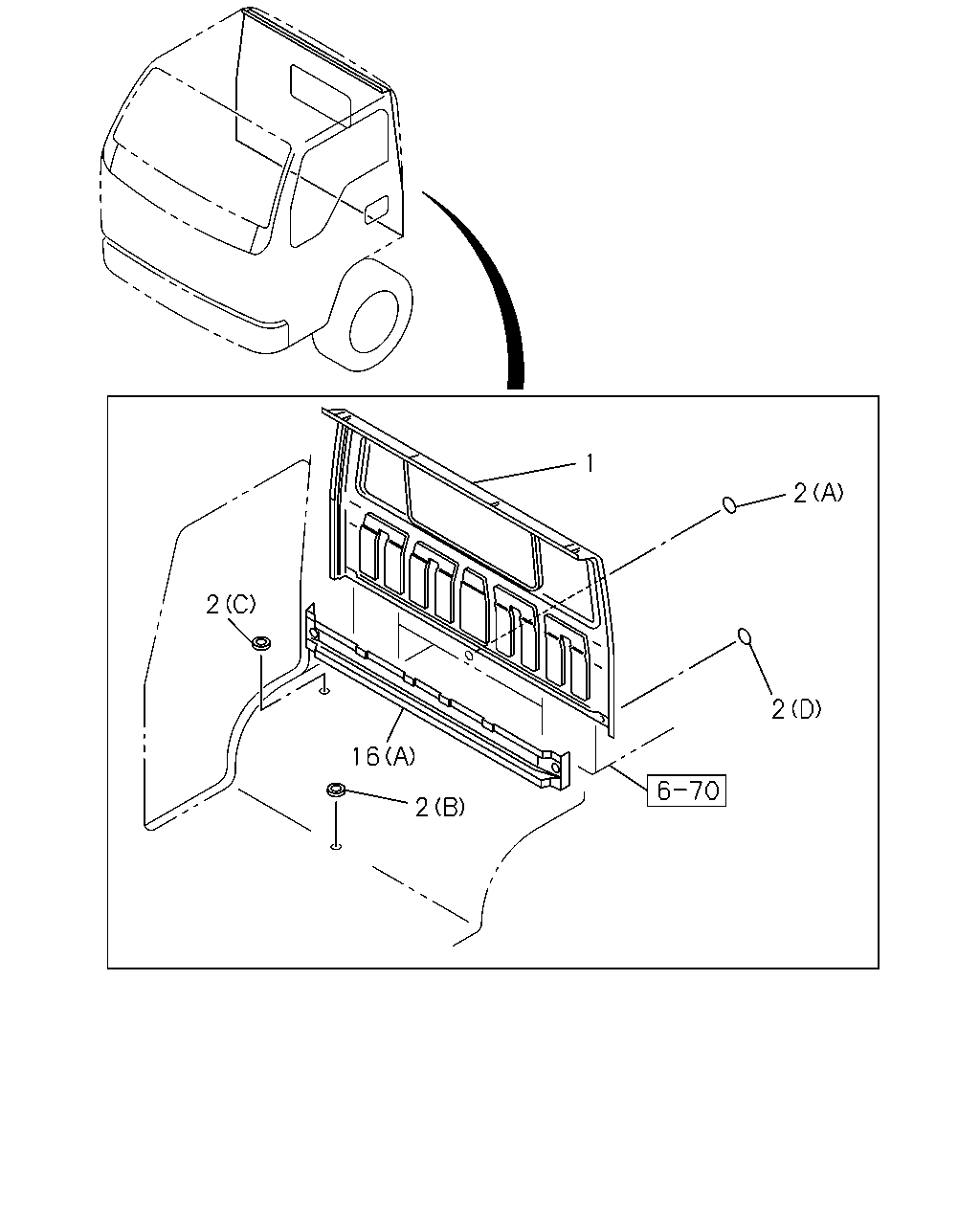

çizim 46575
1 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 4.0-4.5TON(RPR) 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0502-0504 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0505-0910 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0911- ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0211-0501 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0502- ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-97851-544-2 01 1 0502-1105 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-98182-755-0 01 1 1106- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0502-0512 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211-0501 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0502- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502-0910 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0911-1004 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 1005- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0502- ●

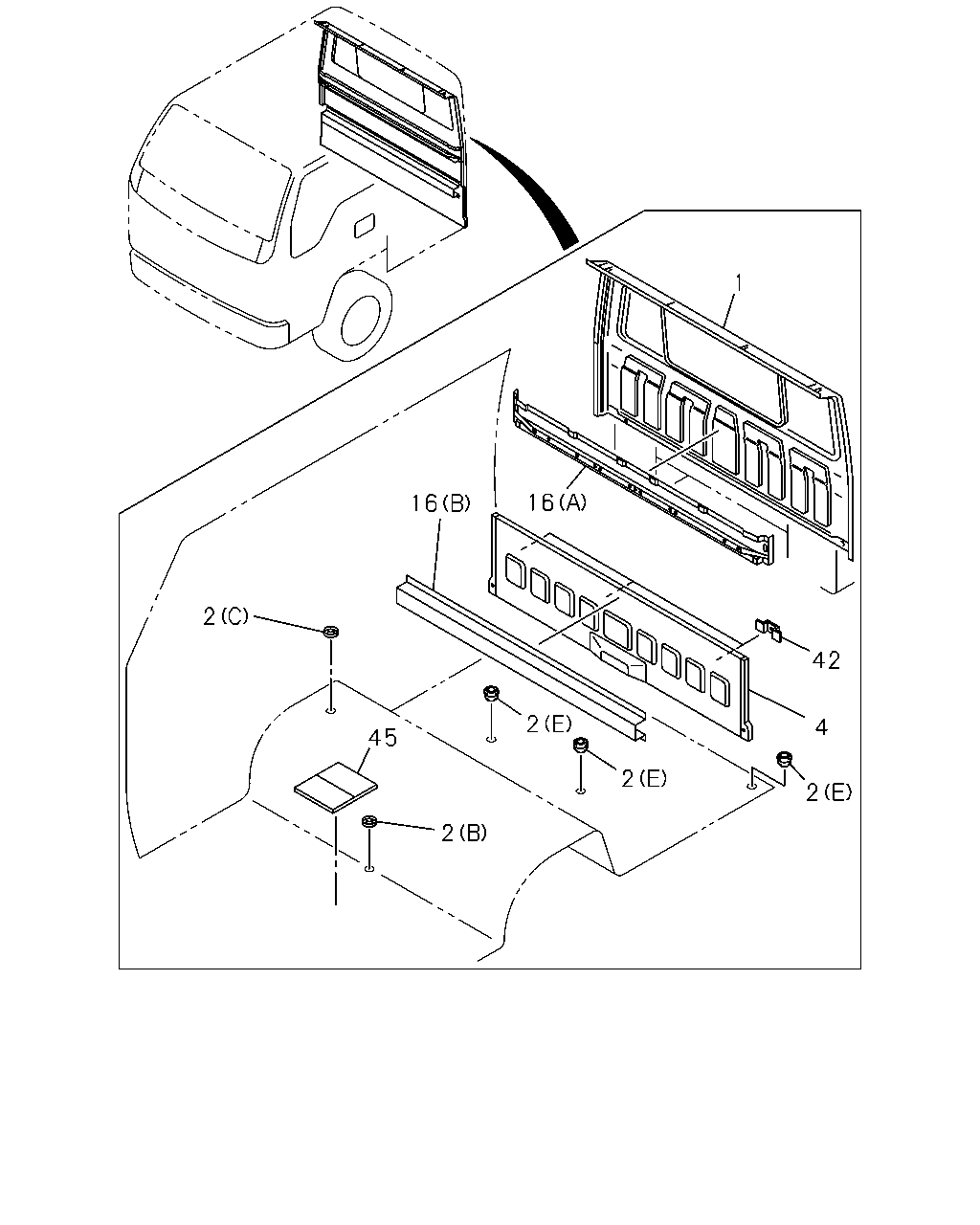

çizim 46618
1 16 16 2 42 2 4 45 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-1004 ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1005-1404 ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 4.0-4.5TON(RPR) 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 02 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0502-0504 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0502-0504 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0505-0910 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0505-0910 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97851-352-2 01 1 0911- ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0911- ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0211-0501 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0502- ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-97851-544-2 01 1 0502-1105 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-98182-755-0 01 1 1106- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0502-0512 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211-0501 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0502- ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 0211-0501 ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 0502- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502-0910 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0911-1004 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 1005- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0502- ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 0211-0501 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 0502- ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 0211-0501 ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 0502- ●
