6-75 — MAT AND CARPET (#51122) — 49 parça

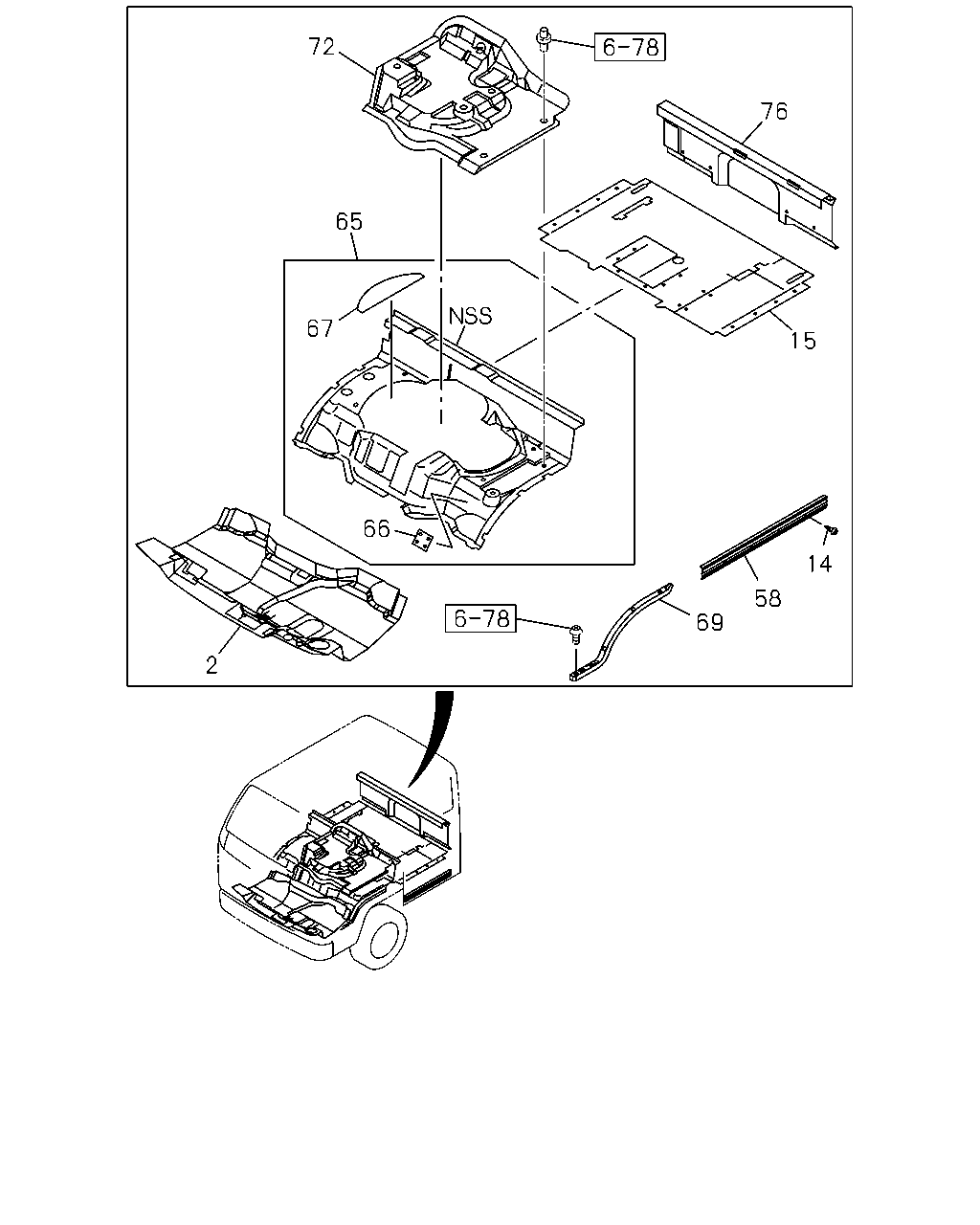

72 76 65 67 15 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-2	01	1	0211-0501	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-424-4	01	1	0502-	●		●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-2	01	1	0211-0501	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-423-4	01	1	0502-	●		●	●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0211-0501		●			●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0502-0612					●
14	16.870 SCREW; PLATE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0701-					●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97996-668-1	01	1	0211-0501		●			●
15	16.800 MAT; FLOOR REAR GRAY	8-97587-425-2	01	1	0502-					●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	0211-0501		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	0502-					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0211-0501	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-434-1	01	1	0502-	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0211-0501		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-439-1	01	1	0502-					●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0211-0501	●	●	●	●	●	●
66	16.549 HOOK; COVER GRAY	8-97583-948-0	02	1	0502-	●		●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0211-0501	●	●	●	●	●	●
67	16.549 LID; COVER GRAY	8-97587-505-0	01	1	0502-	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0502-0702	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0502-0702	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-	●		●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0211-0501	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-474-1	01	1	0502-	●		●	●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-086-0	01	1	0211-0501		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97587-472-2	01	1	0502-					●

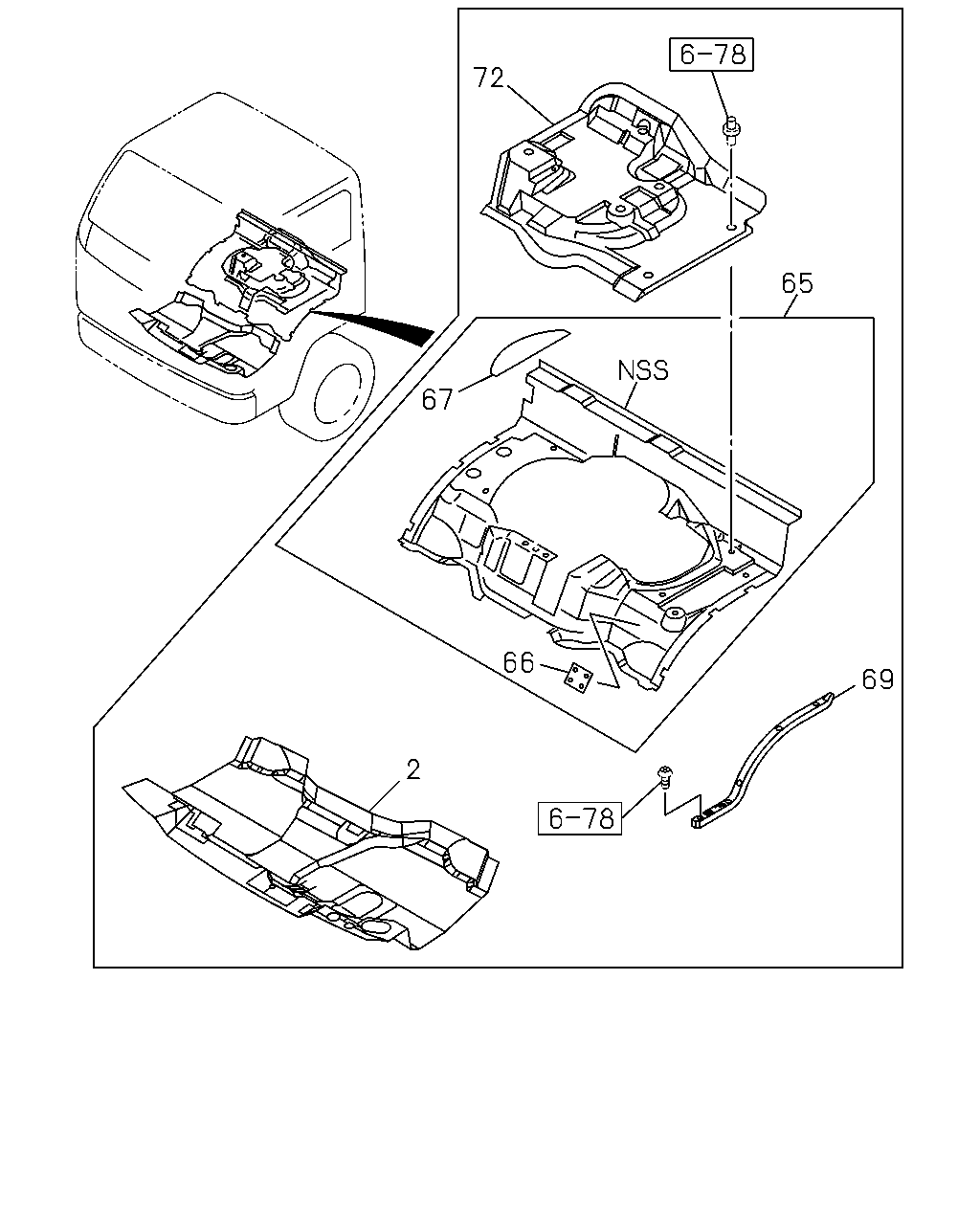

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-2	01	1	0211-0501	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-424-4	01	1	0502-	●		●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-2	01	1	0211-0501	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-423-4	01	1	0502-	●		●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0211-0501	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-434-1	01	1	0502-	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0211-0501		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-439-1	01	1	0502-					●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0211-0501	●	●	●	●	●	●
66	16.549 HOOK; COVER GRAY	8-97583-948-0	02	1	0502-	●		●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0211-0501	●	●	●	●	●	●
67	16.549 LID; COVER GRAY	8-97587-505-0	01	1	0502-	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0502-0702	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0502-0702	●		●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-	●		●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0211-0501	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-474-1	01	1	0502-	●		●	●	●	●
