6-47 — MUD GUARD AND INSULATOR (#51113) — 276 parça

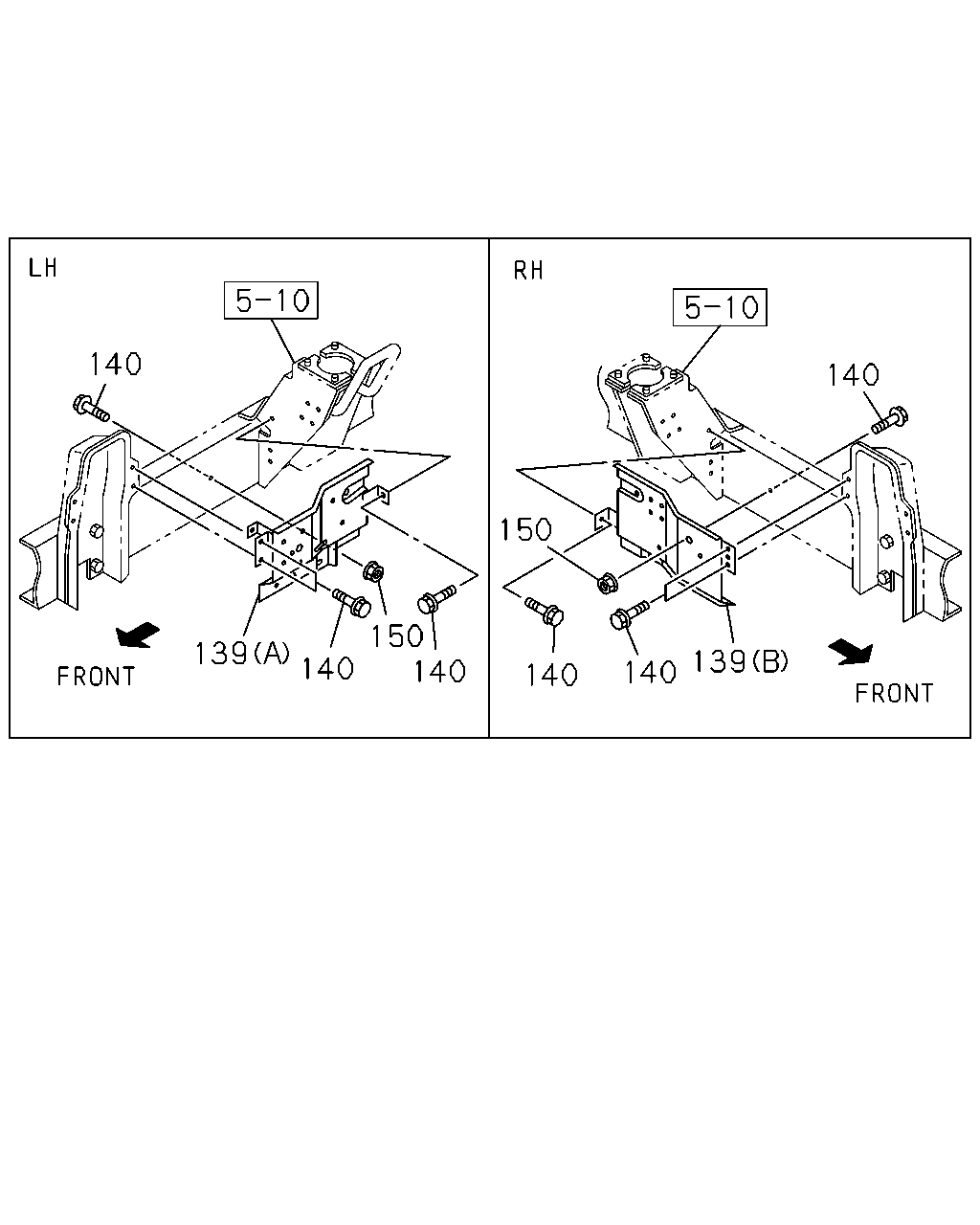

140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE 4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-382-1	01	1	0211-0501	●
139	08.153 PANEL; SIDE 4HF1-S ENG(RLS) (B)	8-97078-382-1	01	1	0211-0501		●	●
139	08.153 PANEL; SIDE (B)	8-97078-382-1	01	1	0211-0501				●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-382-1	01	1	0502-1004	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) (B)	8-97078-382-1	01	1	0502-1004		●	●
139	08.153 PANEL; SIDE (B)	8-97078-382-1	01	1	0502-1004				●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-382-1	01	1	1005-	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) (B)	8-97078-382-1	01	1	1005-		●	●
139	08.153 PANEL; SIDE (B)	8-97078-382-1	01	1	1005-				●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97329-250-0	01	1	0211-0501	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97329-250-0	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97329-250-0	01	1	0505-0910	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97329-250-0	01	1	0911-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97329-249-0	01	1	0211-0501	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97329-249-0	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97329-249-0	01	1	0505-0910	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97329-249-0	01	1	0911-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-381-1	01	1	0211-0501	●	●	●		●	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-381-1	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0502-0504		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0502-0504			●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	0502-0504						●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-381-1	01	1	0505-0910	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0505-0910		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0505-0910			●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	0505-0910						●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-381-1	01	1	0911-	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0911-		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97078-381-1	01	1	0911-			●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	0911-						●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0211-0501	●				●	●
139	08.153 PANEL; SIDE 4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0211-0501	●	●	●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97035-774-3	01	1	0211-0501		●	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0502-0504		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0502-0504			●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0502-0504				●		●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0505-0910	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0505-0910	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0505-0910		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0505-0910			●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0505-0910				●		●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0911-1004	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0911-1004	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0911-1004	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0911-1004		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	0911-1004			●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0911-1004				●		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	1005-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	1005-	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	1005-	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	1005-		●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A)	8-97035-774-3	01	1	1005-			●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	1005-				●		●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97083-093-1	01	1	0211-0501	●	●	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97083-093-1	01	1	0502-0504	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) (A)	8-97083-093-1	01	1	0502-0504		●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97083-093-1	01	1	0505-	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) (A)	8-97083-093-1	01	1	0505-		●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97083-093-1	01	1	0505-			●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0211-0501	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0211-0501		●	●	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0502-0512	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0502-0512		●	●	●		●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0601-	●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0601-		●	●	●		●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●		●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●		●

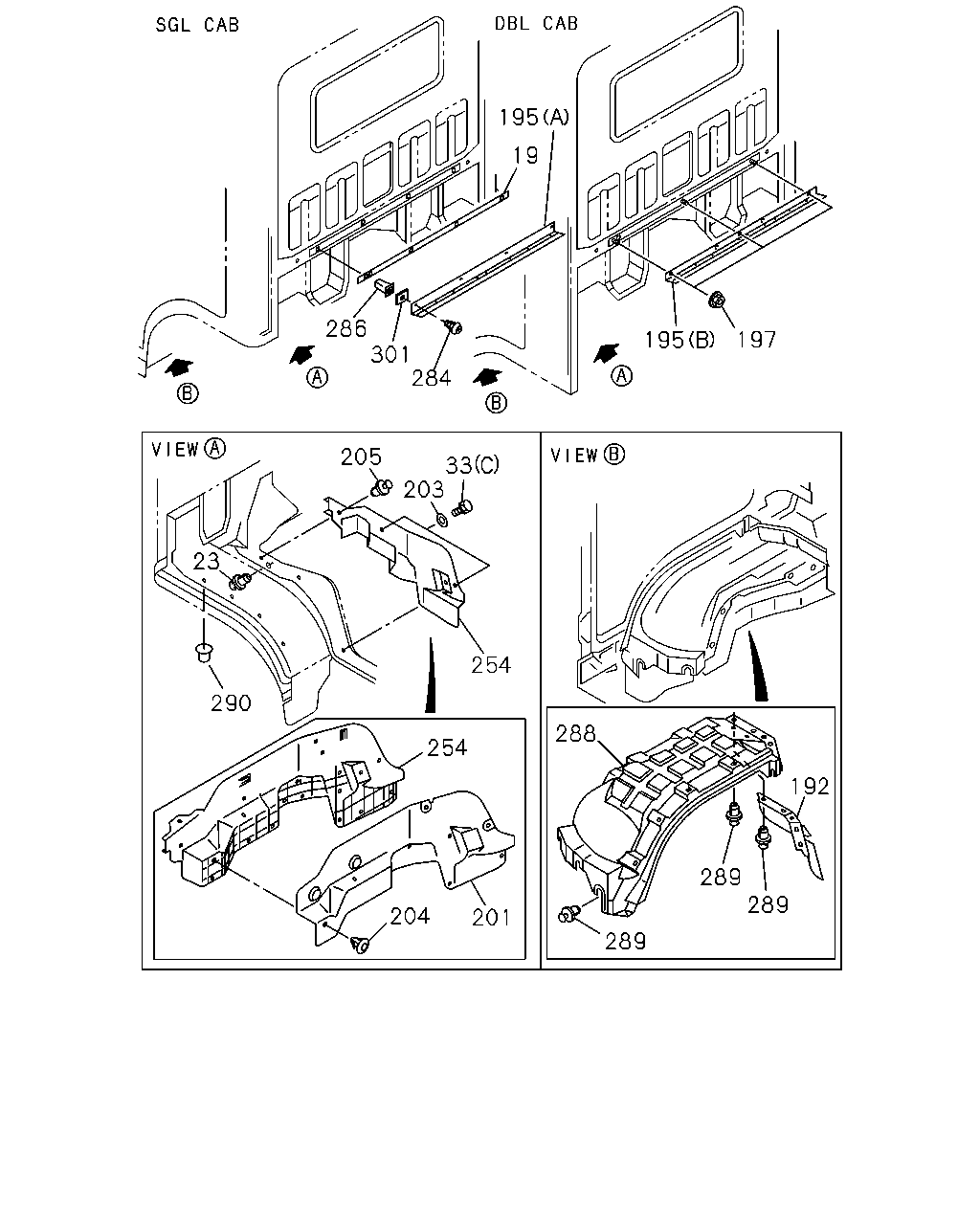

195 19 286 301 284 197 195 205 33 203 23 254 290 288 254 192 289 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) CAB-LOW ROOF<6XQ>	8-98191-582-0	01	1	1106-		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0211-0211	●	●	●			●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7)	8-97856-016-0	01	1	0212-0501	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7)	8-97856-016-0	01	1	0502-1105		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-97856-016-0	01	1	0502-1105			●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) EXC. CAB-LOW ROOF<6XQ>	8-97856-016-0	01	1	1106-		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-97856-016-0	01	1	1106-			●
23	08.154 FASTENER; MUD COVER EXC. CAB UP<W60> 16.320 OD=8.3	8-97997-832-0	06	1	1203-	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1203-		●	●	●		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-0501	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0502-1202	●	●	●	●		●
23	08.154 FASTENER; MUD COVER CAB UP<W60> 16.320 OD=8.3	8-97997-832-0	10	1	1203-	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0805	●	●	●	●		●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●		●
192	08.153 SEAL; MUD COVER CAB UP<W60>	8-97896-994-1	02	1	1008-1106	●
192	08.153 SEAL; MUD COVER CAB UP<W60>	8-98192-033-0	02	1	1107-	●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	0211-0501	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	0502-1007	●	●	●	●		●
192	08.153 SEAL; MUD COVER EXC. CAB UP<W60>	8-97857-297-4	02	1	1008-1106	●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	1008-1106		●	●	●		●
192	08.153 SEAL; MUD COVER EXC. CAB UP<W60>	8-98192-031-0	02	1	1107-	●
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1107-		●	●	●		●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) AIR INTAKE SYSTEM FRONT<6PC> EXC. EURO2 SPECIFICATION(NT2) (A)	8-97087-749-2	01	1	0211-0501	●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED(RS6) (A)	8-97035-834-2	01	1	0211-0501	●
195	03.602 PROTECTOR; HEAT 4JB1 NA ENG(RLF) RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT 4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-2	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT 4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) (A)	8-97035-834-2	01	1	0211-0501			●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) BRAZIL EQUIPMENT(RWF) (A)	8-97035-834-2	01	1	0211-0501			●
195	03.602 PROTECTOR; HEAT 4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-3	01	1	0502-		●
195	03.602 PROTECTOR; HEAT 4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) (A)	8-97035-834-3	01	1	0502-			●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-0	01	1	0211-0501				●	●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-1	01	1	0502-				●
195	03.602 PROTECTOR; HEAT 4JB1 NA ENG(RLF) RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION(NT2), COLOMBIA EQUIPMENT(X74) (A)	8-97094-833-1	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) COLOMBIA EQUIPMENT(X74) (A)	8-97094-833-1	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT DUMP BODY 2.8M SHINMEIWA(RS7) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) RR BODY FLAT BED(RS6) EXC. EURO2 SPECIFICATION(NT2),BRAZIL EQUIPMENT(RWF) (A)	8-97094-833-1	01	1	0211-0501			●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC) CHILE EQUIPMENT(6KB) RR BODY FLAT BED(RS6) (A)	8-97094-833-1	01	1	0211-0501			●
195	03.602 PROTECTOR; HEAT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-2	01	1	0502-		●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	0211-0501				●	●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	0502-				●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-4	01	1	0211-0501	●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-5	01	1	0211-0501	●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-3	01	1	0211-0501	●
201	08.155 INSULATOR; VALANCE	8-97853-117-3	01	1	0211-0501				●	●	●
201	08.155 INSULATOR; VALANCE 4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-117-3	01	1	0211-0501		●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-117-3	01	1	0211-0501			●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-3	01	1	0502-	●
201	08.155 INSULATOR; VALANCE	8-97853-117-3	01	1	0502-		●	●	●		●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-3	01	1	0211-0501	●
201	08.155 INSULATOR; VALANCE	8-97853-116-3	01	1	0211-0501				●	●	●
201	08.155 INSULATOR; VALANCE 4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-116-3	01	1	0211-0501		●
201	08.155 INSULATOR; VALANCE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS)	8-97853-116-3	01	1	0211-0501			●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-3	01	1	0502-	●
201	08.155 INSULATOR; VALANCE	8-97853-116-3	01	1	0502-		●	●	●		●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0501	●	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0502-0604	●	●	●	●		●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0211-0308	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-0501	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0502-	●	●	●	●		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-0501	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0502-	●	●	●	●		●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	0211-0501	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	0502-	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	0211-0501	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	0502-	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	0211-0501	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0211-0501		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	0502-	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0502-		●	●	●		●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	0211-0501	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0211-0501		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	0502-	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0502-		●	●	●		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501	●		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0612		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0612			●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6),DUMP BODY 2.8M SHINMEIWA(RS7) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-			●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-	●	●	●			●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-0501	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0502-	●	●	●	●		●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-0501	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0502-	●	●	●	●		●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-0501	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0502-	●	●	●	●		●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-0501	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0502-	●	●	●	●		●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-	●	●	●			●

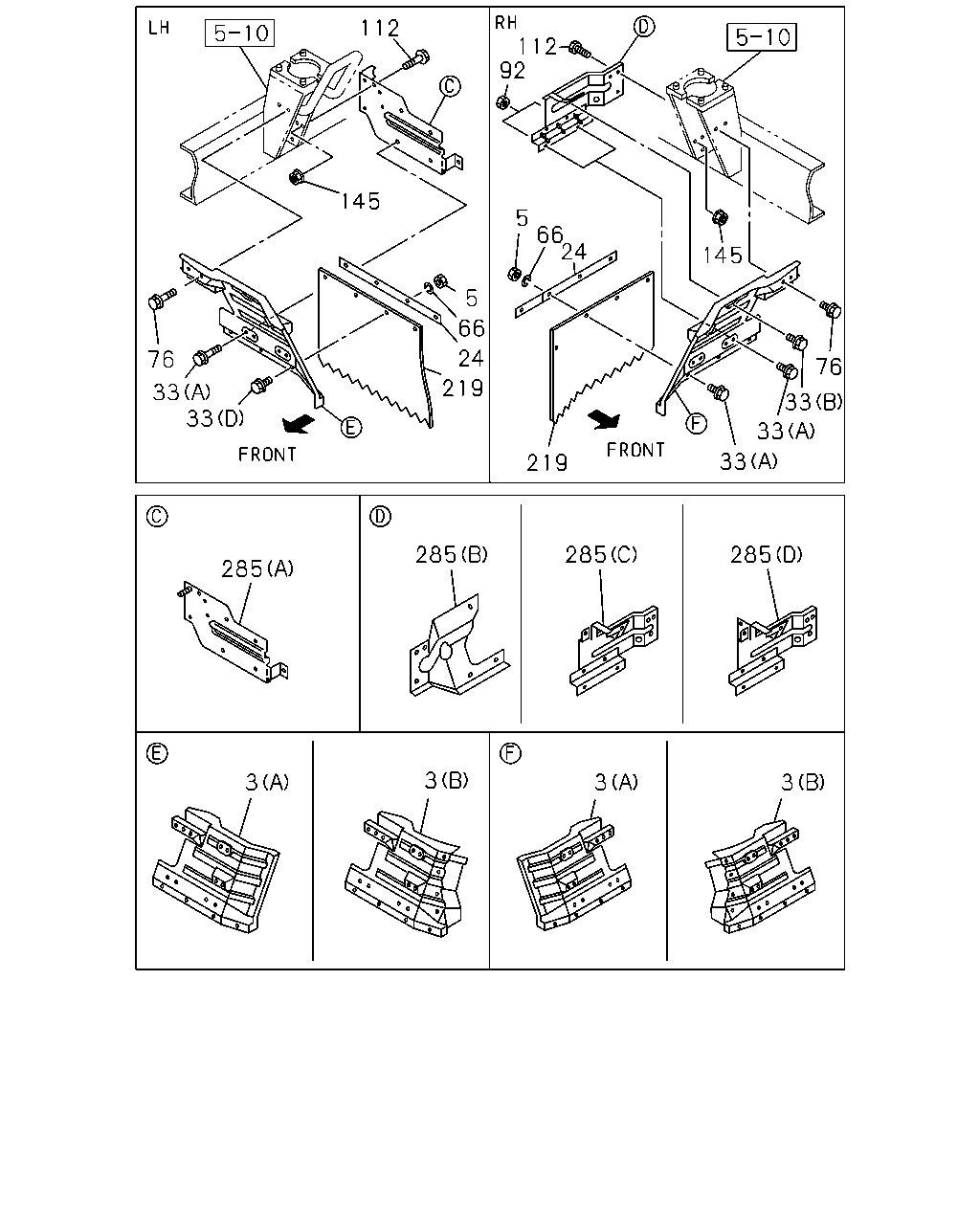

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0211-0312	●	●	●			●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-	●	●	●			●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0211-	●	●	●			●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	0211-0312				●	●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0401-0501				●	●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0502-				●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0211-0501				●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0502-				●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0501	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0502-0512	●	●	●	●		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●	●		●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0211-0501	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0502-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0512	●	●	●	●		●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●		●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0805	●	●	●	●		●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●		●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501	●	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0502-0603	●	●	●	●		●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●	●	●		●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0512	●	●	●	●		●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●	●		●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●		●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●		●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0501	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0512	●	●	●	●		●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●	●		●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0501	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0502-0602	●	●	●	●		●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●		●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	0211-0501	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	0502-	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-2	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER 4HF1-S ENG(RLS) (A)	8-97092-037-2	01	1	0211-0501		●	●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-2	01	1	0502-1004	●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (A)	8-97092-037-2	01	1	0502-1004		●	●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-2	01	1	1005-	●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (A)	8-97092-037-2	01	1	1005-		●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0211-0501				●	●	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0211-0501			●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0502-0504	●	●	●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	0502-0504	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0502-0504				●		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0505-1004	●		●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	0505-1004	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0505-1004		●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0505-1004				●		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	1005-	●		●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	1005-	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	1005-		●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	1005-				●		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0211-0501			●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0502-0504	●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0502-0504		●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0502-0504			●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0505-0910	●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0505-0910		●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0505-0910			●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0911-	●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0911-		●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97089-653-2	01	1	0911-			●
285	08.155 BRACKET; MUD COVER 4HF1-S ENG(RLS) (C)	8-97035-778-4	01	1	0211-0501	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0211-0501						●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (C)	8-97035-778-4	01	1	0502-0504	●	●	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0502-0504	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0502-0504						●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (C)	8-97035-778-4	01	1	0505-0910	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0505-0910	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0505-0910						●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (C)	8-97035-778-4	01	1	0911-1004	●	●	●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0911-1004	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0911-1004						●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	1005-	●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (C)	8-97035-778-4	01	1	1005-	●
285	08.155 BRACKET; MUD COVER 4HF1-N ENG(RJZ) (C)	8-97035-778-4	01	1	1005-		●	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	1005-						●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	0211-0501					●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97225-272-1	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97225-272-1	01	1	0211-0501			●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	0502-0910		●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (A)	8-97225-272-1	01	1	0502-0910			●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	0911-	●	●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (A)	8-97225-272-1	01	1	0911-			●
285	08.155 BRACKET; MUD COVER (D)	8-97080-589-5	01	1	0211-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
