Sayfa 3-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶

3-80 — BRAKE PIPING; TRAILER (#5111) — 65 parça

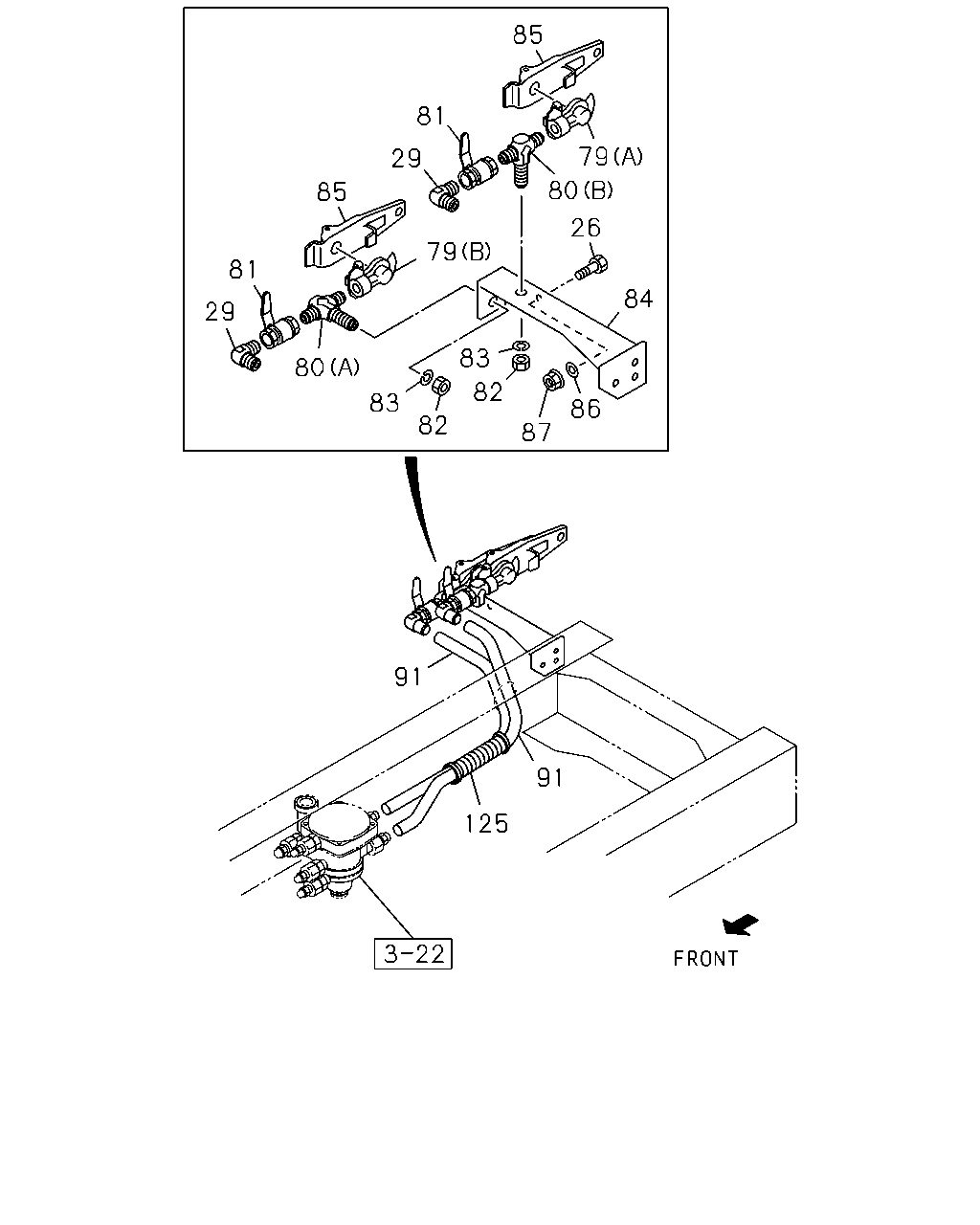

85 81 79 29 80 85 26 79 81 84 29 83 80 86 82 83 82 87 91 91 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	BOLT; CHAIN NEW ZEALAND EQUIPMENT(PK5) M10X33	9-09808-590-0	02	1	9606-9905
26	BOLT; CHAIN FULL TRACTOR TRUCK<RD6> M10X33	9-09808-590-0	02	1	9906-
29	CONNECTOR; COCK NEW ZEALAND EQUIPMENT(PK5) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9606-9905
29	CONNECTOR; COCK FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9906-9907
29	CONNECTOR; COCK FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9908-
79	COUPLING; AIR,TRAILER NEW ZEALAND EQUIPMENT(PK5) (A) BLUE	1-47465-151-0	01	1	9606-9905
79	COUPLING; AIR,TRAILER FULL TRACTOR TRUCK<RD6> (A) BLUE	1-47465-151-0	01	1	9906-
79	COUPLING; AIR,TRAILER NEW ZEALAND EQUIPMENT(PK5) (B) RED	1-47465-152-0	01	1	9606-9905
79	COUPLING; AIR,TRAILER FULL TRACTOR TRUCK<RD6> (B) RED	1-47465-152-0	01	1	9906-
80	NIPPLE; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) (B)	1-09656-377-1	01	1	9606-9905
80	NIPPLE; AIR COUPLING FULL TRACTOR TRUCK<RD6> (B)	1-09656-377-1	01	1	9906-
80	NIPPLE; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) (A)	1-09664-171-1	01	1	9606-9905
80	NIPPLE; AIR COUPLING FULL TRACTOR TRUCK<RD6> (A)	1-09664-171-1	01	1	9906-
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) BLUE	1-09680-078-0	01	1	9606-9704
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) RED	1-09680-086-0	01	1	9705-9711
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) RED	1-09680-091-0	01	1	9712-9905
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> RED	1-09680-091-0	01	1	9906-
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) RED	1-09680-079-0	01	1	9606-9704
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) BLUE	1-09680-087-0	01	1	9705-9711
81	COCK; AIR COUPLING NEW ZEALAND EQUIPMENT(PK5) BLUE	1-09680-092-0	01	1	9712-9905
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> BLUE	1-09680-092-0	01	1	9906-
82	NUT; LK,CONNECTOR NEW ZEALAND EQUIPMENT(PK5) M16	9-99111-416-0	02	1	9606-9905
82	NUT; LK,CONNECTOR FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	02	1	9906-
83	WASHER; LK,CONNECTOR NEW ZEALAND EQUIPMENT(PK5) ID=16.2	9-09150-516-0	02	1	9606-9905
83	WASHER; LK,CONNECTOR FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	02	1	9906-
84	BRACKET; COUPLER NEW ZEALAND EQUIPMENT(PK5)	1-47465-883-1	01	1	9606-9905
84	BRACKET; COUPLER FULL TRACTOR TRUCK<RD6>	1-47465-883-1	01	1	9906-
85	CHAIN; AIR HOSE NEW ZEALAND EQUIPMENT(PK5)	1-47469-010-0	02	1	9606-9905
85	CHAIN; AIR HOSE FULL TRACTOR TRUCK<RD6>	1-47469-010-0	02	1	9906-
86	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) ID=10.5 OD=22	9-09164-610-0	02	1	9606-9905
86	WASHER; PL FULL TRACTOR TRUCK<RD6> ID=10.5 OD=22	9-09164-610-0	02	1	9906-
87	NUT NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-410-0	02	1	9606-9606
87	NUT NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91150-210-0	02	1	9607-9905
87	NUT FULL TRACTOR TRUCK<RD6> M10 FLANGE	0-91150-210-0	02	1	9906-
91	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9606-9905
91	TUBE; NYLON BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9906-
125	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9701-9905
125	TUBE; CORRUGATE BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9906-

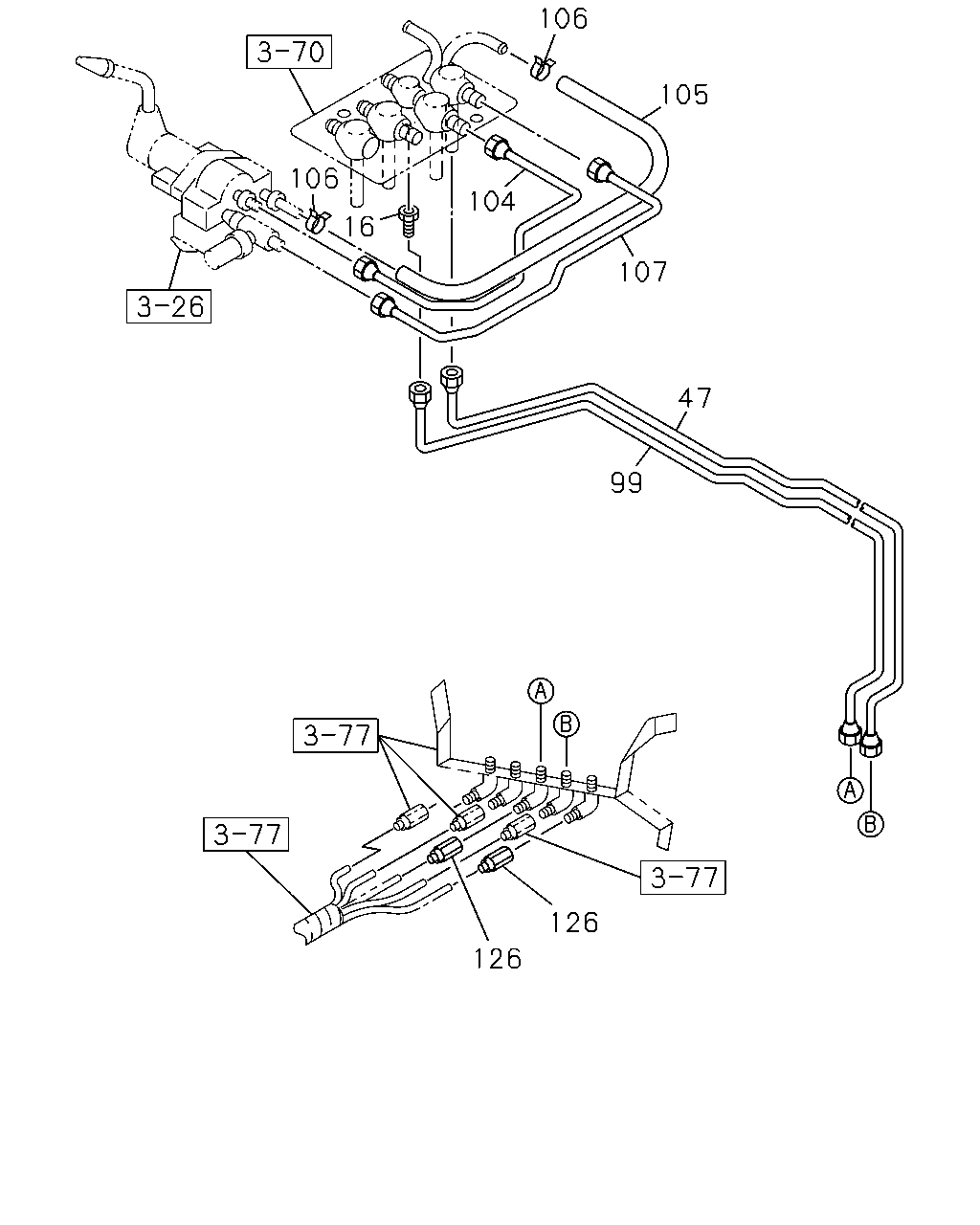

106 105 106 104 16 107 47 99 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6>	1-09654-258-1	01	1	9606-9905
16	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-09654-258-1	01	1	9906-9906
16	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6>	1-09654-258-1	01	1	9907-
47	PIPE; AIR,UNION TO UNION FULL TRACTOR TRUCK<RD6> L=1933 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
47	PIPE; AIR,UNION TO UNION FULL TRACTOR TRUCK<RD6> L=1936	1-49121-056-1	01	1	9811-9901
47	PIPE; AIR,UNION TO UNION FULL TRACTOR TRUCK<RD6> L=1936	1-49121-473-0	01	1	9902-
99	PIPE; AIR,JOINT TO JOINT FULL TRACTOR TRUCK<RD6> L=1764	1-49114-294-0	01	1	9606-9810
99	PIPE; AIR,JOINT TO JOINT FULL TRACTOR TRUCK<RD6> L=1551	1-49121-054-0	01	1	9811-9905
99	PIPE; AIR,JOINT TO JOINT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=1551	1-49121-054-0	01	1	9906-9906
99	PIPE; AIR,JOINT TO JOINT FULL TRACTOR TRUCK<RD6> L=1551	1-49121-054-0	01	1	9907-
104	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6>	1-49114-295-0	01	1	9606-9905
104	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-295-0	01	1	9906-9906
104	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6>	1-49114-295-0	01	1	9907-
105	PIPE; VINYL,EXH,PARKING BRK VLV L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9606-9905
105	PIPE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9908-
106	CLIP; PIPE ID=14	8-94238-572-0	02	1	9606-9905
106	CLIP; PIPE ID=14	8-94238-572-0	02	1	9906-
106	CLIP; PIPE BRAKE REGULATION ECE<TDV> ID=14	8-94238-572-0	02	1	9906-
107	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6>	1-49114-296-0	01	1	9606-9905
107	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-296-0	01	1	9906-9906
107	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6>	1-49114-296-0	01	1	9907-
126	CONNECTOR; NYLON TUBE M14 DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9606-9911
126	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-9912
126	CONNECTOR; NYLON TUBE M16 DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9911
126	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
126	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0001-0007
126	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
