6-03 — RADIATOR GRILLE (#51103) — 139 parça

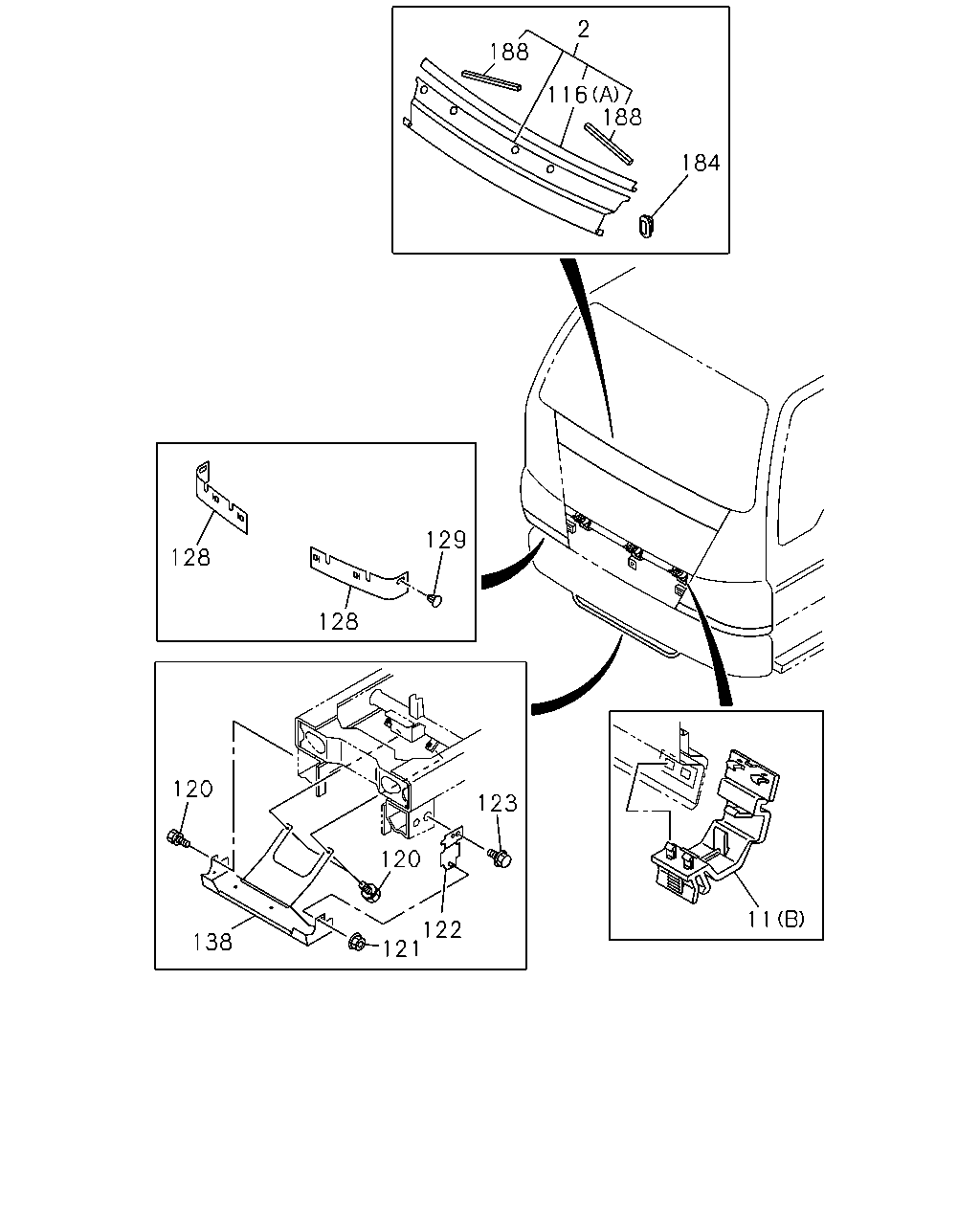

çizim 46175
2 188 116 188 184 129 128 128 120 123 120 122 121 11 138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-546-3 01 1 0502- ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97582-873-5 01 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0305 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0306-0501 ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE 		8-97892-730-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97892-729-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
(D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97581-655-1 01 1 0502- ● ● ● ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 0211-0512 ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 0211-0602 ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0603- ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-842-0 01 1 0211- ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
128 01.267 COVER; HEADLAMP GRILLE
CAB UP<W60> 		8-98015-934-0 02 1 1008- ●
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0502-1007 ● ● ● ● ●
128 01.267 COVER; HEADLAMP GRILLE
EXC. CAB UP<W60> 		8-97581-653-3 02 1 1008- ●
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 1008- ● ● ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0502- ● ● ● ● ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97101-740-0 01 1 0211- ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 03 1 0502-0602 ● ● ● ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ● ● ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0502- ● ● ● ● ●

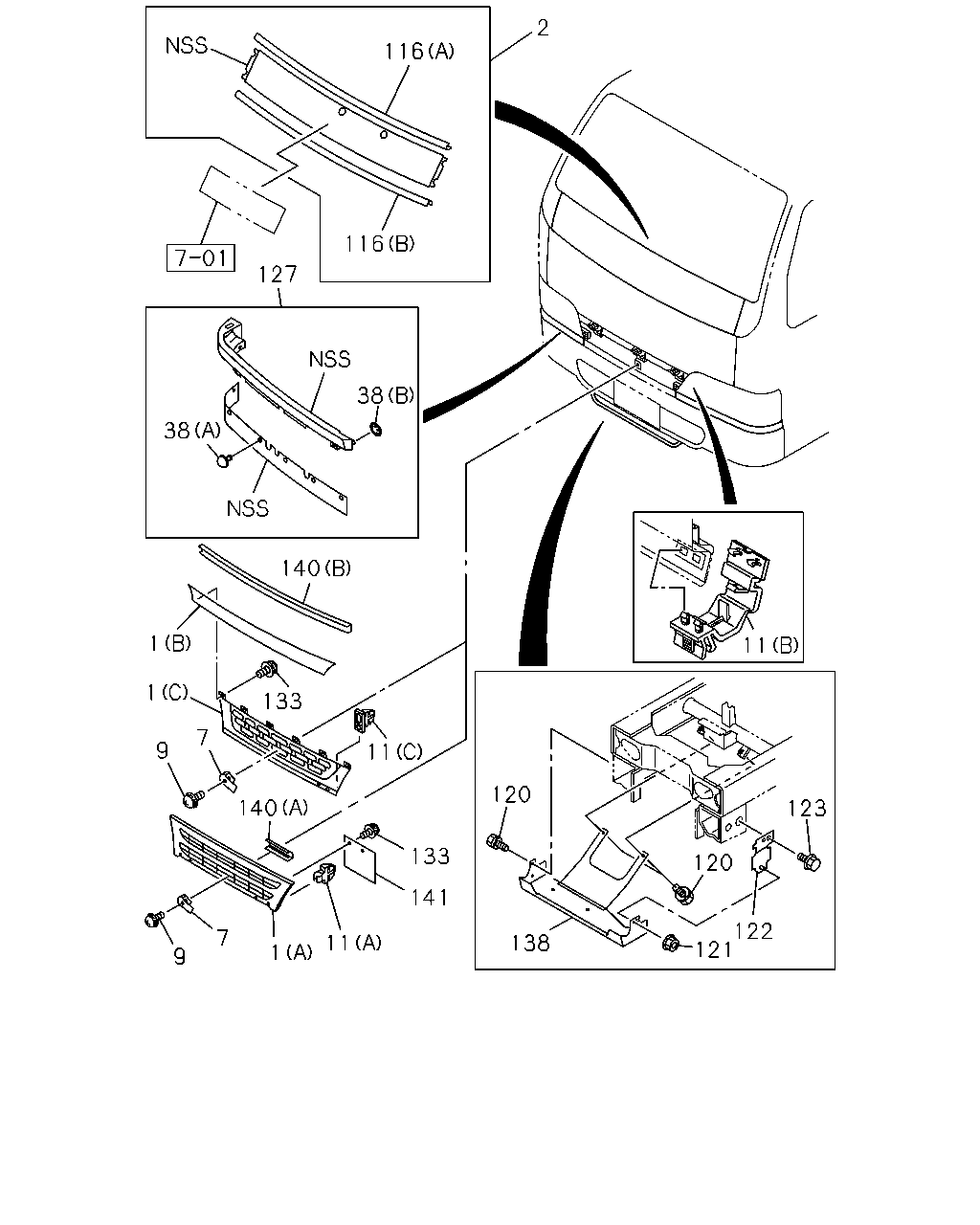

çizim 46537
2 116 116 127 38 38 140 1 11 1 133 7 9 11 120 140 123 133 120 141 122 121 7 138 11 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0501 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97995-758-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) BLUE 		8-97995-759-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) SILVER 		8-97995-766-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-026-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-546-3 01 1 0502- ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97582-873-5 01 1 0502- ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0305 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0306-0501 ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE 		8-97892-730-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97892-729-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
(D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0501 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0501 ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0501 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0501 ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97581-655-1 01 1 0502- ● ● ● ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 0211-0512 ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 0211-0602 ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0603- ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-842-0 01 1 0211- ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0211-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0211-0501 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0211-0501 ● ● ● ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ● ● ● ●
133 01.269 SCREW; COVER
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> M5X12 		8-97995-036-0 06 1 0306-0501 ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97101-740-0 01 1 0211- ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0305 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0306-0501 ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) 		8-97061-039-3 02 1 0306-0501 ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97583-411-1 02 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-037-0 01 1 0306-0501 ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 0502- ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 0502- ● ● ● ● ●

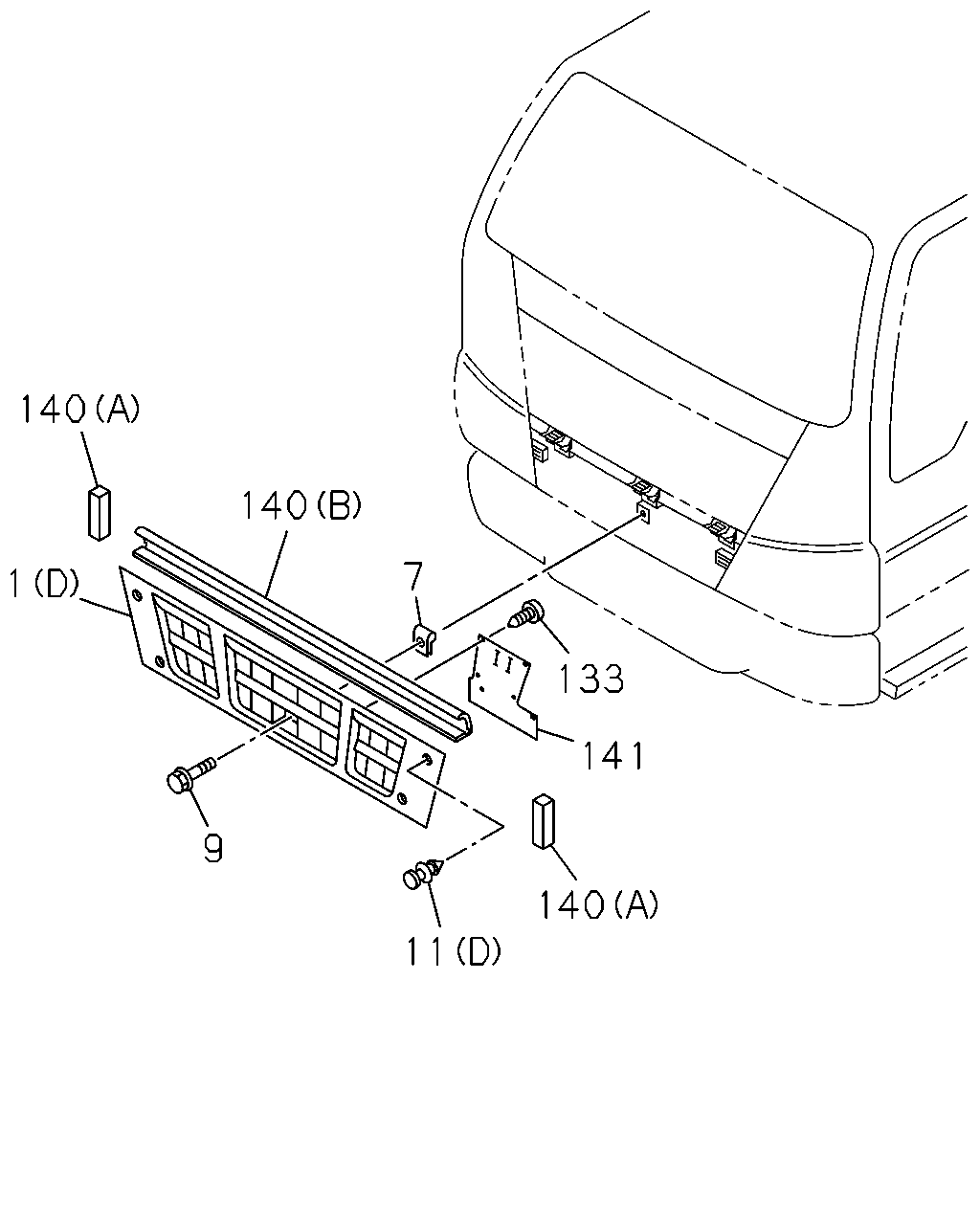

çizim 46775
140 140 7 1 133 141 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0501 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97995-758-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) BLUE 		8-97995-759-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) SILVER 		8-97995-766-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-026-0 01 1 0306-0501 ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0305 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0306-0501 ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE 		8-97892-730-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97892-729-0 02 1 0306-0501 ●
11 01.269 CLIP; RAD GRILLE
(D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ● ● ● ●
133 01.269 SCREW; COVER
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> M5X12 		8-97995-036-0 06 1 0306-0501 ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0305 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0306-0501 ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) 		8-97061-039-3 02 1 0306-0501 ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97583-411-1 02 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-037-0 01 1 0306-0501 ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 0502- ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
