Sayfa 5-20 - Isuzu EPC

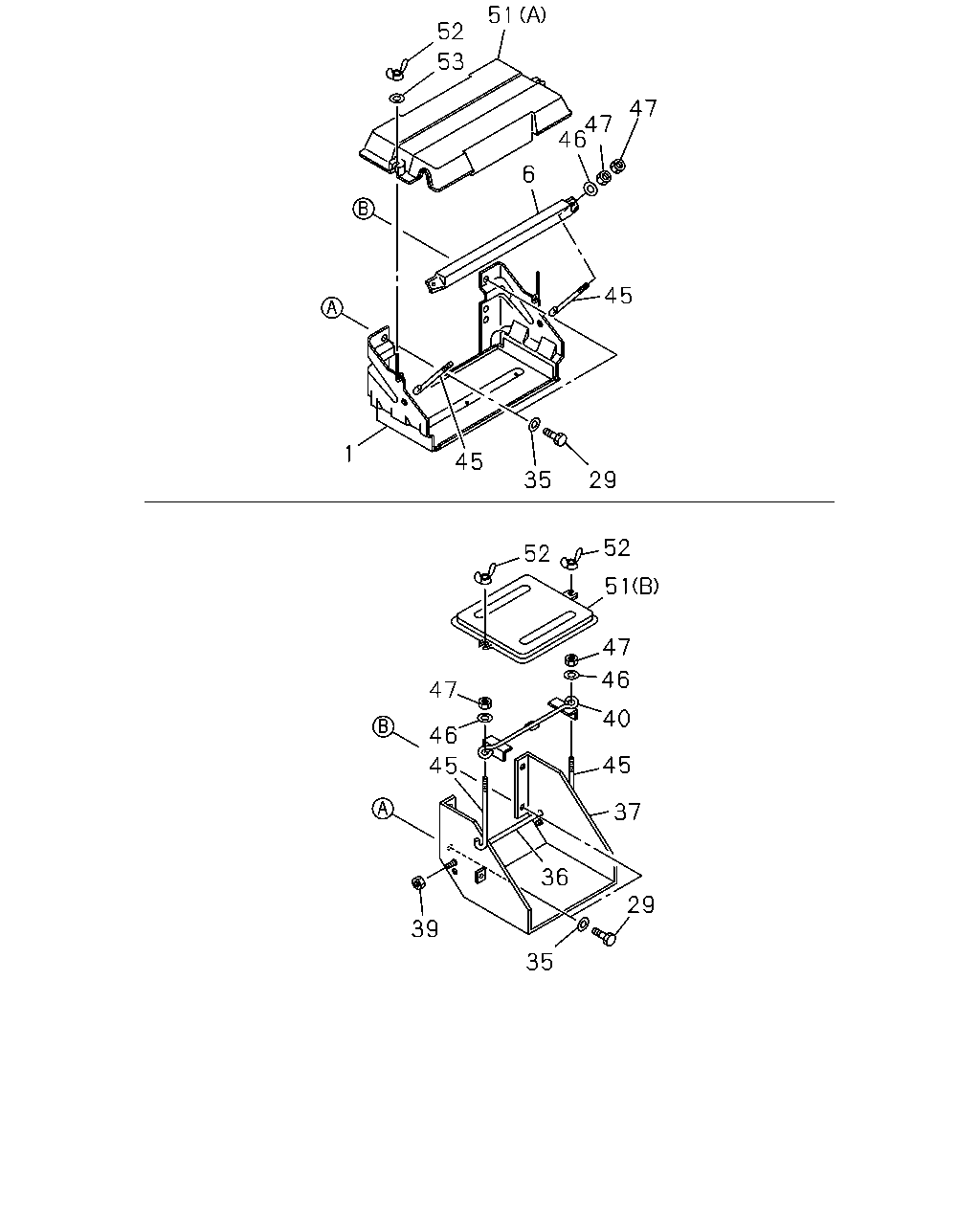

5-20 — BATTERY CARRIER (#51100) — 349 parça

16 7 15 15 24 14 26 2 2 15 15 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	0211-0501	●
2	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	0502-1004	●
2	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	1005-	●
2	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> (A)	8-97107-605-0	01	1	0211-0501		●	●
2	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> (A)	8-97107-605-0	01	1	0502-			●
2	02.333 BRACKET; BATTERY 4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (D)	8-94176-352-1	01	1	0211-0501				●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (D)	8-94176-352-1	01	1	0502-				●
2	02.333 BRACKET; BATTERY (C)	8-94455-664-1	01	1	0211-					●
7	02.333 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501	●
7	02.333 BOLT; BRKT TO FRAME 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501		●	●		●
7	02.333 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501				●
7	02.333 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512	●
7	02.333 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512				●
7	02.333 BOLT; BRKT TO FRAME 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512			●		●
7	02.333 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607	●
7	02.333 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607				●
7	02.333 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607			●		●
7	02.333 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004	●
7	02.333 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004				●
7	02.333 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004			●		●
7	02.333 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-	●
7	02.333 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-				●
7	02.333 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-			●		●
14	02.333 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
14	02.333 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
14	02.333 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502				●
14	02.333 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502					●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602				●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0607	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0607				●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	0608-1004	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0608-1004				●
14	02.333 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-1409	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-1409				●
14	02.333 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	02	1	1410-	●
14	02.333 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1410-				●
14	02.333 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501				●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602				●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-1409				●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	1410-				●
15	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	0211-0501	●
15	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	0502-1004	●
15	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94259-139-1	01	1	1005-	●
15	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> (A)	8-97107-606-0	01	1	0211-0501		●	●
15	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> (A)	8-97107-606-0	01	1	0502-			●
15	02.333 BRACKET; BATTERY 4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (D)	8-94176-353-0	01	1	0211-0501				●
15	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (D)	8-94176-353-0	01	1	0502-				●
15	02.333 BRACKET; BATTERY (C)	8-97075-608-0	01	1	0211-					●
16	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501	●
16	02.334 BOLT; BRKT TO FRAME 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501		●	●		●
16	02.334 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0501				●
16	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512				●
16	02.334 BOLT; BRKT TO FRAME 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0502-0512			●		●
16	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607				●
16	02.334 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0607			●		●
16	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004				●
16	02.334 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0608-1004			●		●
16	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-				●
16	02.334 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1005-			●		●
24	02.334 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
24	02.334 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●	●		●
24	02.334 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602				●
24	02.334 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602			●		●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0607	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0607				●
24	02.334 NUT; BRKT TO FRAME 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0607			●		●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	0608-1004	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0608-1004				●
24	02.334 NUT; BRKT TO FRAME 04.085 M10 FLANGE	0-91180-210-0	02	1	0608-1004			●		●
24	02.334 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-1409	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-1409				●
24	02.334 NUT; BRKT TO FRAME 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-1409			●		●
24	02.334 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	02	1	1410-	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1410-				●
24	02.334 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	1410-			●		●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●
26	02.334 NUT; BRKT EXC. BATTERY NX200-10<S9C> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501		●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501						●
26	02.334 NUT; BRKT 4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0504	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0504	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0504						●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	04	1	0505-0602	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 08.917 M10 FLANGE	0-91150-210-0	04	1	0505-0602	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	04	1	0505-0602						●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0910	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0910	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0910						●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	0911-1004	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	04	1	0911-1004	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 04.085 M10 FLANGE	0-91180-210-0	04	1	0911-1004						●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1005-	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE REAR VERTICAL<KJ3> 04.085 M10 FLANGE	0-91180-210-0	04	1	1005-	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 04.085 M10 FLANGE	0-91180-210-0	04	1	1005-						●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
26	02.334 NUT; BRKT BATTERY NX200-10<S9C> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●
26	02.334 NUT; BRKT 4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501						●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
26	02.334 NUT; BRKT 4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502						●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0502					●
26	02.334 NUT; BRKT 4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0504	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0504	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0504				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0504						●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 08.917 M10 FLANGE	0-91150-210-0	02	1	0505-0602	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 08.917 M10 FLANGE	0-91150-210-0	02	1	0505-0602	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0505-0602				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0505-0602						●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0910	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0910	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0910				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0910						●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	02	1	0911-1004	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.085 M10 FLANGE	0-91180-210-0	02	1	0911-1004	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0911-1004				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0911-1004						●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) AIR INTAKE SYSTEM FRONT<6PC> 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-				●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	1005-						●
26	02.334 NUT; BRKT EXC. REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0602				●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0602			●
26	02.334 NUT; BRKT EXC. REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-				●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-			●
26	02.334 NUT; BRKT 4JB1 NA ENG(RLF) BATTERY NX200-10<S9C> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501				●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY NX200-10<S9C> 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602				●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY NX200-10<S9C> 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-				●

51 52 53 47 47 46 6 45 1 45 35 29 52 52 51 47 46 47 40 46 45 45 37 36 29 39 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.333 CARRIER; BATTERY BATTERY 95D31R<6DN>	8-97072-544-0	01	1	0211-0501	●	●	●	●		●
1	02.333 CARRIER; BATTERY BATTERY 95D31R<6DN>	8-97072-544-0	01	1	0502-	●		●	●		●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD>	5-53613-024-3	01	1	0211-0501	●					●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	0211-0501		●	●	●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	0502-0512	●		●	●		●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD>	5-53613-024-3	01	1	0601-	●					●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	0601-			●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN>	8-94108-314-0	01	1	0211-0501	●	●	●	●		●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN>	8-94108-314-0	01	1	0502-	●		●	●		●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD>	9-53616-153-0	01	1	0211-0501	●					●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	0211-0501		●	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	0502-0512	●		●	●		●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD>	9-53616-153-0	01	1	0601-	●					●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	0601-			●	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0512	●		●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●		●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501	●	●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0605	●		●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●		●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0211-1404	●			●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	1405-	●				●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> EXC. JAPAN PRODUCTION<C1H>	8-94145-894-0	01	1	1405-				●		●
37	02.333 BRACKET; BATTERY JAPAN PRODUCTION<C1H> BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97384-068-2	01	1	1405-				●		●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97356-174-0	01	1	0211-0610	●			●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97384-068-2	01	1	0611-0612	●			●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97384-067-2	01	1	0701-1404	●			●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97384-067-2	01	1	1405-	●				●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>	8-97384-067-2	01	1	1405-				●		●
37	02.333 BRACKET; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> EXC. JAPAN PRODUCTION<C1H>	8-97384-067-2	01	1	1405-				●		●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●			●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1404	●			●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	1405-	●				●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> EXC. JAPAN PRODUCTION<C1H> 01.062 M6 FLANGE	0-91180-106-0	01	1	1405-				●		●
40	02.335 CLAMP; BATTERY 4HF1-S ENG(RLS)	5-53615-004-1	01	1	0211-0501	●			●		●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0211-0501	●
40	02.335 CLAMP; BATTERY 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0211-0501				●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0211-0501						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0211-0501					●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ)	5-53615-004-1	01	1	0502-0504	●			●		●
40	02.335 CLAMP; BATTERY 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0502-0504	●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0502-0504				●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0502-0504						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0502-0504					●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ)	5-53615-004-1	01	1	0505-0910	●			●		●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0505-0910	●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0505-0910				●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0505-0910						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0505-0910					●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ)	5-53615-004-1	01	1	0911-1004	●			●		●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0911-1004	●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0911-1004				●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0911-1004						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0911-1004					●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	1005-	●
40	02.335 CLAMP; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ)	5-53615-004-1	01	1	1005-	●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ)	5-53615-004-1	01	1	1005-				●		●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	1005-				●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC>	5-53615-004-1	01	1	1005-						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	1005-					●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0211-0501	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0502-	●		●	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501	●			●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501					●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0504	●			●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0504	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0504				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0504						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0504					●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0505-0605	●			●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0505-0605	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0505-0605				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0505-0605						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0505-0605					●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0910	●			●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0910	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0910				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0910						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0910					●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0911-1004	●			●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0911-1004	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0911-1004				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0911-1004						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0911-1004					●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-				●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-				●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-						●
46	02.334 WASHER; PL,BATTERY TO CARRIER 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1005-					●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> 16.674 ID=8.4	9-09160-508-0	02	1	0211-0501	●					●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 16.674 ID=8.4	9-09160-508-0	02	1	0211-0501		●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 16.674 ID=8.4	9-09160-508-0	02	1	0502-0512	●		●	●		●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> 16.674 ID=8.4	9-09160-508-0	02	1	0601-0605	●					●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 16.674 ID=8.4	9-09160-508-0	02	1	0601-0605			●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0606-	●					●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0606-			●	●
47	02.334 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●			●		●
47	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
47	02.334 NUT; BRKT 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
47	02.334 NUT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501						●
47	02.334 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501					●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504	●			●		●
47	02.334 NUT; BRKT 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504	●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504				●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504						●
47	02.334 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504					●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602	●			●		●
47	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602	●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602				●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602						●
47	02.334 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602					●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0910	●			●		●
47	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0910	●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0910				●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0910						●
47	02.334 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0910					●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1004	●			●		●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1004	●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1004				●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1004						●
47	02.334 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1004					●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-	●
47	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-	●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-				●		●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-				●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-						●
47	02.334 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1005-					●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	04	1	0211-0501	●					●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 02.559 M8	9-09110-408-0	04	1	0211-0501		●	●	●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 02.559 M8	9-09110-408-0	04	1	0502-0512	●		●	●		●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8	0-91110-508-0	04	1	0601-0601	●		●	●		●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN>,BATTERY 115E41R<6XD> M8	0-91110-508-0	04	1	0601-	●					●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8	0-91110-508-0	04	1	0601-			●	●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0211-0501	●
51	02.335 COVER; BATTERY 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0211-0501				●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0211-0501						●
51	02.335 COVER; BATTERY 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0502-0504	●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0502-0504				●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0502-0504						●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0505-0910	●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0505-0910				●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0505-0910						●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0911-	●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0911-				●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0911-						●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (A)	8-97313-780-0	01	1	0211-0501	●	●	●	●		●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (A)	8-97313-780-0	01	1	0502-	●		●	●		●
51	02.335 COVER; BATTERY 4HF1-S ENG(RLS) (B)	8-97120-747-0	01	1	0211-0501	●			●		●
51	02.335 COVER; BATTERY (B)	8-97120-747-0	01	1	0211-0501					●
51	02.335 COVER; BATTERY 4HF1-N ENG(RJZ) (B)	8-97120-747-0	01	1	0502-1004	●			●		●
51	02.335 COVER; BATTERY (B)	8-97120-747-0	01	1	0502-1004					●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (B)	8-97120-747-0	01	1	1005-	●
51	02.335 COVER; BATTERY 4HF1-N ENG(RJZ) (B)	8-97120-747-0	01	1	1005-				●		●
51	02.335 COVER; BATTERY (B)	8-97120-747-0	01	1	1005-					●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 02.345 (A)	9-53612-046-1	01	1	0211-0501	●					●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345 (A)	9-53612-046-1	01	1	0211-0501		●	●	●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345 (A)	9-53612-046-2	01	1	0502-0512	●		●	●		●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 02.345 (A)	9-53612-046-2	01	1	0601-	●					●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345 (A)	9-53612-046-2	01	1	0601-			●	●
52	02.335 NUT; WING,COVER FIX 4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0211-0501	●			●		●
52	02.335 NUT; WING,COVER FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0211-0501	●
52	02.335 NUT; WING,COVER FIX 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0211-0501				●
52	02.335 NUT; WING,COVER FIX 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0211-0501						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0211-0501					●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT	9-09118-408-0	02	1	0502-0504	●			●		●
52	02.335 NUT; WING,COVER FIX 4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0502-0504	●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0502-0504				●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0502-0504						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0502-0504					●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT	9-09118-408-0	02	1	0505-0512	●			●		●
52	02.335 NUT; WING,COVER FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0505-0512	●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0505-0512				●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	9-09118-408-0	02	1	0505-0512						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0505-0512					●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT	0-91118-408-0	02	1	0601-0910	●			●		●
52	02.335 NUT; WING,COVER FIX 4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0601-0910	●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0601-0910				●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0601-0910						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0601-0910					●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT	0-91118-408-0	02	1	0911-1004	●			●		●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0911-1004	●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0911-1004				●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0911-1004						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0911-1004					●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	1005-	●
52	02.335 NUT; WING,COVER FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) M8 WING NUT	0-91118-408-0	02	1	1005-	●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT	0-91118-408-0	02	1	1005-				●		●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	1005-				●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	1005-						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1005-					●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 08.920 M5 WING NUT	9-99118-405-0	02	1	0211-0501	●					●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> 08.920 M5 WING NUT	9-99118-405-0	02	1	0211-0501		●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> 08.920 M5 WING NUT	9-99118-405-0	02	1	0502-0512	●		●	●		●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> 08.920 M5 WING NUT	9-99118-405-0	02	1	0601-0603	●					●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> 08.920 M5 WING NUT	9-99118-405-0	02	1	0601-0603			●	●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> M5 WING NUT	0-91118-405-0	02	1	0604-	●					●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> M5 WING NUT	0-91118-405-0	02	1	0604-			●	●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> ID=5.3 OD=16	9-09164-705-0	02	1	0211-0501	●					●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C> ID=5.3 OD=16	9-09164-705-0	02	1	0211-0501		●	●	●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C> ID=5.3 OD=16	9-09164-705-0	02	1	0502-0512	●		●	●		●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> ID=5.3 OD=16	9-09164-705-0	02	1	0601-0605	●					●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C> ID=5.3 OD=16	9-09164-705-0	02	1	0601-0605			●	●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C>,BATTERY 115E41R<6XD> ID=5.3 OD=16	0-91614-705-0	02	1	0606-	●					●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C> ID=5.3 OD=16	0-91614-705-0	02	1	0606-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
