Sayfa 3-78 - Isuzu EPC

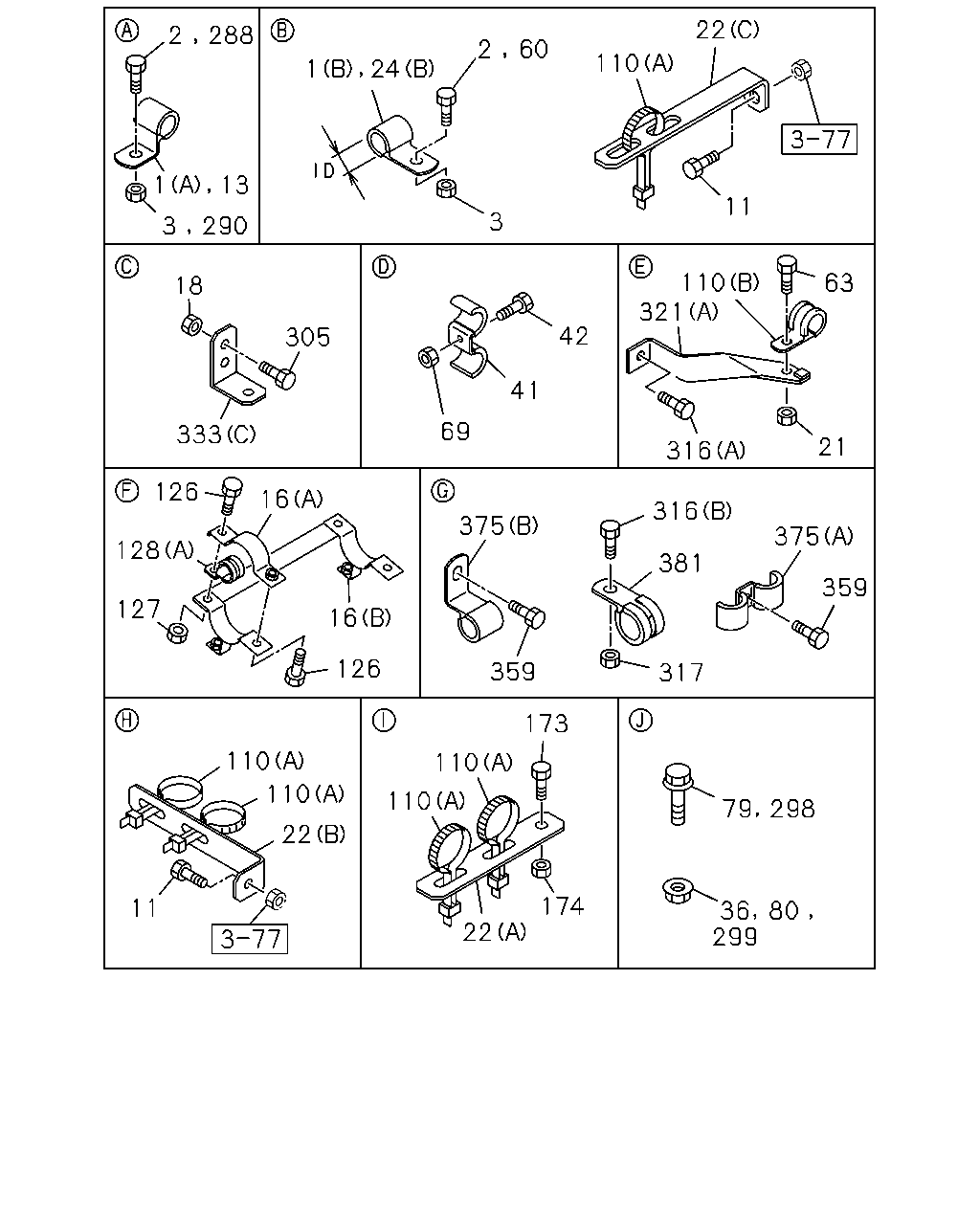

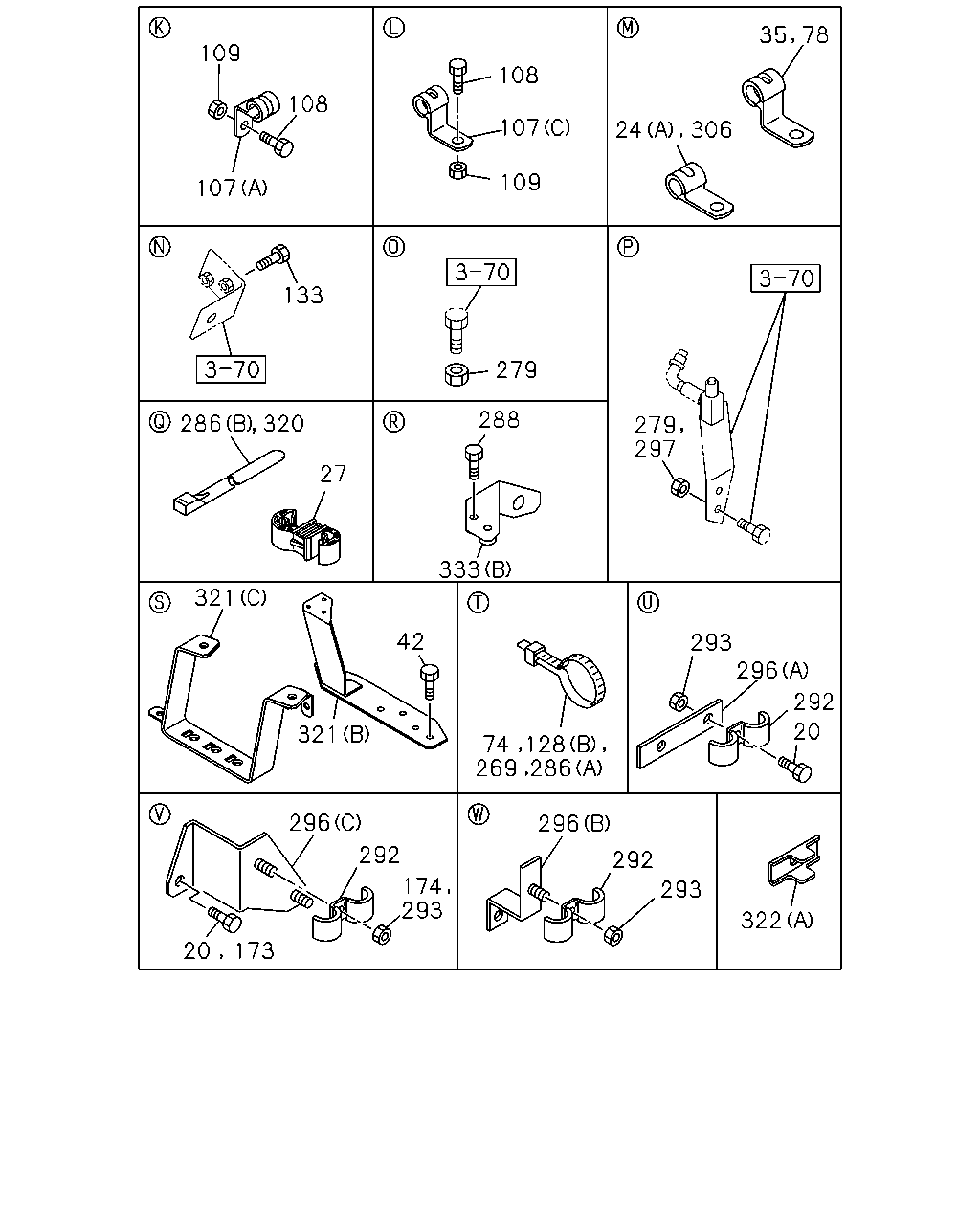

3-78 — FIXING PARTS; AIR PIPING (#5110) — 432 parça

109 108 108 107 24 306 109 107 133 279 288 279 297 27 333 321 42 293 296 292 20 321 296 296 292 292 174 293 293 322 20 173 286 320 74 128 269 286 35 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-
20	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	03	1	9606-9606
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-
20	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
20	BOLT; CLIP V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	9607-
20	BOLT; CLIP V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
20	BOLT; CLIP V TYPE ENG<91L> M8X35 FLANGE	0-28680-835-0	02	1	9607-
24	CLIP; PIPE MJA7 M/T<X9Q> (A) ID=16 L=20	9-09525-535-0	02	1	9606-
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=40	9-09525-576-0	01	1	9606-9608
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=20	9-09525-535-0	01	1	9609-9612
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=28	9-09525-556-0	01	1	9701-
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0105-
35	CLIP; AIR PIPE L TYPE ENG<90L> ID=15 H=24 L=20	1-09700-606-0	01	1	9606-
35	CLIP; AIR PIPE V TYPE ENG<91L> ID=15 H=24 L=20	1-09700-606-0	02	1	9606-
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
74	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	9606-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9606-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9606-9711
107	CLIP; NYLON TUBE EXC. BUMPER W/HEADLAMPS<SLB> (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9712-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9709-9905
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=32 L=35	1-09701-244-0	01	1	9709-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) L=250	1-09707-126-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9712-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9712-
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9606-9905
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9906-9906
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9907-
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9606-9905
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9906-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-9708
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9709-9711
108	BOLT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	02	1	9709-9711
108	BOLT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	03	1	9712-0101
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	0102-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9712-0103
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0104-
109	NUT; TUBE CLIP M8	9-09110-408-0	05	1	9606-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9607-9905
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	9906-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0008-
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9712-9905
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0102-
128	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9606-9711
128	CLIP; NYLON TUBE (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9911
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	9912-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	9606-
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-
133	BOLT; BRKT L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	01	1	9709-9905
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-0101
133	BOLT; BRKT L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	01	1	9906-0101
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0102-
173	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	04	1	9606-9606
173	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	04	1	9607-9607
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-
173	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
173	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607
174	NUT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	04	1	9606-9606
174	NUT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	04	1	9607-9607
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9608-
174	NUT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	02	1	9606-9606
174	NUT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	02	1	9607-9607
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	01	1	9607-9608
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	01	1	9609-9905
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	01	1	9609-9905
269	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	01	1	9906-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	01	1	9906-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	14	1	9606-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) L=250	1-09707-126-0	15	1	9606-9612
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	16	1	9701-9704
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	17	1	9705-9810
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	18	1	9811-9905
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	17	1	9906-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	15	1	9701-9905
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	15	1	9906-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-0101
279	NUT; BRKT EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0102-
279	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-110-0	02	1	9606-9606
279	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-210-0	02	1	9607-
286	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	9911-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9606-9608
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	04	1	9609-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9606-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	03	1	9606-
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	04	1	9606-9606
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9607-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	9606-
293	NUT; CLIP M8	9-09110-408-0	08	1	9606-9606
293	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	9607-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	9606-
296	BRACKET; CLIP (B)	1-47477-235-0	02	1	9606-
296	BRACKET; CLIP (C)	1-47477-678-0	01	1	9606-
297	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-110-0	02	1	9606-9606
297	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-210-0	02	1	9607-
306	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> ID=24 L=32	1-09700-766-1	01	1	9906-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9606-0103
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9606-9609
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9606-9905
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9906-0007
321	BRACKET; CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> (C)	1-47477-472-1	01	1	0008-
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B)	1-47477-386-2	01	1	9906-
322	BRACKET; CLIP (B)	1-79996-311-1	01	1	9606-9612
322	BRACKET; CLIP (B)	1-79996-360-0	01	1	9701-
322	BRACKET; CLIP ZF M/T<X9E> (A)	1-47475-427-1	01	1	9606-9905
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9606-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9606-9702
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9606-

22 2 288 2 60 110 13 1 11 3 3 290 110 321 63 18 42 305 41 69 333 21 316 126 16 316 375 375 128 381 359 127 16 126 359 317 173 110 110 110 110 22 174 11 36 299 80 22 1 24 79 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9606-9609
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9706
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9707-9905
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9906-9910
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9911-
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9606-9609
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9706
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	01	1	9707-9905
1	CLIP; AIR PIPE V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-9910
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9610-9706
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9707-9905
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9906-
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9606-9606
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9609
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9706
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9707-9905
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9906-
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9906-
11	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
11	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
11	BOLT; CLIP BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	02	1	9906-
11	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	01	1	9606-9606
11	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	01	1	9607-9607
11	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	01	1	9607-9905
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	01	1	9607-9905
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	01	1	9906-
11	BOLT; CLIP BRKT EXC. BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	01	1	9906-
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	9606-
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	9606-
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	9606-
18	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9606-9606
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-
21	NUT; CLIP M8	9-09110-408-0	01	1	9606-9606
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9606-
22	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (B) L=150 H=30	1-47477-629-1	04	1	9606-9606
22	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (B) L=150 H=30	1-47477-629-2	02	1	9607-9905
22	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (B) L=150 H=30	1-47477-629-2	02	1	9906-
22	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=150 H=30	1-47477-629-2	01	1	9606-9905
22	BRACKET; CLIP EXC. BRAKE REGULATION ECE<TDV> (B) L=150 H=30	1-47477-629-2	01	1	9906-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C) L=100 H=30	1-47477-645-2	01	1	9607-
24	CLIP; PIPE MJA7 M/T<X9Q> (A) ID=16 L=20	9-09525-535-0	02	1	9606-
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=40	9-09525-576-0	01	1	9606-9608
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=20	9-09525-535-0	01	1	9609-9612
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=28	9-09525-556-0	01	1	9701-
36	NUT; CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	9606-9606
36	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9606-
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
60	BOLT; CLIP FIX MJA7 M/T<X9Q> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
60	BOLT; CLIP FIX MJA7 M/T<X9Q> M8X25 FLANGE	0-28680-825-0	02	1	9607-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
60	BOLT; CLIP FIX ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9905
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9906-
63	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9606-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9606-9606
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	29	1	9606-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	03	1	9609-9702
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	04	1	9703-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) ID=35 L=33	1-09700-945-0	01	1	9606-9905
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9906-9906
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) ID=35 L=33	1-09700-945-0	01	1	9907-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	9606-9905
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9906-
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	27	1	9609-9610
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	29	1	9611-9702
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	30	1	9703-9704
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	31	1	9705-9905
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	31	1	9906-
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	26	1	9609-9610
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	28	1	9611-9702
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	29	1	9703-9905
110	CLIP; BAND,NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	29	1	9906-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	08	1	9606-9606
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	08	1	9607-
127	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9606-9606
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9607-
128	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9606-9711
128	CLIP; NYLON TUBE (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9911
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	9912-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	9606-
173	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	04	1	9606-9606
173	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	04	1	9607-9607
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-
173	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
173	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607
174	NUT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	04	1	9606-9606
174	NUT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	04	1	9607-9607
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9608-
174	NUT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	02	1	9606-9606
174	NUT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	02	1	9607-9607
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	04	1	9606-9606
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9607-
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	04	1	9606-9606
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	04	1	9607-9905
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9906-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	9906-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9906-
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9607-
316	BOLT; CLIP (A) M8X35 FLANGE	0-28080-835-0	01	1	9606-9606
316	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9607-
316	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
316	BOLT; CLIP BRAKE REGULATION ECE<TDV> (B) M8X30 FLANGE	0-28680-830-0	01	1	9906-
317	NUT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	9607-9905
317	NUT; CLIP BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9906-
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9606-9609
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9606-9905
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9906-0007
321	BRACKET; CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> (C)	1-47477-472-1	01	1	0008-
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B)	1-47477-386-2	01	1	9906-
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9606-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9606-9702
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9606-
359	BOLT; CLIP ZF M/T<X9E> M8X40 FLANGE	0-28080-840-0	01	1	9606-9905
359	BOLT; CLIP EXC. ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	01	1	9606-9606
359	BOLT; CLIP EXC. ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9607-9905
359	BOLT; CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8X35 FLANGE	0-28680-835-0	01	1	9906-0003
359	BOLT; CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0004-
359	BOLT; CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8X35 FLANGE	0-28680-835-0	01	1	0004-
375	CLIP; AIR PIPE ZF M/T<X9E> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9606-9905
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-
375	CLIP; AIR PIPE EXC. ZF M/T<X9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9606-9905
375	CLIP; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-0003
375	CLIP; AIR PIPE MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0004-
375	CLIP; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0004-
381	PLATE; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) ID=24 L=32	1-09700-766-1	01	1	9607-9905

106 107 109 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	01	1	9906-0101
106	BRACKET; TUBE CLIP EXC. CAB UP +110MM<TGG> (B) L=100 H=30	1-47477-645-2	01	1	0102-
106	BRACKET; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (A)	1-47477-235-0	01	1	9709-0101
106	BRACKET; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> (A)	1-47477-694-0	01	1	0102-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9606-9711
107	CLIP; NYLON TUBE EXC. BUMPER W/HEADLAMPS<SLB> (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9712-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9709-9905
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=32 L=35	1-09701-244-0	01	1	9709-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) L=250	1-09707-126-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9712-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9712-
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9606-9905
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9906-9906
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9907-
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9606-9905
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9906-
109	NUT; TUBE CLIP M8	9-09110-408-0	05	1	9606-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9607-9905
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	9906-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0008-
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9712-9905
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0102-
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-
133	BOLT; BRKT L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	01	1	9709-9905
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-0101
133	BOLT; BRKT L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8X30 FLANGE	0-28680-830-0	01	1	9906-0101
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0102-

348 352 303 270 107 106 81 109 230 376 231 230 110 254 333 111 98 76 348 356 111 303 38 322 254 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9606-
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	9701-9905
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ID=6 & 8.3	8-94167-742-0	02	1	9906-
81	BRACKET; CLIP	1-47477-483-0	01	1	9606-
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
106	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	01	1	9906-0101
106	BRACKET; TUBE CLIP EXC. CAB UP +110MM<TGG> (B) L=100 H=30	1-47477-645-2	01	1	0102-
106	BRACKET; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (A)	1-47477-235-0	01	1	9709-0101
106	BRACKET; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> (A)	1-47477-694-0	01	1	0102-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9606-9711
107	CLIP; NYLON TUBE EXC. BUMPER W/HEADLAMPS<SLB> (C) ID=35 H=45 L=33	1-09701-047-0	01	1	9712-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9709-9905
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=22 L=32	1-09700-126-1	01	1	9906-0101
107	CLIP; NYLON TUBE (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=22 L=32	1-09700-126-1	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=32 L=35	1-09701-244-0	01	1	9709-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (B) L=250	1-09707-126-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9712-0101
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> L TYPE ENG<90L> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0102-
107	CLIP; NYLON TUBE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9712-
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9606-9905
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9906-9906
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9907-
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9606-9905
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9906-
109	NUT; TUBE CLIP M8	9-09110-408-0	05	1	9606-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9607-9905
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	9906-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0008-
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9712-9905
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	9906-0003
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0004-0007
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0008-0101
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0102-
109	NUT; TUBE CLIP EXC. BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0102-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	29	1	9606-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	03	1	9609-9702
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	04	1	9703-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) ID=35 L=33	1-09700-945-0	01	1	9606-9905
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9906-9906
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) ID=35 L=33	1-09700-945-0	01	1	9907-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	9606-9905
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9906-
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	27	1	9609-9610
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	29	1	9611-9702
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	30	1	9703-9704
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	31	1	9705-9905
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	31	1	9906-
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	26	1	9609-9610
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	28	1	9611-9702
110	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	29	1	9703-9905
110	CLIP; BAND,NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	29	1	9906-
111	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	01	1	9606-9711
111	CLIP; AIR PIPE EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=35 L=33	1-09700-945-0	01	1	9712-
111	CLIP; AIR PIPE L TYPE ENG<90L> BUMPER W/HEADLAMPS<SLB> (B) ID=23 & 29	8-94160-682-2	01	1	9712-
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9606-
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> (A) ID=9 L=16	9-09524-822-0	02	1	9606-9905
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	9906-9906
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> (A) ID=9 L=16	9-09524-822-0	02	1	9907-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	07	1	9606-9905
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9906-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9906-
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> ID=35 L=33	1-09700-945-0	02	1	9606-9905
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	02	1	9906-9906
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> ID=35 L=33	1-09700-945-0	02	1	9907-
270	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> ID=28 L=32	1-09701-107-1	02	1	9606-9905
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	02	1	9906-9906
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> ID=28 L=32	1-09701-107-1	02	1	9906-9906
270	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> ID=28 L=32	1-09701-107-1	02	1	9907-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-
322	BRACKET; CLIP (B)	1-79996-311-1	01	1	9606-9612
322	BRACKET; CLIP (B)	1-79996-360-0	01	1	9701-
322	BRACKET; CLIP ZF M/T<X9E> (A)	1-47475-427-1	01	1	9606-9905
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9606-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9606-9702
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9606-
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9606-
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) ID=13X2 L=16	9-09535-225-0	02	1	9606-9905
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	9906-9906
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) ID=13X2 L=16	9-09535-225-0	02	1	9907-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9606-
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	9606-9905
356	CLIP; AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	9606-9905
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0001-0011
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-0011
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-0011
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0012-
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0012-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0012-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
