Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#51099) — 209 parça

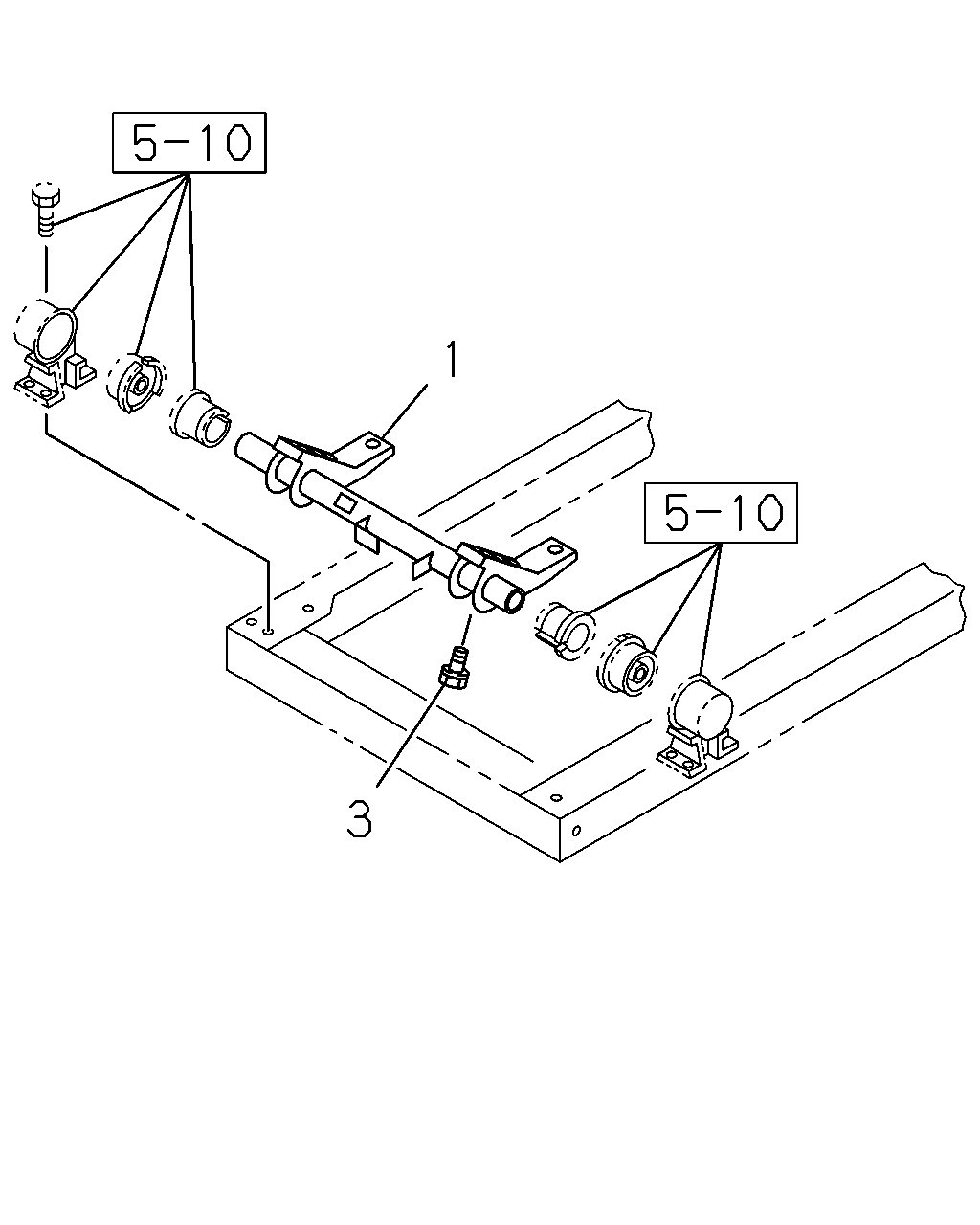

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97328-485-1	01	1	0211-1406	●	●	●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98286-069-0	01	1	1407-	●	●	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0211-0501	●	●	●	●
1	09.003 LEVER; TORSION BAR	8-97328-488-0	01	1	0211-0501					●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0502-	●	●	●	●
1	09.003 LEVER; TORSION BAR	8-97328-488-0	01	1	0502-						●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0211-0611	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0211-0501	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0211-0501					●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0502-0611	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0502-0611						●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-						●

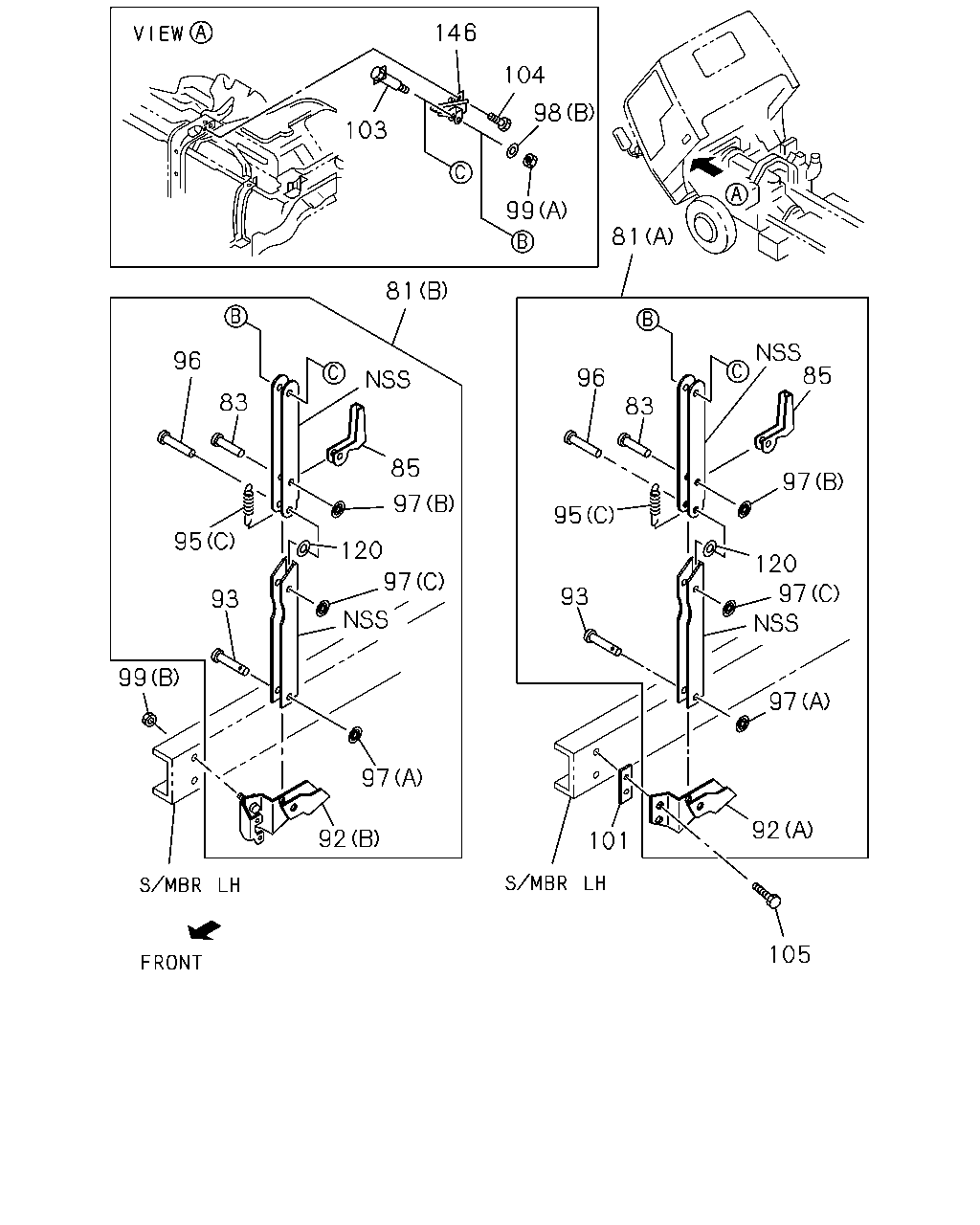

146 104 98 103 99 81 81 85 96 96 83 83 85 97 97 95 95 120 120 97 97 93 93 99 97 97 92 92 101 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97189-842-0	01	1	0211-0406	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97384-625-0	01	1	0407-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97120-940-0	01	1	0211-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97120-940-0	01	1	0211-		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-97120-940-0	01	1	0211-			●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97189-840-0	01	1	0211-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36	8-97096-661-0	02	1	0211-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32	8-97039-548-0	01	1	0211-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=8 L=32	8-97039-548-0	01	1	0211-		●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-94380-444-0	01	1	0211-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP)	8-94331-481-0	01	1	0211-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0211-		●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-657-1	01	1	0211-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-654-0	01	1	0211-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (B)	8-97096-654-0	01	1	0211-		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-97096-654-0	01	1	0211-			●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97194-873-0	01	1	0211-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50	8-97096-659-0	01	1	0211-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=12 L=53	8-97218-926-0	01	1	0211-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> OD=12 L=53	8-97218-926-0	01	1	0211-		●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	0211-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	0211-0406	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97384-123-0	01	1	0407-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	0211-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> (C)	8-94160-167-2	01	1	0211-		●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	9-08203-622-0	01	1	0211-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36	8-97096-661-0	01	1	0211-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> OD=10 L=36	8-97096-661-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	03	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (A) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0211-		●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	0211-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	0211-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	0211-	●	●	●	●
101	09.003 SPACER MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-94121-864-1	01	1	0211-		●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	0211-0805	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97359-151-0	01	1	0806-	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	0211-0512	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0601-	●	●	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER	8-94411-010-0	02	1	0211-	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) M10X40 W/WASHER	8-94411-010-0	02	1	0211-		●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20	8-97103-223-0	01	1	0211-	●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> ID=10 OD=20	8-97103-223-0	01	1	0211-		●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> CAB UP<W60>	8-97169-324-1	01	1	1008-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	0211-1007	●	●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. CAB UP<W60>	8-97076-587-1	01	1	1008-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	1008-		●	●	●

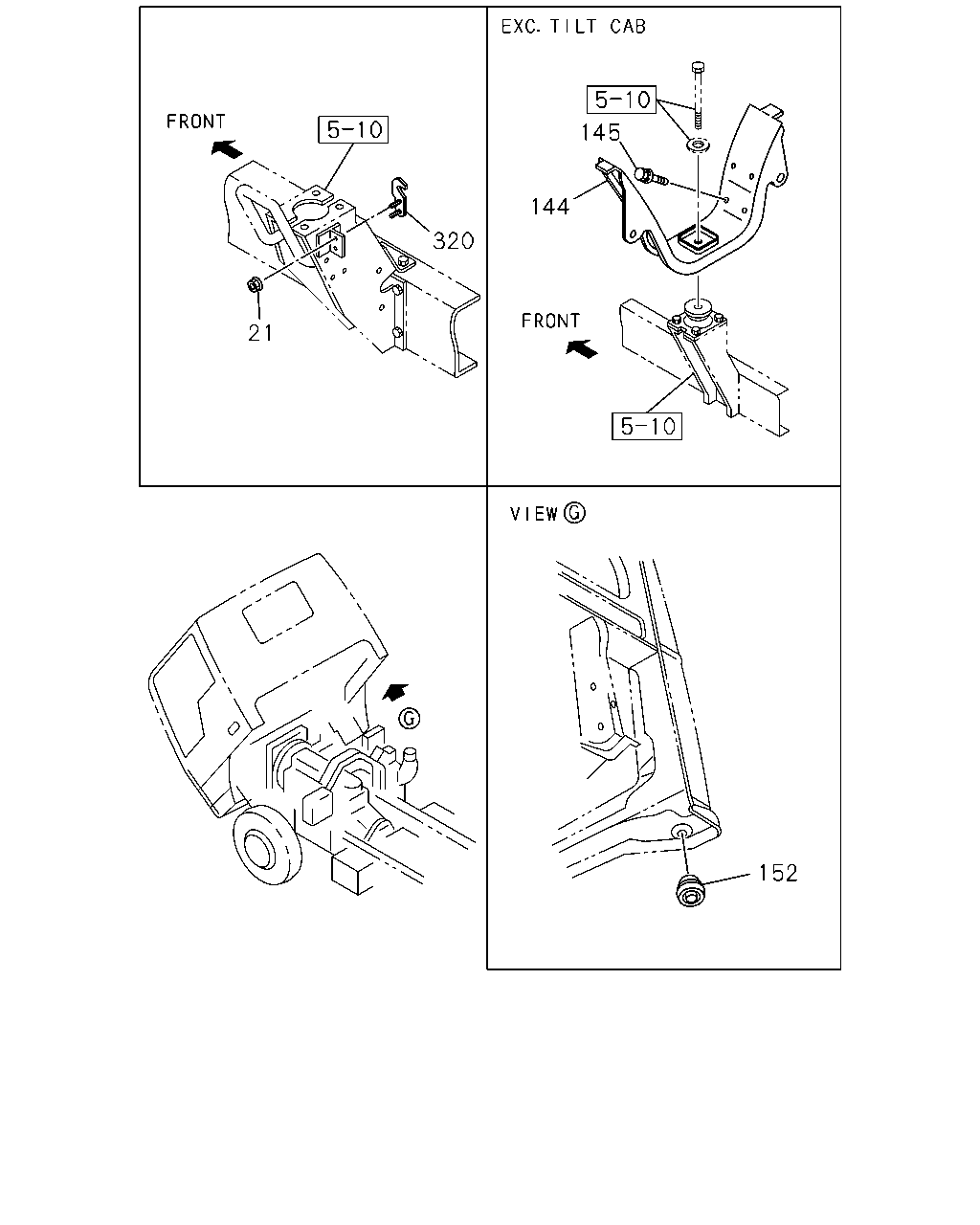

145 144 320 21 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
21	09.005 NUT BRAZIL EQUIPMENT(RWF) 07.243 M12 FLANGE	0-91150-212-0	04	1	0211-0303	●		●
21	09.005 NUT BRAZIL EQUIPMENT(RWF) 07.243 M12 FLANGE	0-91150-212-0	04	1	0304-0501			●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0211-	●	●	●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	0211-0501					●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	0502-						●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0211-0501	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0211-0501					●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0502-0808	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0502-0808						●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-						●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC 16.165 OD=25 BLACK	1-76798-019-0	02	1	0211-	●	●	●	●
320	09.001 ANCHOR; CAB RR BRAZIL EQUIPMENT(RWF)	8-97181-722-0	01	1	0211-0303	●		●
320	09.001 ANCHOR; CAB RR BRAZIL EQUIPMENT(RWF)	8-97181-722-0	01	1	0304-0501			●
320	09.001 ANCHOR; CAB RR BRAZIL EQUIPMENT(RWF)	8-97184-188-0	01	1	0211-0303	●		●
320	09.001 ANCHOR; CAB RR BRAZIL EQUIPMENT(RWF)	8-97184-188-0	01	1	0304-0501			●

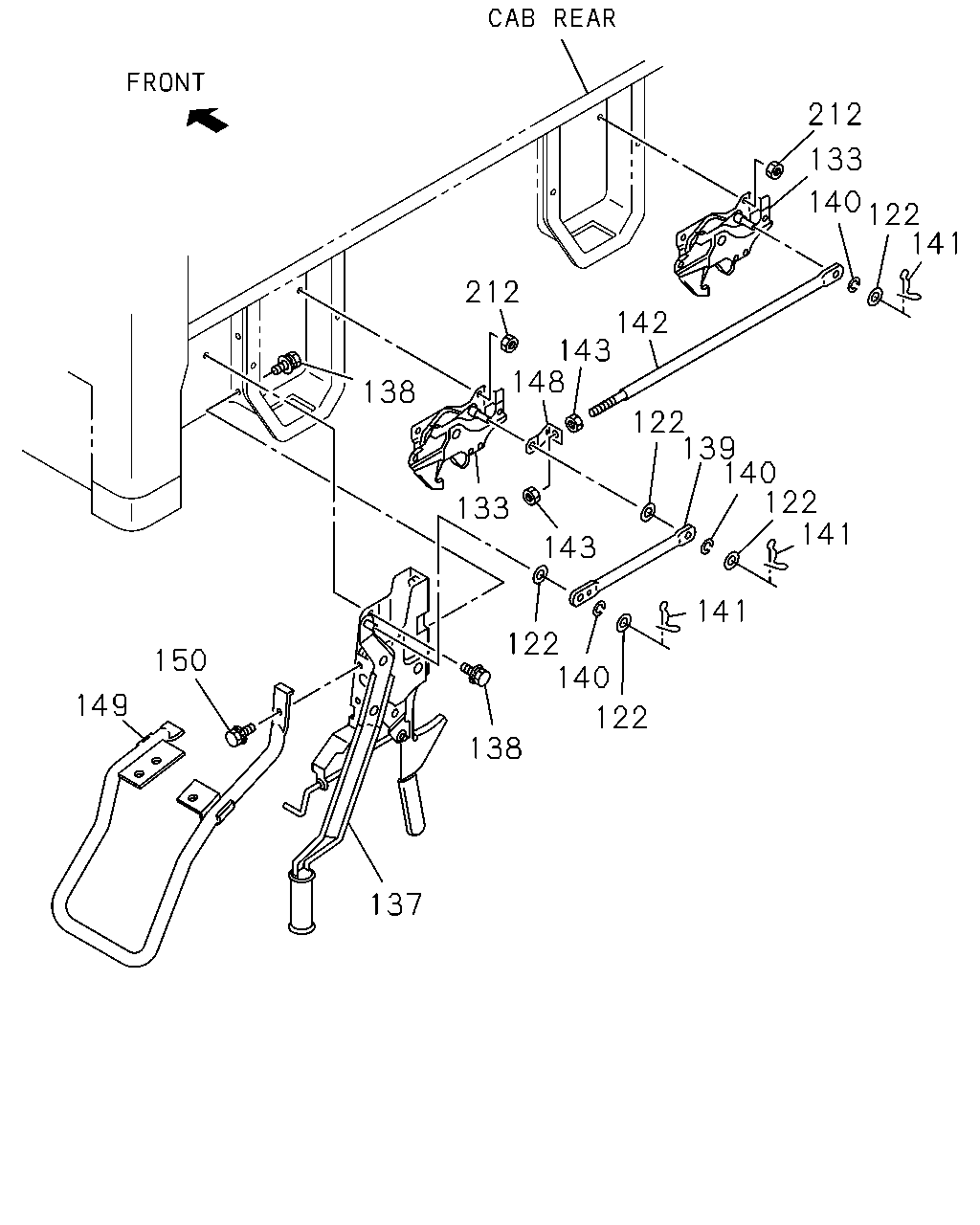

212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22	8-94279-627-0	05	1	0211-0707	●	●	●	●
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 ID=12.5 OD=22	0-91610-512-0	05	1	0708-	●	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-8	01	1	0211-	●	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-9	01	1	0211-	●	●	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97853-051-9	01	1	0211-	●	●	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-	●	●	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97853-053-1	01	1	0211-0302	●	●	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97997-597-0	01	1	0303-	●	●	●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-94279-629-0	03	1	0211-0611	●	●	●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-98060-839-0	03	1	0612-	●	●	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003	1-09987-158-1	03	1	0211-	●	●	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-099-1	01	1	0211-	●	●	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	0211-0909	●	●	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	0910-	●	●	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	0211-	●	●	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-97853-054-4	01	1	0211-	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-0610	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0611-1103	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1104-	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	0211-0711	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	08	1	0712-0712	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	0801-	●	●	●	●

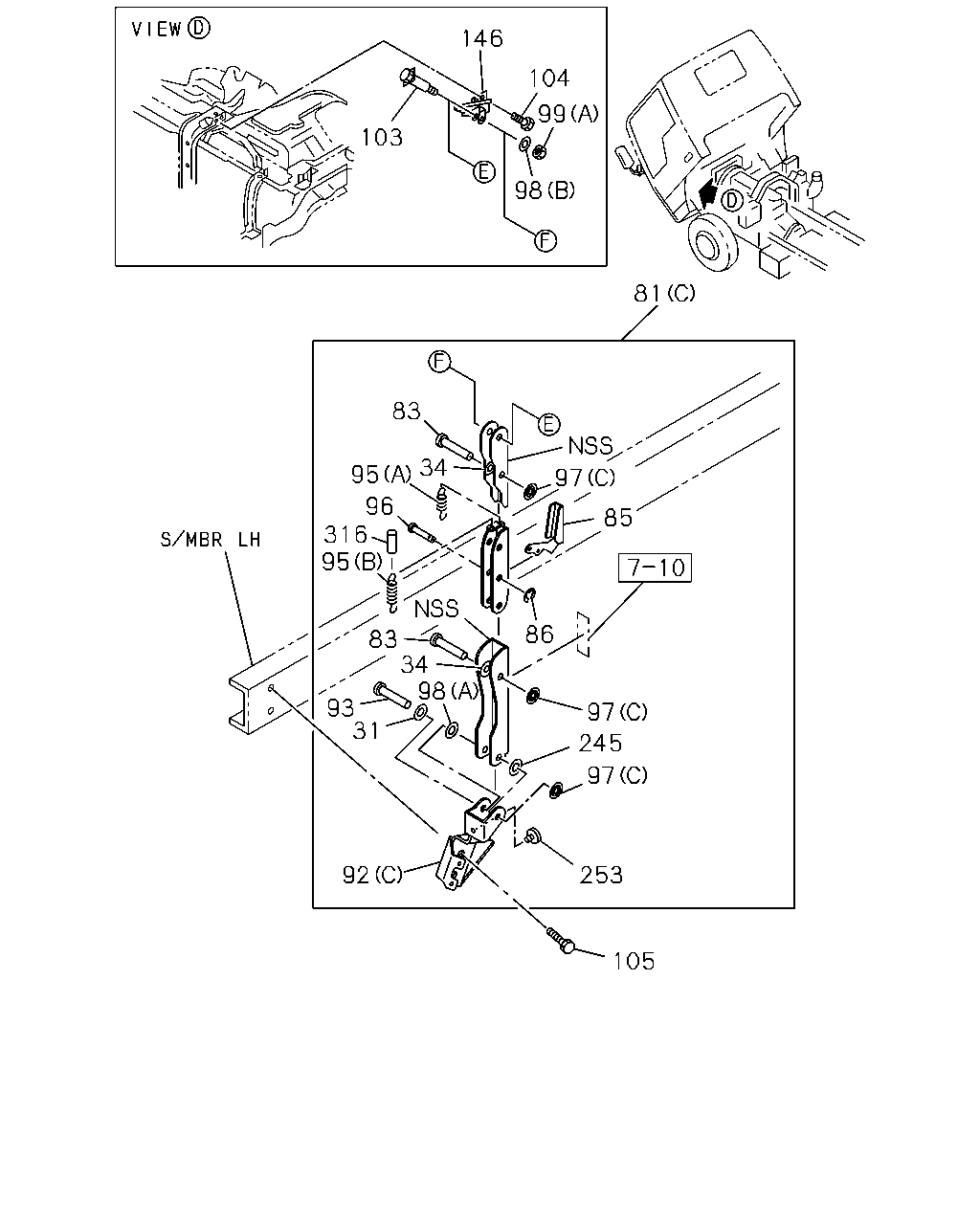

146 104 99 103 98 81 83 34 95 97 96 316 95 85 86 83 34 98 93 31 97 245 97 92 253 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	09.003 WASHER; WAVE MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97100-623-0	01	1	0211-	●
34	09.003 WASHER; LK MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 12.242 ID=10.5 OD=16	9-09855-178-0	02	1	0211-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97189-842-0	01	1	0211-0406	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97384-625-0	01	1	0407-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97120-940-0	01	1	0211-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97120-940-0	01	1	0211-		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-97120-940-0	01	1	0211-			●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97189-840-0	01	1	0211-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36	8-97096-661-0	02	1	0211-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32	8-97039-548-0	01	1	0211-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=8 L=32	8-97039-548-0	01	1	0211-		●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-94380-444-0	01	1	0211-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP)	8-94331-481-0	01	1	0211-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0211-		●	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 03.485 ID=4	0-91805-504-0	01	1	0605-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97096-657-1	01	1	0211-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-654-0	01	1	0211-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (B)	8-97096-654-0	01	1	0211-		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-97096-654-0	01	1	0211-			●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97194-873-0	01	1	0211-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50	8-97096-659-0	01	1	0211-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=12 L=53	8-97218-926-0	01	1	0211-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> OD=12 L=53	8-97218-926-0	01	1	0211-		●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	0211-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	0211-0406	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97384-123-0	01	1	0407-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	0211-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> (C)	8-94160-167-2	01	1	0211-		●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	9-08203-622-0	01	1	0211-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36	8-97096-661-0	01	1	0211-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> OD=10 L=36	8-97096-661-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	03	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0211-		●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0211-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (A) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0211-		●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	0211-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	0211-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	0211-	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	0211-0805	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97359-151-0	01	1	0806-	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	0211-0512	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0601-	●	●	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER	8-94411-010-0	02	1	0211-	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) M10X40 W/WASHER	8-94411-010-0	02	1	0211-		●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> CAB UP<W60>	8-97169-324-1	01	1	1008-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	0211-1007	●	●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. CAB UP<W60>	8-97076-587-1	01	1	1008-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	1008-		●	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 03.454 T=6 OD=17.5	9-33659-249-0	01	1	0211-	●
253	09.003 RUBBER; STOPPER MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-459-0	01	1	0211-	●
316	09.003 COVER; HARNESS MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97096-559-0	01	1	0211-	●

145 14 14 308 14 144 14 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	09.009 COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	0211-0501					●	●
14	09.009 COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	0502-						●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-94273-857-3	02	1	0211-0501					●	●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-94273-857-3	02	1	0502-0906						●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	0907-						●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0211-	●	●	●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	0211-0501					●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	0502-						●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0211-0501	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0211-0501					●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0502-0808	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0502-0808						●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-						●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	0211-0501					●	●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	0502-						●

12 15 1 15 3 15 12 38 324 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97328-485-1	01	1	0211-1406	●	●	●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98286-069-0	01	1	1407-	●	●	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0211-0501	●	●	●	●
1	09.003 LEVER; TORSION BAR	8-97328-488-0	01	1	0211-0501					●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0502-	●	●	●	●
1	09.003 LEVER; TORSION BAR	8-97328-488-0	01	1	0502-						●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0211-0611	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0211-0501	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0211-0501					●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0502-0611	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0502-0611						●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-						●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97261-873-0	01	1	0211-	●	●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ> EXC. CAB UP<W60>	8-97359-034-0	02	1	1008-	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	02	1	1008-		●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-94258-173-0	02	1	0211-0610	●	●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	02	1	0611-1007	●	●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ> CAB UP<W60>	8-97359-034-0	01	1	1008-	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> CAB UP<W60> M14	8-98039-988-0	01	1	1008-	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> CAB UP<W60> M14X55	8-98004-319-1	01	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
