◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶

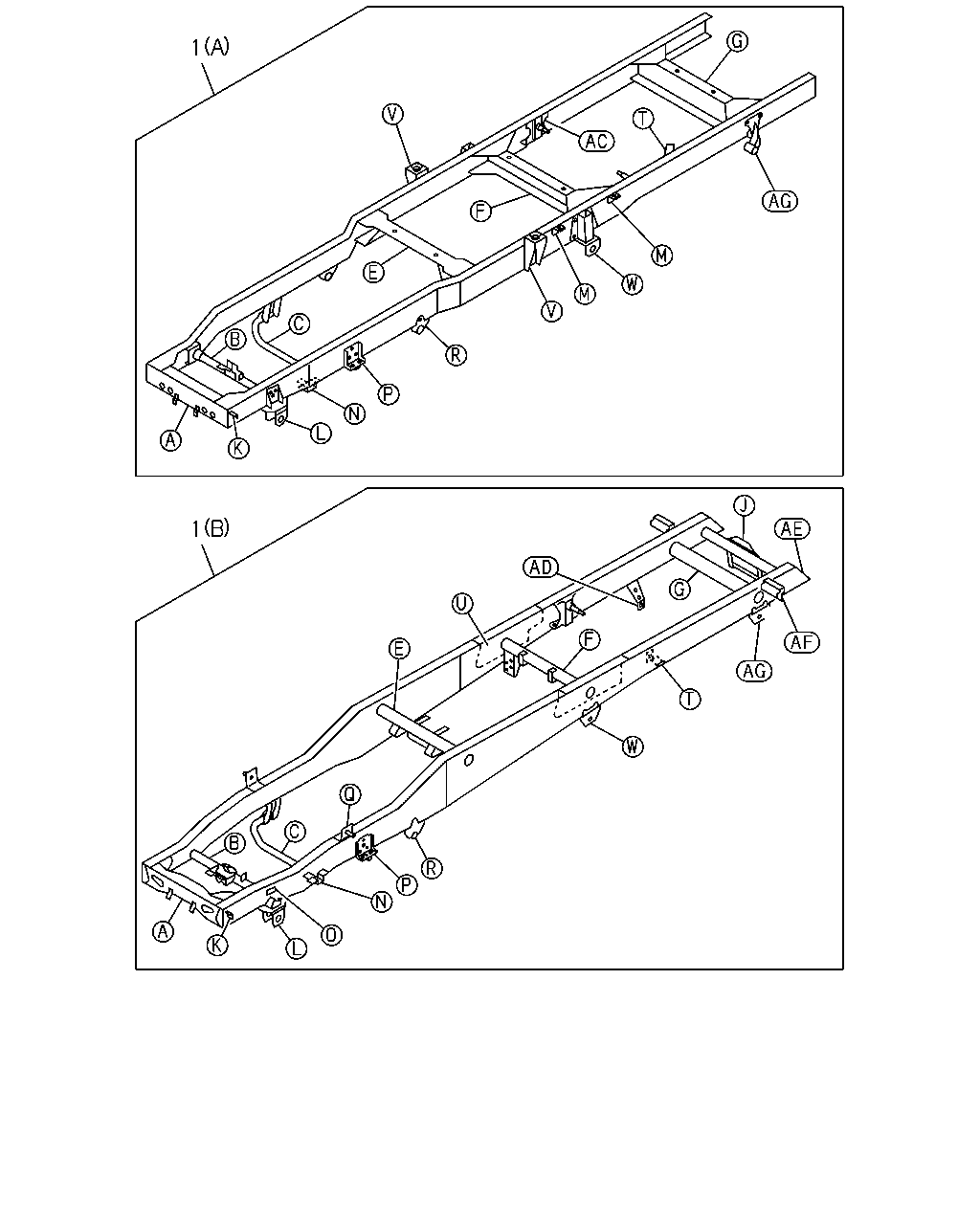

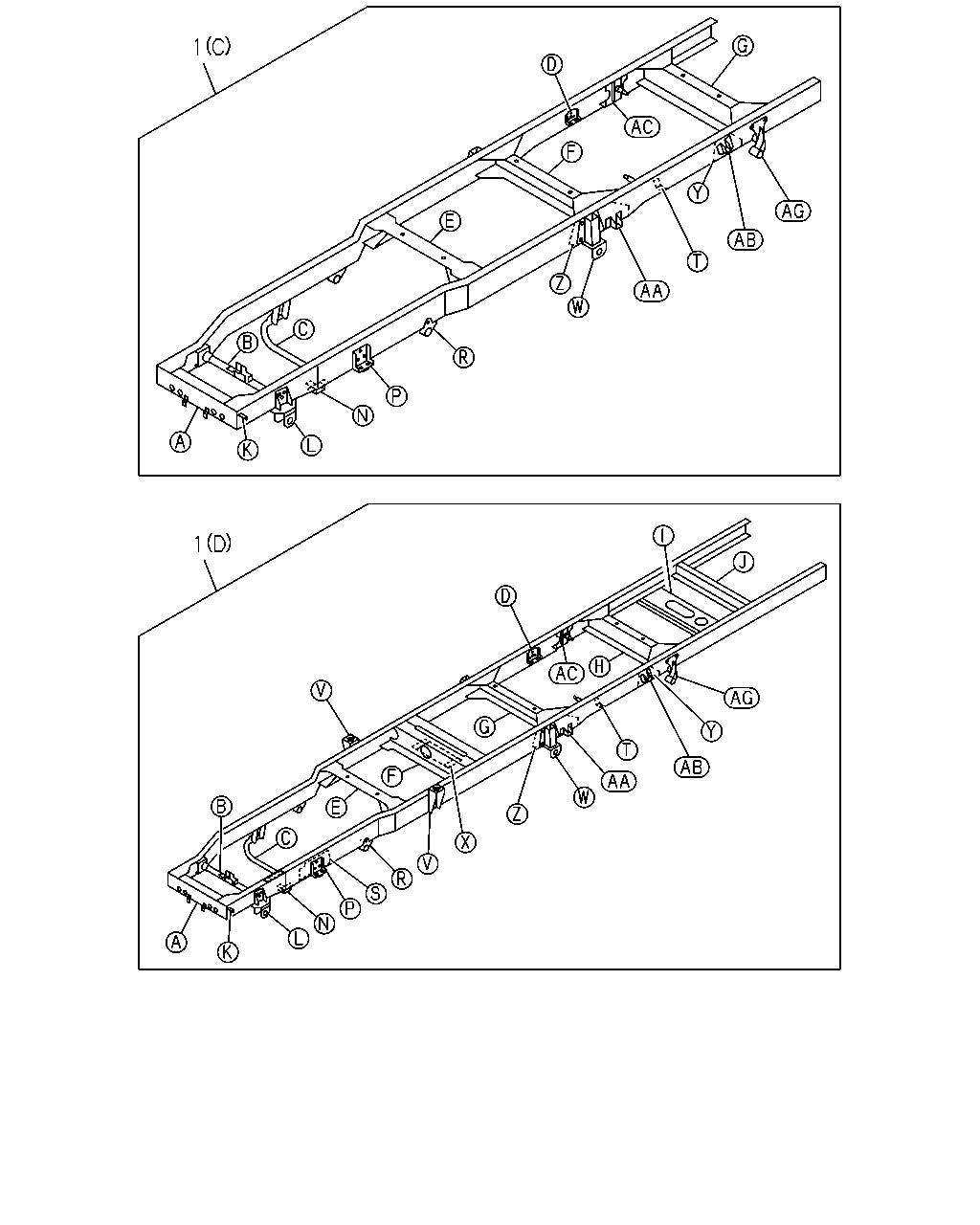

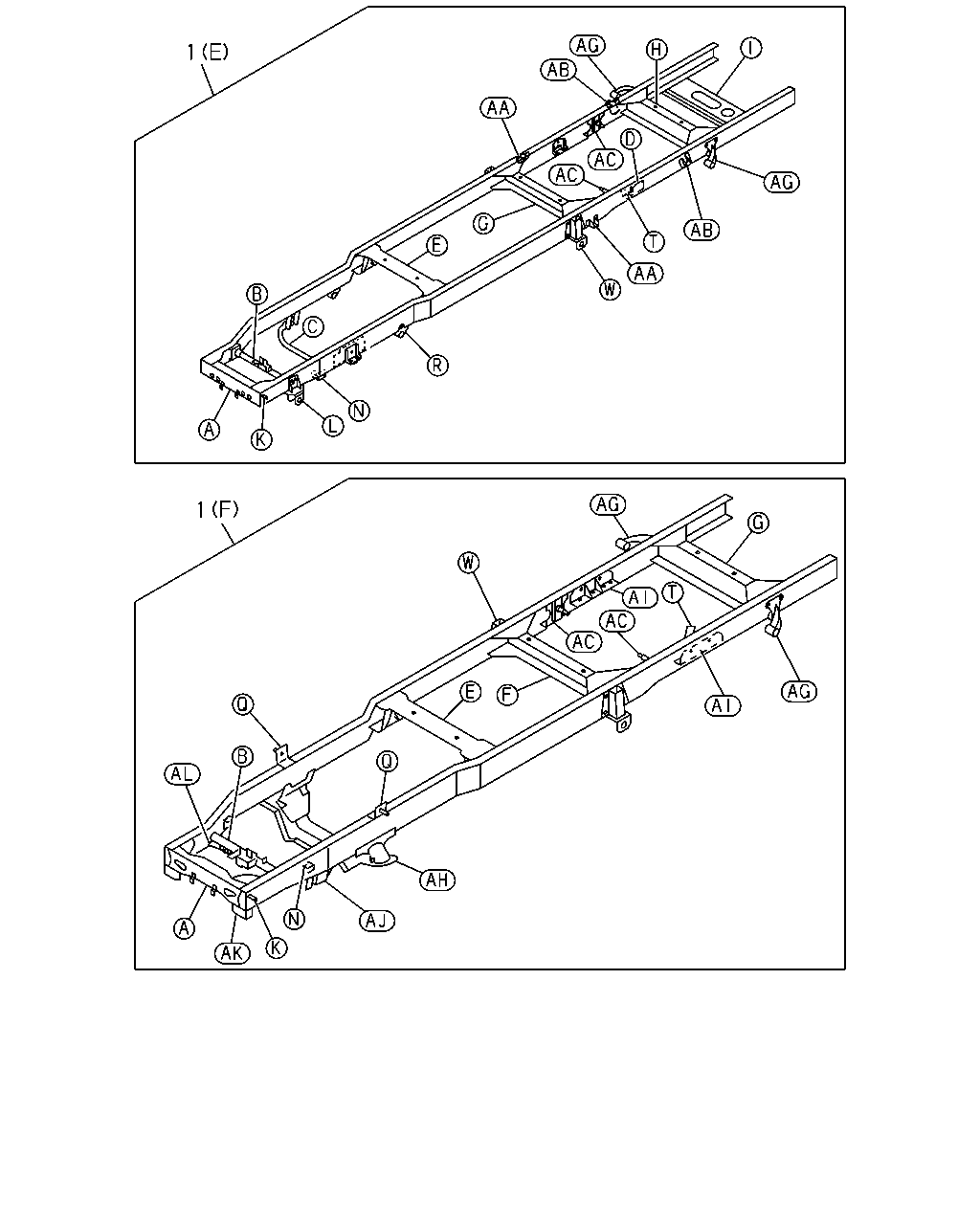

5-01 — FRAME AND OTHER PARTS (#51097) — 891 parça
çizim 45625
2 17 17 17 17 2 20 20 217 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97113-624-2 01 1 0211-0501 ●
2 07.010 MEMBER; CROSS,1ST
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 0211-0501 ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 0211-0501 ●
2 07.010 MEMBER; CROSS,1ST
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 0502-0504 ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 0502-0504 ●
2 07.010 MEMBER; CROSS,1ST
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 0505-0910 ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 0505-0910 ●
2 07.010 MEMBER; CROSS,1ST
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 0911-1004 ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 0911-1004 ●
2 07.010 MEMBER; CROSS,1ST
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 1005- ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 1005- ●
2 07.010 MEMBER; CROSS,1ST
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97113-625-2 01 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-2 01 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-998-2 01 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-998-2 01 1 0502- ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-2 01 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97039-568-2 01 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97039-568-2 01 1 0502- ●
17 07.039 GUSSET; 1ST C/MBR
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 0211-0501 ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 0211-0501 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 0502-0504 ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 0502-0504 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 0505-0910 ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 0505-0910 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 0911-1004 ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 0911-1004 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 1005- ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 1005- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 0211-0501 ●
20 07.012 MEMBER; CROSS,2ND
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0211-0501 ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0211-0501 ●
20 07.012 MEMBER; CROSS,2ND
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0502-0504 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0502-0504 ●
20 07.012 MEMBER; CROSS,2ND
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0505-0910 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0505-0910 ●
20 07.012 MEMBER; CROSS,2ND
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0911-1004 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0911-1004 ●
20 07.012 MEMBER; CROSS,2ND
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 1005- ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 1005- ●
20 07.012 MEMBER; CROSS,2ND
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-97101-835-1 01 1 0211-0501 ●
20 07.012 MEMBER; CROSS,2ND
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-97101-835-1 01 1 0502- ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 0211-0303 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97165-923-1 01 1 0211-0303 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 0211-0303 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-97165-923-1 01 1 0211-0303 ●
42 07.011 MEMBER; CROSS,ENG MTG 8-97165-923-1 01 1 0211-0303 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 0304-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97165-923-1 01 1 0304-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 0304-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX),4HF1-S ENG(RLS) 		8-97165-923-1 01 1 0304-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG 8-97165-923-1 01 1 0304-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 0502-1004 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97165-923-1 01 1 0502-1004 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 0502-1004 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97165-923-1 01 1 0502-1004 ●
42 07.011 MEMBER; CROSS,ENG MTG 8-97165-923-1 01 1 0502-1004 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 1005- ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97165-923-1 01 1 1005- ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 1005- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97165-923-1 01 1 1005- ●
42 07.011 MEMBER; CROSS,ENG MTG 8-97165-923-1 01 1 1005- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 0211-0501 ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
RR BODY NON FLAT BED(RS5) 		8-94246-127-7 01 1 0211-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94246-127-7 01 1 0211-0501 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 0502-0504 ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94246-127-7 01 1 0502-0504 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 0505-0910 ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94246-127-7 01 1 0505-0910 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 0911- ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94246-127-7 01 1 0911- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 0211-0303 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 		8-94258-963-0 02 1 0211-0303 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-94258-963-0 02 1 0211-0303 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 0211-0303 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 0304-0501 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-94258-963-0 02 1 0304-0501 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 0304-0501 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 0502-0504 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-94258-963-0 02 1 0502-0504 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 0502-0504 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 0505- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-94258-963-0 02 1 0505- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 0505- ●
çizim 45920
215 105 215 105 105 105 226 5 328 368 369
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-94126-621-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
RR BODY NON FLAT BED(RS5) (B) 		8-94126-621-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 0505-0910 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 0911-1004 ●
105 07.112 BRACKET; RR SPR,RR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 1005- ●
105 07.112 BRACKET; RR SPR,RR
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-94126-620-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
RR BODY NON FLAT BED(RS5) (B) 		8-94126-620-1 01 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 0505-0910 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 0911-1004 ●
105 07.112 BRACKET; RR SPR,RR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 1005- ●
105 07.112 BRACKET; RR SPR,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (D) 		8-97184-907-0 02 1 0211-0501 ●
105 07.112 BRACKET; RR SPR,RR
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (D) 		8-97184-907-0 02 1 0502- ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94459-512-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-94459-512-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-94459-512-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-94459-512-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-94459-512-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94459-511-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-94459-511-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0211-0303 ●
105 07.112 BRACKET; RR SPR,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-94459-511-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0304-0501 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-94459-511-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0502-0504 ●
105 07.112 BRACKET; RR SPR,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-94459-511-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0505- ●
105 07.112 BRACKET; RR SPR,RR
(C) 		8-94109-312-0 02 1 0211- ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 0211-0303 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 		8-97184-699-1 04 1 0211-0303 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-97184-699-1 04 1 0211-0303 ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0211-0303 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 0304-0501 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-97184-699-1 04 1 0304-0501 ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0304-0501 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 0502-0504 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97184-699-1 04 1 0502-0504 ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0502-0504 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 0505- ●
215 07.524 BUSHING; BRKT,RR SPRING
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97184-699-1 04 1 0505- ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0505- ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 0211-0501 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 0211-0501 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 0211-0501 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 0211-0501 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-4 01 1 0211-0501 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-2 01 1 0211-0501 ●
369 07.039 STOPPER; STEERING
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 0211-0501 ●
çizim 46105
376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 338 106 286 176 221 288 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 07.529 BOLT; BRKT
4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0501 ●
106 07.529 BOLT; BRKT
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0501 ●
106 07.529 BOLT; BRKT
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
106 07.529 BOLT; BRKT
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
106 07.529 BOLT; BRKT
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) 03.890 M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
106 07.529 BOLT; BRKT
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) 03.890 M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
118 07.529 NUT; STOPPER
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0211-0303 ●
118 07.529 NUT; STOPPER
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0211-0303 ●
118 07.529 NUT; STOPPER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0211-0303 ●
118 07.529 NUT; STOPPER
07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0211-0303 ●
118 07.529 NUT; STOPPER
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0304-0501 ●
118 07.529 NUT; STOPPER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0304-0501 ●
118 07.529 NUT; STOPPER
07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0304-0501 ●
118 07.529 NUT; STOPPER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0502-0504 ●
118 07.529 NUT; STOPPER
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0502-0504 ●
118 07.529 NUT; STOPPER
07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0502-0504 ●
118 07.529 NUT; STOPPER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0505-0603 ●
118 07.529 NUT; STOPPER
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0505-0603 ●
118 07.529 NUT; STOPPER
07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0505-0603 ●
118 07.529 NUT; STOPPER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) M8 LOCK NUT 		0-91370-008-0 04 1 0604- ●
118 07.529 NUT; STOPPER
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) M8 LOCK NUT 		0-91370-008-0 04 1 0604- ●
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 04 1 0604- ●
176 04.085 BOLT; C/MBR,ENG MTG
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 03.417 M10X25 FLANGE 		0-28081-025-0 08 1 0211-0501 ● ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 08 1 0502-0504 ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 08 1 0505-0512 ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.171 M10X25 FLANGE 		0-28051-025-0 08 1 0601-1004 ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.171 M10X25 FLANGE 		0-28051-025-0 08 1 1005-1207 ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.171 M10X25 FLANGE 		0-28051-025-0 08 1 1208- ●
176 04.085 BOLT; C/MBR,ENG MTG
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.171 M10X25 FLANGE 		0-28051-025-0 08 1 1208- ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) 00.685 M10X30 FLANGE 		0-28081-030-0 08 1 0211-0303 ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1 ENG(RJX) 00.685 M10X30 FLANGE 		0-28081-030-0 08 1 0304-0501 ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE 		0-28081-030-0 08 1 0502-0512 ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1-TC ENG(RDM) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 0601-1207 ●
176 04.085 BOLT; C/MBR,ENG MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1208- ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1-TC ENG(RDM) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1208- ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0211-0501 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0211-0501 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0502-0512 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0601- ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1-S ENG(RLS) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 0211-0501 ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 0502-0506 ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(EU2) 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 0507-0512 ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.068 M10X30 FLANGE 		0-28661-030-0 06 1 0601- ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1-S ENG(RLS) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 08.917 M10 FLANGE 		0-91150-210-0 06 1 0211-0501 ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 08.917 M10 FLANGE 		0-91150-210-0 06 1 0502-0506 ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.917 M10 FLANGE 		0-91150-210-0 06 1 0507-0602 ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.085 M10 FLANGE 		0-91180-210-0 06 1 0603- ●
338 04.085 BOLT; C/MBR,SUSPENSION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 12 1 0211-0501 ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X26 TAPER END 		9-06750-826-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (D) D8X28 TAPER END 		9-06750-828-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(E) D10X24 TAPER END 		9-06751-024-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(F) D10X26 TAPER END 		9-06751-026-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(G) D10X28 TAPER END 		9-06751-028-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(H) D10X30 TAPER END 		9-06751-030-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(I) D10X32 TAPER END 		9-06751-032-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(J) M10X34 TAPER END 		9-06751-034-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(K) D10X36 TAPER END 		9-06751-036-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(L) D11X26 TAPER END 		9-06751-126-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.105 (M) D12X30 TAPER END 		9-06751-230-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.535 (N) D12X34 TAPER END 		9-06751-234-0 AR 1 0211- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.112 (O) D12X38 TAPER END 		9-06751-238-0 AR 1 0211- ● ● ● ● ● ●
çizim 46152
34 34 34 415 415 74 74 344 345 212 75 74 345 344 75 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-432-1 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-432-1 01 1 0502-1004 ●
34 07.012 MEMBER; CROSS,3RD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-432-1 01 1 1005- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-667-1 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
RR BODY NON FLAT BED(RS5) (A) 		8-97039-670-1 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 0502-0504 ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 0502-0504 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 0505-0910 ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 0505-0910 ●
34 07.012 MEMBER; CROSS,3RD
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 0911- ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 0911- ●
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (C) 		8-97256-169-0 01 1 0211-0501 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (C) 		8-97256-169-0 01 1 0502- ●
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97047-768-1 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97047-768-1 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97047-768-1 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97047-768-1 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) (B) 		8-97047-768-1 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97047-768-1 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (B) 		8-97047-768-2 01 1 0502- ●
34 07.012 MEMBER; CROSS,3RD
4JH1-TC ENG(RDM) (B) 		8-97047-768-2 01 1 0502- ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97047-768-2 01 1 0502- ●
34 07.012 MEMBER; CROSS,3RD
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97115-578-0 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97115-578-0 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-97115-578-0 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0502-0504 ●
34 07.012 MEMBER; CROSS,3RD
4JB1 NA ENG(RLF) (A) 		8-97115-578-0 01 1 0502-0504 ●
34 07.012 MEMBER; CROSS,3RD
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0505- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-97115-578-0 01 1 0505- ●
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97039-671-1 01 1 0211-0303 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-S ENG(RLS) (B) 		8-97039-671-1 01 1 0304-0501 ●
34 07.012 MEMBER; CROSS,3RD
4HF1-N ENG(RJZ) (B) 		8-97039-671-1 01 1 0502- ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0211-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0304-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0502-0504 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0505- ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0304-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0502-0504 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0505- ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-840-0 01 1 0211- ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-839-0 01 1 0211- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0505-0910 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0911-1004 ●
75 07.039 GUSSET; 5TH C/MBR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 1005- ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ● ●
212 03.704 BRACKET; EXH SILENCER
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97034-037-2 01 1 0211-0501 ●
212 03.704 BRACKET; EXH SILENCER
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97034-037-2 01 1 0502- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0211-0501 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97078-707-3 01 1 0211-0303 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97078-707-3 01 1 0211-0303 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97078-707-3 01 1 0304-0501 ●
344 07.012 MEMBER; CROSS,4TH
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97078-707-3 01 1 0502-0504 ●
344 07.012 MEMBER; CROSS,4TH
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97078-707-3 01 1 0505- ●
344 07.012 MEMBER; CROSS,4TH
(B) 		8-97101-836-0 01 1 0211- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
RR BODY NON FLAT BED(RS5) (A) 		8-97081-061-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0505-0910 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0911-1004 ●
345 07.012 MEMBER; CROSS,5TH
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 1005- ●
345 07.012 MEMBER; CROSS,5TH
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97086-151-1 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97086-151-1 01 1 0502- ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
(C) 		8-97076-793-2 01 1 0211- ●
415 07.039 BRACKET; FUEL PIPE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97076-569-1 02 1 0211-0501 ●
415 07.039 BRACKET; FUEL PIPE
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97076-569-1 02 1 0502- ●

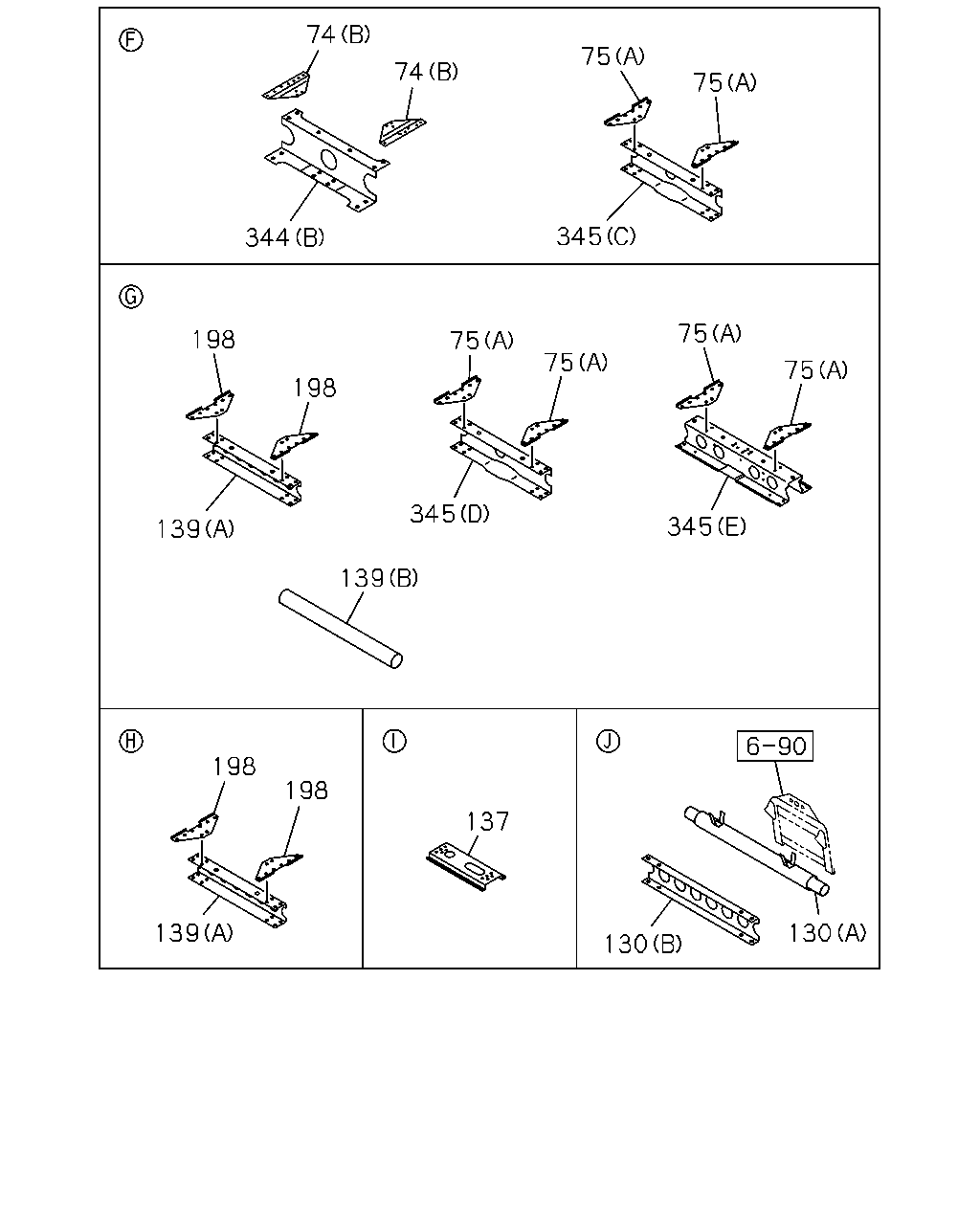

çizim 46506
74 74 75 75 345 344 198 198 75 75 75 75 345 345 139 139 198 198 139 137 130 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0211-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0304-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0502-0504 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0505- ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0211-0303 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0304-0501 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0502-0504 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0505- ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-840-0 01 1 0211- ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-839-0 01 1 0211- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 0211-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0505-0910 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0911-1004 ●
75 07.039 GUSSET; 5TH C/MBR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 1005- ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0211-0303 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0304-0501 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0502-0504 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER 		8-97062-499-0 02 1 0505- ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0211-0303 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0304-0501 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0502-0504 ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ●
75 07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER 		8-97062-500-0 02 1 0505- ● ●
130 07.014 MEMBER; CROSS,END
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-94388-995-3 01 1 0211-0501 ●
130 07.014 MEMBER; CROSS,END
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-94388-995-3 01 1 0502- ●
130 07.014 MEMBER; CROSS,END
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94257-620-2 01 1 0211-0303 ●
130 07.014 MEMBER; CROSS,END
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-94257-620-2 01 1 0211-0303 ●
130 07.014 MEMBER; CROSS,END
(B) 		8-94257-620-2 01 1 0211-0303 ●
130 07.014 MEMBER; CROSS,END
4HF1-S ENG(RLS) (B) 		8-94257-620-2 01 1 0304-0501 ●
130 07.014 MEMBER; CROSS,END
(B) 		8-94257-620-2 01 1 0304-0501 ●
130 07.014 MEMBER; CROSS,END
4HF1-N ENG(RJZ) (B) 		8-94257-620-2 01 1 0502- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-94257-620-2 01 1 0502- ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97106-992-0 01 1 0211-0303 ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) (B) 		8-97106-992-0 01 1 0304-0501 ●
130 07.014 MEMBER; CROSS,END
4JH1-TC ENG(RDM),4JB1 NA ENG(RLF) (B) 		8-97106-992-0 01 1 0502-0504 ●
130 07.014 MEMBER; CROSS,END
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-97106-992-0 01 1 0505- ●
137 07.629 BRACKET; SPARE TIRE
4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) 		8-97224-383-1 01 1 0211-0501 ●
137 07.629 BRACKET; SPARE TIRE
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) 		8-97224-383-1 01 1 0211-0501 ●
137 07.629 BRACKET; SPARE TIRE
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) 		8-97224-383-1 01 1 0502- ●
137 07.629 BRACKET; SPARE TIRE
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) 		8-97224-383-1 01 1 0502- ●
137 07.629 BRACKET; SPARE TIRE
4HF1-S ENG(RLS) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 		8-97224-384-1 01 1 0211-0501 ●
137 07.629 BRACKET; SPARE TIRE
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 		8-97224-384-1 01 1 0502-0506 ●
137 07.629 BRACKET; SPARE TIRE
4HF1-N ENG(RJZ) SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97224-384-1 01 1 0507- ●
137 07.629 BRACKET; SPARE TIRE
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 		8-97076-885-1 01 1 0211-0303 ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-97076-885-1 01 1 0211-0303 ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-1 01 1 0211-0303 ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-97076-885-1 01 1 0304-0501 ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-1 01 1 0304-0501 ●
137 07.629 BRACKET; SPARE TIRE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97076-885-1 01 1 0502-0504 ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-1 01 1 0502-0504 ●
137 07.629 BRACKET; SPARE TIRE
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97076-885-1 01 1 0505- ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-1 01 1 0505- ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0211-0501 ●
139 07.012 MEMBER; CROSS,6TH
RR BODY NON FLAT BED(RS5) (A) 		8-97045-542-2 01 1 0211-0501 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 0211-0501 ●
139 07.012 MEMBER; CROSS,6TH
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0502-0504 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 0502-0504 ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0505-0910 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 0505-0910 ●
139 07.012 MEMBER; CROSS,6TH
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0911-1004 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 0911-1004 ●
139 07.012 MEMBER; CROSS,6TH
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 1005- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 1005- ●
139 07.012 MEMBER; CROSS,6TH
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-229-1 01 1 0211-0501 ●
139 07.012 MEMBER; CROSS,6TH
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-229-1 01 1 0502- ●
139 07.012 MEMBER; CROSS,6TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 0211-0303 ●
139 07.012 MEMBER; CROSS,6TH
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97062-498-1 01 1 0211-0303 ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97062-498-1 01 1 0211-0303 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0211-0303 ●
139 07.012 MEMBER; CROSS,6TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 0304-0501 ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97062-498-1 01 1 0304-0501 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0304-0501 ●
139 07.012 MEMBER; CROSS,6TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 0502-0504 ●
139 07.012 MEMBER; CROSS,6TH
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97062-498-1 01 1 0502-0504 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0502-0504 ●
139 07.012 MEMBER; CROSS,6TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 0505- ●
139 07.012 MEMBER; CROSS,6TH
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97062-498-1 01 1 0505- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 0211-0501 ●
198 07.039 GUSSET; 6TH C/MBR
RR BODY NON FLAT BED(RS5) 		8-94258-081-1 02 1 0211-0501 ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0211-0501 ●
198 07.039 GUSSET; 6TH C/MBR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 0505-0910 ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0505-0910 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 0911-1004 ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0911-1004 ●
198 07.039 GUSSET; 6TH C/MBR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 1005- ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 1005- ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER 		8-97062-499-0 02 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0211-0303 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0304-0501 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0502-0504 ●
198 07.039 GUSSET; 6TH C/MBR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0505- ●
198 07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER 		8-97062-500-0 02 1 0505- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0211-0501 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97078-707-3 01 1 0211-0303 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97078-707-3 01 1 0211-0303 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97078-707-3 01 1 0304-0501 ●
344 07.012 MEMBER; CROSS,4TH
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97078-707-3 01 1 0502-0504 ●
344 07.012 MEMBER; CROSS,4TH
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97078-707-3 01 1 0505- ●
344 07.012 MEMBER; CROSS,4TH
(B) 		8-97101-836-0 01 1 0211- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
RR BODY NON FLAT BED(RS5) (A) 		8-97081-061-2 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0505-0910 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0911-1004 ●
345 07.012 MEMBER; CROSS,5TH
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 1005- ●
345 07.012 MEMBER; CROSS,5TH
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97086-151-1 01 1 0211-0501 ●
345 07.012 MEMBER; CROSS,5TH
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97086-151-1 01 1 0502- ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0211-0303 ●
345 07.012 MEMBER; CROSS,5TH
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0304-0501 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0502-0504 ●
345 07.012 MEMBER; CROSS,5TH
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0505- ●
345 07.012 MEMBER; CROSS,5TH
(C) 		8-97076-793-2 01 1 0211- ●
çizim 46902
188 173 173 147 103 103 147 140 140 140 235 234 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97223-748-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97223-748-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97223-748-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97223-748-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 0505- ●
103 07.420 STOPPER; SUB SPR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97223-748-0 02 1 0505- ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 0505- ●
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-97223-750-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97223-750-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0211-0303 ●
103 07.420 STOPPER; SUB SPR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97223-750-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0304-0501 ●
103 07.420 STOPPER; SUB SPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 		8-97223-750-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0502-0504 ●
103 07.420 STOPPER; SUB SPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 0505- ●
103 07.420 STOPPER; SUB SPR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97223-750-0 02 1 0505- ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-104-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-94258-104-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
RR BODY NON FLAT BED(RS5) (A) 		8-94258-104-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-104-1 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-104-1 01 1 0505-0910 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 0505-0910 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-104-1 01 1 0911-1004 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 0911-1004 ●
140 07.112 BRACKET; S/ABS,RR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-104-1 01 1 1005- ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 1005- ●
140 07.112 BRACKET; S/ABS,RR
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-103-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-94258-103-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
RR BODY NON FLAT BED(RS5) (A) 		8-94258-103-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 0211-0501 ●
140 07.112 BRACKET; S/ABS,RR
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-103-1 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-103-1 01 1 0505-0910 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 0505-0910 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-103-1 01 1 0911-1004 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 0911-1004 ●
140 07.112 BRACKET; S/ABS,RR
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-103-1 01 1 1005- ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 1005- ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-97012-285-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97012-285-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97012-285-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (B) 		8-97012-285-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (B) 		8-97012-285-0 01 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 07.395 (C) 		8-94101-303-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 07.395 (C) 		8-94101-303-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0211-0303 ●
140 07.112 BRACKET; S/ABS,RR
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 07.395 (C) 		8-94101-303-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0304-0501 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 07.395 (C) 		8-94101-303-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0502-0504 ●
140 07.112 BRACKET; S/ABS,RR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 07.395 (C) 		8-94101-303-0 01 1 0505- ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0505- ●
147 07.535 RUBBER; SUB SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0211-0303 ●
147 07.535 RUBBER; SUB SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 		8-97254-387-0 04 1 0211-0303 ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-97254-387-0 04 1 0211-0303 ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0211-0303 ●
147 07.535 RUBBER; SUB SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0304-0501 ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-97254-387-0 04 1 0304-0501 ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0304-0501 ●
147 07.535 RUBBER; SUB SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0502-0504 ●
147 07.535 RUBBER; SUB SPRING
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97254-387-0 04 1 0502-0504 ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0502-0504 ●
147 07.535 RUBBER; SUB SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0505- ●
147 07.535 RUBBER; SUB SPRING
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97254-387-0 04 1 0505- ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0505- ●
150 03.616 BRACKET; EXH PIPE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94388-181-0 01 1 0211-0501 ●
150 03.616 BRACKET; EXH PIPE
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94388-181-0 01 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (B) 		8-97213-460-4 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4HF1-N ENG(RJZ) (B) 		8-97213-460-4 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-97213-460-4 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 02 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-94408-191-2 02 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-2 02 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) (B) 		8-94408-191-2 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-2 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0211-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94372-324-1 02 1 0211-0303 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-94372-324-1 02 1 0211-0303 ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 0211-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) (A) 		8-94372-324-1 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4HF1-N ENG(RJZ) (A) 		8-94372-324-1 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94408-191-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-94408-191-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94408-191-2 01 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0502- ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94403-508-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (B) 		8-94403-508-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94403-508-2 01 1 0211-0211 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94403-508-2 01 1 0212-0303 ●
173 07.112 STIFFENER; RR SPRING
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0304-0501 ●
173 07.112 STIFFENER; RR SPRING
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0502- ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) 		8-97078-869-1 01 1 0211-0303 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) 		8-97078-869-1 01 1 0211-0303 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-97078-869-1 01 1 0304-0501 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97078-869-1 01 1 0502-0504 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97078-869-1 01 1 0505- ●
188 07.039 BRACKET; SUPPORT,CTR BRG 8-97035-996-0 01 1 0211- ●
234 07.006 COVER; END,S/MBR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97033-249-0 02 1 0211-0501 ●
234 07.006 COVER; END,S/MBR
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97033-249-0 02 1 0502- ●
235 07.039 BRACKET; COMB LAMP
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94115-653-4 02 1 0211-0501 ●
235 07.039 BRACKET; COMB LAMP
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94115-653-4 02 1 0502- ●
çizim 46903
358 24 24 63 63 156 366 51 256 256 136 136 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
RR BODY NON FLAT BED(RS5) (A) 		8-97065-789-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 0505-0910 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 0911-1004 ●
24 07.105 BRACKET; FRT SPR,FRT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 1005- ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
RR BODY NON FLAT BED(RS5) (A) 		8-94366-818-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 0505-0910 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 0911-1004 ●
24 07.105 BRACKET; FRT SPR,FRT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 1005- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-232-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-232-1 01 1 0502- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-231-1 01 1 0211-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97033-231-1 01 1 0502- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97065-788-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97065-788-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-1 01 1 0211-0303 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 0304-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97065-788-1 01 1 0304-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-1 01 1 0304-0501 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97065-788-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-1 01 1 0502-0504 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 0505- ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97065-788-1 01 1 0505- ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-1 01 1 0505- ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94366-816-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-94366-816-1 01 1 0211-0303 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-1 01 1 0211-0303 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 0304-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-94366-816-1 01 1 0304-0501 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-1 01 1 0304-0501 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-94366-816-1 01 1 0502-0504 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-1 01 1 0502-0504 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 0505- ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-94366-816-1 01 1 0505- ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-1 01 1 0505- ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 0211-0501 ● ● ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 0502-0504 ● ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 0505-1004 ● ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 1005- ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 0211-0501 ● ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 0502-0504 ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 0505-1004 ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 1005- ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-1 01 1 0211-0501 ●
63 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97072-648-1 01 1 0211-0501 ●
63 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97072-648-1 01 1 0502- ●
63 01.270 BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0211-0501 ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0211-0501 ●
63 01.270 BRACKET; RAD MTG
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0502-0504 ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0502-0504 ●
63 01.270 BRACKET; RAD MTG
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0505-0910 ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0505-0910 ●
63 01.270 BRACKET; RAD MTG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0911-1004 ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0911-1004 ●
63 01.270 BRACKET; RAD MTG
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 1005- ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 1005- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94370-228-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (B) 		8-94370-228-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(B) 		8-94370-228-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) (B) 		8-94370-228-1 01 1 0304-0501 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(B) 		8-94370-228-1 01 1 0304-0501 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1-TC ENG(RDM) (B) 		8-94370-228-1 01 1 0502- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(B) 		8-94370-228-1 01 1 0502- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97083-311-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97083-311-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(A) 		8-97083-311-1 01 1 0211-0303 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) (A) 		8-97083-311-1 01 1 0304-0501 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(A) 		8-97083-311-1 01 1 0304-0501 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1-TC ENG(RDM) (A) 		8-97083-311-2 01 1 0502- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(A) 		8-97083-311-2 01 1 0502- ●
156 07.330 BRACKET; RR BODY MTG
RR BODY NON FLAT BED(RS5) 		8-94101-398-1 06 1 0211-0501 ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-160-0 02 1 0211-0501 ●
256 07.395 BRACKET; S/ABS
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-97041-076-0 02 1 0211-0501 ●
256 07.395 BRACKET; S/ABS
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (A) 		8-97041-076-0 02 1 0502- ●
358 07.039 BRACKET; CAB EARTH 8-97065-790-3 01 1 0211-0310 ● ● ● ● ● ●
358 07.039 BRACKET; CAB EARTH 8-97210-488-0 01 1 0311-0501 ● ● ● ● ● ●
358 07.039 BRACKET; CAB EARTH
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97210-488-0 01 1 0502-0504 ● ● ● ● ●
358 07.039 BRACKET; CAB EARTH
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97210-488-0 01 1 0505-1004 ● ● ● ● ●
358 07.039 BRACKET; CAB EARTH
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97210-488-0 01 1 1005- ● ● ● ● ●
366 07.039 SPACER; BRKT
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97034-222-0 02 1 0211-0501 ●
366 07.039 SPACER; BRKT
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97034-222-0 02 1 0502- ●
çizim 99750
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. JAPAN PRODUCTION<C1H>,RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (C) 		8-98281-091-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> (D) 		8-98281-092-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 0502-1004 ●
1 07.003 FRAME ASM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 1005- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-4 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0505-0910 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0911- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-2 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0502- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-3 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-176-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) (D) 		8-97352-176-1 01 1 0304-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) (D) 		8-97352-176-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> (D) 		8-97352-176-2 01 1 1406- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0505- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-174-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) (D) 		8-97352-174-2 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JH1-TC ENG(RDM) (D) 		8-97352-174-3 01 1 0502- ●
1 07.003 FRAME ASM
RR BODY FLAT BED(RS6) (D) 		8-97352-178-1 01 1 0211- ●
1 07.003 FRAME ASM
EXC. RR BODY FLAT BED(RS6) (D) 		8-97352-177-1 01 1 0211- ●
1 07.003 FRAME ASM
(A) 		8-97205-883-2 01 1 0211- ●
çizim 99814
142 142 142 43 43 365 101 101 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
43 09.003 BRACKET; CAB MTG,RR
RR BODY NON FLAT BED(RS5) (A) 		8-97042-541-0 01 1 0211-0501 ●
43 09.003 BRACKET; CAB MTG,RR
RR BODY NON FLAT BED(RS5) (A) 		8-97042-540-0 01 1 0211-0501 ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-94126-889-0 01 1 0211- ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-97232-931-0 01 1 0211- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (B) 		8-98243-604-0 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ) (B) 		8-98243-604-0 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 0211-0501 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 		8-94258-093-1 02 1 0211-0501 ●
101 07.112 BRACKET; RR SPR,FRT
RR BODY NON FLAT BED(RS5) (B) 		8-94258-093-1 02 1 0211-0501 ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 0502-0504 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 0505-0910 ●
101 07.112 BRACKET; RR SPR,FRT
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 0911-1004 ●
101 07.112 BRACKET; RR SPR,FRT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 1005- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (D) 		8-97034-223-1 02 1 0211-0501 ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (D) 		8-97034-223-1 02 1 0502- ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0211-0303 ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-97034-156-1 02 1 0211-0303 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97034-156-1 02 1 0211-0303 ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0211-0303 ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0304-0501 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (A) 		8-97034-156-1 02 1 0304-0501 ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0304-0501 ●
101 07.112 BRACKET; RR SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0502-0504 ●
101 07.112 BRACKET; RR SPR,FRT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (A) 		8-97034-156-1 02 1 0502-0504 ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0502-0504 ●
101 07.112 BRACKET; RR SPR,FRT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0505-1405 ●
101 07.112 BRACKET; RR SPR,FRT
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (A) 		8-97034-156-1 02 1 0505-1405 ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0505-1405 ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (A) 		8-97034-156-1 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-97034-156-1 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 1406- ●
101 07.112 BRACKET; RR SPR,FRT
(C) 		8-94376-080-0 02 1 0211- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 		8-97047-775-1 01 1 0211-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
RR BODY NON FLAT BED(RS5) (A) 		8-97047-775-1 01 1 0211-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97047-775-1 01 1 0211-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 0502-0504 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97047-775-1 01 1 0502-0504 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 0505-0910 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97047-775-1 01 1 0505-0910 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 0911- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97047-775-1 01 1 0911- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97259-035-0 01 1 0211-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97259-035-0 01 1 0502- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (C) 		8-97035-308-0 01 1 0211-0303 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (C) 		8-97035-308-0 01 1 0211-0303 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (C) 		8-97035-308-0 01 1 0211-0303 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(C) 		8-97035-308-0 01 1 0211-0303 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (C) 		8-97035-308-0 01 1 0304-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) (C) 		8-97035-308-0 01 1 0304-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(C) 		8-97035-308-0 01 1 0304-0501 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97035-308-0 01 1 0502-0504 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) (C) 		8-97035-308-0 01 1 0502-0504 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(C) 		8-97035-308-0 01 1 0502-0504 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97035-308-0 01 1 0505- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) (C) 		8-97035-308-0 01 1 0505- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(C) 		8-97035-308-0 01 1 0505- ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97185-188-1 01 1 0211-0501 ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97185-188-1 01 1 0502- ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97033-251-2 01 1 0211-0501 ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97033-251-2 01 1 0502- ●
çizim 99815
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. JAPAN PRODUCTION<C1H>,RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (C) 		8-98281-091-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> (D) 		8-98281-092-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 0502-1004 ●
1 07.003 FRAME ASM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 1005- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-4 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0505-0910 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0911- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-2 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0502- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-3 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-176-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) (D) 		8-97352-176-1 01 1 0304-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) (D) 		8-97352-176-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> (D) 		8-97352-176-2 01 1 1406- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0505- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-174-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) (D) 		8-97352-174-2 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JH1-TC ENG(RDM) (D) 		8-97352-174-3 01 1 0502- ●
1 07.003 FRAME ASM
RR BODY FLAT BED(RS6) (D) 		8-97352-178-1 01 1 0211- ●
1 07.003 FRAME ASM
EXC. RR BODY FLAT BED(RS6) (D) 		8-97352-177-1 01 1 0211- ●
1 07.003 FRAME ASM
(A) 		8-97205-883-2 01 1 0211- ●
çizim 100712
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. JAPAN PRODUCTION<C1H>,RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (C) 		8-98281-091-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. JAPAN PRODUCTION<C1H> (D) 		8-98281-092-0 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 0502-1004 ●
1 07.003 FRAME ASM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97352-159-3 01 1 1005- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-4 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0505-0910 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-2 01 1 0911- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97352-173-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6) (E) 		8-97352-171-1 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),BUMPER REAR<7HZ> (E) 		8-97352-170-2 01 1 1406- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0211-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) (E) 		8-97352-169-1 01 1 0502- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-2 01 1 0211-0501 ●
1 07.003 FRAME ASM
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-3 01 1 0502- ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-176-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4HF1-S ENG(RLS) (D) 		8-97352-176-1 01 1 0304-0501 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) (D) 		8-97352-176-1 01 1 0502-1405 ●
1 07.003 FRAME ASM
4HF1-N ENG(RJZ) JAPAN PRODUCTION<C1H> (D) 		8-97352-176-2 01 1 1406- ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0502-0504 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97205-879-3 01 1 0505- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97352-174-0 01 1 0211-0303 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) (D) 		8-97352-174-2 01 1 0304-0501 ●
1 07.003 FRAME ASM
4JH1-TC ENG(RDM) (D) 		8-97352-174-3 01 1 0502- ●
1 07.003 FRAME ASM
RR BODY FLAT BED(RS6) (D) 		8-97352-178-1 01 1 0211- ●
1 07.003 FRAME ASM
EXC. RR BODY FLAT BED(RS6) (D) 		8-97352-177-1 01 1 0211- ●
1 07.003 FRAME ASM
(A) 		8-97205-883-2 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
