◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#51096) — 540 parça

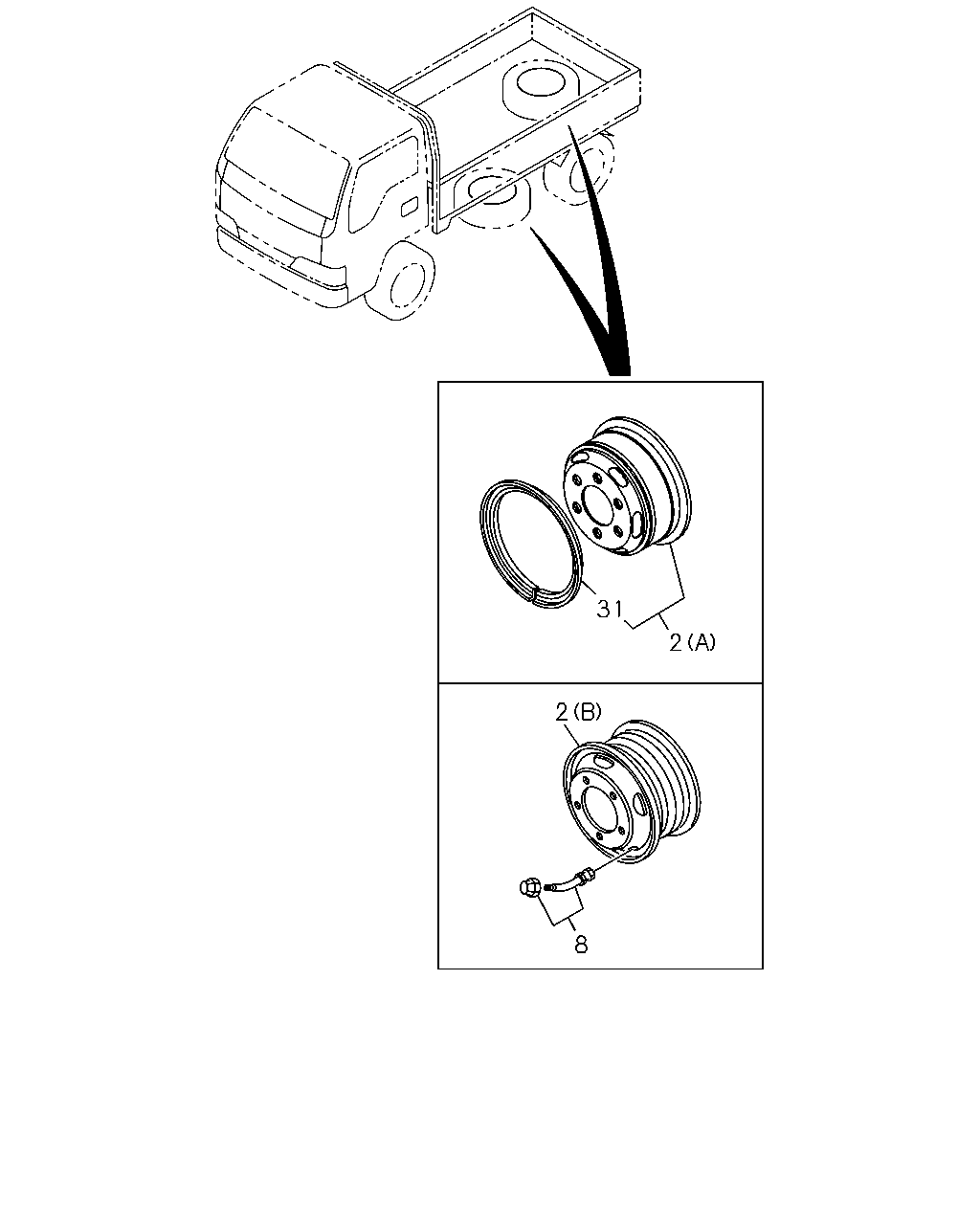

çizim 46141
31 2 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ●
2 05.803 WHEEL; DISC
(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0211-0303 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0211-0303 ●
2 05.803 WHEEL; DISC
(CQP) (A) FRONT,REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 04 1 0212- ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQQ) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0502- ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(37H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0211- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0211- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(CQQ) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0212-0501 ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0502- ●
8 05.875 VALVE; TIRE
(CUC) SPARE 		8-98221-106-0 01 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) SPARE 		8-98221-106-0 01 1 0211- ●
8 05.875 VALVE; TIRE
(CUC) FRONT,REAR 		8-98221-106-0 06 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) FRONT,REAR 		8-98221-106-0 06 1 0211- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-108-0 01 1 0211- ●
8 05.875 VALVE; TIRE
REAR 		8-98221-108-0 04 1 0211- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0304- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(CQQ),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0212- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0211-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0812- ● ● ●

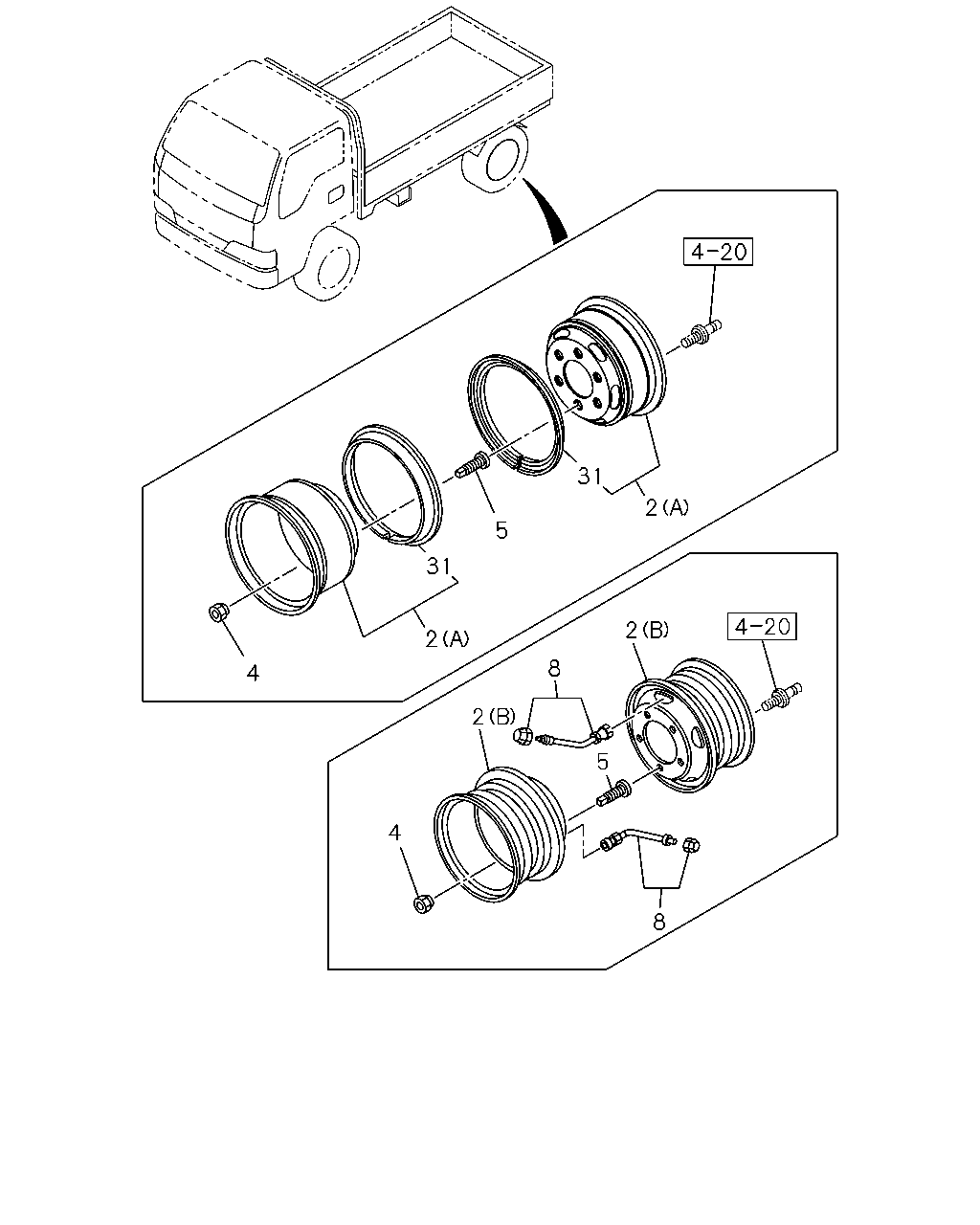

çizim 46151
4 31 2 5 31 2 2 8 5 2 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ●
2 05.803 WHEEL; DISC
(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0211-0303 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0211-0303 ●
2 05.803 WHEEL; DISC
(CQP) (A) FRONT,REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 04 1 0212- ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQQ) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0502- ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(37H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0211- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0211- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(CQQ) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0212-0501 ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0502- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0211-0610 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0211-0610 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0211-0610 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0211-0610 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 0611- ●
8 05.875 VALVE; TIRE
(CUC) SPARE 		8-98221-106-0 01 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) SPARE 		8-98221-106-0 01 1 0211- ●
8 05.875 VALVE; TIRE
(CUC) FRONT,REAR 		8-98221-106-0 06 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) FRONT,REAR 		8-98221-106-0 06 1 0211- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-108-0 01 1 0211- ●
8 05.875 VALVE; TIRE
REAR 		8-98221-108-0 04 1 0211- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0304- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(CQQ),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0212- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0211-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0812- ● ● ●

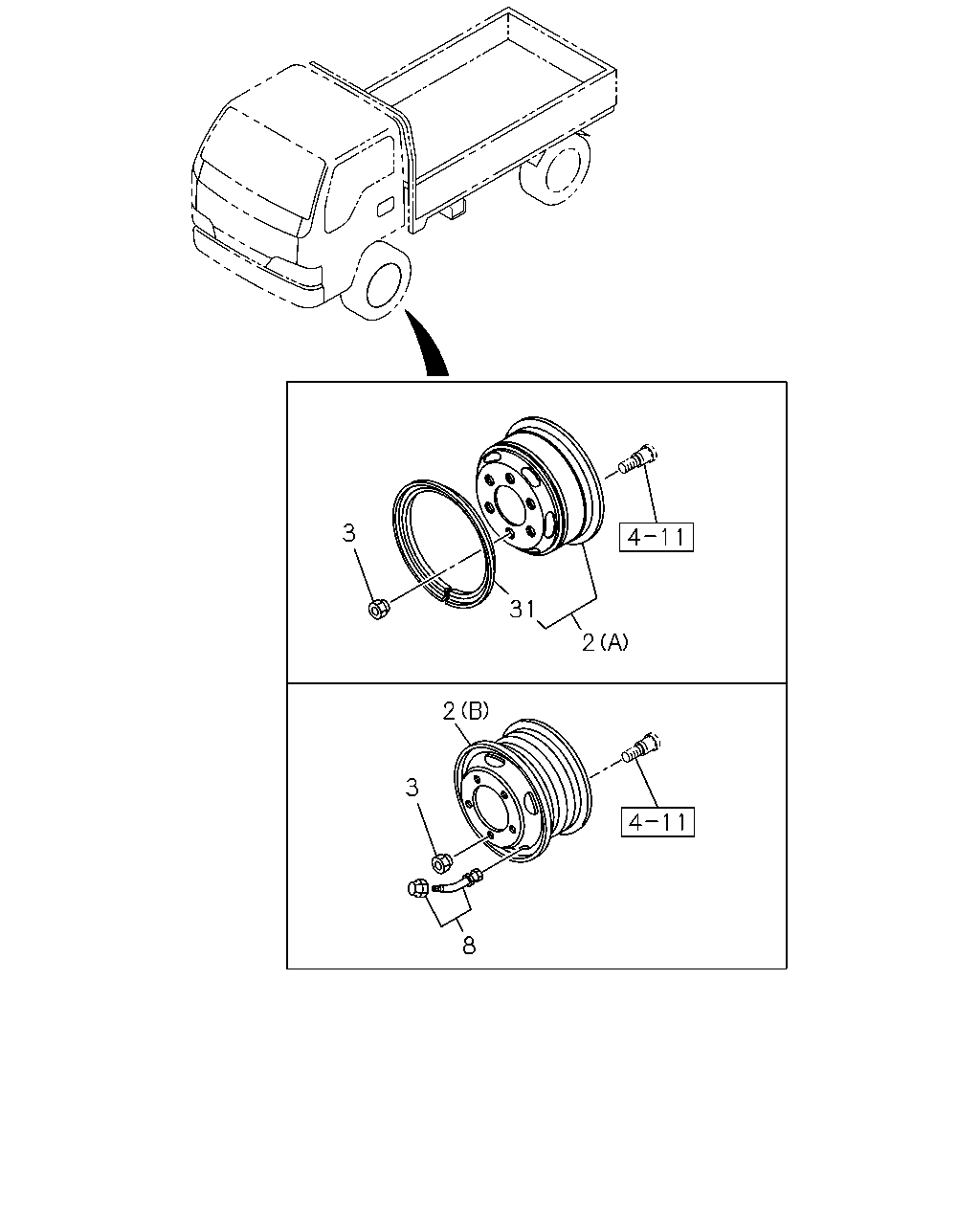

çizim 46905
3 31 2 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ●
2 05.803 WHEEL; DISC
(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0211-0303 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0211-0303 ●
2 05.803 WHEEL; DISC
(CQP) (A) FRONT,REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 04 1 0212- ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQQ) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0502- ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(37H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0211- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0211- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(CQQ) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0212-0501 ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0502- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0501 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0501 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0211-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0211-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611- ● ● ●
8 05.875 VALVE; TIRE
(CUC) SPARE 		8-98221-106-0 01 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) SPARE 		8-98221-106-0 01 1 0211- ●
8 05.875 VALVE; TIRE
(CUC) FRONT,REAR 		8-98221-106-0 06 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) FRONT,REAR 		8-98221-106-0 06 1 0211- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-108-0 01 1 0211- ●
8 05.875 VALVE; TIRE
REAR 		8-98221-108-0 04 1 0211- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0304- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(CQQ),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0212- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0211-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0812- ● ● ●

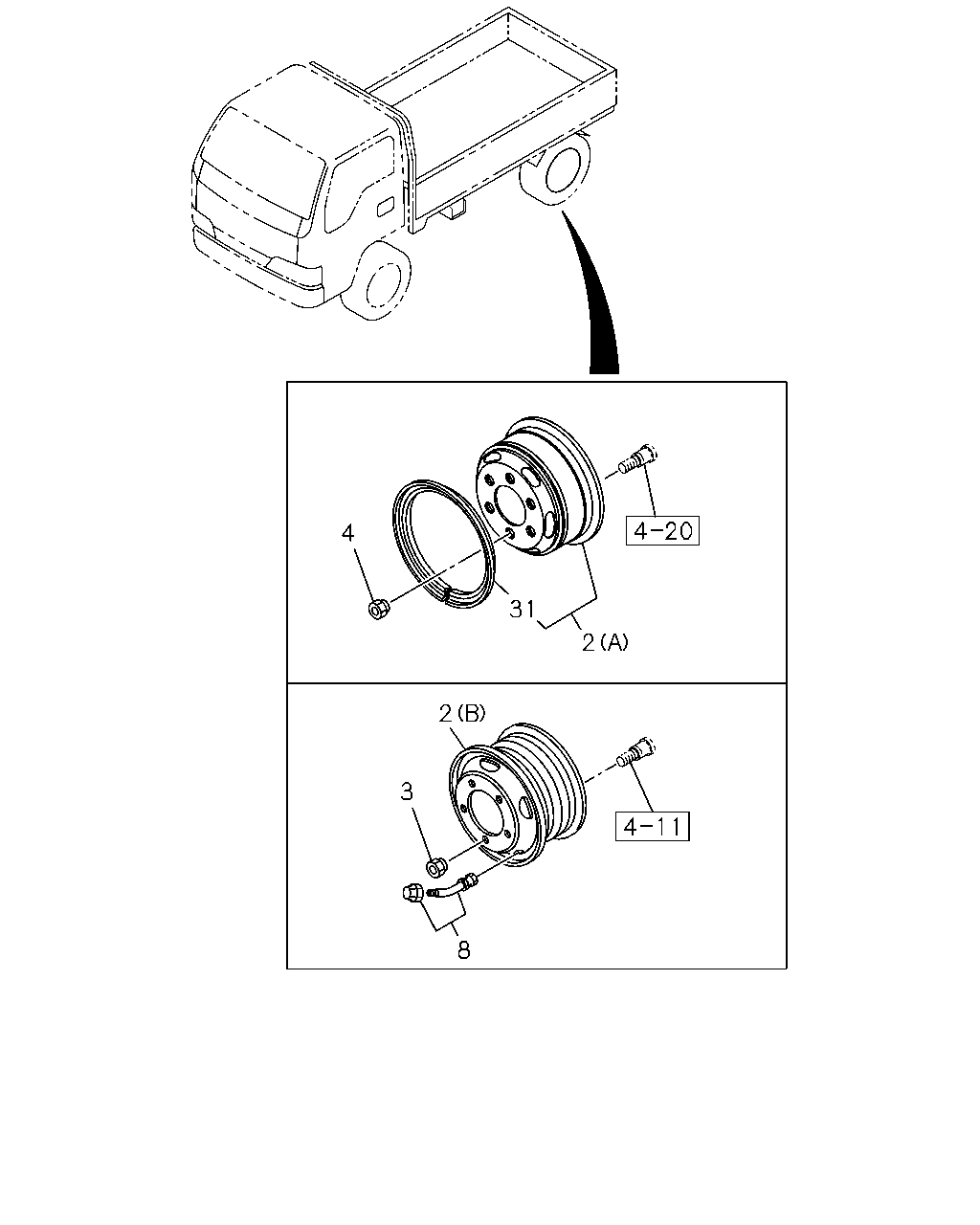

çizim 99690
4 31 2 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ●
2 05.803 WHEEL; DISC
(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0707-0804 ●
2 05.803 WHEEL; DISC
(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0211-0303 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0211-0303 ●
2 05.803 WHEEL; DISC
(CQP) (A) FRONT,REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 04 1 0212- ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQQ) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(CQP) (A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0502- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0502- ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
(37H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1004- ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H),(31H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0211-0501 ●
2 05.803 WHEEL; DISC
(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0502-1003 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1004- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0211- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0211- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
(BPL),(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502-0505 ● ●
2 05.803 WHEEL; DISC
(BQN),(07H),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0506- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0211-0811 ● ● ●
2 05.803 WHEEL; DISC
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
(CQQ) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0212-0501 ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0502- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211-0211 ●
2 05.803 WHEEL; DISC
(CQQ),(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0212-0501 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0502- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0501 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0501 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0211-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0211-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0211-0610 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0211-0610 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611- ●
8 05.875 VALVE; TIRE
(CUC) SPARE 		8-98221-106-0 01 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) SPARE 		8-98221-106-0 01 1 0211- ●
8 05.875 VALVE; TIRE
(CUC) FRONT,REAR 		8-98221-106-0 06 1 0211- ● ●
8 05.875 VALVE; TIRE
(CUA) FRONT,REAR 		8-98221-106-0 06 1 0211- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-108-0 01 1 0211- ●
8 05.875 VALVE; TIRE
REAR 		8-98221-108-0 04 1 0211- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0304- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0303 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0304-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0211 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(CQQ),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0212-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP),(09V),(22H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
(CQP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0212- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(31H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0502-1003 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1004- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(94H), (95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(07H),(94H),(95H), (98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502-0505 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BQN),(07H),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0506- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0211-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(46H),(47H),(49H),(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0812- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
