◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#51092) — 16 parça

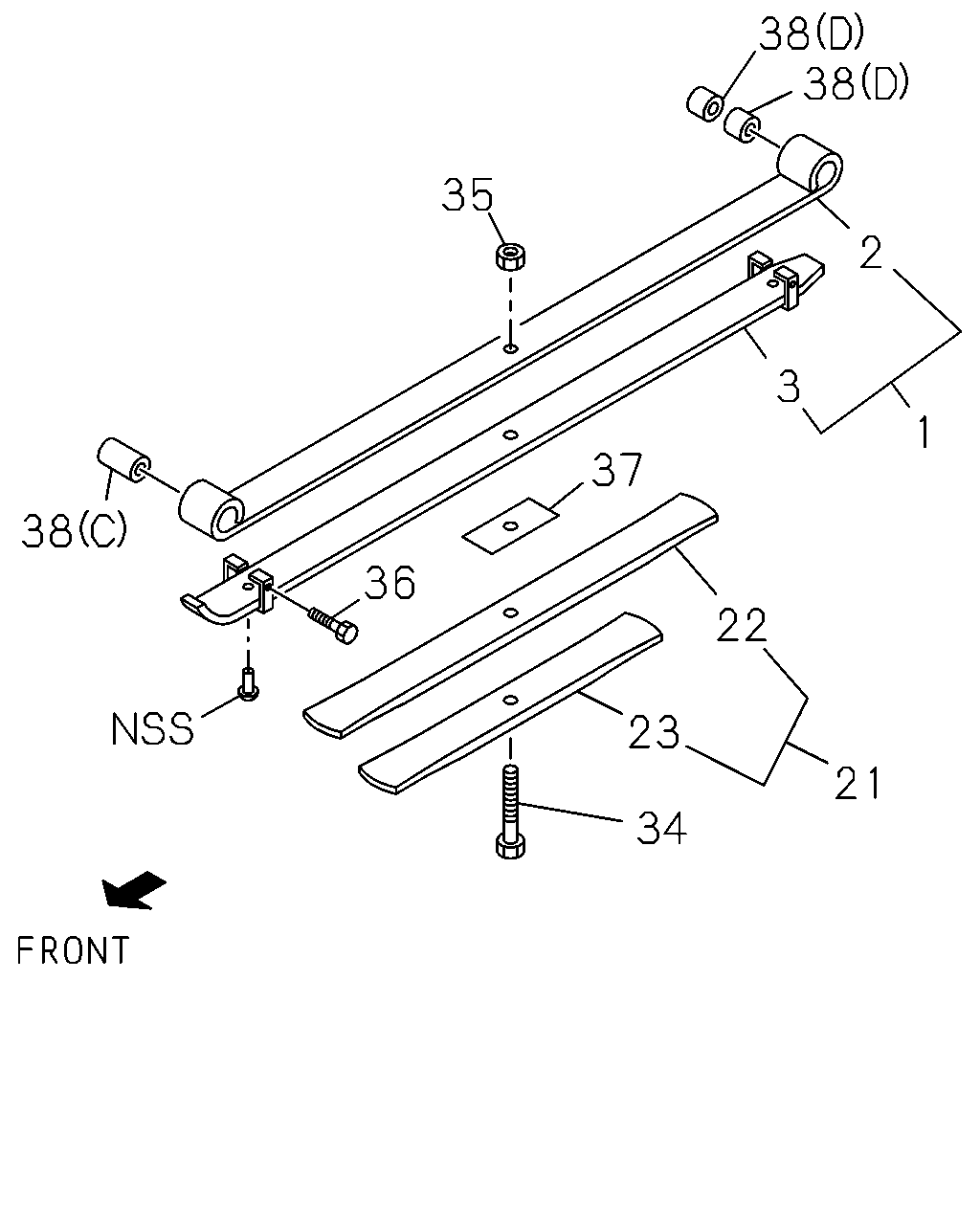

çizim 46936
38 38 2 1 3 35 37 36 38 22 21 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97183-796-0, 97183796 		8-97192-431-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97374-857-0, 97374857 		8-97375-745-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97183-796-0, 97183796 		8-97191-613-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97374-857-0, 97374857 		8-97375-746-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97083-760-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97192-432-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97083-761-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97083-762-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-94165-303-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97129-688-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), BEST VALUE PARTS ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (D) ASM PART: A = 8-97183-796-0, 97183796 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97183-796-0, 97183796, B = 8-97374-857-0, 97374857 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(D), OD=40 L=41 ASM PART: B = 8-97374-857-0, 97374857 		8-97374-410-0 02 1 -
