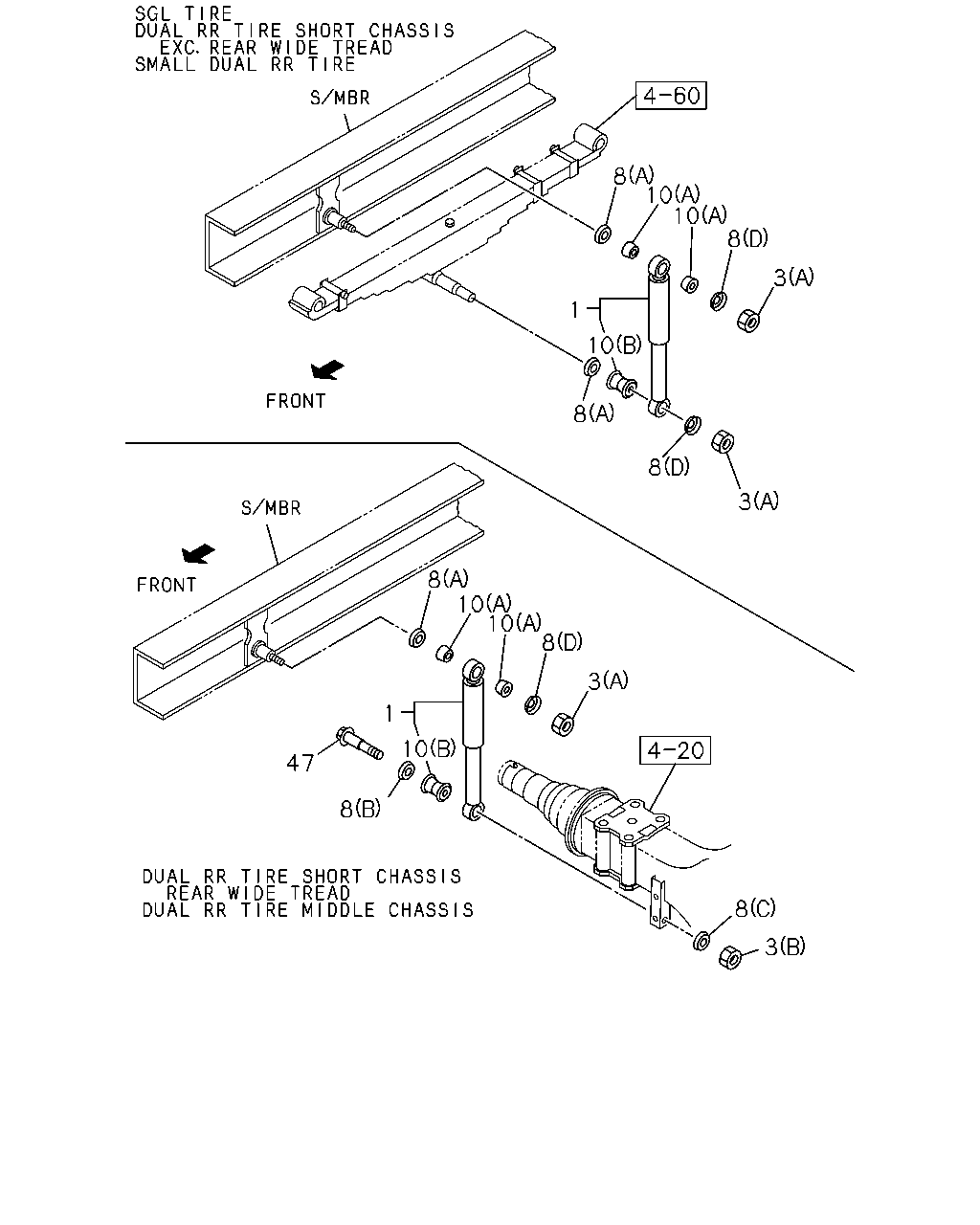

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#51090) — 53 parça

8 10 10 8 3 1 10 8 8 3 8 10 10 8 3 1 10 47 8 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-657-0	02	1	0211-0501	●	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-657-1	02	1	0502-	●
1	07.395 ABSORBER ASM; SHOCK,RR DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>	8-97253-645-1	02	1	0211-			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D)	8-97253-651-2	02	1	0211-1506			●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-651-2	02	1	0211-1506				●	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-656-1	02	1	0211-						●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D) BEST VALUE PARTS	5-87610-132-0	02	1	0211-1506			●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-132-0	02	1	0211-1506				●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D)	8-98316-233-0	02	1	1507-			●
1	07.395 ABSORBER ASM; SHOCK,RR	8-98316-233-0	02	1	1507-				●	●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-155-0	02	1	0502-	●
3	07.347 NUT; S/ABS 05.816 (A) M12	9-99110-412-0	04	1	0211-0501	●	●				●
3	07.347 NUT; S/ABS 05.816 (A) M12	9-99110-412-0	04	1	0502-0512	●					●
3	07.347 NUT; S/ABS 05.002 (A) M12	0-91110-512-0	04	1	0601-	●					●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 04.681 (B) M16	9-99111-516-0	02	1	0211-0512			●
3	07.347 NUT; S/ABS 04.681 (B) M16	9-99111-516-0	02	1	0211-0512				●	●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 00.785 (B) M16	0-91111-516-0	02	1	0601-			●
3	07.347 NUT; S/ABS 00.785 (B) M16	0-91111-516-0	02	1	0601-				●	●
3	07.347 NUT; S/ABS 06.172 (A) M14	9-99111-414-0	02	1	0211-0512			●	●	●
3	07.347 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.172 (A) M14	9-99111-414-0	02	1	0211-0512			●
3	07.347 NUT; S/ABS 06.515 (A) M14	0-91111-514-0	02	1	0601-0612			●	●	●
3	07.347 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.515 (A) M14	0-91111-514-0	02	1	0601-0612			●
3	07.347 NUT; S/ABS 07.833 (A) M14	0-91110-514-0	02	1	0701-			●	●	●
3	07.347 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 07.833 (A) M14	0-91110-514-0	02	1	0701-			●
8	07.347 WASHER; S/ABS (A) ID=16.5	9-51679-021-0	04	1	0211-0501	●	●				●
8	07.347 WASHER; S/ABS (A) ID=16.5	9-51679-021-0	04	1	0502-	●					●
8	07.347 WASHER; S/ABS (D) ID=12.5	9-51679-022-0	04	1	0211-0501	●	●				●
8	07.347 WASHER; S/ABS (D) ID=12.5	9-51679-022-0	04	1	0502-	●					●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.516 (B) ID=16.4	8-94137-482-1	02	1	0211-0610			●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-94137-482-1	02	1	0211-0610				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.516 (B) ID=16.4	8-97360-118-0	02	1	0611-			●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-97360-118-0	02	1	0611-				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5	8-97070-925-1	02	1	0211-0611			●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5	8-97070-925-1	02	1	0211-0611				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.427 (C) ID=16.5	8-98011-489-0	02	1	0612-			●
8	07.347 WASHER; S/ABS 07.427 (C) ID=16.5	8-98011-489-0	02	1	0612-				●	●
8	07.347 WASHER; S/ABS (D) ID=15.0	9-51679-012-0	02	1	0211-0611			●	●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (D) ID=15.0	9-51679-012-0	02	1	0211-0611			●
8	07.347 WASHER; S/ABS (D) ID=15	8-97360-056-0	02	1	0612-			●	●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (D) ID=15	8-97360-056-0	02	1	0612-			●
8	07.347 WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	0211-0611			●	●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (A) ID=20.0	9-51679-013-0	02	1	0211-0611			●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	02	1	0612-			●	●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (A) ID=20.0	8-97360-057-0	02	1	0612-			●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (A) KYB	8-94132-727-1	04	1	0211-0501	●	●				●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (A) KYB	8-94132-727-1	04	1	0502-	●					●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (B) TOKICO	8-94224-694-0	02	1	0211-0501	●	●				●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (B) TOKICO	8-94224-694-0	02	1	0502-	●					●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0211-			●	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0211-0501			●	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0502-			●	●	●
47	07.347 PIN; S/ABS SETTING REAR WIDE TREAD(V4T)	8-97316-972-0	02	1	0211-			●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	0211-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
