3-77 — BRAKE PIPING; AIR,REAR (#5109) — 122 parça

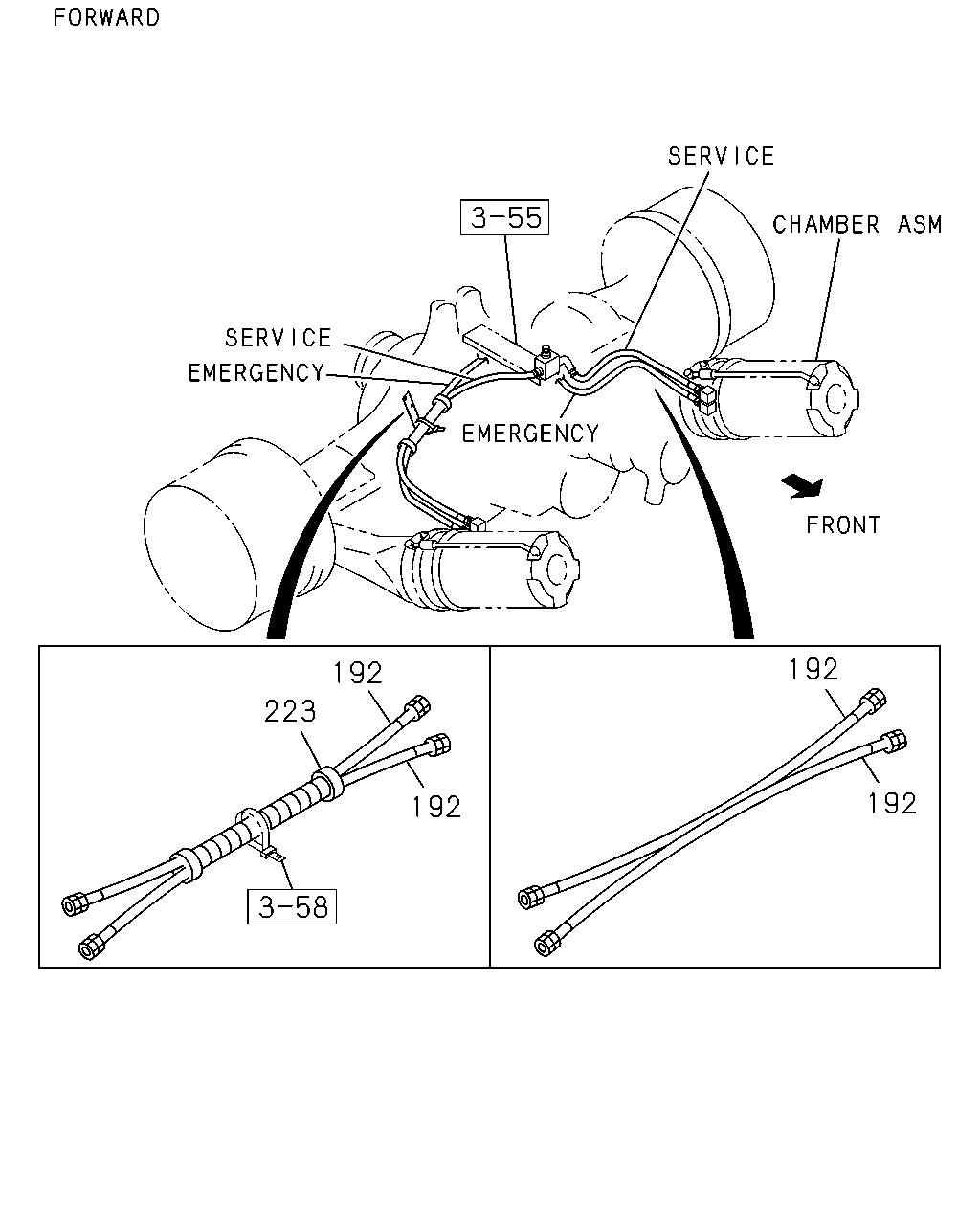

çizim 5486
192 192 223 192 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9606-9905
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9906-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9606-

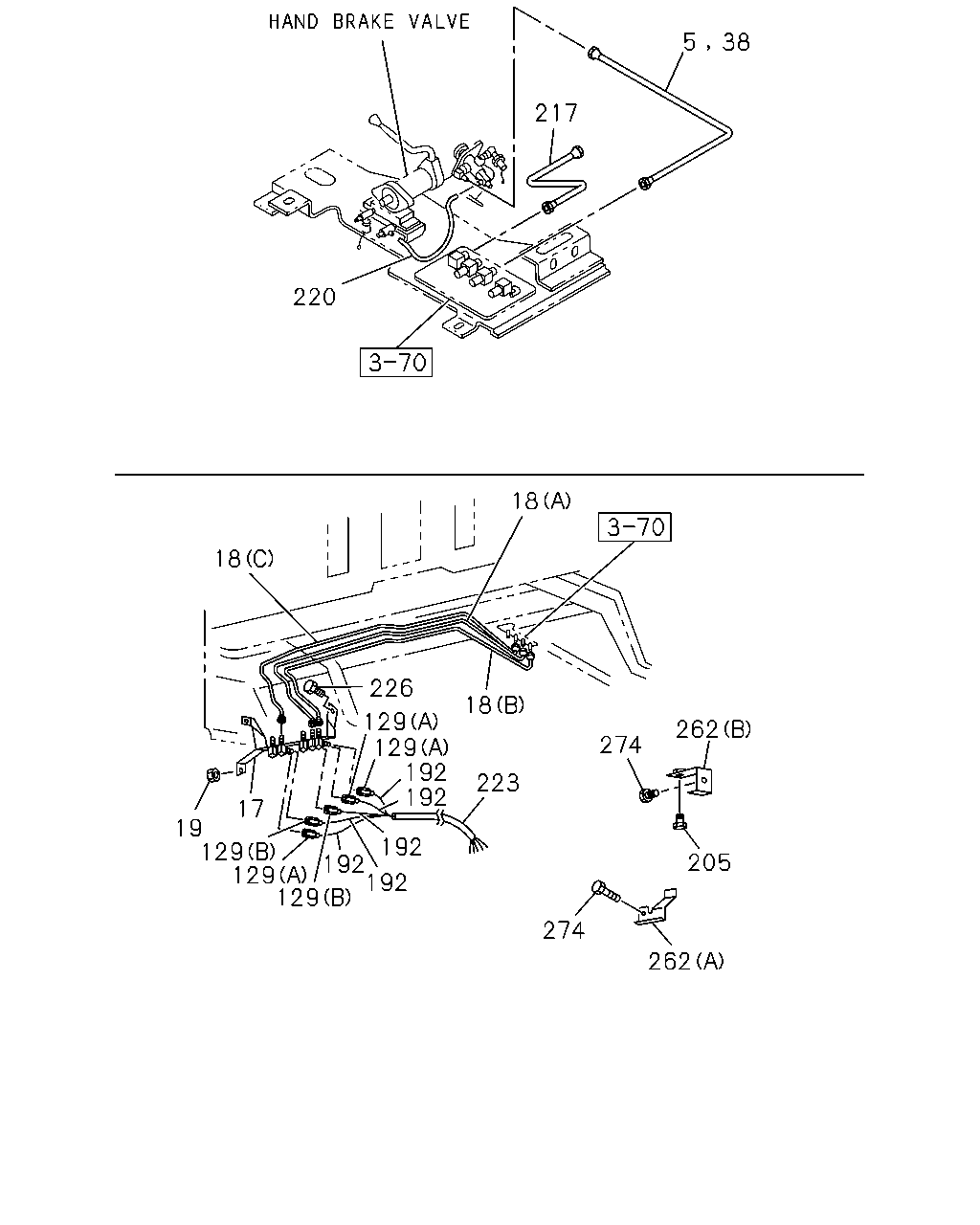

çizim 39725
5 38 217 220 18 18 226 129 129 192 192 18 262 274 223 17 19 129 129 129 192 205 192 192 274 262
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-161-0 01 1 9906-9906
17 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> 		1-47470-453-2 01 1 9606-9905
17 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47470-453-2 01 1 9906-9906
17 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> 		1-47470-453-2 01 1 9907-
17 UNION; AIR PIPE
EXC. FULL TRACTOR TRUCK<RD6> 		1-47470-456-2 01 1 9606-
18 PIPE; AIR,UNION TO UNION
(A) L=1677 SERVICED BY L=1700 		1-47426-391-0 01 1 9606-9810
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 9811-
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (B) L=1726 SERVICED BY L=1800 		1-47426-392-0 01 1 9606-9810
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (C) L=1982 		1-49121-055-1 01 1 9811-9905
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1982 		1-49121-055-1 01 1 9906-9906
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (C) L=1982 		1-49121-055-1 01 1 9907-
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (C) L=1874 SERVICED BY L=1900 		1-47426-421-0 01 1 9606-9810
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (B) L=1854 		1-49121-053-0 01 1 9811-9905
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1854 		1-49121-053-0 01 1 9906-9906
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> (B) L=1854 		1-49121-053-0 01 1 9907-
18 PIPE; AIR,UNION TO UNION
EXC. FULL TRACTOR TRUCK<RD6> (C) L=1869 SERVICED BY L=1900 		1-47426-421-0 01 1 9606-9810
18 PIPE; AIR,UNION TO UNION
EXC. FULL TRACTOR TRUCK<RD6> (C) L=1942 		1-49121-057-0 01 1 9811-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 9606-
38 PIPE; AIR,UNION TO MAG VLV
EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-870-0 01 1 9606-9905
38 PIPE; AIR,UNION TO MAG VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-870-0 01 1 9906-9906
38 PIPE; AIR,UNION TO MAG VLV
EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-870-0 01 1 9907-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9606-9905
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9906-9906
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9907-9911
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 04 1 9912-0007
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0008-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9606-9905
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9606-9905
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9906-9906
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9906-9906
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9907-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9907-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9906-9906
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9606-9905
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9906-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9707-
217 PIPE; AIR,PARKING BRK VLV TO UNION
EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-871-0 01 1 9606-9905
217 PIPE; AIR,PARKING BRK VLV TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-871-0 01 1 9906-9906
217 PIPE; AIR,PARKING BRK VLV TO UNION
EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-871-0 01 1 9907-
217 PIPE; AIR,PARKING BRK VLV TO UNION
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-456-0 01 1 9906-9906
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9606-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9606-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28080-820-0 01 1 9606-9606
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9905
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28680-820-0 01 1 9906-
262 BRACKET
(B) 		1-79996-143-0 01 1 9606-9905
262 BRACKET
(B) 		1-79996-143-0 01 1 9906-
262 BRACKET
BRAKE REGULATION ECE<TDV> (B) 		1-79996-143-0 01 1 9906-
262 BRACKET
(A) 		1-79996-144-0 01 1 9606-
274 BOLT; BRKT
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9606-9905
274 BOLT; BRKT
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9906-0102
274 BOLT; BRKT
BRAKE REGULATION ECE<TDV> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9906-0102
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0103-
274 BOLT; BRKT
BRAKE REGULATION ECE<TDV> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0103-
274 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9606-9702
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9703-9905
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9906-
274 BOLT; BRKT
BRAKE REGULATION ECE<TDV> M8X16 FLANGE 		0-28080-816-0 01 1 9906-

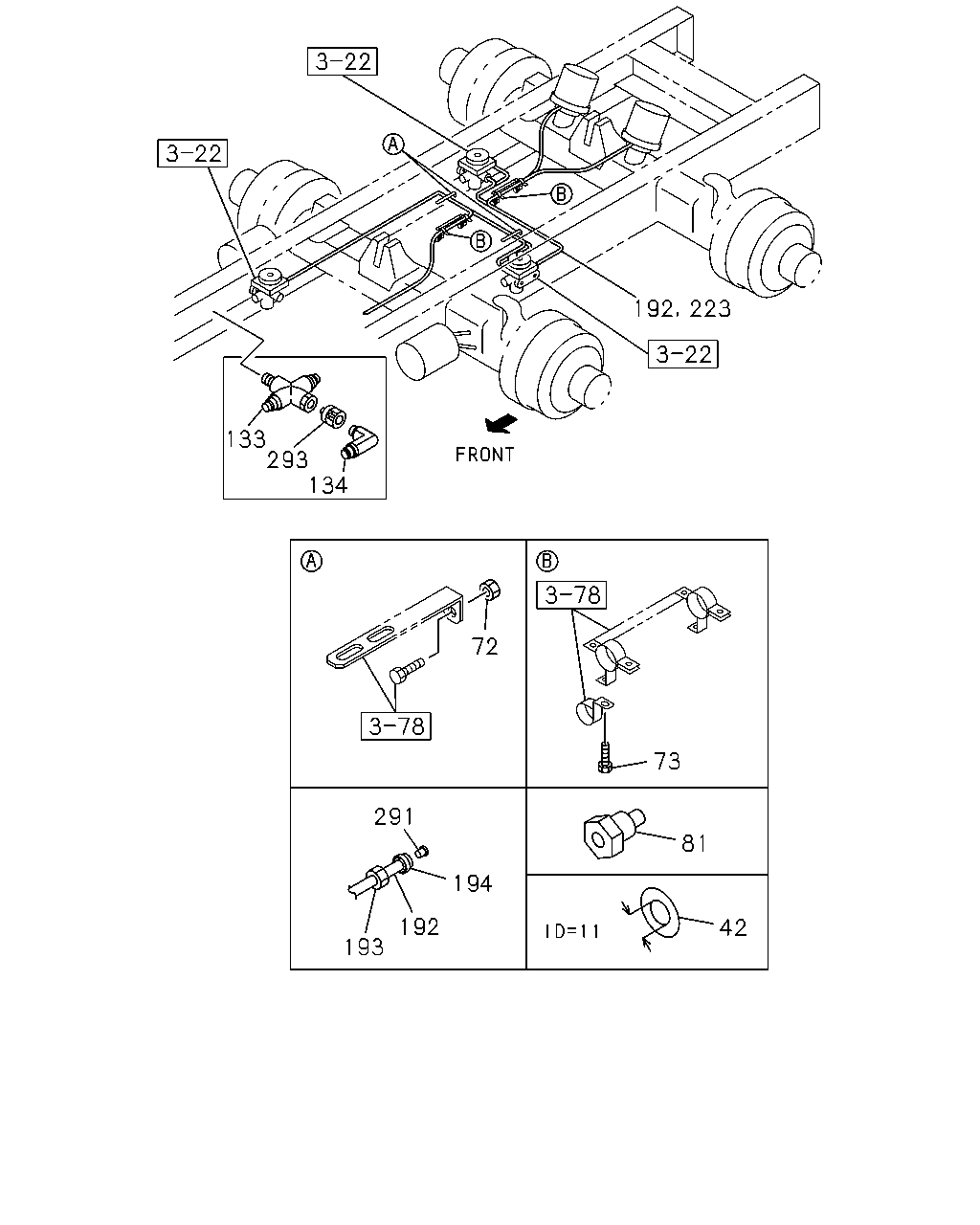

çizim 39819
133 293 134 72 73 291 81 194 192 42 193 192 223
BalonParca AdiParca NoAdetTipApplied Date
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 01 1 9606-9702
72 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8 		9-09110-408-0 01 1 9606-9606
72 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 01 1 9607-9905
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 01 1 9607-9905
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 01 1 9906-
72 NUT; BRKT
BRAKE REGULATION ECE<TDV> M8 FLANGE 		0-91150-108-0 01 1 9906-
73 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606
73 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 04 1 9606-9606
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 9607-
73 BOLT; CLIP
M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606
81 CONNECTOR; NYLON TUBE,FRAME
DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9606-9702
81 CONNECTOR; NYLON TUBE,FRAME
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9703-9905
81 CONNECTOR; NYLON TUBE,FRAME
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9906-0005
81 CONNECTOR; NYLON TUBE,FRAME
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-
133 UNION; NIPPLE
NEW ZEALAND EQUIPMENT(PK5) DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 01 1 9606-9905
133 UNION; NIPPLE
BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 9906-
134 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9606-9905
134 CONNECTOR
BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9906-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9606-9905
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9606-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9906-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 9606-
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9606-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9606-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 9606-
293 VALVE; CHECK
NEW ZEALAND EQUIPMENT(PK5) 		1-48320-013-1 01 1 9606-9905
293 VALVE; CHECK
BRAKE REGULATION ECE<TDV> 		1-48320-013-2 01 1 9906-
