Sayfa 4-42 - Isuzu EPC

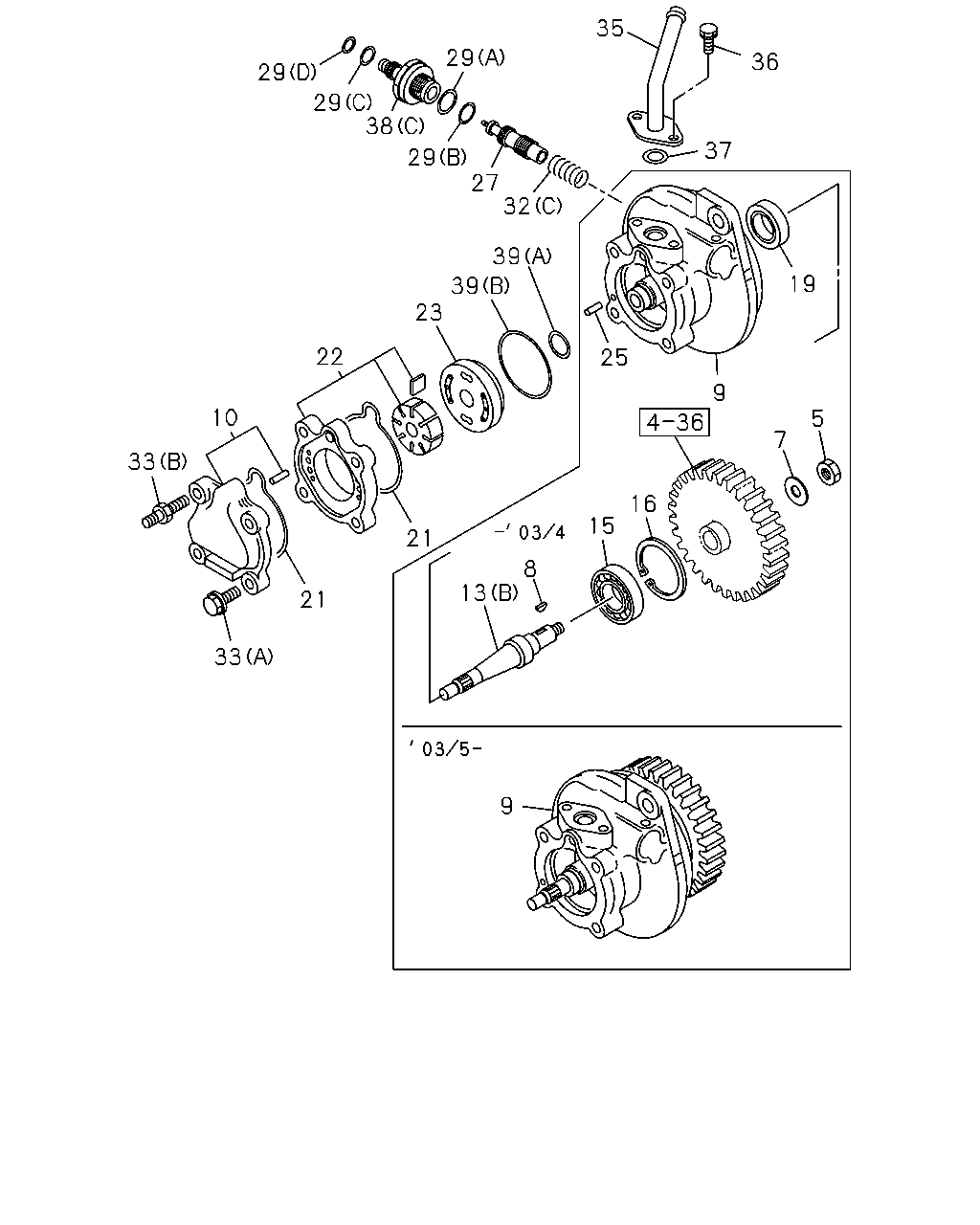

4-42 — POWER STEERING OIL PUMP (#51083) — 277 parça

38 38 27 32 9 13 14 25 33 10 25 22 23 32

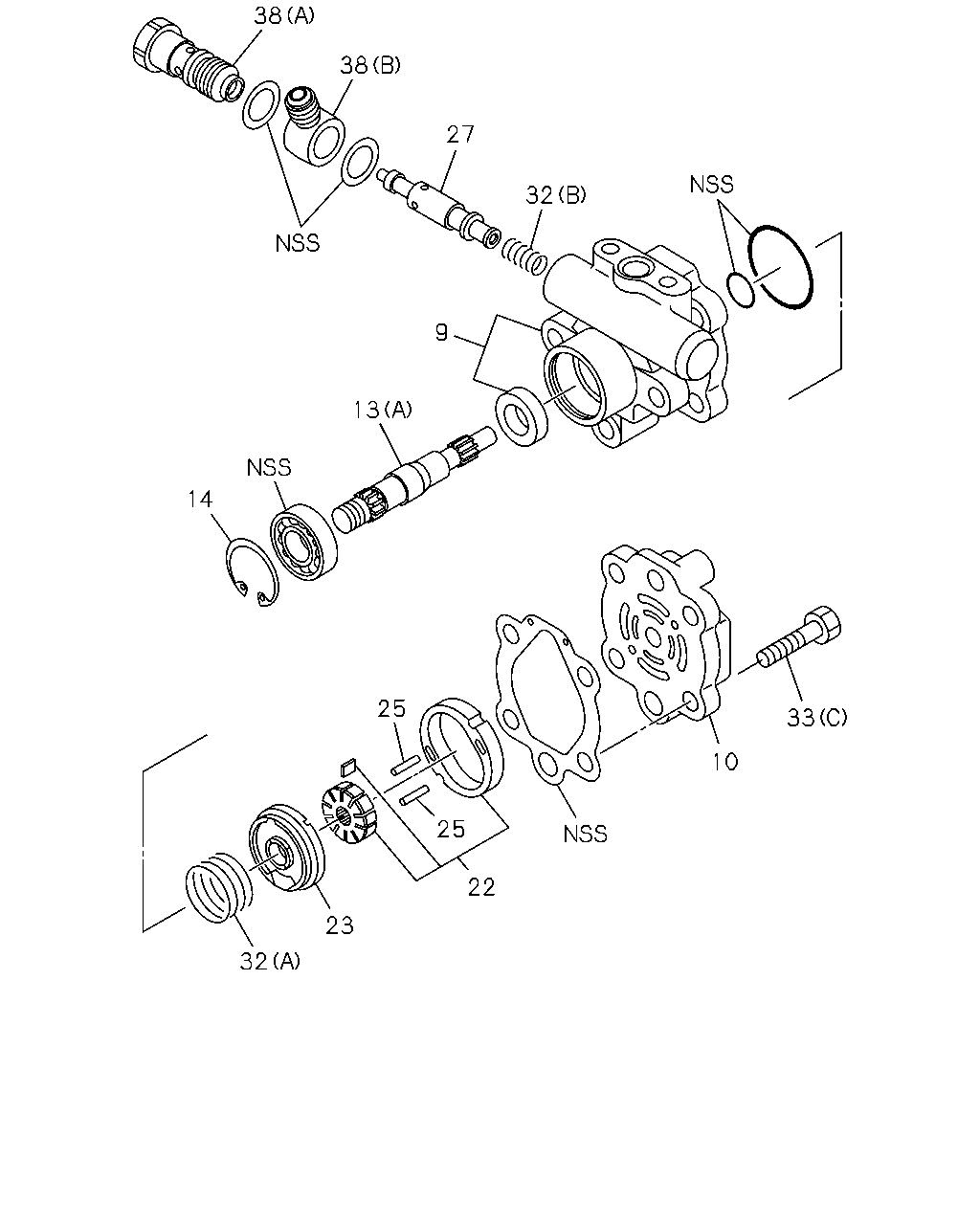

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97357-214-0, 97357214	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614, (B) ASM PART: A = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET (C) ASM PART: F = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97313-095-0	01	1	-0501
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97357-499-0	01	1	0502-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1208
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1209-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: F = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: E = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (F) ASM PART: F = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: F = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

38 38 27 32 9 13 14 10 33 25 25 22

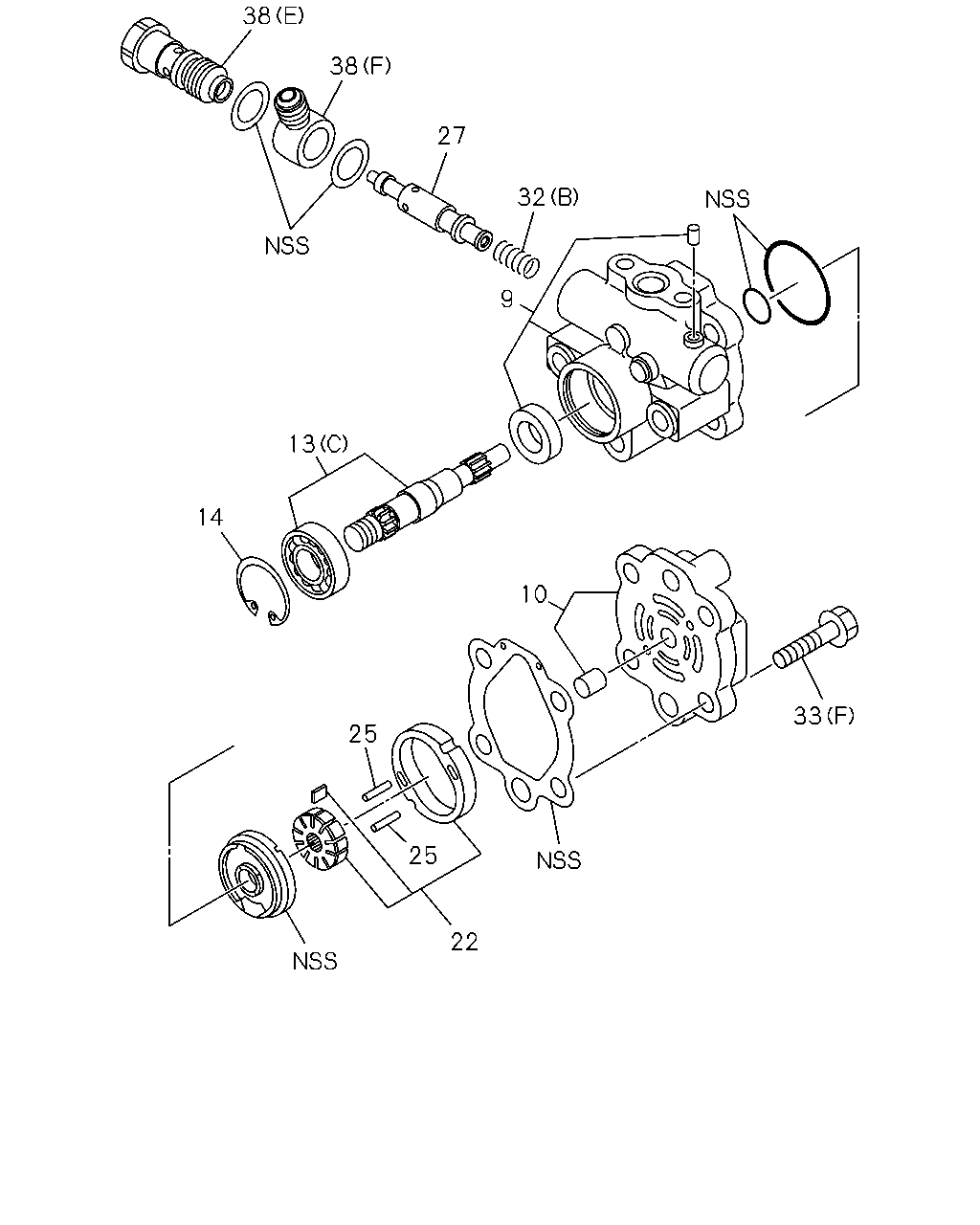

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97357-214-0, 97357214	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614, (B) ASM PART: A = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET (C) ASM PART: F = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97313-095-0	01	1	-0501
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97357-499-0	01	1	0502-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1208
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1209-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: F = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: E = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (F) ASM PART: F = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: F = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

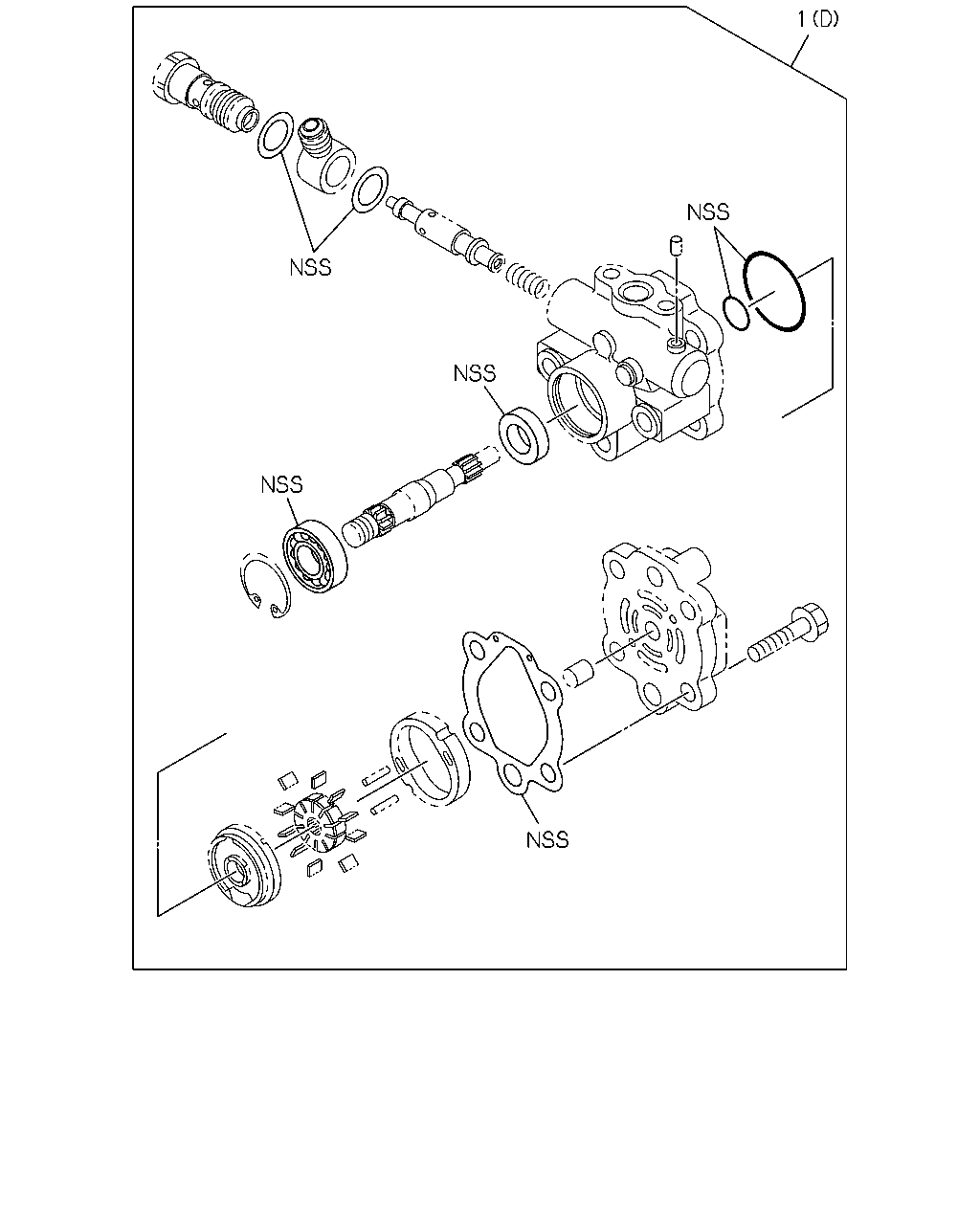

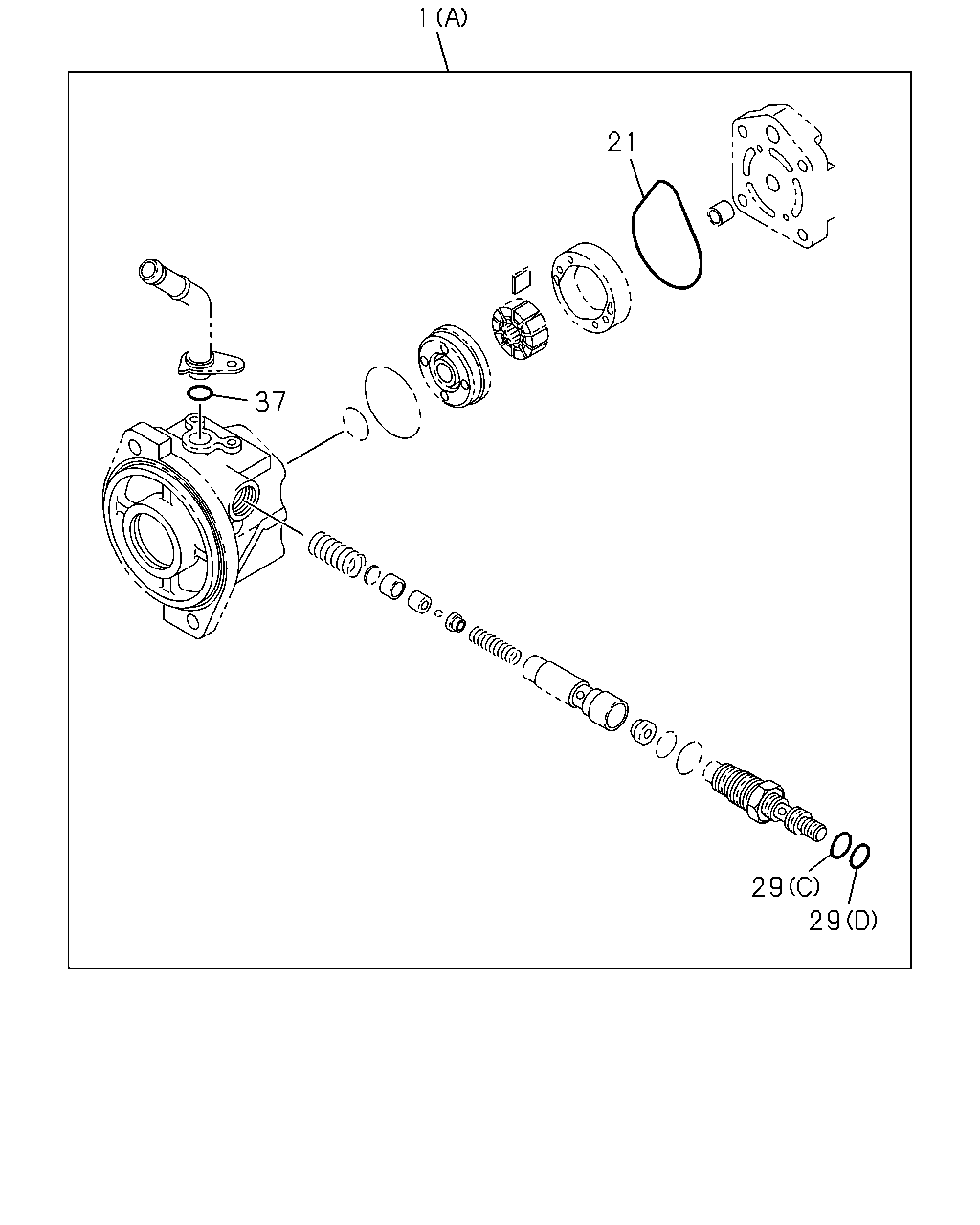

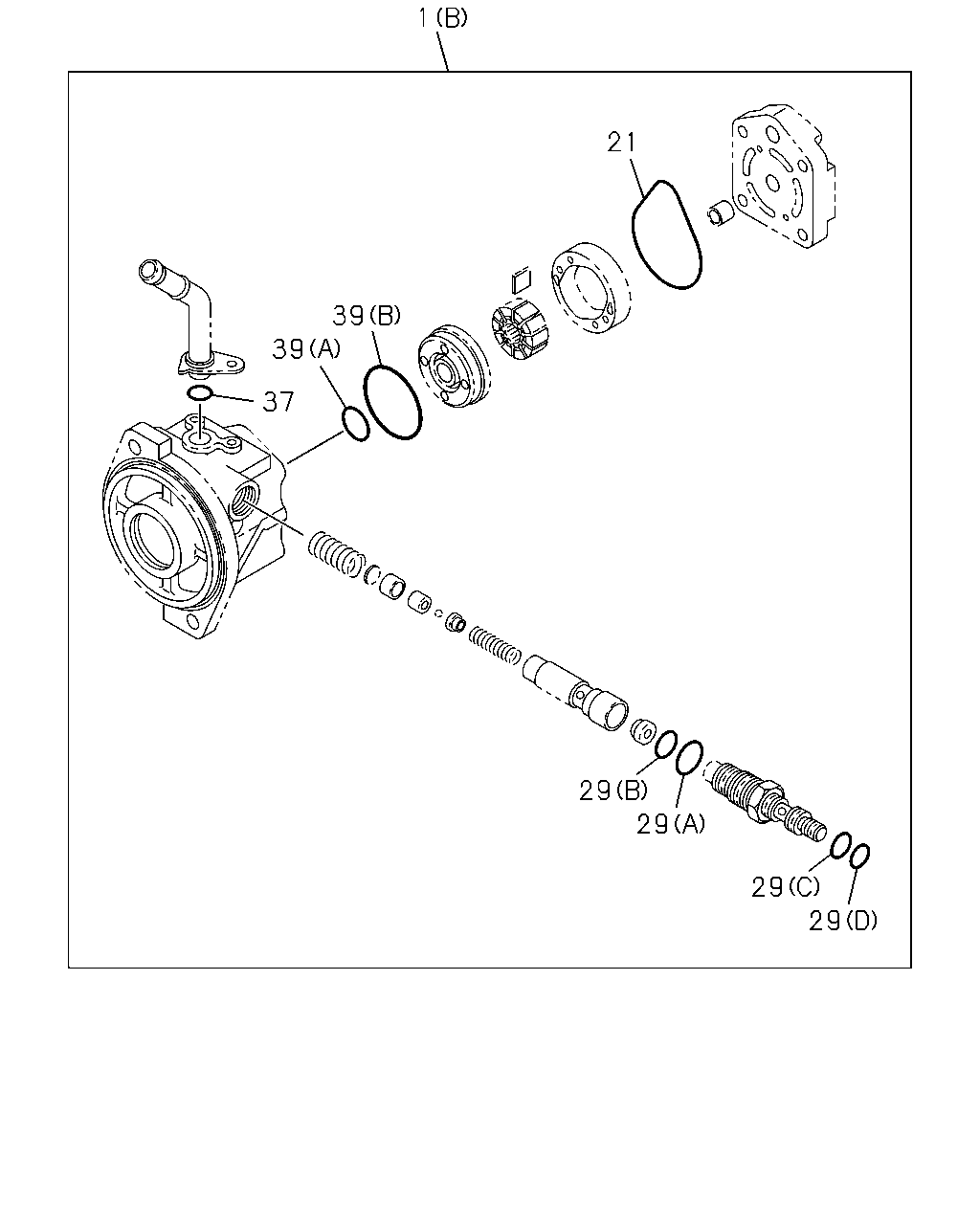

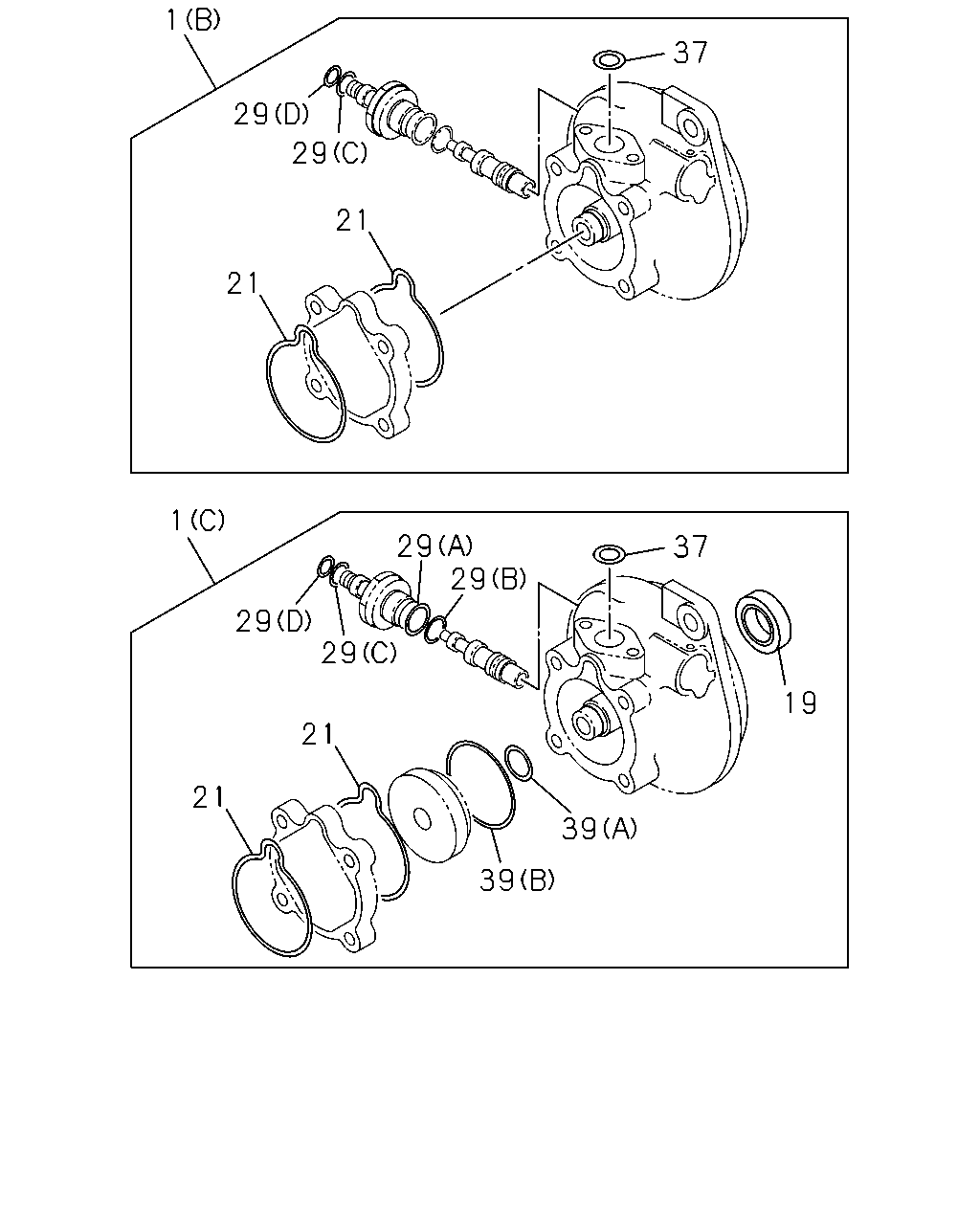

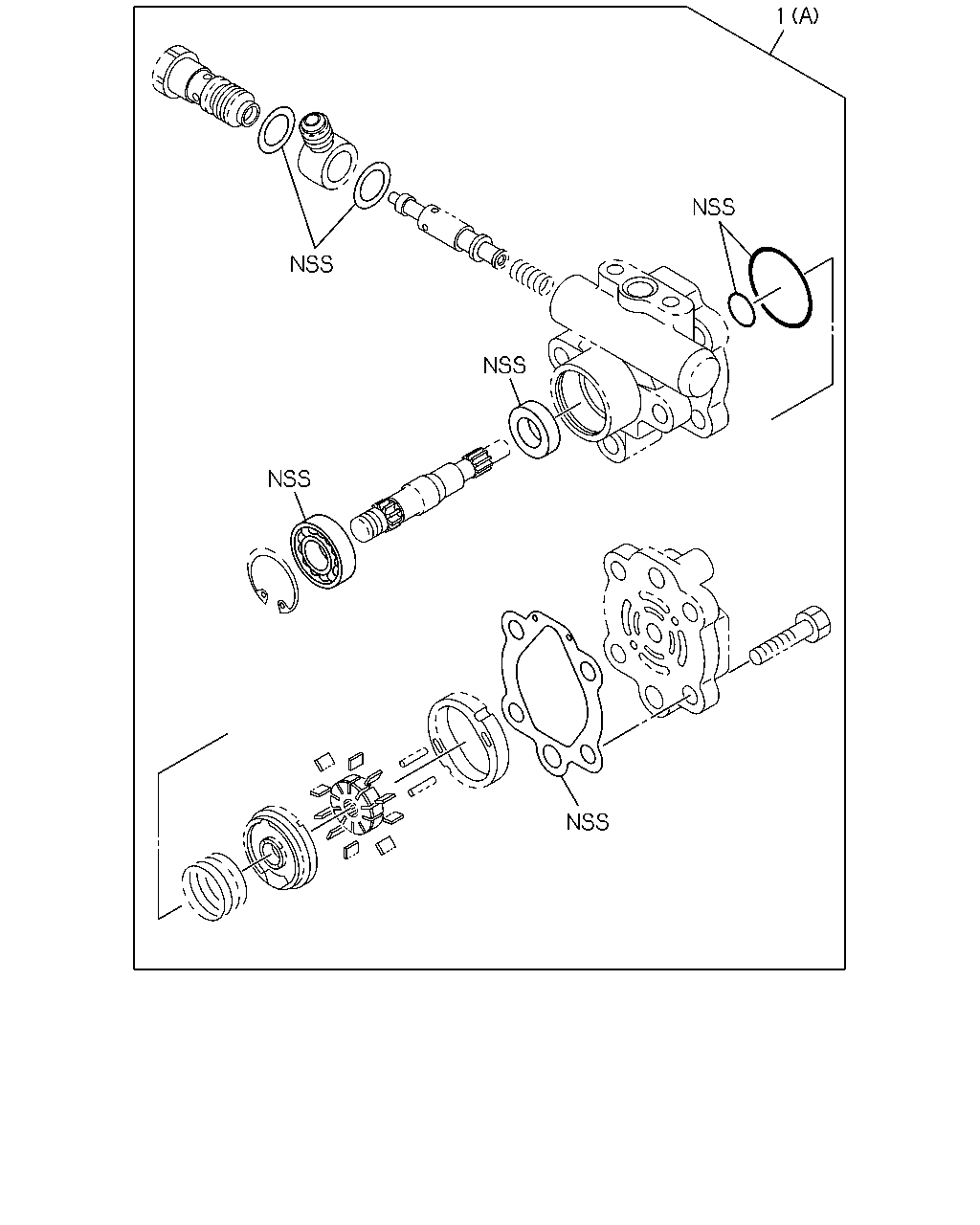

1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: D = 8-97388-650-1, 97388650	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-97388-650-1, 97388650	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: E = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: E = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (D) ASM PART: F = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

35 29 36 29 29 38 37 29 27 32 39 19 39 23 22 25 9 10 5 7 33 16 15 21 8 13 21 33 9

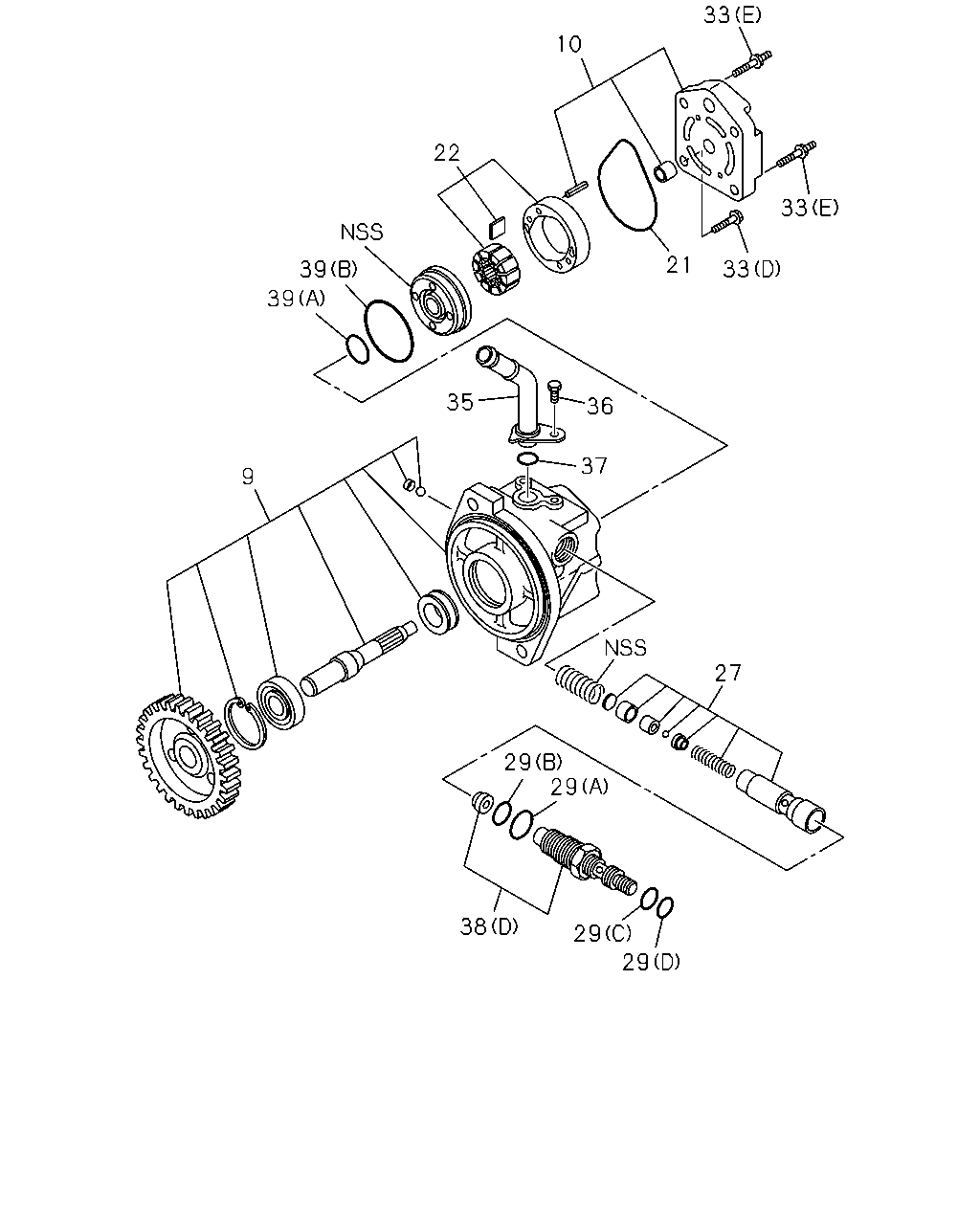

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-780-0	01	1	-
7	06.635 WASHER; SHAFT ASM PART: A = 8-97136-573-1, 97136573	8-97029-779-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-778-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97357-214-0, 97357214	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614, (B) ASM PART: A = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET (C) ASM PART: F = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: E = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97313-095-0	01	1	-0501
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97357-499-0	01	1	0502-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1208
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1209-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730, F = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: F = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: E = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97091-932-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: E = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97357-781-0	01	1	0502-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (F) ASM PART: F = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: F = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

1 37 29 29 21 21 1 29 29 37 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: D = 8-97388-650-1, 97388650	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-97388-650-1, 97388650	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: E = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: E = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (D) ASM PART: F = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: E = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97357-781-0	01	1	0502-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

33 10 22 33 21 33 39 39 35 36 37 9 27 29 29 38 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97357-214-0, 97357214	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: E = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97313-095-0	01	1	-0501
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97357-499-0	01	1	0502-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1208
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1209-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-586-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: F = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: F = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: E = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97091-932-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: E = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97357-781-0	01	1	0502-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (F) ASM PART: F = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: F = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: D = 8-97388-650-1, 97388650	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-97388-650-1, 97388650	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: E = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: E = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (D) ASM PART: F = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

1 21 39 39 37 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: D = 8-97388-650-1, 97388650	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-97388-650-1, 97388650	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: E = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: E = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (D) ASM PART: F = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: E = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97357-781-0	01	1	0502-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

1 21 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: D = 8-97388-650-1, 97388650	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-97388-650-1, 97388650	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: E = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: E = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (D) ASM PART: F = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: E = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214, D = 8-97388-650-1, 97388650, E = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, 97136573, C = 8-97357-214-0, 97357214	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: E = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-97388-650-1, 97388650	8-97357-781-0	01	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
