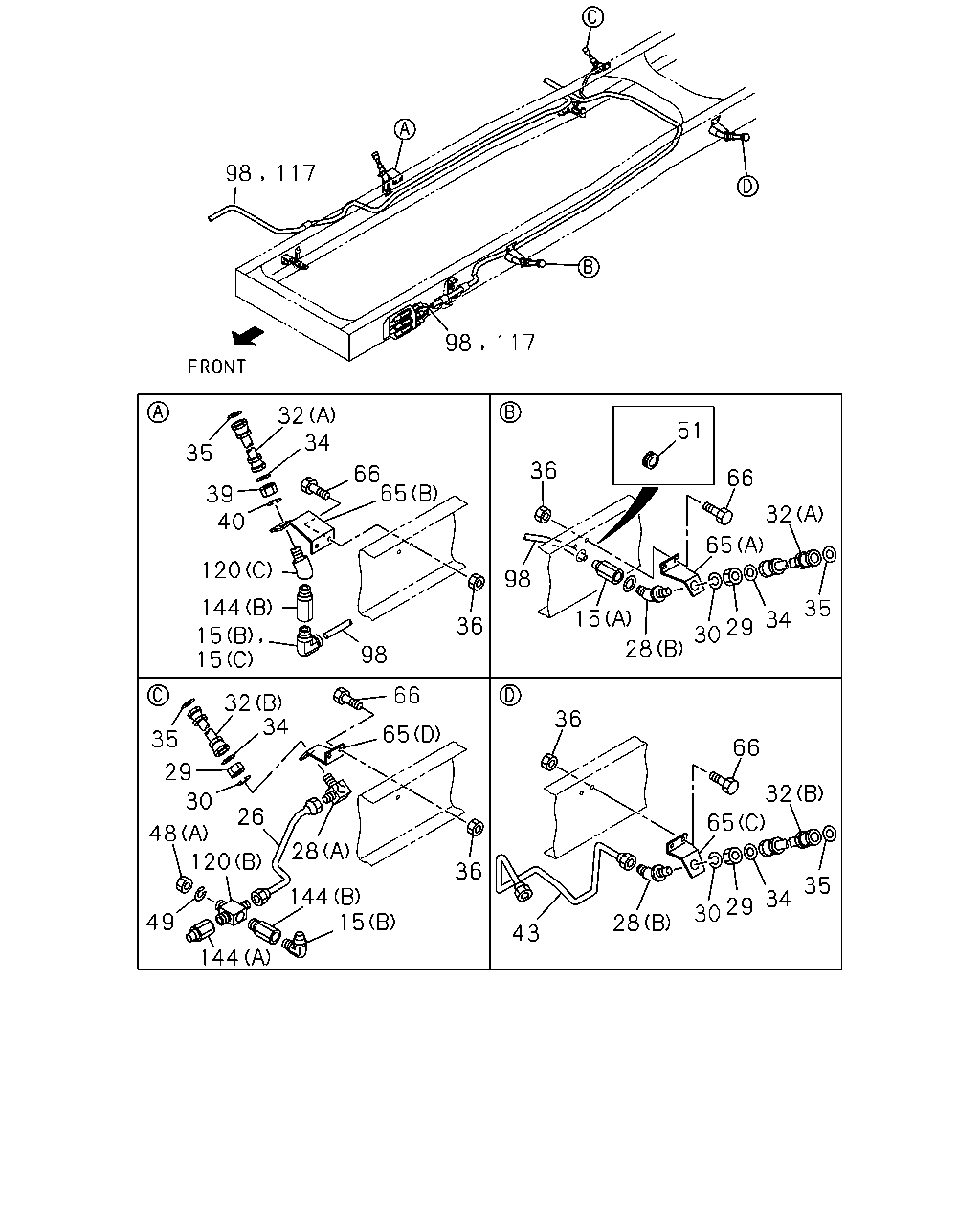

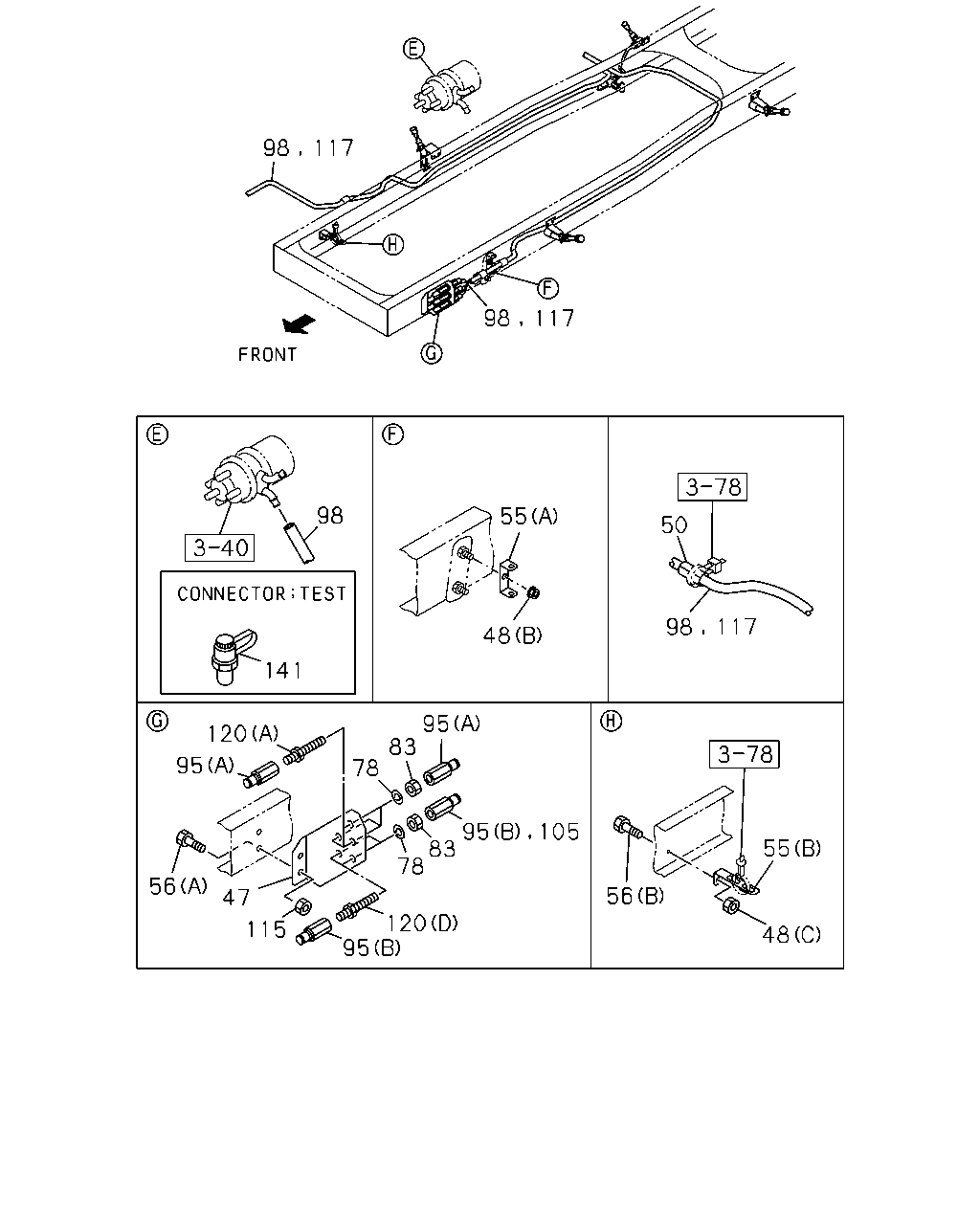

3-75 — BRAKE PIPING; AIR,FRONT (#5108) — 164 parça

98 117 98 117 32 34 51 35 36 66 65 66 39 40 32 65 120 98 144 15 15 35 15 34 36 29 30 28 98 66 32 34 36 65 35 66 29 32 30 26 65 48 28 120 36 35 144 15 34 29 30 49 28 43 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9606-9905
15	CONNECTOR; AIR PIPE (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9906-9907
15	CONNECTOR; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
15	CONNECTOR; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
15	CONNECTOR; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9907
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-0010
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0011-
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0011-
26	PIPE; AIR,UNION TO FLEX HOSE	1-49117-318-0	01	1	9606-
28	NIPPLE; AIR PIPE (A)	1-09654-119-1	01	1	9606-
28	NIPPLE; AIR PIPE (B) M16	1-09654-174-1	02	1	9606-
29	NUT; NIPPLE M20	9-99111-420-0	03	1	9606-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	9606-
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	9606-
32	HOSE; FLEX,FRT (B) L=630	0-07847-630-1	02	1	9606-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9606-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9606-
36	NUT; HOSE BRKT M8	9-09110-408-0	08	1	9606-9606
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	9607-
39	NUT; PIPE UNION M20	9-99111-420-0	01	1	9606-
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9606-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE	1-49117-440-0	01	1	9606-9702
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=650 SERVICED BY L=660	1-47426-409-0	01	1	9703-9905
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. BRAKE REGULATION HONG KONG<TCZ> L=650 SERVICED BY L=660	1-47426-409-0	01	1	9906-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE REGULATION HONG KONG<TCZ>	1-49121-884-0	01	1	9906-0003
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE REGULATION HONG KONG<TCZ> EXC. MIXER TRUCK<RA2>	1-49121-884-0	01	1	0004-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE REGULATION HONG KONG<TCZ> EXC. ZF M/T<X9E>	1-49121-884-0	01	1	0004-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE MIXER TRUCK<RA2> BRAKE REGULATION HONG KONG<TCZ> ZF M/T<X9E>	1-49122-468-0	01	1	0004-
48	NUT; UNION BRKT (A) M12	9-99111-412-0	01	1	9606-
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	9611-
48	NUT; UNION BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9702-
49	WASHER; LK,UNION BRKT ID=12.2	9-09150-512-0	01	1	9606-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=22	1-09332-104-0	01	1	9606-
51	GROMMET; NYLON TUBE ID=28 OD=35 T=17	9-09956-256-1	02	1	9606-9606
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	01	1	9607-
65	BRACKET; FLEX HOSE (C)	1-47465-377-0	01	1	9606-
65	BRACKET; FLEX HOSE (A)	1-47477-770-0	01	1	9606-
65	BRACKET; FLEX HOSE (D)	1-47477-365-0	01	1	9606-
65	BRACKET; FLEX HOSE (B)	1-47477-524-0	01	1	9606-
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	06	1	9606-9606
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	06	1	9607-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
66	BOLT; HOSE BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9705-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9709-
120	UNION; AIR PIPE (C) M16	1-09654-174-1	01	1	9606-
120	UNION; AIR PIPE (B) M16	9-09238-310-1	01	1	9606-
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	03	1	9606-9905
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9906-9906
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	03	1	9907-
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (D) M16 L=74	9-09233-310-1	02	1	9606-9905
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	9-09233-310-1	02	1	9906-9906
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	02	1	9907-
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	01	1	9606-9905
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	9906-
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (D) M16 L=74	9-09233-310-1	01	1	9606-9905
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	01	1	9906-
144	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9907
144	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9908-0007
144	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9606-0010
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0011-
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0011-

98 117 98 117 98 55 50 98 117 48 141 95 83 120 95 78 95 105 83 78 55 56 56 47 120 95 115 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	BRACKET; PIPE UNION	1-47477-601-2	01	1	9606-
48	NUT; UNION BRKT (A) M12	9-99111-412-0	01	1	9606-
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	9611-
48	NUT; UNION BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9702-
50	SLEEVE; RUBBER,NYLON TUBE ID=32 OD=36 L=50	1-09337-023-0	01	1	0011-
55	BRACKET; TUBE UNION (A)	1-47477-895-1	01	1	9611-
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	01	1	9702-9905
55	BRACKET; TUBE UNION (B) L=60 H=30	1-47477-716-1	01	1	9906-
56	BOLT; UNION BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9606-9606
56	BOLT; UNION BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9702-
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5) ID=14.2	9-09150-514-0	03	1	9606-9905
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=14.2	9-09150-514-0	03	1	9906-9906
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> ID=14.2	9-09150-514-0	03	1	9907-
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5) ID=16.2	9-09150-516-0	02	1	9606-9905
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=16.2	9-09150-516-0	02	1	9906-9906
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	02	1	9907-
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) ID=14.2	9-09150-514-0	01	1	9606-9905
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	9-09150-514-0	01	1	9906-
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) ID=16.2	9-09150-516-0	01	1	9606-9905
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	01	1	9906-
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5) M14	9-99111-414-0	03	1	9606-9905
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M14	9-99111-414-0	03	1	9906-9906
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	03	1	9907-
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5) M16	9-99111-416-0	02	1	9606-9905
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M16	9-99111-416-0	02	1	9906-9906
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	02	1	9907-
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M14	9-99111-414-0	01	1	9606-9905
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	01	1	9906-
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M16	9-99111-416-0	01	1	9606-9905
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	01	1	9906-
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	9606-9905
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9906-9906
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9907-0007
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0008-
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	9606-9905
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9906-9906
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9907-0007
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9606-9905
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9906-0007
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9606-9905
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9906-0007
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9606-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9606-
105	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
105	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
105	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
115	NUT; TUBE UNION M10	9-09110-410-0	02	1	9606-9606
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9606-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9705-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9709-
120	UNION; AIR PIPE (C) M16	1-09654-174-1	01	1	9606-
120	UNION; AIR PIPE (B) M16	9-09238-310-1	01	1	9606-
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	03	1	9606-9905
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9906-9906
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	03	1	9907-
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (D) M16 L=74	9-09233-310-1	02	1	9606-9905
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	9-09233-310-1	02	1	9906-9906
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	02	1	9907-
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	01	1	9606-9905
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	9906-
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (D) M16 L=74	9-09233-310-1	01	1	9606-9905
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	01	1	9906-
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-013-0	01	1	9606-9701
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-013-0	01	1	9702-9905
141	CONNECTOR; TEST BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV>	1-47459-013-0	01	1	9906-
